Cozzia CZ-640 Manuel utilisateur

CZ-640

Installation Instructions

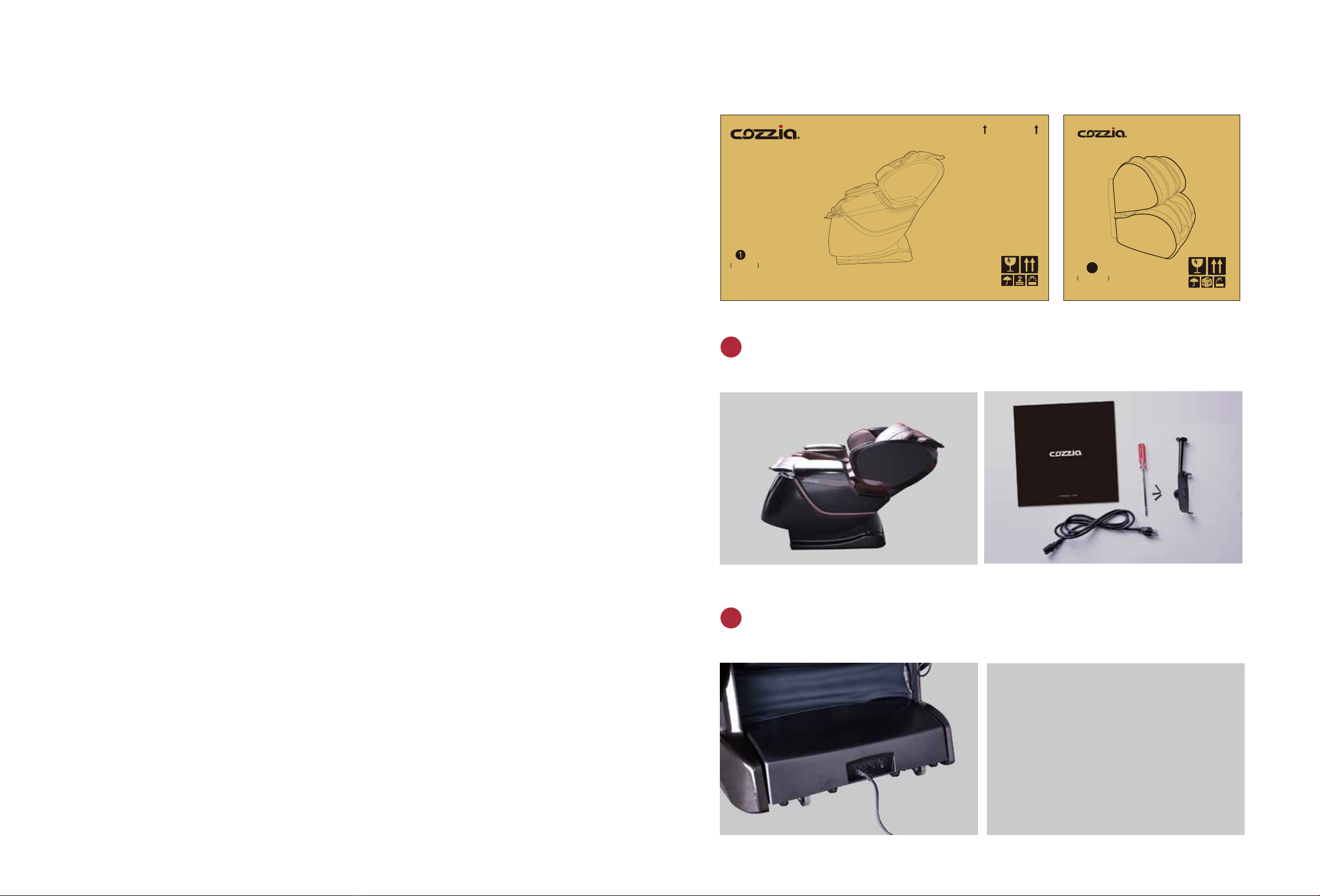

CZ-640 massage chair arrives in two boxes.

Open box 1 and remove the packing materials. Take the chair out of the box. Collect all the accessories

and put them aside.

Adjust the chair position. Use the power cord to connect the chair to a power supply and turn on the

power switch. The chair will move to the home position. Now disconnect the power cord.

Calibrated Instument

Please Do Not Drop

THIS SIDE UP

Color: ESPRESSO & Midnight

Box 1 of 2

Base &

Backrest

Calibrated Instument

Please Do Not Drop

BOX 2OF 2

Footrest

Color:

Espresso &

Midnight

Connect wires in footrest. Connect both footrest wire connectors and screw the caps tight. Then connect the

air hose.

Caution: After the wire connectors have been connected the cap must be screwed tight.

Here is what the four pin connectors look like.

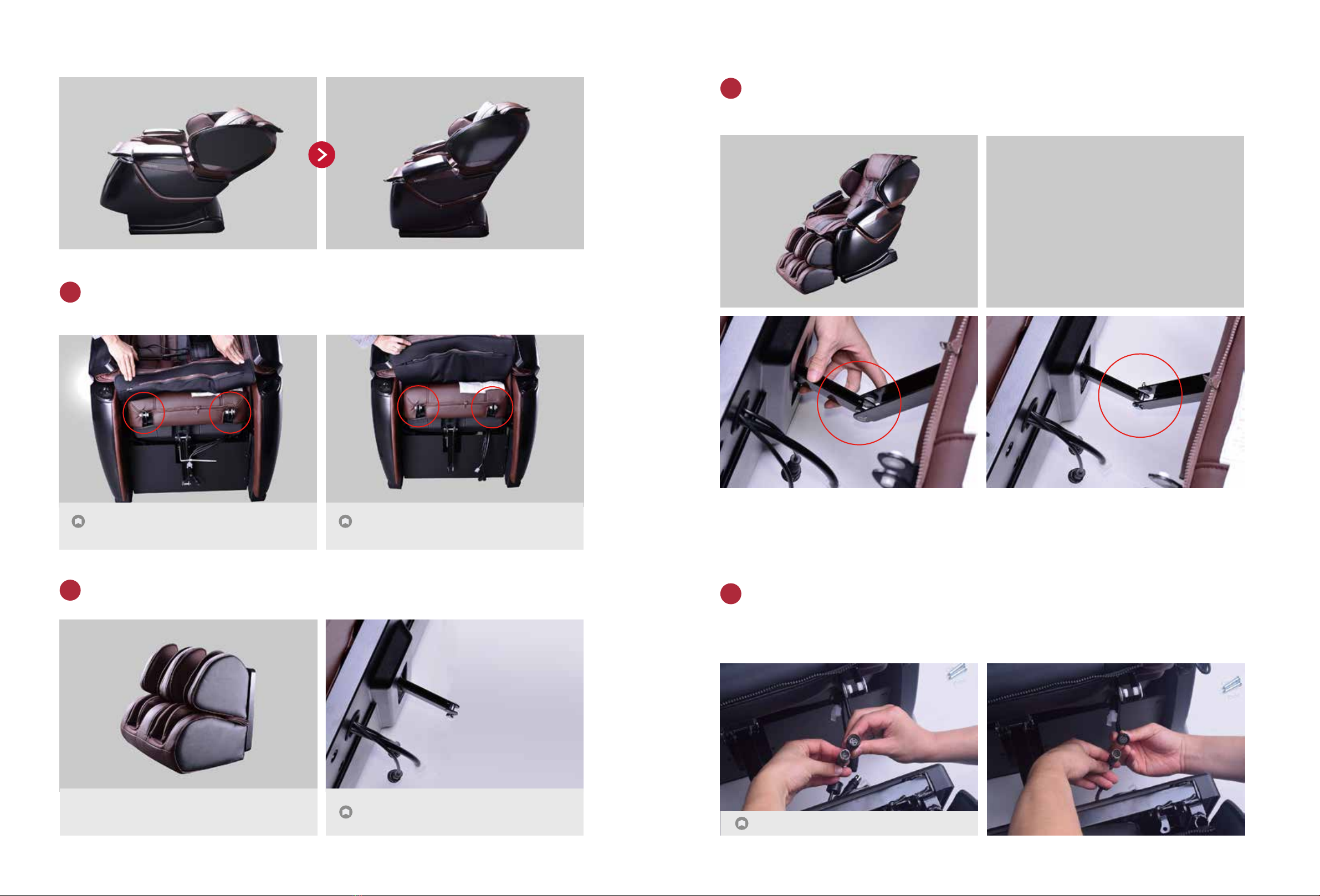

Remove the cotter pins and bolts from the chair base. Locate the two cotter pins and bolts on the

chair base. Locate the cotter pin and bolt on the link rod. Put them oﬀ and put them aside.

Here is what it will look like after the cotter pins and bolts

have been removed.

Here are the cotter pins and bolts.

Open box 3 with footrest. Take out footrest and remove the cotter pin and bolt and put aside.

Here is where the cotter pin and bolt are located.

Connect footrest to base. Move the footrest close to the chair. Engage the link rod with the footrest joint,

then insert the bolt and lock with the cotter pin.

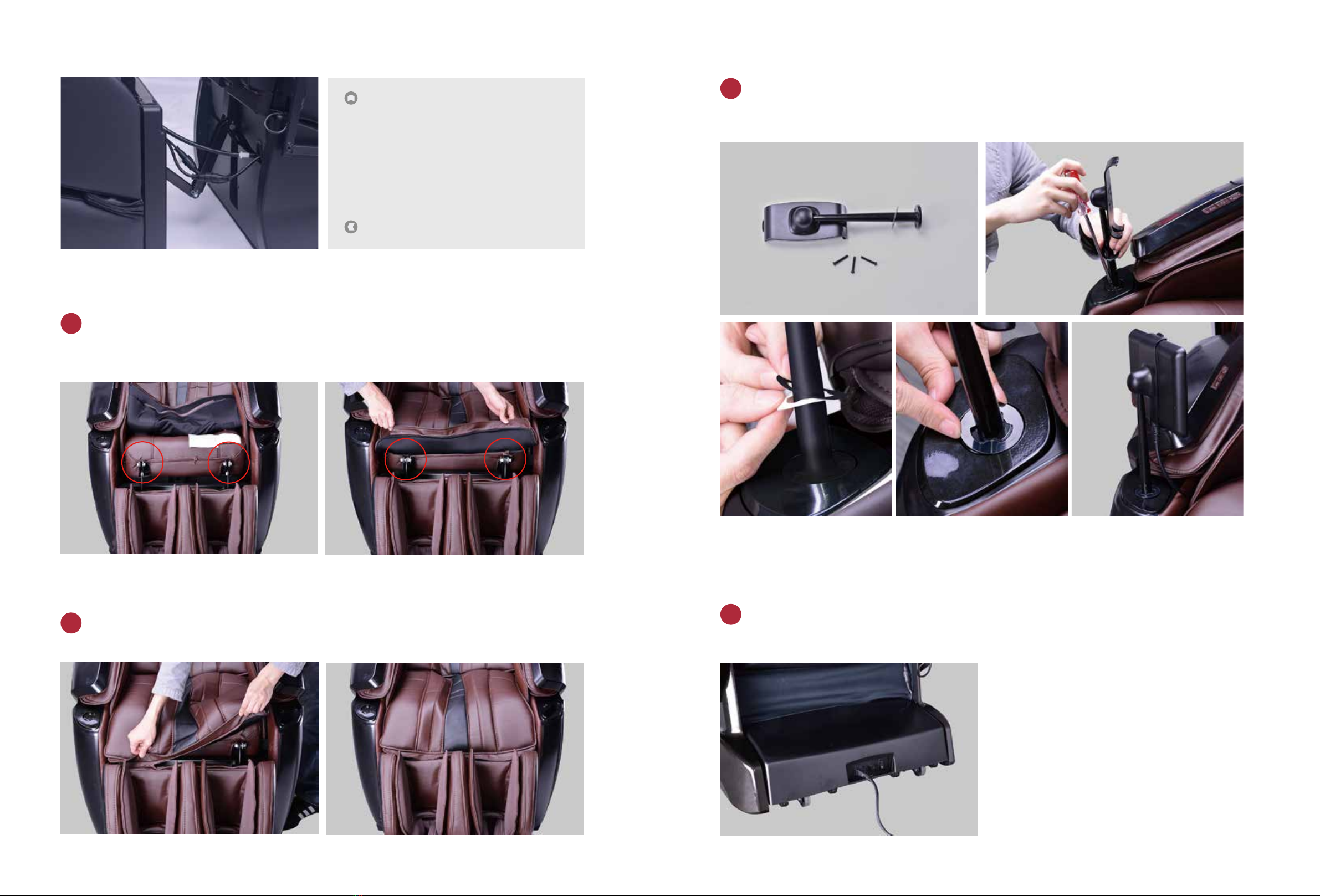

Attach the remote control holder. First, secure the holder with the 3 screw nuts, Next, tear the adhesive

of the ﬁlm and stick to the slot shown in the picture below. Then place the touch pad into the holder.

Turn on the chair. Connect the chair to a power supply and turn on the power switch. The chair will now be

ready to start.

Here is what is should look like with all wires connected.

Here is what the eight pin connectors look like.

Fully connect the footrest to the base. Move the footrest closer to the chair. Engage the joints of the footrest and

base. Lift footrest up to align the holes on the joints, then insert the bolt and lock it with cotter pin (that you had set aside).

Zip the zipper between the seat pad and footrest cushion.
