Cosmo COS-63175S Guide de dépannage
INSTALLATION GUIDE &USER MANUAL
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following Important information redarding installation
safety and maintenance. Keep these instruction for future reference.
I N S P I R I N G T H E W O R L D ’ S K I T C H E N
WALL MOUNT
RANGE HOOD
COS-63175
COS-63190
COS-63175S
COS-63190S
COS-668A750
COS-668A900
COS-668AS750
COS-668AS900
COS-668WRC75
COS-668WRC90
COS-668WRCS75
COS-668WRCS90
COS-6324EWH
1 2
THANK YOU FOR YOUR PURCHASE
Thank you for your purchase. We know that you have many brands and
products to choose from and we are honored to know that you have decided
to take one of our products into your home and hope that you enjoy it.
COSMO appliances are designed according to the strictest safety and performance
standard for the North American market. We follow the most advanced
manufacturing philosophy. Each appliance leaves the factory after thorough
quality inspection and testing. Our distributors and our service partners are
ready to answer any questions you may have regarding how to install, use and
care for your products. We hope that this manual will help you learn to use the
product in the safest and most effective manner.
If you have any questions or concerns, please contact the dealer from whom you
purchased it, or contact our Customer Support at:
1-888-784-3108.
Warranty and Service ...........................................................65-66
Cooking Instructions............................................................55
Care and Cleaning.............................................................56
Solutions to Common Problems ......................60
Care and Cleaning.............................................................56
Solutions to Common Problems ......................60

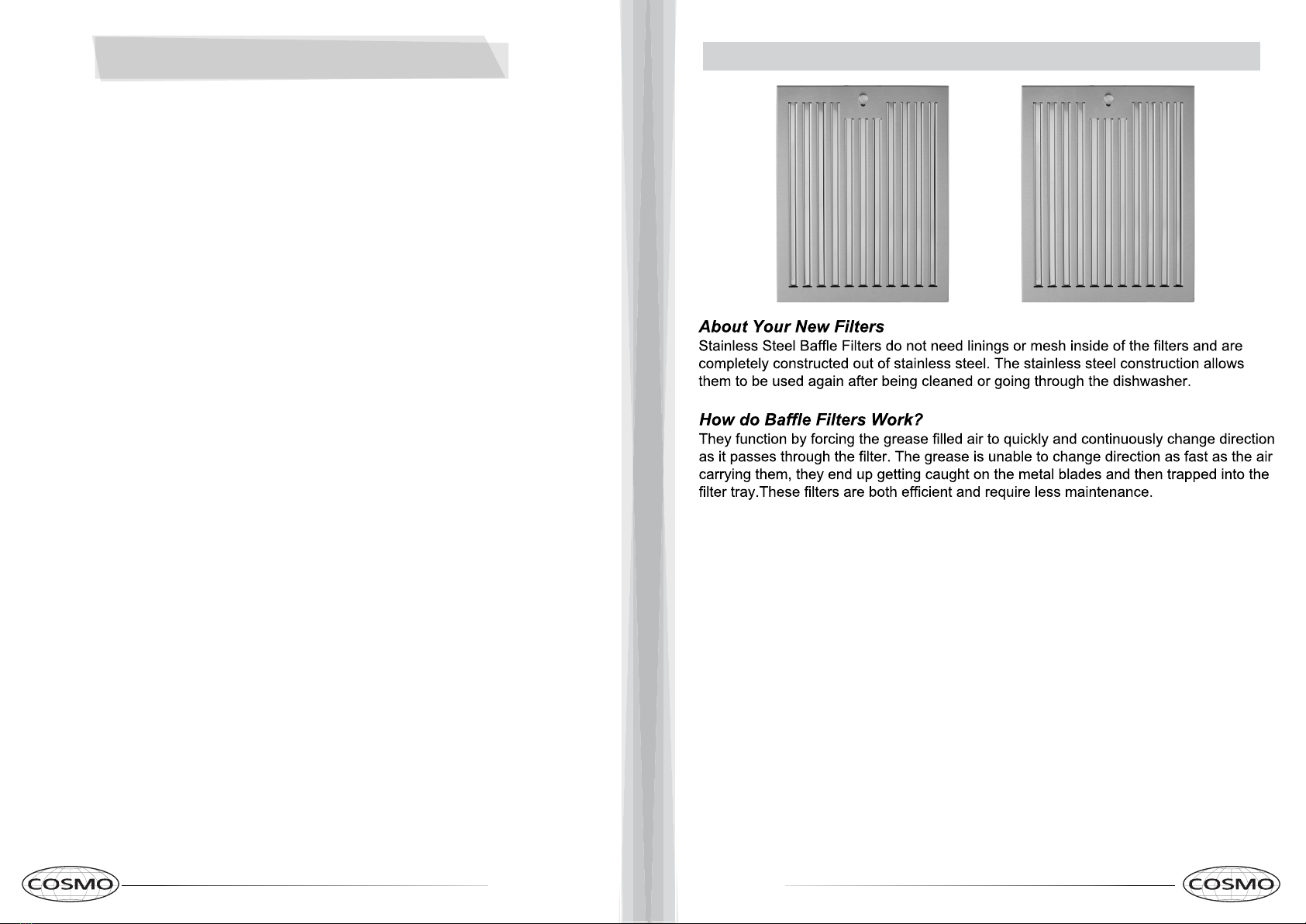

STAINLESS STEEL BAFFLE FILTERS
SEE PAGE 16 FOR INSRUCTIONS ON INSTALLATION FILTERS
34
Safety Instructions .........................................................................3
Dimension/Parts Diagrams .....................................................5-9
Installation Requirements .........................................................10
Parts List ..........................................................................................11
Range Hood Installation .......................................................12-14
Baffle Filter Installation ..............................................................15
Recirculation Charcoal Filters ....................................................16
Oil Cup Installation ......................................................................17
Push Button Controls ...................................................................18
Soft Touch Controls .....................................................................19
Maintenance ................................................................................20
Troubleshooting ...........................................................................21
Warranty & Service ..............................................................23-24
TABLE OF CONTENTS
35"
5 6
PARTS DIAGRAM - 631 SERIES
8.25"
30" / 35"
6.75"
19.75"
25.6" - 39.4" (Ducted)
29.85" - 39.4" (Ductless)
1.60"
6.81"
6.89"
11.18"
63175 / 63190 / 63175S / 63190S
63175 / 63190 / 63175S / 63190S
30"
19.75"
DIMENSION DIAGRAM - 631 SERIES
30" / 35"
7 8
12.8"
11.1"
18.5"
30" / 36"
21.5" - 39.2" (Ducted)
25.6 - 39.2" (Ductless)
7"
30"
36"
7"
12.5"
13.6"
668A750 / 668A900 / 668AS750 /668AS900
668WRC75 / 668WRC90 / 668WRCS75 / 668WRCS90
668A750 / 668A900 / 668AS750 / 668AS900
668WRC75 / 668WRC90 / 668WRCS75 / 668WRCS90
DIMENSION DIAGRAM - 668A/WRC SERIES PARTS DIAGRAM - 668A/WRC SERIES
30"
18.5"
36"
18.5"
9 10
INSTALLATION REQUIREMENTS
DIMENSION DIAGRAM - 6324EWH
6.35"
6"
12.87"
14"
6.88"
13.38" 8"
1.67"
22.56" - 34.87"
23.4"
18.9"
BOTTOM VIEW TOP VIEW
BACK VIEW
23.4"
SIDE VIEW
18.9"
23.4"
11 12
PARTS LIST
G.
RANGE HOOD INSTALLATION
13 14
RANGE HOOD INSTALLATION RANGE HOOD INSTALLATION
15 16
BAFFLE FILTER INSTALLATION RECIRCULATING CHARCOAL FILTERS
Step 3: Twist and lock the filter into place.
Step 4: Repeat Steps 2-3 on the left side of the motor.
Step 5: Reinstall the ARC-FLOW Baffle Filters back into place.
NOTE: Chimney vent holes must be open
and visible for the filtered air to
recirculate.
Chimney
vent holes
MOTOR
Step 1: Remove the ARC-FLOW Baffle Filters.
Step 2: Locate the motor (pictured below) and align one of the filters with the right side of the motor.
It is recommended that the charcoal filter be replaced every 4-6 months. Charcoal filter replacements
are available for purchase at: www.cosmoappliances.com.Charcoal Filter Kit Part# CFK1-TM
SCAN QR CODE
FOR INSTALLATION
VIDEO
17 18
OIL CUP INSTALLATION PUSH BUTTON CONTROLS
COMPATIBLE WITH MODEL COS-6324EWH
