Cosmic Byte CosmoBuds X100 Manuel utilisateur
User Manual
TRUE WIRELESS GAMING EARBUDS
CosmoBuds
X100
40 HOURS
PLAYBACK TIME
FUTURISTIC
MECHANICAL
DESIGN
38 MS
ULTRA-LOW
LATENCY
EASY TOUCH
CONTROL
BATTERY DISPLAY
HIGH DEFINITION
AUDIO
BLUETOOTH
5.3
GOD MODE
MUSIC MODE
TM
INSTANT
PAIRING
IPX5
SWEAT &
WATERPROOF
TOUCH
CONTROLS
VOICE
ASSISTANT
ENC
MICROPHONE
IPX5
SPECIFICATIONS
V5.3
38 ms under game mode
10mm
20Hz-20Khz
98dB
Up to 7 hours per charge
(at 70% volume)
Up to 1O hours per charge
(at 50% volume)
up to 7 hours
100 days
10m
40 mAh
400 mAh
About 1.5 hours
Type-C
15 min = 100 min playtime
Bluetooth Version
Low latency
Driver size
Frequency Response
SNR
Music playtime
Talk time
Standby time
Transmission Range
Battery Earbuds
Charging case
Charging time
Charging interface
Fast Charging
CHARGING CABLE
CHARGING CASE
USER MANUAL
User Manual
TRUE WIRELESS GAMING EARBUDS
CosmoBuds
X100
EARTIPS X 3 PAIRS
TOUCH BUTTON
LED INDICATOR
PACKAGE CONTENTS
CHARGING
HOW TO CHARGE THE COSMOBUDS X100
CHARGING CASE
During use if the LED light on the TWS ashes with voice reminder
"Battery Level Low", it indicates that the TWS battery level is low.
To charge place the earbuds into the charging case.
The LED on the earbuds will turn on indicating that the earbuds are charging.
Once the earbuds are charged the LED on it will turn o.
To charge the case plug it to a 5V/1A charger using the included Type C Cable.
Once the indicator on the charging case Displays 100% charge you can discon-
nect the charger.
5V / 40 MA (EARBUDS)
5V / 400 MA (CHARGING CASE)

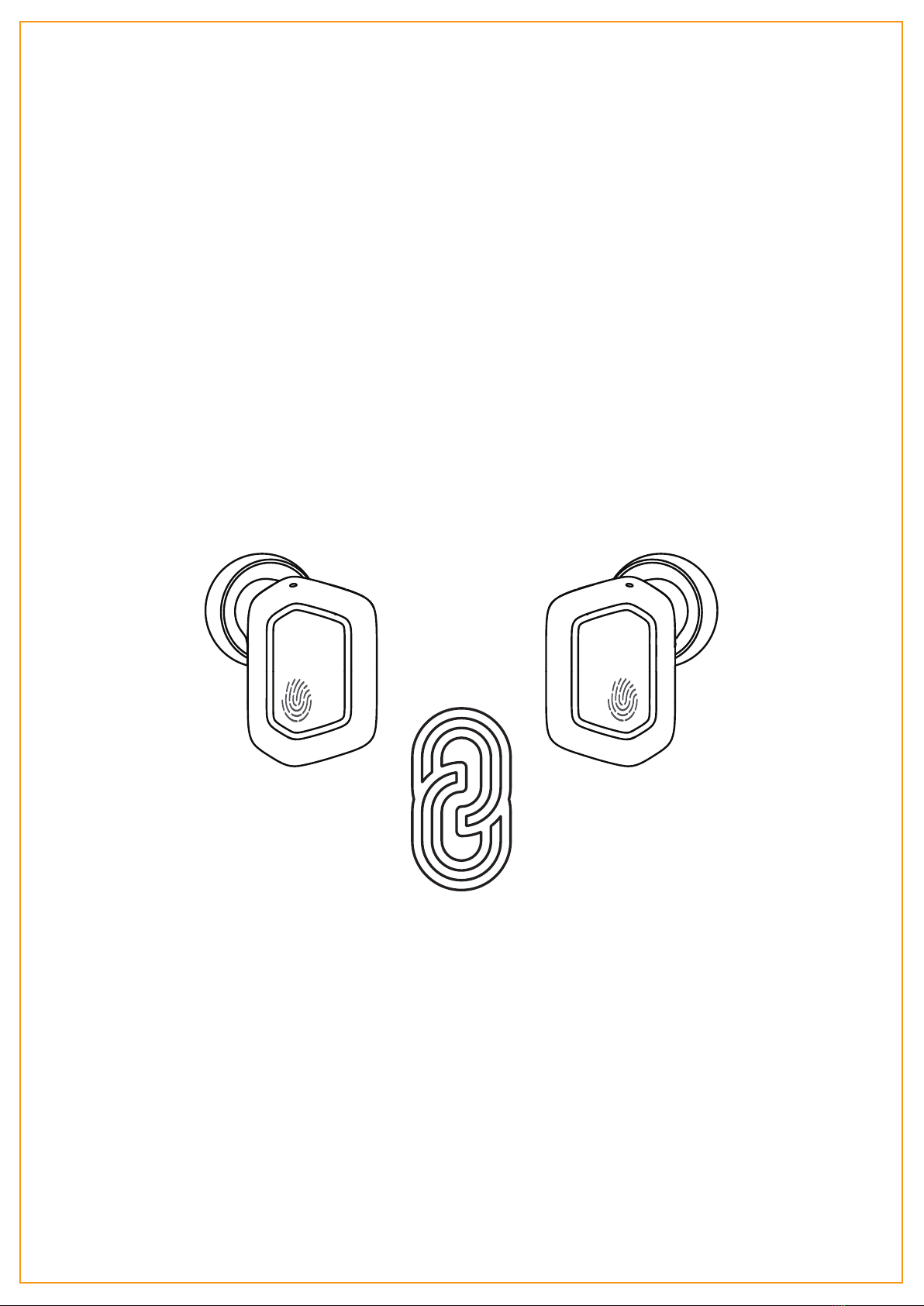

PAIRING
A) FIRST TIME USER- SMART POWER ON
a. Once you remove the earbuds from the charging case, they will
automatically enter pairing mode.
b. Visit your mobile Bluetooth settings, New Device and connect to
“CosmoBuds X100”
c. The CosmoBuds X100 will automatically pair with your mobile and is ready
for use.
B) MANUAL PAIRING- MANUAL POWER ON
a. Long pinch the touch buttons on both the earbuds simultaneously until the
LED lights on the earbuds start to ash.
b. The earbuds will connect to each other and enter pairing mode.
c. Visit your mobile Bluetooth settings, New Device and connect to
“CosmoBuds X100”
d. The CosmoBuds X100 will automatically pair with your mobile and is ready
for use.
The CosmoBuds X100 feature instant on and pairing feature. Once you have con-
nected the Earbuds to your device it will automatically connect to your mobile
device as soon as you remove it from the case.
NOTE:
Pairing mode lasts for 5 minutes. If the pairing time is missed, then you will need
to reconnect the earbuds and follow the above-mentioned procedure.
X100 remembers previously connected devices; once switched on, the earbuds
automatically reconnect to the previously connected device.
PAIRING THE X100 TO YOUR BLUETOOTH
DEVICE
INSTANT ON AND PAIR (IOP™)
Simply place the X100 into the charging case in correct orientation, they will
switch o automatically and enter charging mode.
Long pinch the touch button on either earbud for ve seconds to manually switch
o the X100.
Please note that both the earbuds can be used in mono mode.
Step 1: Use either of the two options; Smart Power On or Manual Power On for
switching on the desired earbud
Step 2: The selected earbud will automatically enter the connection mode.
Step 3: Turn on Bluetooth on your phone/media device and search for ‘Cosmo
Buds X100’ to connect.
NOTE:
To switch to Stereo mode, simply take out the other earbud from the case. It will
automatically power on and pair with the previously selected earbud, enabling
Stereo usage.
A) FIRST TIME USER- SMART POWER ON
a. Once you remove the earbuds from the charging case, they will
automatically enter pairing mode.
b. Visit your mobile Bluetooth settings, New Device and connect to
“CosmoBuds X100”
c. The CosmoBuds X100 will automatically pair with your mobile and is ready
for use.
B) MANUAL PAIRING- MANUAL POWER ON
a. Long pinch the touch buttons on both the earbuds simultaneously until the
LED lights on the earbuds start to ash.
b. The earbuds will connect to each other and enter pairing mode.
c. Visit your mobile Bluetooth settings, New Device and connect to
“CosmoBuds X100”
d. The CosmoBuds X100 will automatically pair with your mobile and is ready
for use.
USING SINGLE EARBUD ONLY
SMART POWER OFF
MANUAL POWER OFF
Please note that both the earbuds can be used in mono mode.
Step 1: Use either of the two options; Smart Power On or Manual Power On for
switching on the desired earbud
Step 2: The selected earbud will automatically enter the connection mode.
Step 3: Turn on Bluetooth on your phone/media device and search for ‘Cosmo
Buds X100’ to connect.
NOTE:
To switch to Stereo mode, simply take out the other earbud from the case. It will
automatically power on and pair with the previously selected earbud, enabling
Stereo usage.
TOUCH
FUNCTIONS
