INSTALLATION INSTRUCTIONS
AND
OPERATION MANUAL
SGH Series 380V/400V/415V
UL325-2010 Compliant
Commercial and Industrial Door Operator
Logic Control
Continuous Duty
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
1
CONTENTS
IMPORTANT INSTALLATION INSTRUCTIONS ................................................................................. 2
SPECIFICATIONS ............................................................................................................................... 3
TYPES AND SIZES OF DOORS ......................................................................................................... 4
INSTALLATION INSTRUCTIONS ....................................................................................................... 4
OPERATOR MOUNTING POSITIONS (for 1/2hp and 3/4hp) ....................................................... 4
OPERATOR MOUNTING POSITIONS (for 1hp, 1½hp and 2hp) .................................................. 4
OPERATOR MOUNTING ............................................................................................................. 5
DRIVE CHAIN ADJUSTMENT ...................................................................................................... 6
HAND CHAIN ADJUSTMENT ....................................................................................................... 6
WIRING INSTRUCTIONS .................................................................................................................... 7
CONTROL WIRING ...................................................................................................................... 8
ENTRAPMENT DEVICES WIRING .............................................................................................. 9
INPUT POWER CONNECTIONS ...................................................................................................... 10
LIMIT SWITCH ADJUSTMENT ......................................................................................................... 11
CONTROL SETTINGS ...................................................................................................................... 12
CONTROL FUNCTION ............................................................................................................... 12
AUXILIARY FUNCTION .............................................................................................................. 13
TIMER INSTRUCTION ............................................................................................................... 14
LCD DISPLAY INSTRUCTION ................................................................................................... 16
LIGHT INDICATION .......................................................................................................................... 17
WIRING DIAGRAMS ......................................................................................................................... 18
TERMINAL CONNECTIONS ...................................................................................................... 22
IMPORTANT SAFETY INSTRUCTIONS ........................................................................................... 23
TESTING ........................................................................................................................................... 24
PUSH BUTTON STATION TESTING ......................................................................................... 24
EMERGENCY MANUAL OPERATION ....................................................................................... 24
MAINTENANCE INSTRUCTIONS ..................................................................................................... 25
APPENDIX 1: Multiple Sensing Devices Connection Instruction ................................................. 26
APPENDIX 2: Control Connections Diagrams ............................................................................... 27
APPENDIX 3: Control Connections Diagrams ............................................................................... 28
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
2
IMPORTANT INSTALLATION INSTRUCTIONS
WARNING – To reduce the risk of death or serious injury to
persons:
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Install only on a properly operating and balanced door. A door that is operating improperly could
cause severe injury. Have qualified service personnel make repairs to cables, spring assemblies,
and other hardware before installing the operator.
3. Remove all pull ropes and remove, or make inoperative, all locks (unless mechanically and/or
electrically interlocked to the power unit) that are connected to the door before installing the
operator.
4. Install the door operator at least 8 feet or more above the floor if the operator has exposed moving
parts. If the operator must be mounted less 8 ft (2.44 m) above the floor, then exposed moving parts
must be protected by covers or guarding. Contact the manufacturer.
5. Do not connect the door operator to the source of power until instructed to do so.
6. Locate the control station: (a) within sight of the door, and (b) at a minimum height of 5 feet above
floors, landings, steps, or any other adjacent walking surface and (c) away from all moving parts of
the door.
7. Install the Entrapment Warning Placard next to the control station in a prominent location.
8. Make sure the available power supply to be connected to the operator is of the same voltage,
frequency, phase and wattage as indicated on the nameplate of the operator.
9. Read and understand the wiring diagram of the operator and the control station (open-close-stop
push button), and any other equipment to be connected to the operator.
10. To avoid damage to the door and operator, make all door locks inoperative. Secure locks in the
unlocked position, or install external electrical interlocks to prevent operation with the locks
engaged.
11. Always disconnect power whenever installing or servicing the door operator or door.
12. All wiring must be permanent and comply with National Electrical Code (NEC) and local code
requirements.
13. Any change in mounting position may result in a change of operator rotation and consequently in a
change of control functions. Consult factory for any changes.
14. If the operator is provided with an auxiliary chain operator, the hand chain must be kept inside the
chain bag when operating electrically.
15. For products having a manual release, instruct the end user on the operation of the manual release.
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
3
SPECIFICATIONS
MOTOR
Duty Cycle: Continuous duty
Horsepower: 1/2 hp, 3/4 hp, 1 hp, 1½ hp, 2 hp
Speed: 50Hz – 1400 RPM, 60Hz – 1700 RPM
Voltage: 380V/400V/415V – 3 phase
Current: See motor nameplate
ELECTRICAL
Transformer: 24VAC
Wiring Type: Momentary pressure open, stop, constant pressure close
(
provided standard
)
, with provision for momentar
y
pressure close*
Limit Adjustment: Linear driven, fully adjustable screw type cams.
MECHANICAL
Drive Reduction: 43:1 (1/2 & 3/4 hp), 57:1 (1 & 1½ hp), 82:1 (2 hp)
Output Shaft Speed: 50Hz - 32 RPM (1/2 & 3/4 hp), 25 RPM (1 & 1½ hp), 17 RPM (2 hp)
60Hz - 39 RPM (1/2 & 3/4 hp), 30 RPM (1 & 1½ hp), 21 RPM (2 hp)
Door Speed: 6 - 8” per sec. average (typical)
Brake: Solenoid actuated brake
Emergency Chain Hoist: Standard
ENTRAPMENT PROTECTION

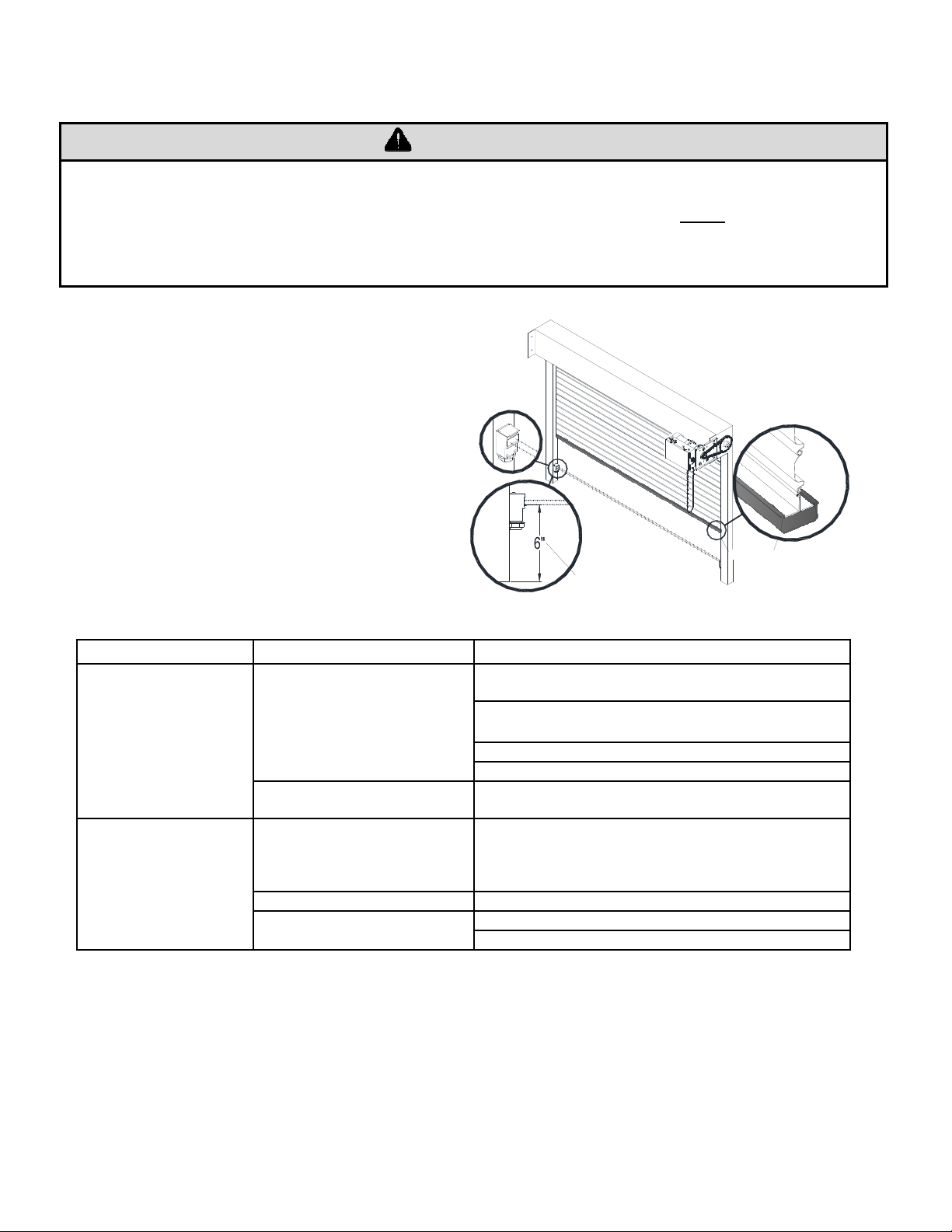

Sensing Edge*: (Optional) Sensing device attached to the bottom edge of the door.
Non-Contact Device*: (Optional) Photo eye device.
* Per the requirements of UL Standard 325, the door operator is setup for constant pressure
to close the door. As an alternative, the door may be provided with a monitored entrapment
protection device that will reverse the door upon contact with or detection of an obstruction
during closing. Adding an entrapment device would enable momentary close operation.
*Note:
1. Non-contact device (photo eye) can be used on doors up to 45 ft. wide (or maximum rated range of
device if less than 45 ft.). Use a sensing edge to provide entrapment protection on doors over 45 ft.
wide.
2. Sensing edge can be used on all doors.
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
4
TYPES AND SIZES OF DOORS
Consult factory for details.
INSTALLATION INSTRUCTIONS

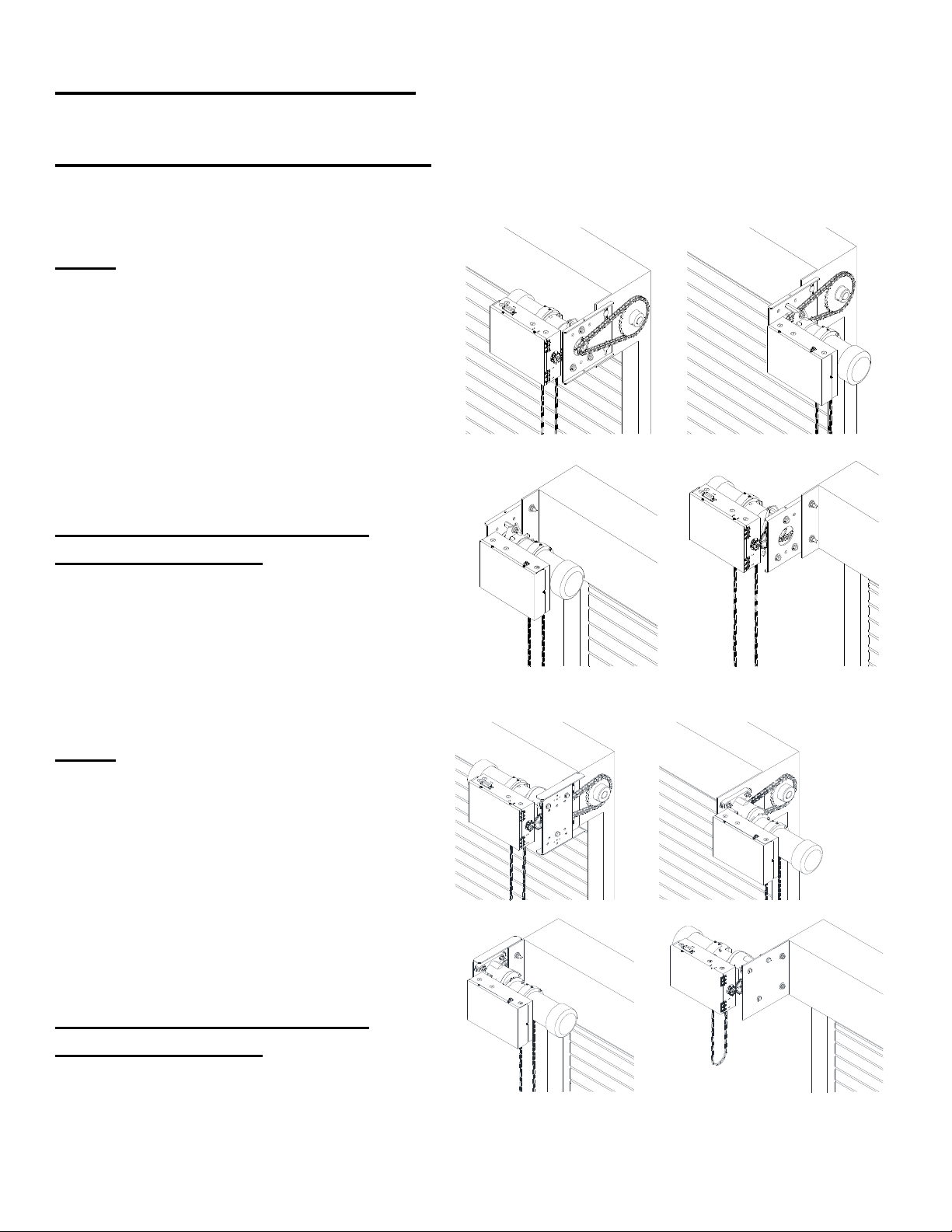

OPERATOR MOUNTING POSITIONS (for 1/2hp and 3/4hp)
NOTE: Any change in mounting position
may result in a change of operator rotation
and consequently in a change of control
functions. Consult factory for any changes.
(LH=LS and RA, RH=RS and LA)
Operators mounted in alternate positions
(LA, RA) require the long mounting legs in
lieu of the standard short mounting legs.
Consult factory for changes in
mounting positions.
RS RA
LS LA
OPERATOR MOUNTING POSITIONS (for 1hp, 1½hp and 2hp)
NOTE: Any change in mounting position
may result in a change of operator rotation
and consequently in a change of control
functions. Consult factory for any
changes. (LH=LS and RA, RH=RS and LA)
Operators mounted in alternate positions
(LA, RA) require a straight mounting plate
in lieu of the standard bent plate.
Consult factory for changes in
mounting positions.
RS
LS
RA
LA
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
5

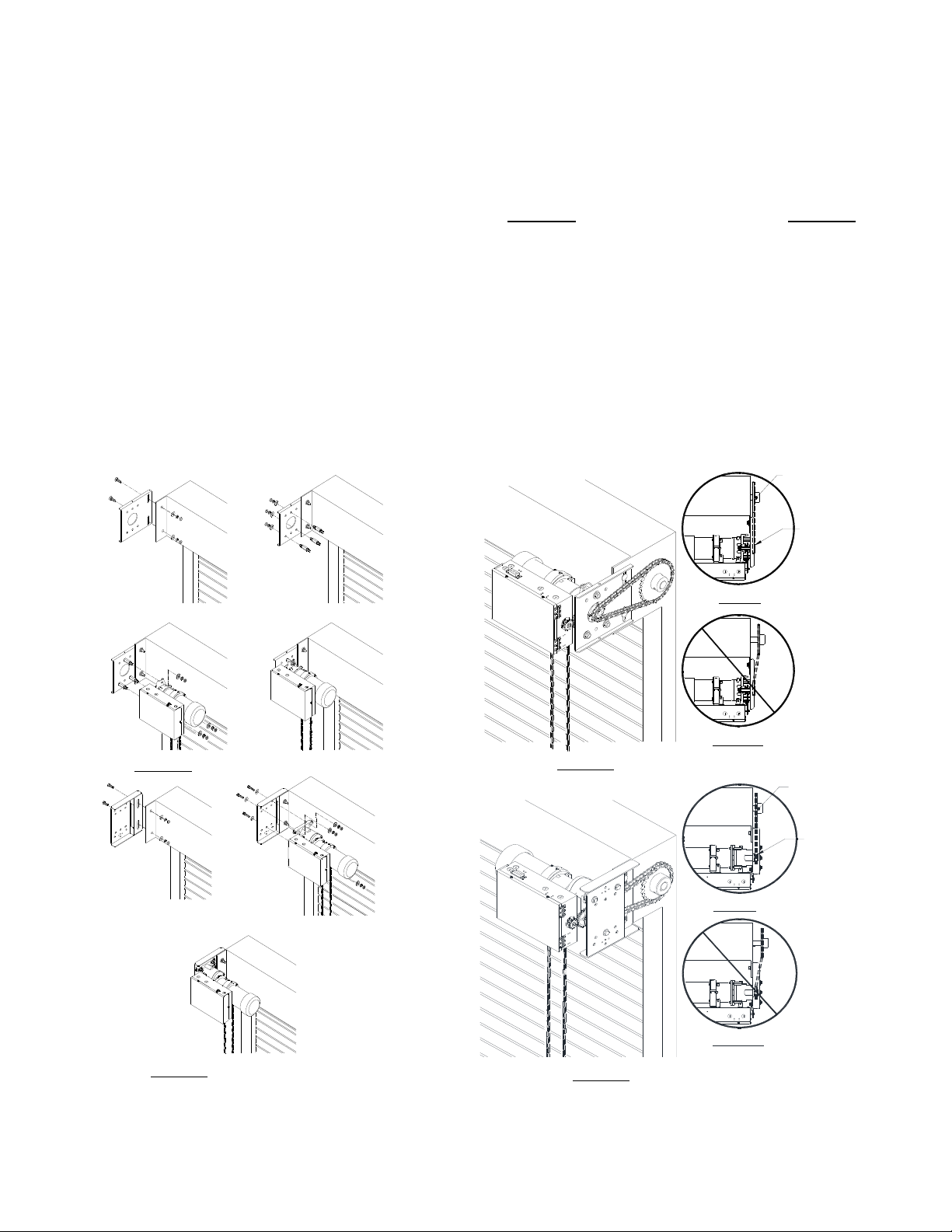

OPERATOR MOUNTING
1. Before the operator is installed, verify that
the door is properly operating and
balanced.
2. Make sure the layout of the mounting
holes on the bracket is correct.
3. Bolt the operator mounting plate to the
door bracket plate.
4. Attach and tighten the three mounting legs
to the mounting plate. (Not applicable for
1hp, 1½hp, 2hp)
5. Mount the operator to the three legs and
tighten (for 1/2 and 3/4hp only). For other
horsepowers, mount the operator to the
mounting plate.
(Figure 1 - for 1/2hp and 3/4hp)
(Figure 2 - for 1hp and 1½hp)
6. When the operator assembly is attached to the door
bracket, be sure the door driven sprocket is
properly aligned with the operator drive sprocket
before securing the driven sprocket to the shaft.
(See Figure 3 for 1/2hp and 3/4hp; see Figure 4 for
1hp and 1½hp)
7. The shelf or bracket must provide adequate support
for the operator. Prevent play between the
operator and the door shaft. The operator must be
securely attached with the drive shaft parallel to the
door shaft. It may be necessary to field brace the
operator/bracket.
Door
Sprocket
Operator
Drive
Sprocket
Correct
Incorrect
(Figure 3 - for 1/2hp and 3/4hp)
Correct
Incorrect
Door
Sprocket
Operator
Drive
Sprocket
(Figure 4 - for 1hp and 1½hp)
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
6

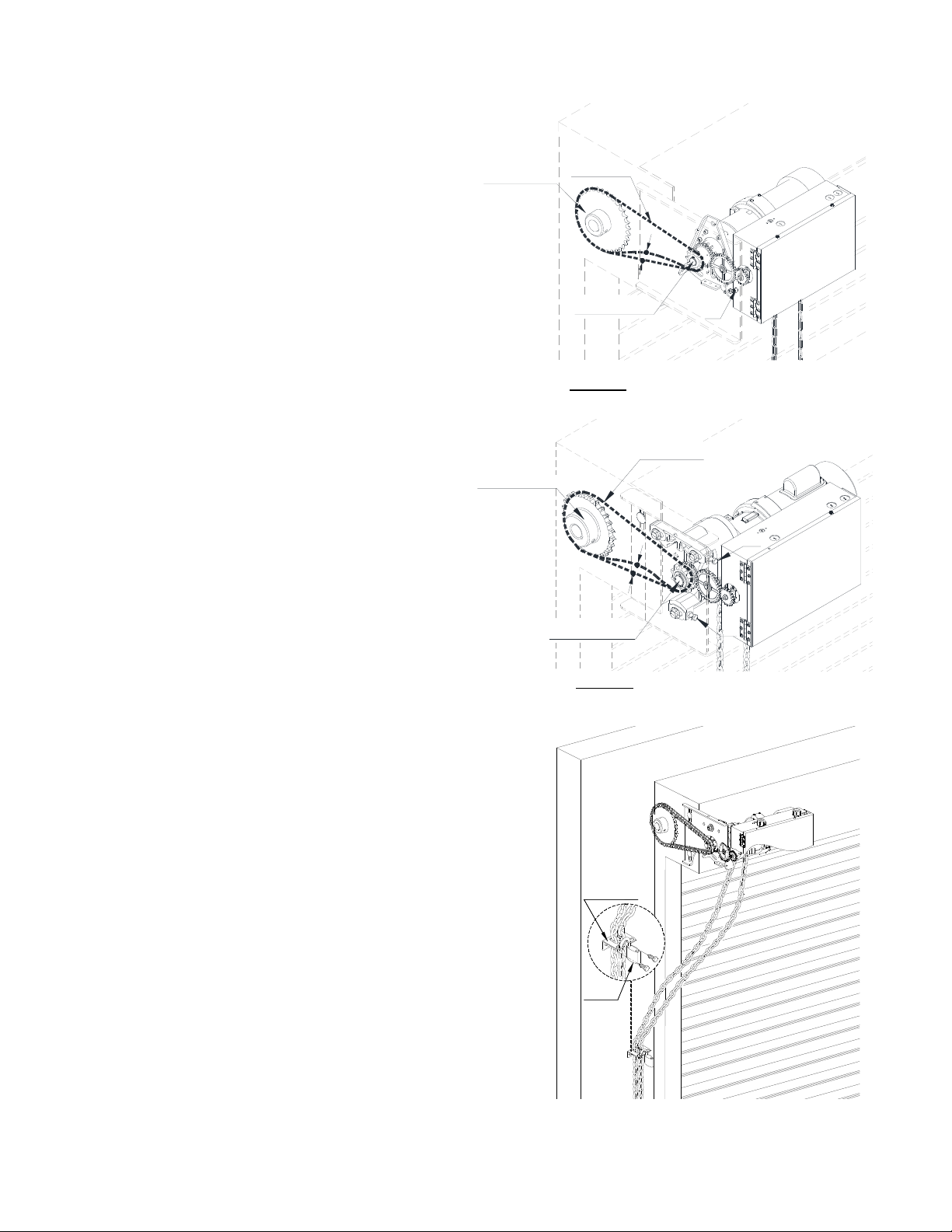

DRIVE CHAIN ADJUSTMENT
NOTE: Use correct type, size and proper
length of roller chain.
1. Adjust the drive chain by tilting or move the
operator so that there is about 1/4” of slack
when the chain is depressed.
Note: The set screw included in the operator
may be used for adjustment.
(See figure 1- S1 location for 1/2hp and
3/4hp), (See figure 2 - T1, T2 for 1hp and
1½hp).
2. Once the drive chain has been tightened and
the base leg screws have been set, then
tighten the operator set screws.
Drive Chain
Door Sprocket
Drive Sprocket
1/4"
S1
(Figure 1 - for 1/2hp and 3/4hp)
Drive Chain
Door Sprocket
Drive Sprocket
T2
1/4"
T1
(
Fi
g
ure 2 - for 1hp and 1½hp
)
HAND CHAIN ADJUSTMENT
Cut and reconnect chain with different color link
provided.
Chain Holder
Optional
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
7
WIRING INSTRUCTIONS
WARNING
Disconnect power at the fuse box before proceeding with any wiring.
1. Do not install any wiring or attempt to run this operator without checking the wiring diagram located
on the inside of the control box cover.
2. Do not turn on power until you have finished making all power and control wiring connections.
3. Do not run power and control wiring in the same conduit.
4. Any wire connected to the control panel must be protected by conduit or other means to ensure the
safety and permanency of the wiring.
5. Use copper wire inside the control panel.
6. A separate circuit of adequate capacity is needed for the operator.
7. The operator must be properly grounded. The ground screw, painted green, is located inside the
control panel.
8. For an operator, system, or external device requiring field installed wiring between a Class 2 output
of an operator and an external device, the type of wiring shall be R/C (AVLV2/8), AWM, min. 22
AWG, rated 60°C, with VW-1/FT2.
WARNING
Failure to properly ground the operator could result in electric shock and serious injury
or death.
To avoid damage to door and operator, make all door locks inoperative. Secure lock(s)
in the unlocked position, or install electrical interlocks to prevent operation with the
lock engaged.
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
8
CONTROL WIRING
WARNING
Disconnect power at the fuse box before proceeding with any wiring.
1. Locate the control station where the user can
clearly see the operation of the door. Mount the
enclosed placard adjacent or near the door.
WARNING
Controls shall be located far enough away from the door, or positioned such that the user is
prevented from coming in contact with the door, while operating the controls.
2. Do not run control wiring in the same conduit as power wiring.
3. Any wire connected to the control panel must be protected by conduit or other means to ensure the
safety and permanency of the wiring.
WARNING
Do not use radio controls with your operator unless some type of entrapment
protection device has been installed. Failure to do so may result in serious injury or
death to person(s) trapped beneath the door.
Changing from left hand to right hand or vice versa could result in change of control
wiring. Consult factory for details.
SGH Series
380V/400V/415V
REVISION # 0003
DATE: 08/27/2021
9
ENTRAPMENT DEVICES WIRING
WARNING
If the door is not visible from the control station, or if any device other than the control
station is used to activate the door, an entrapment protection device must be installed on
the door. Failure to install an entrapment protection device may result in serious injury or
death to person(s) trapped beneath the door.
1. Complete limit switch adjustments before
making any sensing edge/non-contact
device wiring connections to the operator.
Sensing Edge
Photo Eye
6" max. above floor
Entrapment Device Options:
Sensing Module Device Manufacturer Model
ELR
2-wire resistive sensing
edge
Miller Edge Inc.
* End of Line resistor type
edge must have model
number with Suffix T2.
ME110*, ME111*, ME120*, ME123*, ME112*,
ME113*, ME116*, ME117*
MT21*, MU21*, MT22*, MU22*, MC22*, MU33*,
MC271*, CPT223*
MEL-TXYY, MEL-RXYY
RB-G-K10
ASO GE225, GE125, GE245, GE F45, GE F50, GE F56,
GE F65, GE F85, GE F115
IR
Monitored photo eye
FRABA Inc.
Optical Edge Sensors and Photo Eyes, Models
OPTOEDGE, OPTOEYE, OSE, OPE, OSE-P,
OSE-R, OSE-T, RAY-N
Reflective Photo E
y
e, Models Ra
y
/RT -1004, -2004
Martec Access Products Inc. 1266
Miller Edge Inc. IG2, MIRM
RB-D-K10
Note: Please refer to sensing device manufacturer for specific installation and maintenance requirements.
2. After installation, be sure that the operator, controls, and sensing edge or other entrapment
protection devices have been tested and function properly.
Autres manuels pour SGH Series
1
Table des matières
Autres manuels CornellCookson Système d'ouverture de porte
CornellCookson
CornellCookson SGH 50023E Guide de dépannage
CornellCookson
CornellCookson AlarmGard FST-EPBD Series Guide de dépannage
CornellCookson
CornellCookson SGH 30043E Guide de dépannage
CornellCookson
CornellCookson FS-500EP Series Guide de dépannage
CornellCookson
CornellCookson FS-36EP Series Guide de dépannage
CornellCookson
CornellCookson FSNX-150EP Series Guide de dépannage
CornellCookson
CornellCookson SGH Series Guide de dépannage
CornellCookson
CornellCookson SGH 50043E Guide de dépannage
CornellCookson
CornellCookson FS-150EP Series Guide de dépannage
CornellCookson
CornellCookson SGHN4-100 Series Guide de dépannage
