IDC Pro - SSD Replacement Instructions

IDC PRO SSD REPLACEMENT INSTRUCTIONS

SAFETY OVERVIEW

• Read and follow ALL SAFETY INSTRUCTIONS in this manual and any warning/caution labels on the unit

(decals, labels or laminated cards).

• Read and understand ALL applicable OSHA (Occupational Safety and Health Administration) safety

regulations before operating this unit.

SAFETY ALERT SYMBOL

TYPES OF ALERTS

SAFETY TIPS

• Carefully read and follow all safety messages in this manual and safety signs on the unit.

• Keep safety signs in good condition and replace missing or damaged items.

• Learn how to operate the unit and how to use the controls.

• Do not let anyone operate the unit without proper training. This appliance is not intended for use by very

young children or infirm persons without supervision. Young children should be supervised to ensure that

they do not play with the appliance.

• Keep your unit in proper working condition and do not allow unauthorized modifications to the unit.

This is the safety alert symbol. When you see this in the manual or on the unit, be alert to the

potential of personal injury or damage to the unit.

DANGER:

Indicates an immediate hazardous situation which if not avoided WILL result in serious

injury, death or equipment damage.

WARNING:

Indicates a potentially hazardous situation which, if not avoided, COULD result in serious

injury, death, or equipment damage.

CAUTION:

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or

moderate injury or equipment damage.

Revision Date: August 02, 2019 www.cornelius.com Revision: A

IDC Pro - SSD Replacement Instructions

SAFETY INSTRUCTIONS

WARNING:

Before starting installation, read and understand all safety label and warnings on the machine. Also review and

understand all safety instructions in the owners, installation and service manuals.

Failure to comply could result in serious injury, death or damage to the equipment.

QUALIFIED SERVICE PERSONNEL

WARNING:

Only trained and certified electrical, plumbing and refrigeration technicians should service this unit.

All wiring and plumbing must conform to national and local codes. Failure to comply could

result in serious injury, death or equipment damage.

SAFETY PRECAUTIONS

WARNING:

Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all

power is off to the unit before performing any work. Failure to comply could result in serious injury,

death or damage to the equipment.

CAUTION:

Always be sure to keep the area around the unit clean and free of clutter. Failure to keep this area clean may

result in injury or equipment damage.

CAUTION:

Note the following: This unit is not designed for use in outdoor locations. The appliance must be placed on horizontal

surface. The appliance is not suitable for installation in an area where a water jet would be used.

IDC Pro - SSD Replacement Instructions

IMPORTANT

Before replacing SSD, if unit is operational or you have a second IDC PRO unit with an identical brand lineup be sure

to get a back up copy of the unit’s configuration onto a USB memory stick (see troubleshooting pages 13-17

“

Exporting brand configuration from a pre-existing machine

”) and or write down the units flavor line up on the provided

Flavor Line Up sheet. This will speed up the process when you are reconfiguring the unit after new SSD is put into

screen.

IDC PRO FLAVOR LINE UP

• Up to 10 brands per multi-flavor valve

• Up to 4 flavor shots per multi-flavor valve

• One plain water per valve, with optional flavor shots

• One carbonated water per valve

• One flavor shot pour per valve

Dispenser serial number - _______________________________

Left Side Right Side

S1 ______________________________ S8 ___________________________

S2 ______________________________ S9 ___________________________

S3 ______________________________ S10 ___________________________

S4 ______________________________ S11 ___________________________

S5 ______________________________ S12 ___________________________

S6 ______________________________ S13 ___________________________

S7 ______________________________ S14 ___________________________

A1 ______________________________ A4 ___________________________

A2 ______________________________ A5 ___________________________

A3 ______________________________ A6 ___________________________

Flavor Shots

F1 ______________________________ F5 ___________________________

F2 ______________________________ F6 ___________________________

F3 ______________________________ F7 ___________________________

F4 ______________________________ F8 ___________________________

• S1-S14 will run through the cold plate and will be used for your carbonated brands.

• A1-A6 is your ambient lines and will be used for your non-carbonated brands. If you have more than 7

carbonated brands you can run carbonated brands through the ambient lines but you want to use a low

volume and low foaming brand.

IDC Pro - SSD Replacement Instructions

TOOLS REQUIRED:

1. Large Phillips Screw Driver

2. Fine Tip Phillips Screw Driver

NOTE: Wear a properly grounded ESD wrist strap if available & minimize body contact with electronic components.

SSD REPLACEMENT INSTRUCTION

Table 1:

Step Action Figure

A. Disconnect power to the unit.

B. Locate the SBC Cover on the back side of

the door.

C. Remove the 4 screws as shown.

D. Carefully hold the cover until the Fan

harness is disconnected.

Figure 1.

2Disconnect the Fan harness and remove the

Cover.

Figure 2.

IDC Pro - SSD Replacement Instructions

3Carefully undo the lock screw to unlock the SSD.

NOTE: DO NOT LOOSE THIS PART!

Figure 3.

4Carefully replace the SSD with a new part.

Figure 4.

Carefully secure the lock screw to lock the SSD.

NOTE: DO NOT LOOSE THIS PART!

Figure 5.

Table 1: (Continued)

IDC Pro - SSD Replacement Instructions

Connect the Fan harness and replace the Cover.

Make sure the silicone (white glue) doesn’t get in

the way of the pins and connector.

Figure 6.

A. Close the SBC cover

B. Secure the 4 screws as shown

C. Reconnect the Power harness

D. After Power up, ensure the Fan is working

properly.

Figure 7.

Table 1: (Continued)

IDC Pro - SSD Replacement Instructions

TROUBLESHOOTING

SCREEN RESOLUTION COMES UPINCORRECT

Table 2:

Step Action Figure

If image on the screen appears to be too far

zoomed in or out, the screen resolution will

need to be adjusted in the BIOS settings.

Figure 8.

Plug in a keyboard into a USB port on the

back of the screen. Restart the unit and

during the initial startup “AAEON” screen,

continually press the DELETE key.

Figure 9.

BIOS menu will display as shown in the

picture. Using the keyboard arrow keys move

over to the “Chipset” tab.

Figure 10.

IDC Pro - SSD Replacement Instructions

4“North Bridge” should already be highlighted,

press the ENTER key.

Figure 11.

5Use the down arrow key to highlight “LVDS

Panel Type” and press ENTER key.

Figure 12.

From the dropdown list select the “1920 x

1080, 48 bit, 60hz” option and press the

ENTER key.

Figure 13.

Table 2: (Continued)

IDC Pro - SSD Replacement Instructions

7LVDS Panel type will now read “1920 x 1080,

48 bit, 60hz”.

Figure 14.

8Press F4 on the keyboard to Save and Exit.

On the “Save & Exit Setup” screen, highlight

“Yes” and Press ENTER key. Unit will restart

and the screen resolution should come up

normal.

Figure 15.

Table 2: (Continued)

IDC Pro - SSD Replacement Instructions

TROUBLESHOOTING

MAPPING BRANDS

Table 3:

Step Action Figure

Display the keypad screen by tapping

each corner of the video screen start-

ing in the upper right corner and con-

tinuing to tap each corner in a

counterclockwise direction, in the

form of a “C”.

NOTE: As each corner is touched, a

small confirmation rectangle

momentarily appears to con-

firm the touch.

Figure 16.

Input the proper password for your

access level (technician) and press

“Enter”.

Password is 3333

Figure 17.

Autres manuels pour IDC Pro

Table des matières

Autres manuels Cornelius Distributeur

Cornelius

Cornelius Cascata180 Manuel

Cornelius

Cornelius Ribbon Manuel utilisateur

Cornelius

Cornelius QUEST ELITE QLT 2000 Manuel

Cornelius

Cornelius NITROPRO MINI Manuel utilisateur

Cornelius

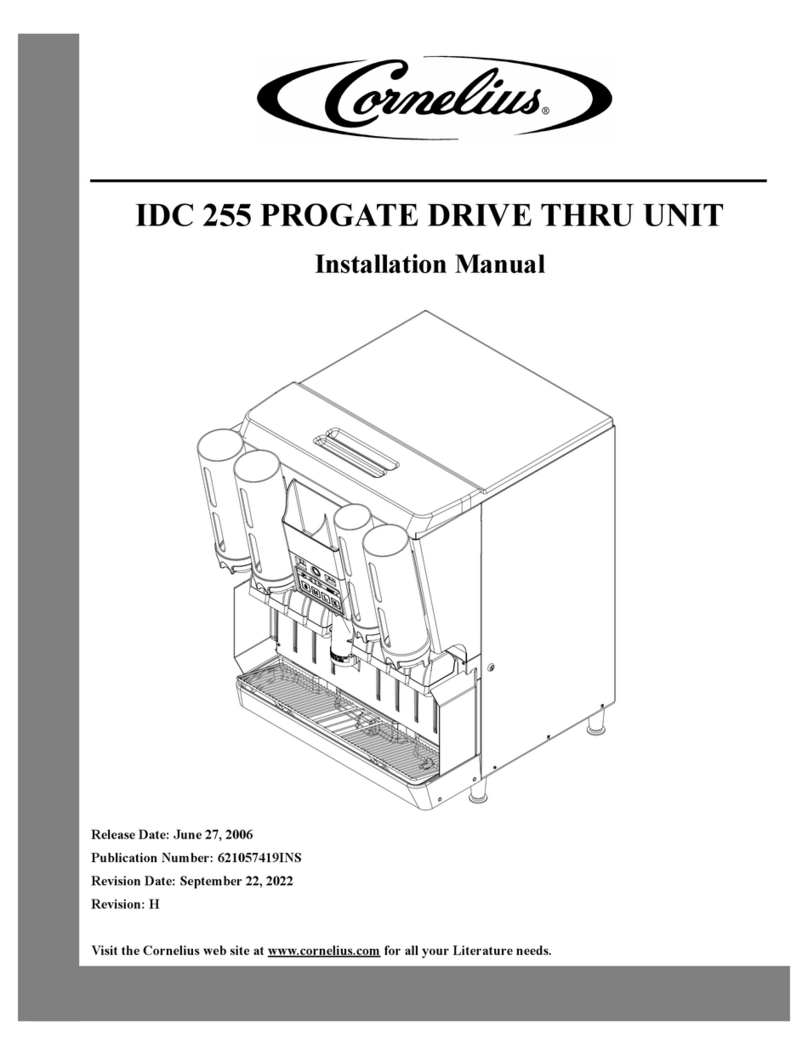

Cornelius IDC 255 PROGATE DRIVE THRU UNIT Manuel utilisateur
