Cornelius IDC Pro255 Brix Setup
Once the syrup lines are purged, it is now time to set the ratios. You MUST have ice on the cold
plate for at least 30 minutes prior to setting the ratio. If you have not done so already, add
ice to the hopper.
There is no syrup separator needed, you will use the service UI to set the water flow rate and the
syrup flow rate separately.
Accessing the Service UI
To access the service UI, tap the four corners of the video
portion of the screen in the order shown. Top right, top
left, bottom left, bottom right. The screen will flash white,
wait for the video to reappear before proceeding to the
next touch point.
Store Level Access: 1111
Manager Level Access: 2222
Technician Level Access: 3333
Use the keypad on the screen to enter the correct
code
Brix Setup:
Access Brix Setup
Tap Unit Setup Tap Brix Setup
Brix Setup:
Valve Layout Description
Note: The valve layout on the screen matches the physical valve layout in the IDC Pro
•Example: A1 is the 1st valve from left on the top row
•Example: CW1 is the 6th valve from left on the top row
•Total Water Flow does not affect actual water flow rate, this is to capture sales data. Do not
adjust!
When you activate a valve, it will dispense for a pre-programmed
4 second dispense.
A1 CW
1
Brix Setup:
Setting Left Side Water Flowrate
1. Place your brix cup under the appropriate nozzle.
2. Tap the appropriate valve to activate the dispense and capture the volume.
a) Adjust the flow control as needed to achieve the correct flow rate; rotate clockwise for more flow and
counterclockwise for less flow. Repeat for remaining water valves, you MUST set flow rate for all
water.
b) Tap carb water to check total CW flow rate, it will activate CW1 and CW2 –adjust CW 1 as needed
c) Tap plain water to check total PW flow rate, it will activate PW1 and PW2 –adjust PW 1 as needed
Note: You do not need to check water every time you check your syrup.
When you activate a valve, it will dispense for a pre-programmed
4 second dispense.
Left Side Flowrate Target:
CW1 = 7oz.
CW2 = 3oz.
PW1 = 7oz.
PW2 = 3oz.
Carb Water = 10oz.
Plain Water = 10oz.
CW
1
CW
2
PW
1PW
2
Brix Setup:
Setting Right Side Water Flowrate
1. Place your brix cup under the appropriate nozzle.
2. Tap the appropriate valve to activate the dispense and capture the volume.
a) Adjust the flow control as needed to achieve the correct flow rate; rotate clockwise for
more flow and counterclockwise for less flow. Repeat for remaining water valves, you
MUST set flow rate for all water.
b) Tap carb water to check total CW flow rate –adjust CW 3 as needed
c) Tap plain water to check total PW flow rate –adjust PW 3 as needed
Note: You do not need to check water every time you check your syrup.
When you activate a valve, it will dispense for a pre-programmed
4 second dispense. CW
3
CW
4
PW
3PW
4
Right Side Flowrate Target:
CW3 = 7oz.
CW4 = 3oz.
PW3 = 7oz.
PW4 = 3oz.
Carb Water = 10oz.
Plain Water = 10oz.
Brix Setup:
Setting Left Side Syrup Flowrate
1. Place your brix cup under the appropriate nozzle.
2. Tap the appropriate valve to activate the dispense and capture the volume.
a) Adjust the flow control as needed to achieve the correct flow rate; rotate
clockwise for more flow and counterclockwise for less flow. Repeat for remaining
syrup valves.
b) For accurate measurements, it is advised to flush the syrup chamber of the brix
cup after each dispense.
Note: You do not need to check water every time you check your syrup.
When you activate a valve, it will dispense for a pre-programmed
4 second dispense.
Left Side Flowrate Target:
Follow syrup manufacturer or
account specs
A1
A2 S2
S1 S3 S5 S7
A3 S4 S6
Brix Setup:

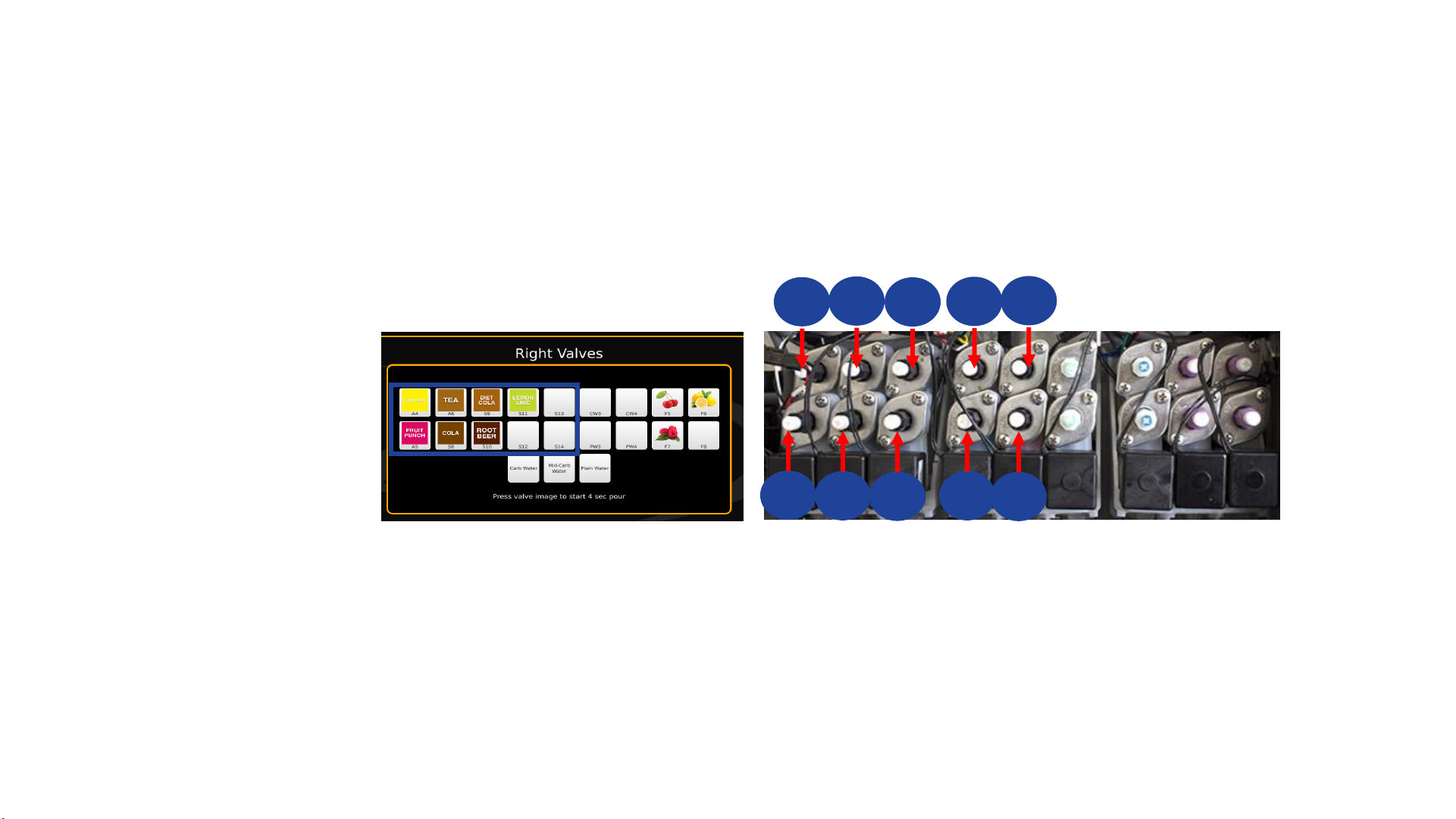

Setting Right Side Syrup Flowrate
When you activate a valve, it will dispense for a pre-programmed
4 second dispense.
Right Side Flowrate Target:
Follow syrup manufacturer or
account specs
A4
A5 S10
A6 S9 S11 S13
S8 S12 S14
1. Place your brix cup under the appropriate nozzle.
2. Tap the appropriate valve to activate the dispense and capture the volume.
a) Adjust the flow control as needed to achieve the correct flow rate; rotate
clockwise for more flow and counterclockwise for less flow. Repeat for remaining
syrup valves.
b) For accurate measurements, it is advised to flush the syrup chamber of the brix
cup after each dispense.
Note: You do not need to check water every time you check your syrup.
Brix Setup:
Setting Left Side Flavor Shot Flowrate
1. Place your brix cup under the appropriate nozzle.
2. Tap the appropriate valve to activate the dispense and capture the volume.
a) Adjust the flow control as needed to achieve the correct flow rate; rotate
clockwise for more flow and counterclockwise for less flow. Repeat for remaining
syrup valves.
b) For accurate measurements, it is advised to flush the syrup chamber of the brix
cup after each dispense.
Note: You do not need to check water every time you check your syrup.
When you activate a valve, it will dispense for a pre-programmed
4 second dispense.
Left Side Flowrate Target:
Follow syrup manufacturer or
account specs
F1 F2
F3 F4
