Cornelius JETSPRAY LT1 Manuel utilisateur

YourStandardof ExceUencefor BeverageMerchandisingon Six Continents

Document No . 11341

Revision N 0

December

1994

Printed in

the

USA

Manufa ctured b y Jet Spray Corpora tion

825 Univers ity Avenue ,

P.O.

Box 8250,Norwood,

02062

This manual applies to models of

Serial Numbe r 314936 or higher .

Mmw...

LTI

LTl-WI6

LTl-W25

Instant Liquid Iced Tea Dispenser

J6J=-==-..r

":,::-",,, "'\ ~~rpITS

LIST

*EXPORT MODEL LT1-W25 REOUIRES A 220/240V 50HZ OUTLET

-1-

J[j

Remove drip tray and grille.

Remove front panel assembly from unit by

lifting up and pulling out from the bottom .

(See sketch.)

3. Place

flare gasket in check valve and connect to water

inlet at rear of unit. (See instruction sheet

included with check valve.) Connect a 1/4" 00 copper

water line to the fitting on the check valve and to a

30-125 psig water supply. Water line should be long

enough so that unit can be moved for cleaning.

2. Do not plug in the unit.

1. Place dispenser on a flat, sturdy surface accessible to

a 115 volt 60Hz* outlet and a 30-125 psi water supply.

It is recommended that a shutoff and an 80/100 mesh

strainer be installed in the water line.

A. INSTALLATION INSTRUCTIONS:

A water line is connected to the solenoid valve through a fitting

located on the rear panel of the unit. A one gallon container of

tea concentrate is placed inside the unit through the removable

front panel. A product tube is placed inside the gallon

container of tea concentrate , and runs up to the mixing block.

When the push handle is depressed it closes a switch, acti vating

the solenoid valve, allowing water to pass through the mixing

block. The pressure drop in the mixing valve allows syrup to be

siphoned from its container, mixed with water, and dispensed out

the outlet tube.

BRIEF DESCRIPTION OF HOW THE UNIT WORKS

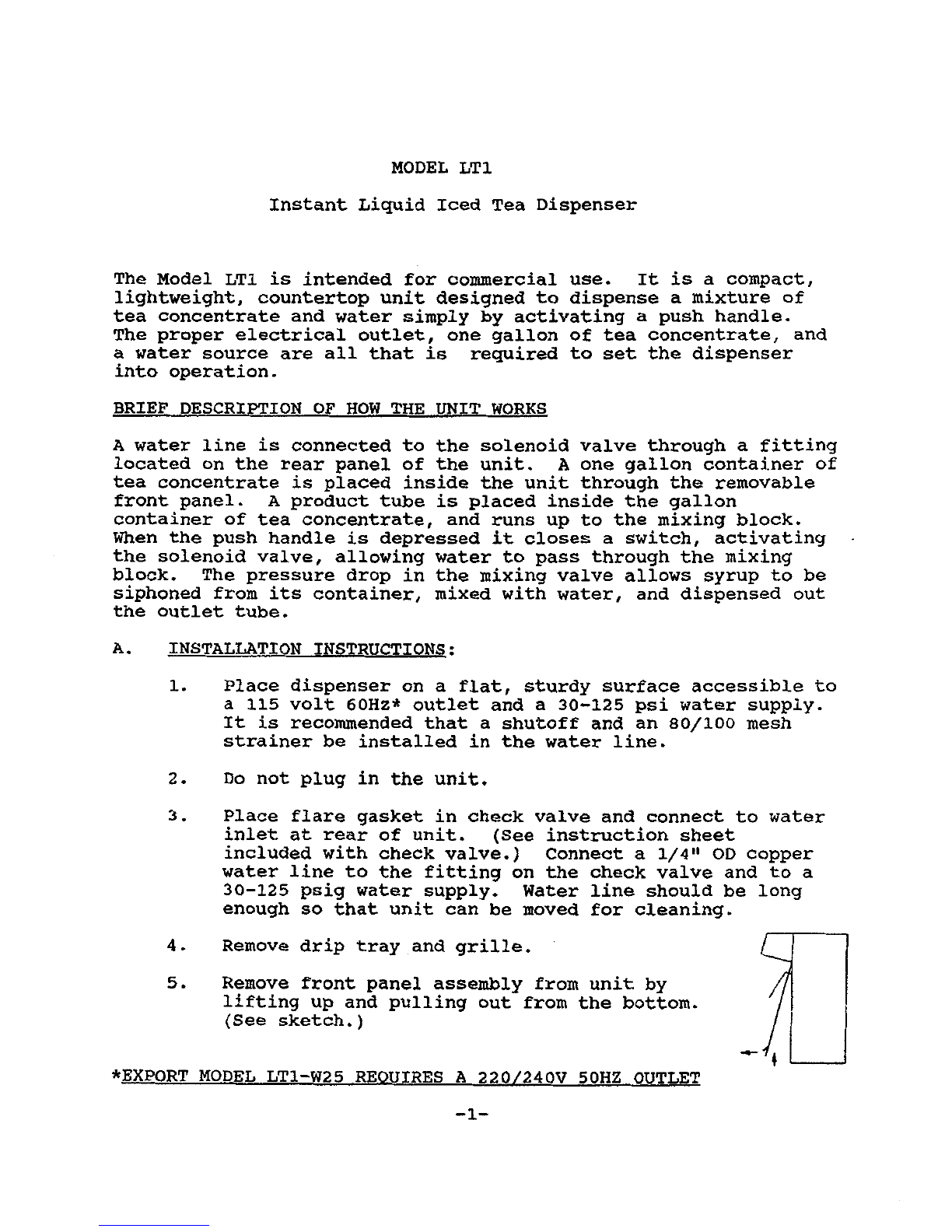

The Model LT1 is intended for commercial use. It is a compact,

lightweight, countertop unit designed to dispense a mixture of

tea concentrate and water simply by activating a push handle.

The proper electrical outlet, one gallon of tea concentrate, and

a water source are all that is required to set the dispenser

into operation.

Instant Liquid Iced Tea Dispenser

MODEL LT1

Publication Number: 11341IPL

-2-

1. Drip tray, grille, and product tube assembly may be

washed in warm soapy water, such as Joy. Rinse

thoroughly in potable water.

2. Clean the outside of the dispenser with a clean damp

cloth and mild soap.

C. CLEANING UNIT

2. To adjust this ratio for a richer or weaker drink, use

the 1/8" Allen wrench packed in the drip tray.

Adjustments are made through a hole located in the

upper right hand side panel. using the 1/8" Allen

wrench, turn the adjusting screw counterclockwise for

a richer drink and clockwise for a weaker drink.

1. The ratio of concentrate to water is factory set for a

5 to 1 mix.

B. RATIO CONTROL - CONCENTRATE TO WATER

*EXPORT MODEL LT1-W25 REQUIRES A 220/240V 50HZ OUTLET

12. unit is now set for operation.

11. Depress push handle to prime unit.

NOTE: Draw approximately 12 oz. until product line is

full.

10. Turn on power switch, located on rear of unit.

7. Replace front panel assembly.

8. Replace drip tray and grille.

9. Plug power cord into 115 volt 60Hz* outlet.

6. Remove cap and product tube assembly from inside unit.

Place cap and product tube in a full gallon of

concentrate. Slide container of concentrate into unit

making sure that the plastic line from the product tube

assembly is not crimped in any way.

Publication Number: 11341IPL

-3-

MODEL LTl WIRING DIAGRAM

POWER CORD

(.LUE 230/24OV)

WHITE

*Diversey Wyandotte Multi-Chlor or Equivalent Powder of Liquid

Sanitizer

Using a clean one gallon container mix 1/2 teaspoonful

(100 parts/million) of approved powdered chlorine sanitizer*

with four quarts of water. Depress push handle until all

the sanitizing solution has been used.

E. SANITIZING DISPENSER

3. Follow Installation Instructions #7 through #10.

Activate push handle for three to four minutes.

4. Replace cleaning solution with one gallon of potable

water. Rinse valve assembly.

2. Reconnect product tube assembly to mixing valve.

Place other end of product tube assembly in cleaning

solution.

1. Fill a clean one gallon container with warm water

(70'F-100'F) and two ounces of cleaning solution,

such as Joy.

D. CLEANING MIXING VALVE

Publication Number: 11341IPL

-6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

ILLUSTRATED PARTS LIST

LT-1 COLD BEVERAGE DISPENSER

MODEL NO.

A1371

A1456

CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303-

www.cornelius.com

-4-

Publication Number: 11341IPL

--.~

-6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

LT-1 COLD BEVERAGE DISPENSER

FIGURE 1. GENERAL ASSEMBLY

CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303-

-5-

Publication Number: 11341IPL

-6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

LT-1 COLD BEVERAGE DISPENSER

Item

No. Part No. Name

118805001 Drip Tray (Serial No. 314936 and

Above)

A1500 Drip Tray (Serial No. 3149356 and

Below)

218805002 Cup Rest (Serial No. 314936 and

Above)

318786 Panel Fnt Asy (Serial No. 314936

and Above)

A3506 Panel Fnt Asy (Serial No.

14380-314935)

A1333 Panel Fnt Asy (Serial No. 14380

and Below)

4A3507 Push Handle (Serial No. 14380

and Above)

A1506 Push Handle (Serial No. 14379

and Below)

5A1834 Cap

6A1365 Tube Protector Product

7A1340 Spout Extension

8S8214 Switch Wtr Push Btn

9A5186 Switch Rocker (Serial No. 22622

and Above)

S3004 Switch Toggle (Serial No. 22621

and Below)

10 S3837 Plate Switch

11 S1675 Nut Knurled Ring

12 A1364 Outlet Tube

13 A1909 Block Mixing

14 S9178 Cover Top Panel

15 A1386 Screw Panel (Pack of 4)

16 A1339 Solenoid Valve Asy 120V 60HZ

A1430 Solenoid Valve Asy 220/240V

60HZ

Item

No. Part No. Name

17 S3746 Ring (Pack of 12)

18 S5624 Screw and O-Ring Adjust

19 A2161 Conn Check Valve Union

20 A2557 Valve Chk Inline

21 Item Not Used

22 S4159 Tool Wrench Allen

23 A1724 Fitg Inlet Water

24 S1249 Cord Serv

25 S6778 Foot

26 A1360 Drip Tray

27 A1505 Pin Cotter

28 Item Not Used

29 Item Not Used

30 S9526 Tube S.S.

31 S6410 Screw (Pack of 4)

32 A8807 Panel Fnt Asy (Serial No. 314936

and Above; No Longer Available)

A1333 Panel Fnt Asy (Serial No. 314935

and Below)

33 18805 Drip Tray Ass’y (Serial No.

314936 and Above; No Longer

Available, Order 18805001 and

18805002)

A1503 Drip Tray Ass’y (Serial No.

314935 and Below)

34 A1900 Restrictor Plug

35 A5601 Valve Chk Ball Single

S6783 Valve Chk Kit Ball, Double

CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303-

-6-

Publication Number: 11341IPL
