ED/DF 150-8 “K” Style Lid Kit Installation Instructions

INSTALLATION INSTRUCTIONS

FOR ED/DF 150-8 “K” STYLE LID KITS, P/N 629087910 AND 629087911

These “K” style kits apply to the following ice makers:

WARNING:

Disconnect power to the unit before installing the adaptor following all lockout/tag out procedures established by the

user. Verify that all the power is off to the unit before performing any work.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All ice baffle plates and bin stats, if included or recommended in this kit, must be installed as directed in this manual or

the equipment manufacturer’s instructions.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All of the attachment screws and plates must be installed as directed in this manual.

Failure to comply could result in serious injury, death or damage to the equipment.

Perform the following procedure to install the adapter kit.

1. Unpack and inspect the kit.

2. Insert baffle assembly into the adapter lid.

3. Place (2) sealing washers (item 9) over studs and (2) flat washers (item 11), then fasten in place with (2) plastic

acorn nuts (item 8).

4. Set ice maker lid on the top of the dispenser.

Table 1

Ice Maker Width

Manitowoc Q320 and Q420 22”

Table 2

Table 1. Loose–Shipped Parts

Item No. Part No. Name Qty.

1620043511 Cover, Gray (629087911) 1

620043512 Cover, Black – (629087910) 1

2 620046012 Lid Assembly 1

3 22127 Bracket 2

4 70217 #8 Screw 6

5 50904 RTV 1

6 90221 Label 1

7 620919518 Installation Instruction 1

8 620701902 Acorn Nut, 8-32 Nylon 2

9 620701901 Sealing Washer 2

10 620037007 Ice Baffle ED2XX 1

11 620701903 #8 Nylon Washer 2

Release Date: November 12, 2010 www.cornelius.com Revision: B

ED/DF 150-8 “K” Style Lid Kit Installation Instructions

5. Using the slotted holes in the lid as a template, drill four (4) 0.140” diameter (9/64”) holes at the bottom of the slots

(see Detail A). Use extreme care not to drill into the hopper. Fasten the lid to the dispenser with four (4) #8 sheet

metal screws, two on each side.

6. Seal the ice maker to the top of the dispenser as follows:

A. Run beads of RTV around the opening in the lid and inside of the perimeter of the ice maker outline so

that the ice maker sets on the RTV.

B. Set the ice maker onto the lid and position it as required.

C. Wipe away the excess RTV.

7. Drill 9/64” diameter holes into the ice maker cabinet using the bracket as a template. Use extreme care not to drill

into any ice maker components (condenser, tubing, etc.). Secure the brackets using the screws provided.

8. Follow the ice maker manufacturers instructions to complete the installation of the ice maker, including the bin

thermostat if so equipped or required.

9. If the plastic acorn nuts interfere with the positioning of the plastic manual fill cover, it may be necessary to make

small notches in the back flange of the cover to clear the acorn nuts.

NOTE: Bin thermostat must not interfere with the agitator rotation.

ED/DF 150-8 “K” Style Lid Kit Installation Instructions

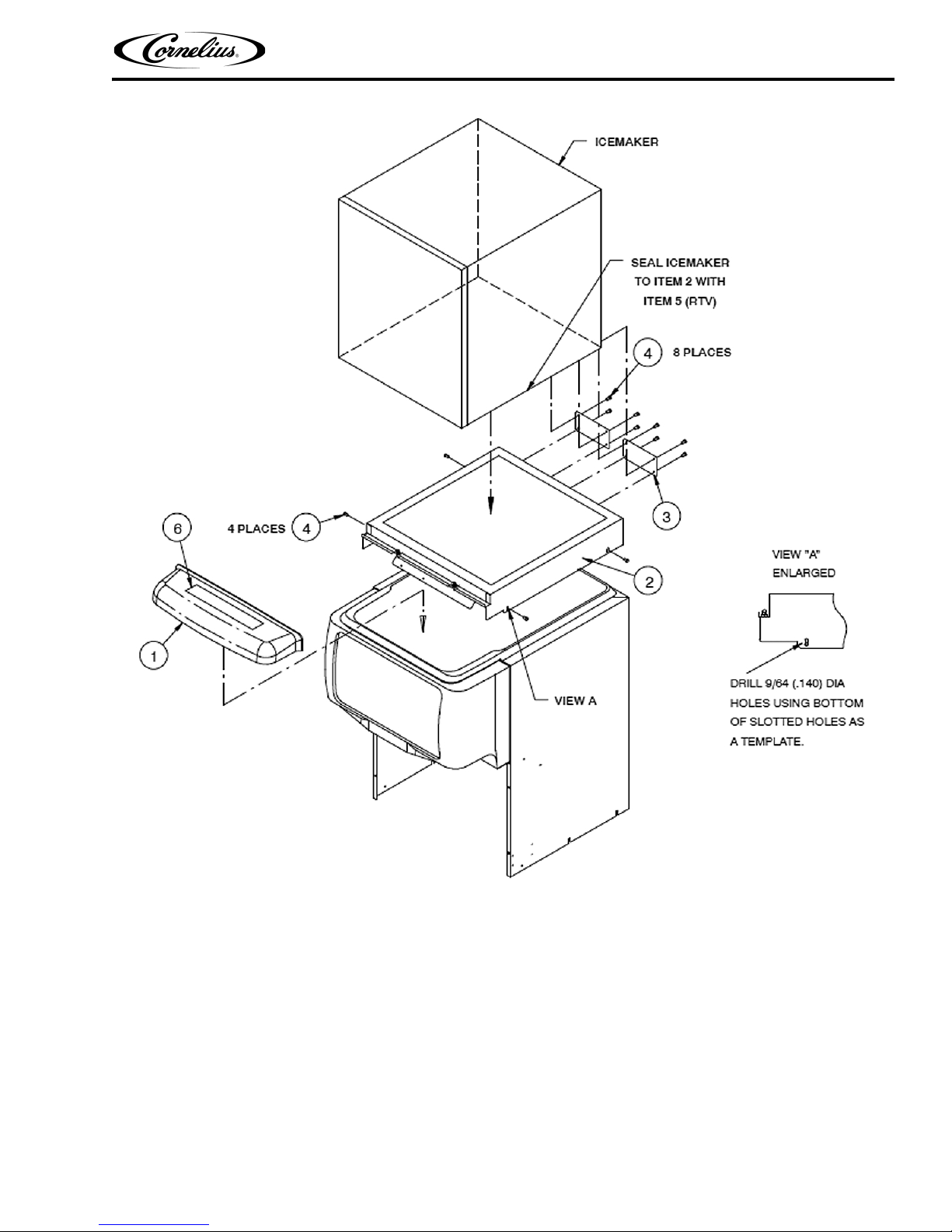

Figure 1. ED/DF 150-8

ED/DF 150-8 “K” Style Lid Kit Installation Instructions

Figure 2. ED/DF 150-8
