UNIVERSAL 750 ICE BANK CONTROL

KIT P/N 3626

Step One

A. Remove the product lines and white washers.

Clip all poly ties.

B. Unscrew the control box. Disconnect the cord

and agitator motor electrical leads. Lay the

control box over the side of the unit.

C. Remove the agitator motor. Unscrew the hex

nuts and screws holding the plate down. Re-

move the plate.

D. Disconnect the tubes to the valves. Raise the

basket and remove the ice bank control holder

by bending the top brackets.

P/N 185211007 2 8/25/94

Step Two

Ice Bank Control

P/N 33-5794-000

Red Lead

P/N 3576 Black Lead

P/N 3575

P/N 3529

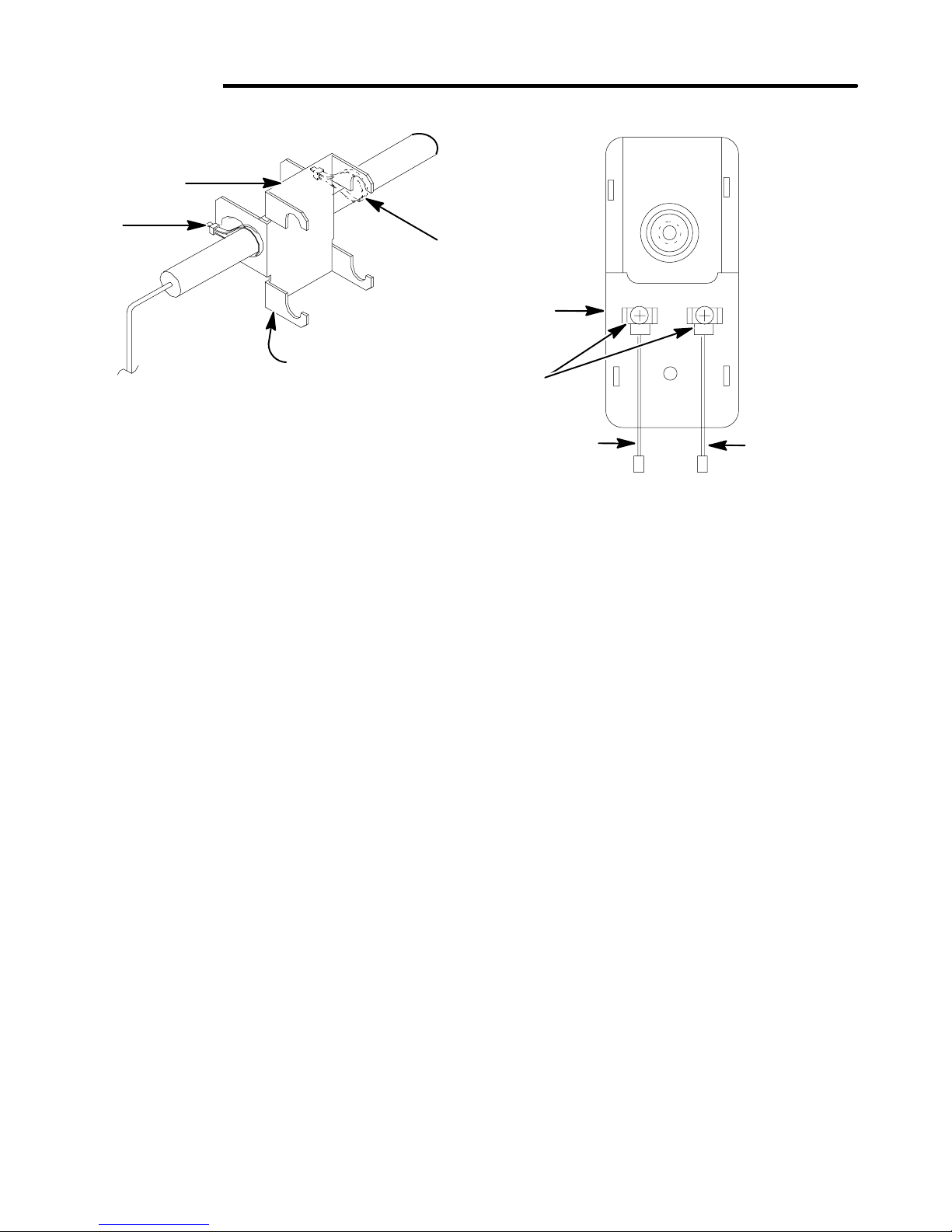

A. Snap the new ice bank control bulb holder

(P/N 3529) onto the second and third coil from

the top.

B. Place the ice bank control bulb into the holder

and secure it with two poly ties

(P/N 040056-000). Replace the basket and

hook up the tubes to the valves.

C. Connect the red and black wire leads to the ice

bank control as shown.

P/N 18521100738/25/94

Step Three

Ice Bank

Control relative

to agitator motor

angle.

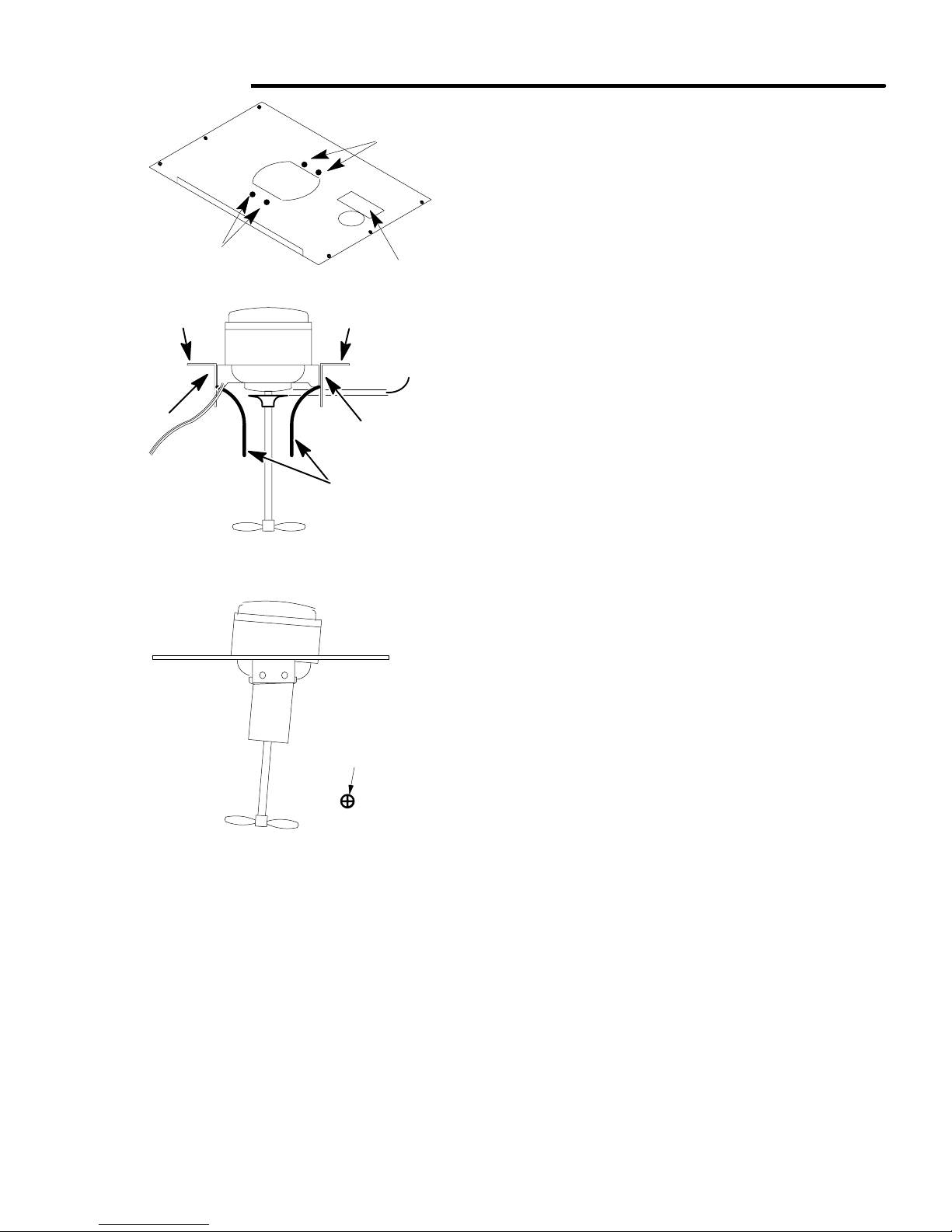

SApply the Warning Decal (A) to the plate.

Place the plate in the unit with the decal on

the right hand side.

STighten the plate to the basket with the hex

nuts. Apply the three screws to each side.

SRemove the agitator fan blade.

SSlide the rubber slinger off the shaft.

SRemove the heat sink plates and remove

the cover.

SReplace the slinger onto the motor shaft.

While the shaft is being pushed up into the

motor, adjust the slinger to 1/16Iclearance

from the motor base.

SApply heat sink compound

(P/N 000113-734) between the brackets

(G), heat sink plates and the agitator motor

and assemble these parts as shown.

SPlace the agitator motor assembly into the

plate with the angle away from the ice bank

control bulb. Mark the mounting holes (H)

using the bracket as a template. Drill the

four holes with a #29 drill bit. Place heat

sink compound between the bracket and the

plate and screw in place.

SRoute the agitator motor electrical leads

through the left rear hole in the plate.

R.H. Bracket

P/N 3531

L.H. Bracket

P/N 3532

1/16I

Heat Sink

Plates

P/N 185211007 4 8/25/94

Step Four

SReconnect all product tubing. Be sure the tapered white nylon washers are

in place.

SRoute the tubing through the back hole of the panel and tie in place.

SApply the DANGER decal to the top of the control box.

SSnap the grommet and the snap bushing into the holes of the control box as

shown.

SPlace the ice bank control in the control box with the capillary tube going

through the grommet. Screw the ice bank control in place.

SRoute the agitator motor electrical leads and the electrical cord through the

snap bushing.

SConnect all wiring as shown.

SWhen connecting ground leads, be sure to attach power cord ground lead

first then apply a nut and tighten. Then apply the ground lead from the agita-

tor motor and then the final nut. Tighten securely

Grommet

Snap Bushing

Capillary Tube

Green Ground wire

Agitator Motor

Green Ground Wire

Power Cord (Secure

first to Control box

White Wire

Gray Power Cord

Black Wire

Gray Power Cord

Red Wire

Gray Power Cord

Agitator Motor

Wire (Ribbed)

Black

Jumper Wire

Red

Jumper Wire

Agitator Motor Wire

(smooth)
