Thank you for purchasing this Softener. We are sure that it will provide you with

trouble free service for many years to come.

Please use the following p

ages to assist you

in the installation and set up of your new Softener.

Planning Your Installation

Please

observe the regulations concerning the installation of your water softener. For

guidance check out the water regulations advisory service web site (

www.wras.co.uk) Check

that

you only have one rising main, that you have allowed space for access to the unit for

possible future maintenance and salt replenishment. Check the water pressure; locate the

rising main (stop cock) a drain facility and a power s

upply.

Unless you are replacing an existing water softener, this installation will require you to carry

out plumbing work and may require an electrical outlet to be fitted near the softener. You

should only attempt this if you have the necessary ski

ls.

ositioning the Softener

Where possible the softener should be placed close to the rising main. Take care to allow hard

water take off points for a drinking water facility and /or an outside tap. The distance between

the drain and the Softener should be as

short as possible

. Ensure that both the drain and

overflow will not freeze or reach a temperature above

40°C

. If putting the Softener within a

cupboard ensure that the base is adequately supported. If the Softener is being installed within

your loft etc i

t is recommended to house the Softener within a tank capable of storing at least

100 Litres

with an overflow fitted. The overflow on the tank should be below the Softener

overflow and be a minimum of ¾” in size.

A single Check Valve

suitable ch

eck val

ve should be fitted. This will usually

be in the installation kit that can be

ordered separately.

Check List

Before you start the installation make sure that you

have all the necessary fittings. The purchase of one

of our standard installation kits will

normally ensure

that you have everything that you need for a typical

installation

Water Pressure Test

It is important that a pressure test is carried out.

High

and

low

water pressure can result in either damage to

or failure of the Softener. Although the

Softener is

tested to a pressure of 8 bar

(120psi)

, we recommend

the fitting

of a pressure limiter should your pressure

exceed 5 bar (70 psi)

The minimum working

pressure is 1.4 bar (20 psi)

Before starting

the

installation of the valves ensure that the

top

cock is in the closed

position.

- 3 -

Connecting the Softener

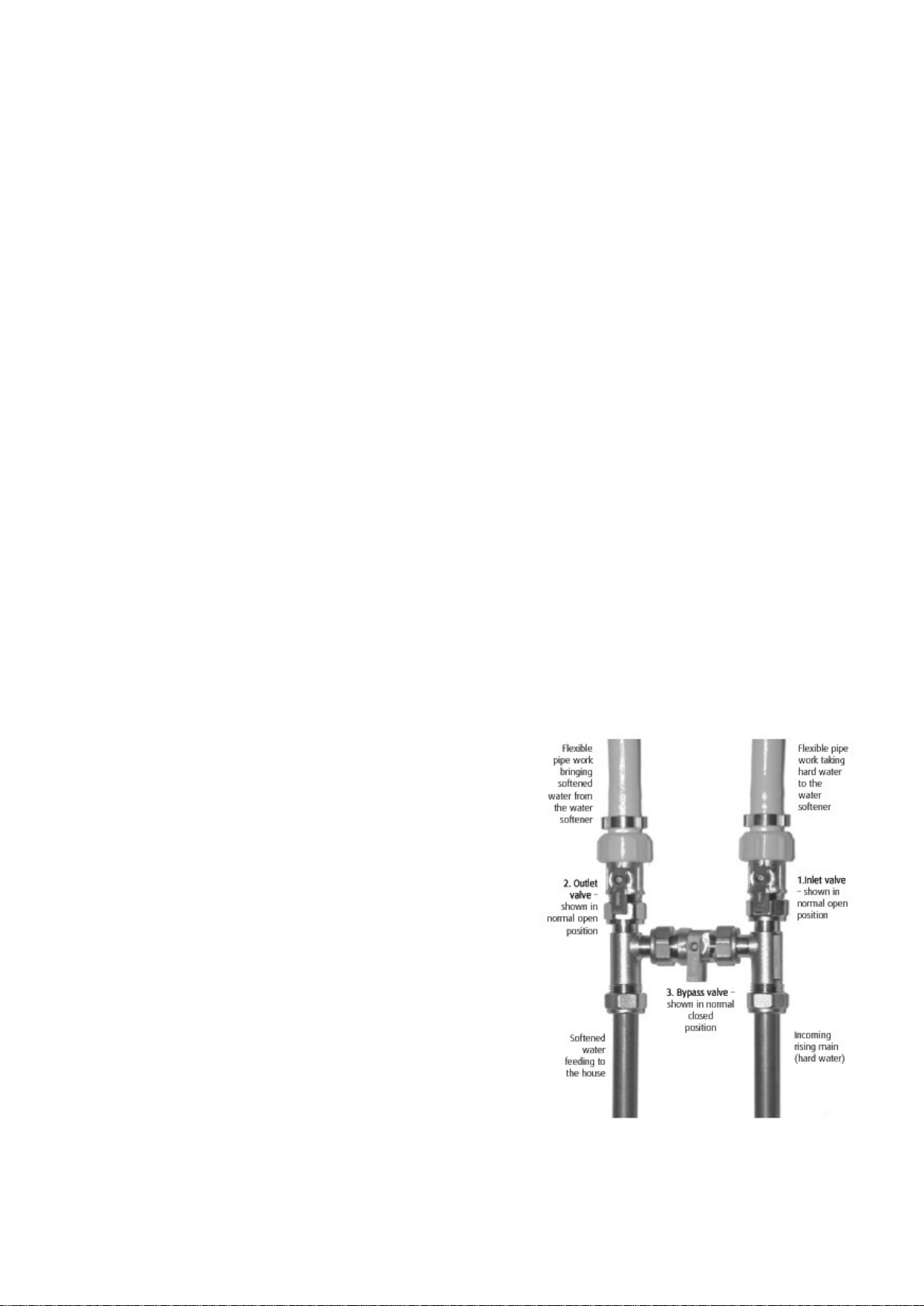

Once you have completed the installation of the valves set the valves as follows:

Softener

Inlet and Outlet

valve

CLOSED

Bypass valve OPEN

You can now safely return the stop cock to the op

en position

Using the hoses provided (if

installation kit ordered) connect the straight end of the

ose having first inserted the washer

provided to the softener inlet and outlet valves.

Connect the angled end to the Softener. The

Softener inlets and outl

ets should be

indicated

either with the words inlet or outlet or with an

embossed

directional arrow

n the Softener tails. Normally the Softener tails are in a

configuration of three with the centre normally being the waste outlet.

Waste Pipe Installation

Connect the waste pipe to the waste outlet on the Softener and run the hose to either an up

stand or outside drain, a minimum air gap of 20mm must exist at the end of the drain line.

Softened water will have no adverse effect on a septic tank.

Should

u need to extend the

drain hose this can be done by connecting to a 15mm copper tube for a maximum run of 8

meters with a minimum daytime pressure of 40

psi.

Ensure that the drain hose is not kinked

or obstructed in any way as this will lead to an overflow of the softener.

The drain pipe can

run uphill to a maximum of

1 Meter

with a minimum water pressure of 40

psi.

- 4 -

Overflow Connection

The overflow connection is the white ½” hose spigot on the rear or side of the cabinet. A clip

is not required for

this connection. The overflow must be run downhill through an outside

wall without kinks or restrictions. It is recommended the overflow hose be visible when it

exits the outside wall.

Electrical Connection

Connect the transformer provided to a continuous electrical supply with the power off. Plug

the flying lead from the transformer into the electrical connection on the controller (see

programming instructions). Ensure the flying lead cannot get caught on the camshaft or any

moving parts on the Softene

r valve.

Preparing the Softener to go into service

Now that all the connections have been completed put approximately 5 litres of water into the

brine tank. You may also at this point put a quantity of salt into the tank. Do not allow the salt

level in

the brine tank to exceed the height of the overflow. The amount of salt used will

depend on the type and model of Softener you have, you should never let the brine tank

become completely empty of salt and it is advisable to check the salt levels on a regul

ar basis

until a usage pattern has been established.

Putting the Softener into service

You should now complete any programming instructions that

may

apply to your particular

Softener

. During the commissioning process and initial

regeneration you can

con

firm that the

unit has no leaks

from the

installed valves and

that w

aste water runs free. This regeneration

will also assist in cleaning any potential air locks that may be present within the system.

The regeneration will also reset any internal meter or timer devises that dictate the frequency

of the regeneration cycle.

- 5 -

uick Set Up Guide

The main user guide should only be used for reference purposes, please use this guide

for initial programming.

Your Softener should already have be

en set up with the basic settings in the factory

The only settings you should need to enter are the time of day, day of week and the water

hardness

Down arrow. Used to scroll down or

increment through a group of choices.

Set. Used to accept a setting to

store in the

memory.

Up arrow. Used to scroll up or increment up

through a group of choices.

Regenerate. Used to command the controller

to regenerate.

Before starting this process ensure that the softener is connected correctly to the water and

power supplies.

Initial Power Up

Plug the transformer into the rear of the control

panel;

this is located to the

left top corner of the panel if viewing from the front. Once the power is

connected the display

should

show

255

, on occasions the display may

lash between time and r

egeneration

with the regen symbol flashing

press

set button

to clear

. During

the

set up process the display may revert to

service mode

(after 25 seconds)

by repeatedly pressing the set button you

can scroll to the part of the set up

programme you require. If you receive

an ERR3 message allow the cam shaft to turn for a few moments and this

code should disappear. If the cam does not move Check that the Cam

Shaft

is fitted correctly and that the optical sensor is in position.

Set

Time

Press the set button. The TIME should now be flashing, use the up and

down arrows to set the correct time of day (24hrs format). Once the

correct time has been selected, press the set button to confirm.

The

following will then be displayed.

Set Da

y of the Week

Press the set button to display the screen shown. The display will flash,

use the up and down buttons to advance the arrow to underneath the

correct day. Once under the correct day press the set button to confirm.

The following will then be

displayed.

- 6 -

Press the set button to accept this setting and again to the next setting.

The following will then be displayed.

Set Days to Regenerate

(

760

Metered units only)

This setting is a default override setting to allow for optimum performance

of the resin it should be regenerated at least every 7

–

10 days, this will

then perform a regeneration of the softener should one not have been

instigated

during this time period.

Press the set button to make the display

flash, use the up and down arrows

to advance to the required setting then

press the set button to confirm.

(740

Timer units only)

Use this setting to set the frequency of

regeneration. The following will then be displayed.

This display will show one of the following letters S, L or H.

This is

dependant on the model you have and has been pre

set at the factory.

(Typically set on H for 10L & S for 15L)

Press the set button to advance to the next setting.

The following will then be displayed.

A number with Kg after will appear on the

display. This figure will be

pre

set at the factory.

Press the set button again to advance to the next setting.

The following will then be displayed.

Setting the Hardness

Press the set button and the display will flash, use the up and down arrows

to en

ter the water hardness in ppm then press the set button to confirm the

setting.

The display should then revert to the time display.

Once you are satisfied that the Softener is both plumbed in and set up

correctly it is ready for commissioning.

ormal Valve Operation

During normal valve operation the 740 will display the time of day.

The 760 will alternate between the time of day and the volume of water

remaining in cubic meters before the system will need to regenerate.

- 7 -

Commissioning the Softener

Close the stop cock again and then open the inlet and outlet valves to the softener. Press and

hold the regenerate button (4) you should hear the cam rotate and the following display will

appear

, when the cycle indicator shows

1 slowly

open the st

op cock

about a quarter of the

way

, this will purge the air from the system.

When all of the air has been purged from the

system (water

will begin

to run steadily from the drain) open the water

supply fully

, this will purge the final air from the system.

Advance the regeneration cycle to the (Refill) position C8 by pressing the set button and the

up arrow! Wait until the cam stops before repeating the operation and continue to do this until

you reach C8. When in C8 this will direct water down through the

regenerant line to purge

the air; when all the air bubbles have gone and the glass chamber is full, press the set button

and up arrow to move the cycle onto C0 service position.

Finally turn on a tap after the softener until the water runs clear.

Your so

ftener

is now ready to supply your

property with soft water. Please bear in mind that

it may take some time for soft water to reach all outlets in your home.

It is advised that you instigate a delayed regeneration for the first night (see below)

Manual Regeneration

This softener can perform two different types of manual regeneration either immediate or

delayed.

Delayed Regeneration

Press and release the regeneration button once. The regen symbol will appear and flash on the

display. A single regenera

tion will start at 2am (preset regen time) if you wish to cancel this

delayed regen simply press the regeneration button again and the symbol will disappear from

the display.

Immediate Regeneration

To perform an immediate regeneration press and hold the

regen button for 5 seconds until the

cam starts to turn and the egg timer shows.

Rear of control panel

- 8 -

Typical settings for 740 & 760softeners,

Vessel Size

613

1012

817

822

919

735

1023

835 935

1035

Media Volume to program (litres) 5

10 15 15 20

20 30

Time of day (HH:MM)

Day of week (DAY)

Time of regeneration (HH:MM)

Calendaroverride days 740

3 3 3 3 3 3 3 3 3 3

Calendaroverride days 760

14 14 14 14

14 14

Regen interval if P4setto 0 (740 ONLY)

Salt amount (gms)

H H H S S S S S S S

Capacity (Kg) 740 control (cannot change)

0.3

0.5

0.8

1.2

1.5

1.6

2.1

Capacity (Kg)760 control

0.2

0.5

0.5 0.7 0.7

0.9

1.1 1,3 1.5 1,8

Hardness in ppm CaCO3

Set onsite 760only

Set on site

Set on site / Factory set default 2.00am

Set on site if required

4202035013

SNo 08090137

Mis

0919-255-760

To Re Set the Control

Only to be done when necessary.

Press and hold SET and DOWN together for 5 seconds.

H0 and the system’s resin volume for mo

del will be displayed.

Press and hold the square set button for 5 seconds, three dashes should

then appear on screen.

Use the up or down arrows to select the correct or nearest media volume

of your softener.

Press the set button to accept this setting.

fer to the

earlier set up guide for the other settings.

Identifying your Softener.

Your softener will have a identification label fixed to the outer carton and the control valve,

this will look similar to the picture shown here.

The information liste

d can be read as follows:

Stock Number:

Manufacturers part number.

Serial No:

Serial No.

Id Code:

Softener type identification code.

Configuration:

Vessel size, Valve type & Controller type.

Identify the settings relevant to your softener from the char

t below by looking at the vessel

size and controller type.

Soft 001

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Coral Distributeur d'eau

Coral

Coral Coral Series Guide de dépannage

Manuels Distributeur d'eau populaires d'autres marques

Monarch Water

Monarch Water ULTIMATE MINI AQUA HE Manuel utilisateur

Haier

Haier HLM-109B Manuel utilisateur

abc

abc Fleck 5600SXT Manuel utilisateur

GE GXOF18G Mode d'emploi

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuel utilisateur

Innova

Innova CEV+ Guide de démarrage rapide

Aries

Aries Hydra DI Manuel

GE GNCF02H Manuel utilisateur

ProFlo

ProFlo PFB Series Manuel utilisateur

Hydrotech

Hydrotech 89DF HIM Manuel utilisateur

A.O. Smith

A.O. Smith FREZYA 300S Manuel utilisateur

Frakco

Frakco Travelsoft RV 2400HD Manuel utilisateur

GE GXSF30V Mode d'emploi

Avanti

Avanti WD31EC Manuel utilisateur

Avanti

Avanti WD360 Manuel utilisateur

BRIO

BRIO CLCTTL520 Guide de l'utilisateur

3M HCD-1 Manuel utilisateur

Elkay

Elkay EFHFA8_2CJO Manuel d'installation
