i-on Flashloader

Installation and User Guide

i-on Flashloader

Page 2

Introduction

The i-on Flashloader software allows you to

update the main operating software on the

i-on40 alarm system control unit. The

software runs on Windows XP or Vista, and

communicates with the i-on40 control unit

over USB cable.

The control unit printed circuit board (pcb)

provides a socket for a Mini-B USB plug.

Requirements

• Any PC or laptop running Windows XP

sp3 or Vista.

• At least 2MB of free hard disk.

• A free USB port.

• A USB cable ending with a Mini B plug.

The other end of the cable must be

connected to a spare USB port on the

computer that is going to run i-on

Flashloader.

Installation

Note: To install i-on Flashloader you must

be logged onto your PC with an account

that has administrator’s rights.

To install i-on Flashloader:

1. Download the installation file from

www.coopersecurity.co.uk. and save the

file to a convenient location on your PC

(for example the desktop).

The name of the installation file ends

with “.msi”. This is an executable file

(like files whose name ends in “.exe”).

2. Run the setup file by double clicking on

its icon.

The screen shows a setup wizard:

3. Click Next.

The setup wizard asks you for a location

on your hard disk to install the i-on

Flashloader software:

The default location is “C:\Program

Files\Cooper Security\i-on Flashloader”.

If you accept the default and click OK

then the installation program will create

the required folders. If you wish to run

i-on Flashloader

Page 3

the software from another location click

the Browse button and navigate to your

preferred folder.

If you want every account on your PC to

be able to use Flashloader then click the

“Everyone” button.

4. Click Next.

The setup wizard shows you a final

screen to make sure that you want to go

ahead:

(Click Back if you want to retrace your

steps to an earlier stage. Click Cancel if

you want to stop the installation.)

5. Click Next.

The setup wizard shows a progress

screen:

When setup has finished the setup

wizard shows its final screen:

6. Click Close.

You should now have an icon on your

desktop called “i-on Flashloader”:

i-on Flashloader

Page 4

Using i-on

Flashloader

At the PC:

1. Obtain the file holding the i-on40

operating software that you wish to

install.

Note: Operating software for the i-on40

control unit is held in a file with a “.bin”

extension. The filename itself should give

you the version number.

2. Plug the USB cable into a free USB port

(leave the Mini B plug free).

3. Run i-on Flashloader by double clicking

on the i-on Flashloader icon.

i-on Flashloader displays its opening

window:

4. Click the Browse button.

i-on Flashloader displays a standard file

browser window.

5. Navigate to the .bin file holding the i-

on40 operating software you wish to

load. Select the file and click OK.

The “Panel Software Location:” field in

the i-on Flashloader window should

show the path to the .bin file, for

example:

At the i-on40 control unit:

1. Enter the installer menu and then

remove mains power. (If you do not

enter the installer menu you will start a

tamper alarm in the next step.)

2. Open the end station lid and disconnect

the battery.

3. Plug the Mini B connector on the USB

cable into the USB socket on the i-on40

pcb.

4. Connect the battery and then briefly

short the Kick Start pins together (use a

wire link or the end of a small

screwdriver).

The i-on40 will start up and the

heartbeat LED should flash rapidly to

show that the i-on40 is operating in

“flashload” mode.

At the PC:

The i-on Flashloader window should

show “i-on40 - Connected”:

If the i-on Flashloader window shows a

red error message, like this:

then remove and immediately re-insert

the USB Mini B connector on the i-on40

pcb.

1. When the i-on Flashloader window shows

“Connected” click “Send to Panel”.

i-on Flashloader

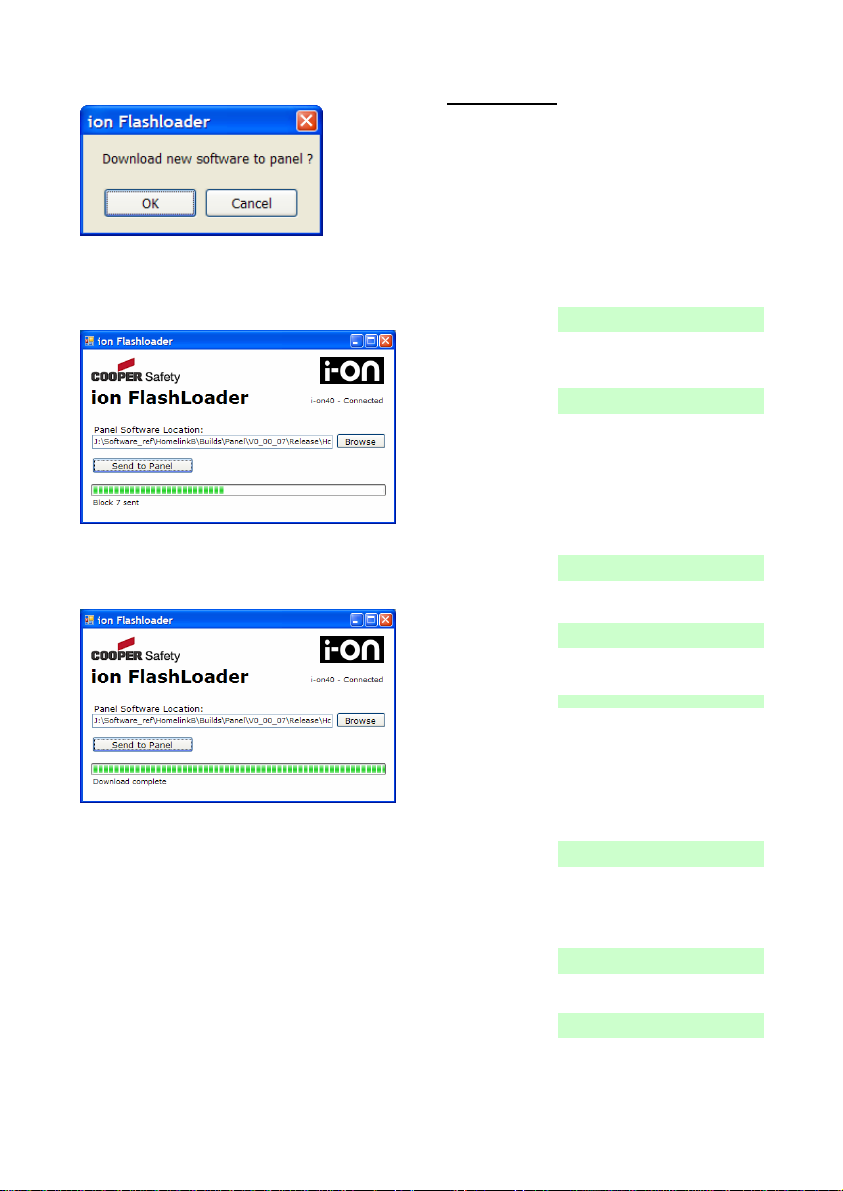

Page 5

You should see:

2. Click OK.

i-on Flashloader starts sending the .bin

file to the i-on40. You should see a

progress bar like this:

When the i-on Flashloader has

completed sending the .bin file the PC

screen should show “Download

Complete”:

At the i-on40:

1. Disconnect the USB cable.

The heartbeat LED goes dark.

2. Remove all power, including the battery.

3. Reconnect the battery, then the mains.

The heartbeat LED starts flashing (about

once per second). If the end station lid

is open then the control unit starts a

tamper alarm.

The display initially shows:

Language?

English

4. Press uor nto show other languages

on the bottom line of the display. for

example: Language?

Nederlands

5. Press Yto select the language you

want.

From this point on, the display operates

in the selected language. If you want to

change the language later use Installer

Menu - System Options - Language.

The display shows:

COUNTRY DEFAULTS

*UK

6. Press uor nto show other countries,

for example:

COUNTRY DEFAULTS

Italy

7. Press Yto select the country you want.

The display shows:

Load Profile?

8. Either: Press Yto load the Profile.

Or: Press Xto start with a blank

system

The end station loads your choice of

profile, and then shows:

A : Partition mode

B : Level set mode

9. Press A or B to select either a

partitioned system or a level setting

system.

The display shows:

WIRED ZONE TYPE

*2-wire FSL 2k2/4k7

10.Press uor nto show the range of

wiring types available, for example:

WIRED ZONE TYPE

4-wire CC

11.Press Yto select the wiring type you

intend to use for the wired zones

i-on Flashloader

Page 6

The display shows:

-ON40

00:00 01/01/2009

At this point, if the control unit lid was

open in step 3, then the sounders will

still be giving a tamper alarm.

12.Key in the default access code (1234).

The sounders fall silent. The keypad

displays shows, for example:

Press tick to reset

13.Press Y.

The display shows:

RESET FAULTS

Panel lid open

14.Press Y.

The display shows: i-on40

00:00 01/01/2009

The navigation key will glow red until you

replace the control unit lid and acknowledge

the alert. The control unit is now ready for

programming.

i-on Flashloader

Page 7

Notes:

i-on Flashloader

Page 8

Every effort has been made to ensure that the

contents of this book are correct. However, neither the

authors nor Cooper Security Limited accept any

liability for loss or damage caused or alleged to be

caused directly or indirectly by this book. The contents

of this book are subject to change without notice.

Printed and published in the U.K.

This manual applies to software used in the i-on40

control unit with version 2.xx software.

www.coopersecurity.co.uk

Product Support (UK) Tel: +44 (0) 1594 541979.

Available between:

08:15-12:30 and 13:00-17:00 Monday to Friday.

Product Support Fax: (01594) 545401

Part Number 11964499 Issue 1
