USER GUIDE

HARDWIRED

CONTROL UNIT

Page 2 11772233

Contents

1. Introduction ........................................3

Alarm System.......................................3

Keypad.................................................4

Proximity Tags .....................................4

Mains Power Failures...........................7

About this Guide...................................8

2. Everyday Operation ...........................9

Setting the System...............................9

General Procedure.........................10

Timed Set.......................................11

Final Door Set ................................11

Lock Set .........................................11

Terminated Set...............................11

Silent Set........................................11

Instant Set......................................11

Keyswitch Set.................................12

Forbikobler Keypad Set..................12

Investigating Setting Problems...........13

Detector Active...............................13

Other Problems..............................14

Unsetting the System .........................15

General Procedure.........................15

Keyswitch Unset.............................15

Aborting False Alarms ................... 16

3. After an Alarm.................................. 17

Responding to a Fire Alarm............... 17

Responding to other Alarms .............. 17

4. Special Functions............................ 18

Introduction........................................ 18

Viewing Alerts.................................... 19

Omitting Zones .................................. 20

Normal Alarm Zones...................... 20

24-hour Zones ............................... 20

Requiring User Code before

Installer Code .................................... 21

Reading the Log ................................ 21

Turning the Chime On and Off .......... 22

Testing the Sounders ........................ 22

Testing Zones.................................... 23

Setting up Users................................ 23

Access Codes ............................... 24

Proximity Tags............................... 26

Setting Time and Date....................... 26

Appendix. Log Messages ................... 27

Your Installation .................................. 32

9651 Hardwired Control Unit User Guide.

This document applies to control panels using software version 4.03.xx.

Every effort has been made to ensure that the contents of this book are correct. However, neither the authors

nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or

indirectly by this book. The contents of this book are subject to change without notice.

Printed and published in the U.K.

11772233 Page 3

1. Introduction

Alarm System

The alarm system described in this book comprises a control unit (model

9651), one or more keypads, and various detectors. The control unit houses a

main controller, power supply, stand-by battery and an optional

communication device. It is normally fitted in a safe place out of sight (for

example, under the stairs).

The detectors are installed in various places, or zones, around the premises.

If something triggers a detector, the detector signals this to the control unit.

How the control unit reacts depends on whether the system is set or unset.

• When set, the control unit raises an alarm whenever a detector is

triggered. The alarm might be a bell or strobe on the outside of your

premises, or it might be a silent signal over the telephone line to an Alarm

Receiving Centre (ARC).

• When unset, the system does not raise an alarm if a detector is triggered.

• Your installer can program the control unit so that you can set the system

to one of four levels: A, B, C or D. Level A protects the whole of the

premises covered by the detectors. Levels B, C and D each protect part

of the premises while the rest is in use. You cannot set more than one

level at the same time.

The control unit raises an alarm when a detector in a set level is triggered.

Your installer allocates detector zones to levels during installation. Refer to

the table on page 32 to see how zones are allocated.

Your premises may be fitted with 24-hour zones and panic alarm zones. If

these zones are triggered, the system will raise an alarm even if no level is

set. 24-hour zones are often used to protect (for example) emergency fire

exits.

1. Introduction

Page 4 11772233

Keypad

Your alarm system is fitted with a 9930 or 9940 keypad, from which you can

set and unset the system. Figures 1 and 2 show the main features of these

keypads. Refer to "4. Special Functions" on page 18 for information about

other functions available from them.

The system will not accept commands from the keypad until you identify

yourself with an access code or proximity tag. The system can store up to 50

access codes, which may contain four or six digits1, giving secure access for

up to 50 users.

If you enter an incorrect code, press Xto clear the display and try again. If you

enter an incorrect code four times, all keypads will be locked for 90 seconds.

If you do not enter a command within 20 seconds, the system leaves

command mode. You will need to enter your code again to continue.

Your installer may have set up your system to hide status information2. If so,

the display and lamps show no information until you identify yourself. This

feature is designed to make life more difficult for intruders.

Proximity Tags

So that you do not have to remember access codes, your installer may have

fitted your keypads with a device that reads proximity tags. These tags are

small slips of plastic that have electronic circuitry built into them.

When you hold a tag against a suitably equipped keypad, the circuit inside the

tag emits a radio code that the keypad reads. Each tag has a unique code. If

the alarm system recognises the tag, it allows you to do almost anything that

you could do with an access code. If the tag is not recognised, you cannot use

the alarm system. When presenting a tag to a 9930 keypad, make sure that it

is touching the sensitive area to the left of the display (Figure 1). The 9940

keypad has a proximity coil that makes the whole case sensitive to tags.

You can program the system to recognise up to 49 tags. U01, the master

user, can only be assigned an access code – a proximity tag cannot be

assigned to this user. For instructions, refer to page 25.

1Installer Command 56

2Installer Command 28

1. Introduction

11772233 Page 5

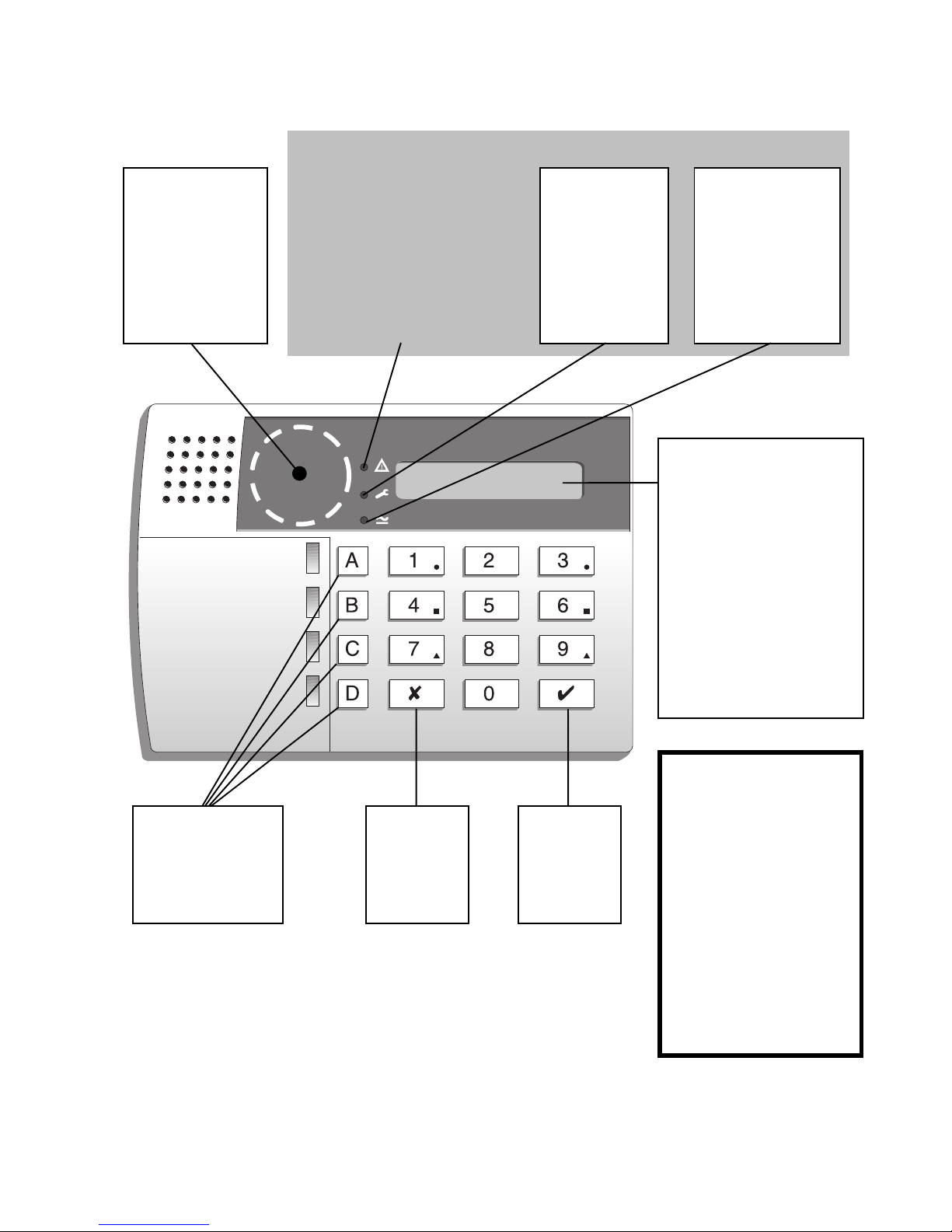

Figure 1. 9930 LCD Remote Keypad

Alert lamp (see page 19)

Flashes to highlight

unacknowledged alarm,

fault or tamper conditions.

Glows for acknowledged

conditions.

Goes out when all

conditions are rectified.

Service lamp

Glows if the

system needs

an Installer

reset.

Mains lamp

Glows when

using mains

power.

Flashes when

using stand-by

battery.

Sensitive area

Present

proximity tags

by touching

them to this

area.

2-line 16-digit liquid

crystal display

The first line shows:

- unset: time and date

- set: level(s) .

The second line shows

Installer-configured text,

often the control unit

model number.

The display may show

only time and date until

a user is identified.

Exit key

Press to

cancel a

command

sequence.

Enter key

Press to

confirm a

command

sequence.

IMPORTANT NOTE

Dual key alarms

Pressing two keys

together can initiate

alarms if these are

enabled (see page 32).

Panic

Press 1 and 3 together.

Medical assistance

Press 4 and 6 together.

Fire

Press 7 and 9 together.

These may show nothing until you enter a user code.

Level selection

keys

Press to select

levels.

1. Introduction

Page 6 11772233

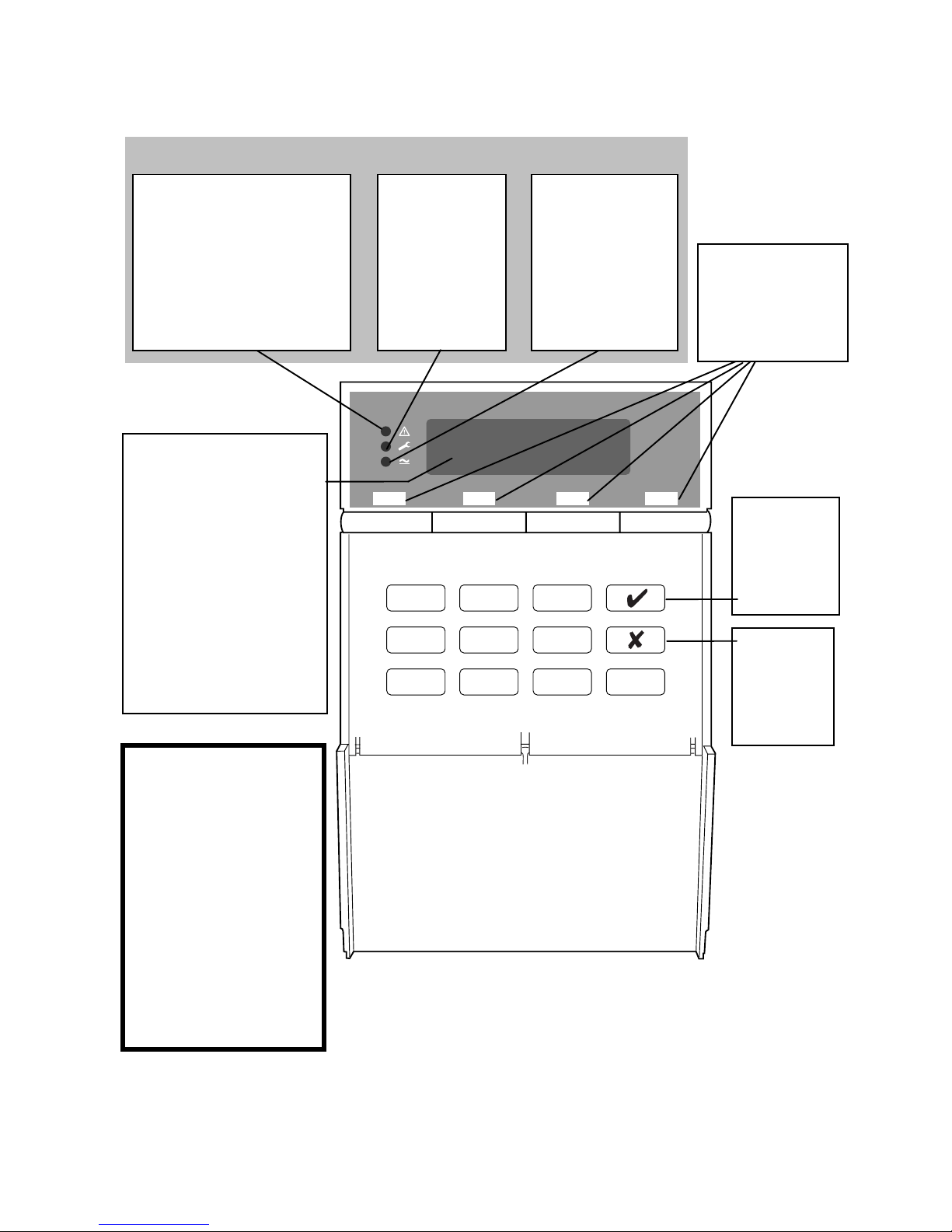

Figure 2. 9940 LCD Remote Keypad

AB CD

123

456

7890

Alert lamp (see page 19)

Flashes to highlight

unacknowledged alarm,

fault or tamper conditions.

Glows for acknowledged

conditions.

Goes out when all

conditions are rectified.

Service lamp

Glows if the

system needs

an Installer

reset.

Mains lamp

Glows when

using mains

power.

Flashes when

using stand-by

battery.

2-line 16-digit liquid

crystal display

The first line shows:

- unset: time and date

- set: level(s).

The second line shows

Installer-configured text,

often the control unit

model number.

The display may show

only time and date until

a user is identified.

Exit key

Press to

cancel a

command

sequence.

Enter key

Press to

confirm a

command

sequence.

IMPORTANT NOTE

Dual key alarms

Pressing two keys

together can initiate

alarms if these are

enabled (see page 32).

Panic

Press 1 and 3 together.

Medical assistance

Press 4 and 6 together.

Fire

Press 7 and 9 together.

These may show nothing until you enter a user code.

Level selection

keys

Press to select

levels.

1. Introduction

11772233 Page 7

Mains Power Failures

The control unit indicates mains power failures using alerts. If the supply has

since been restored, the alert will show the condition as inactive. For

instructions on how to view and acknowledge alerts, refer to page 19.

1. Introduction

Page 8 11772233

About this Guide

The rest of this guide tells you how to use the system:

2. Everyday Operation Tells you how to set and unset the system.

3. After an Alarm Tells you how to switch off the sounders after an

alarm, view what caused the alarm and reset the

system so that it can be used again.

4. Special Functions Tells you how to use more advanced features, some

of which are available only to the master user.

11772233 Page 9

2. Everyday Operation

During installation, your installer programs the system to create an exit route

and entry route for your premises. When setting the system, you must follow

the exit route. When unsetting the system, you must follow the entry route. If

you stray from these routes, you may cause a false alarm.

Setting the System

There are several different methods for setting the system. Each level can use

a different method, although not all methods are available in all cases. Your

installer will have selected the methods that suit your site best3.

The possible setting methods are:

Timed Set Silent Set

Final Door Set Instant Set

Lock Set Keyswitch Set

Terminated Set

The setting procedure is similar for each method and shown on page 10.

Subsequent sections describe the specifics of each setting method.

If you try to set the system while something is triggering a detector in the

protected area (for example a door or window is still open), the system will not

set (see page 13).

If you find that your detectors generate false alarms immediately after you

leave the premises, this may be because they are detecting air movements

when the exit door is closed. You may need to ask your installer to increase

the Final Exit Settling Time4.

3Installer Commands 39, 62, 72 and 76

4Installer Command 182

2. Everyday Operation

Page 10 11772233

General Procedure

To set the system:

1. Secure all doors and windows.

2. At the keypad, key in an access code

(or present a tag).

The display shows (for example): System OK

Set?

3. Press the appropriate level key.

Note: If you press ywithout a level key, the

system sets Level A (Full Set).

4. If you have omitted a zone (see page 20),

the display shows (for example): Omit Zone 03?

Set? ABCD

Press yto continue with the zone omitted.

If you do not want to omit it, press Xto exit.

During the exit procedure, the keypads give

a continuous exit tone. The tone may be

intermittent if the final door is open.

Setting ABCD 009

If you hear an intermittent tone from the

keypads or internal sounder and the final

door is not open, a detector is being

triggered (see page 12).

5. Leave by the designated exit route.

When you complete the exit procedure in

accordance with the setting method in use,

the system sets and gives a double "beep".

The keypad display shows which level is

set.

Set ABCD

9x5x

Set A

9x5x

Note: If you decide not to set the system, key in your

access code again (or present a tag) to unset it.

Autres manuels pour Scantronic 9651

Table des matières

Autres manuels Cooper Menvier Unité de contrôle

Cooper Menvier

Cooper Menvier Scantronic 9651 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
