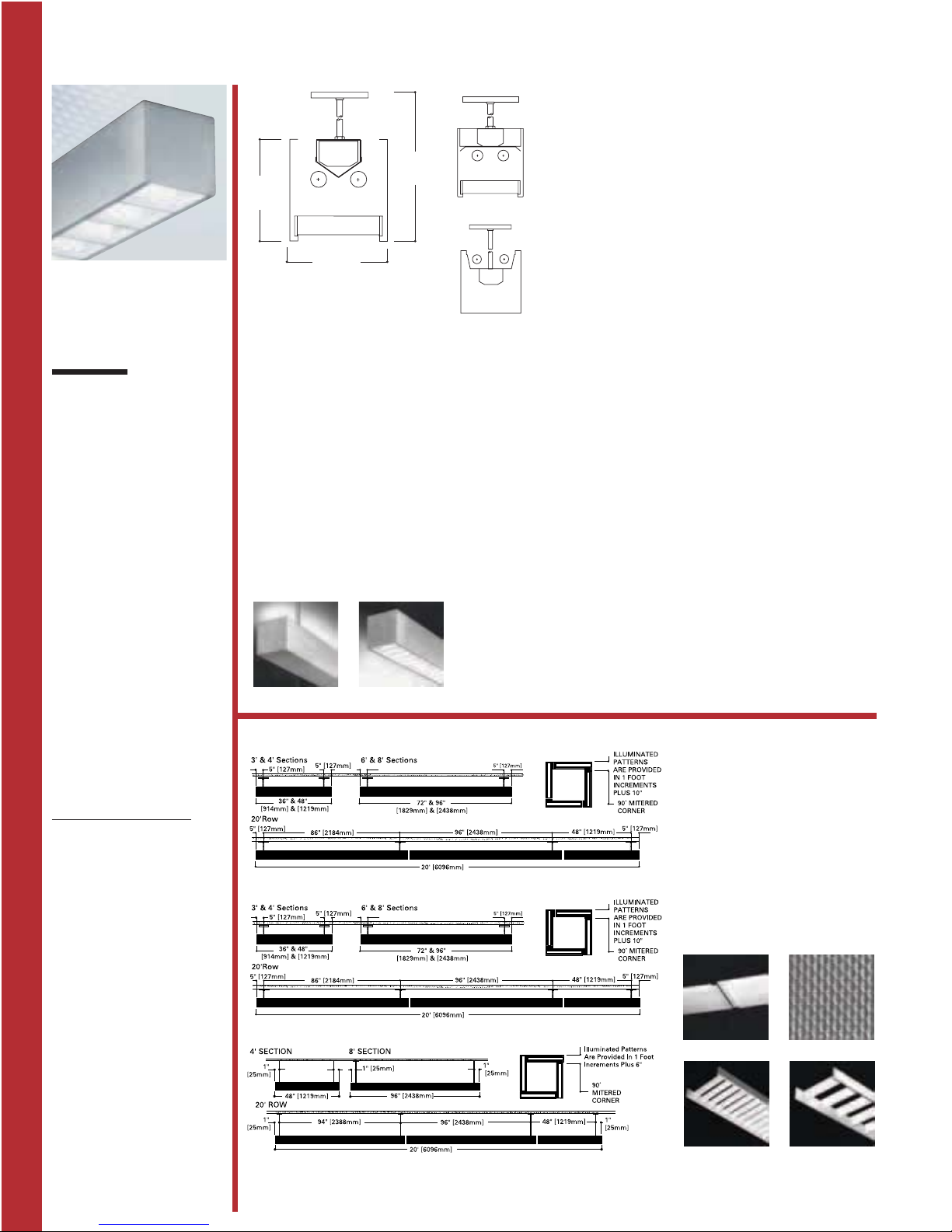

Cooper Lighting GEO 80-IP Manuel utilisateur

Geo 80IP Geo 83DP

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be

modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

720 COOPER LIGHTING

GEO

89-DIP

83-DP

80-IP

DIRECT-INDIRECT (89)

DIRECT (83)

INDIRECT (80)

SUSPENDED

• Direct – indirect light

distribution.

• The light is continuous and

unbroken.

• Die formed steel housing,

nominal illuminated sections

3’, 4’, 6’ and 8’.

• Rigid ‘U’ shaped double

formed trim with 3/8”

regress soft lit edge.

• Runs provided to the nearest

foot.

• Housings may be special

ordered custom finished.

• Patterns are formed by

butting standard sections.

• Selection of 4 light diffuser

options.

83-DP additional feature

• Selection of 4 light diffuser

options.

Construction: 20-gauge steel housing. Nominal 3’,

4’, 6’ or 8’ illuminated sections.

End Caps: 20-gauge steel construction.

Shielding: White bold baffle louver. White acrylic

diffuser. Prismatic acrylic lens. Parabolic baffle.

Electrical: 120, 277, 347 or Universal Voltage

electronic ballast. Fixtures and electrical

components certified to UL and CUL standards.

Finish: Durable, low gloss, white, powder coated

acrylic finish.

Mounting: Pendant with single stem (standard) or

single cable. Canopy: Round 5” diameter.

6" [153mm]

6-1/4"

[159mm]

89-DIP 83-DP

80-IP

18"

[457mm]

ORDERING INFORMATION:

Sample number: 89-DIP-2T8-ST40-1EB-SI-S58

Series

89=Geo DIP 83=Geo DP 80=Geo IP

Light Output

DIP=Direct-Indirect Pendant (89)

DP=Direct Pendant (83)

IP=Indirect Pendant (80)

Number of Lamps (per cross section) (not included)

1=1 Lamp 2=2 Lamps

Lamp Type

T8 T5 T5HO

Pendant Type

SC=Single Cable ST=Single Stem 2

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’

sections)

Voltage 1

1=120V 2=277V 3=347V U=Universal

Ballast

EB=Electronic Ballast (Standard) DB=Dimming Ballast

Switching

SI=Single Switching DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding (*not available for 80 Indirect)

S22=White Acrylic Diffuser

S72=White Bold Baffle

S58=KSH-12 Clear Acrylic Prismatic Lens

S79=Semi-Specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others.

2 Available with 7° or earthquake 45° swivel canopy assembly.

83DP

80IP

S22 Acrylic Diffuser S58 Acrylic Lens

ROW CONFIGURATION

89DIP

NEO-RAY™

S72 Bold Baffle S79 Parabolic Baffle
