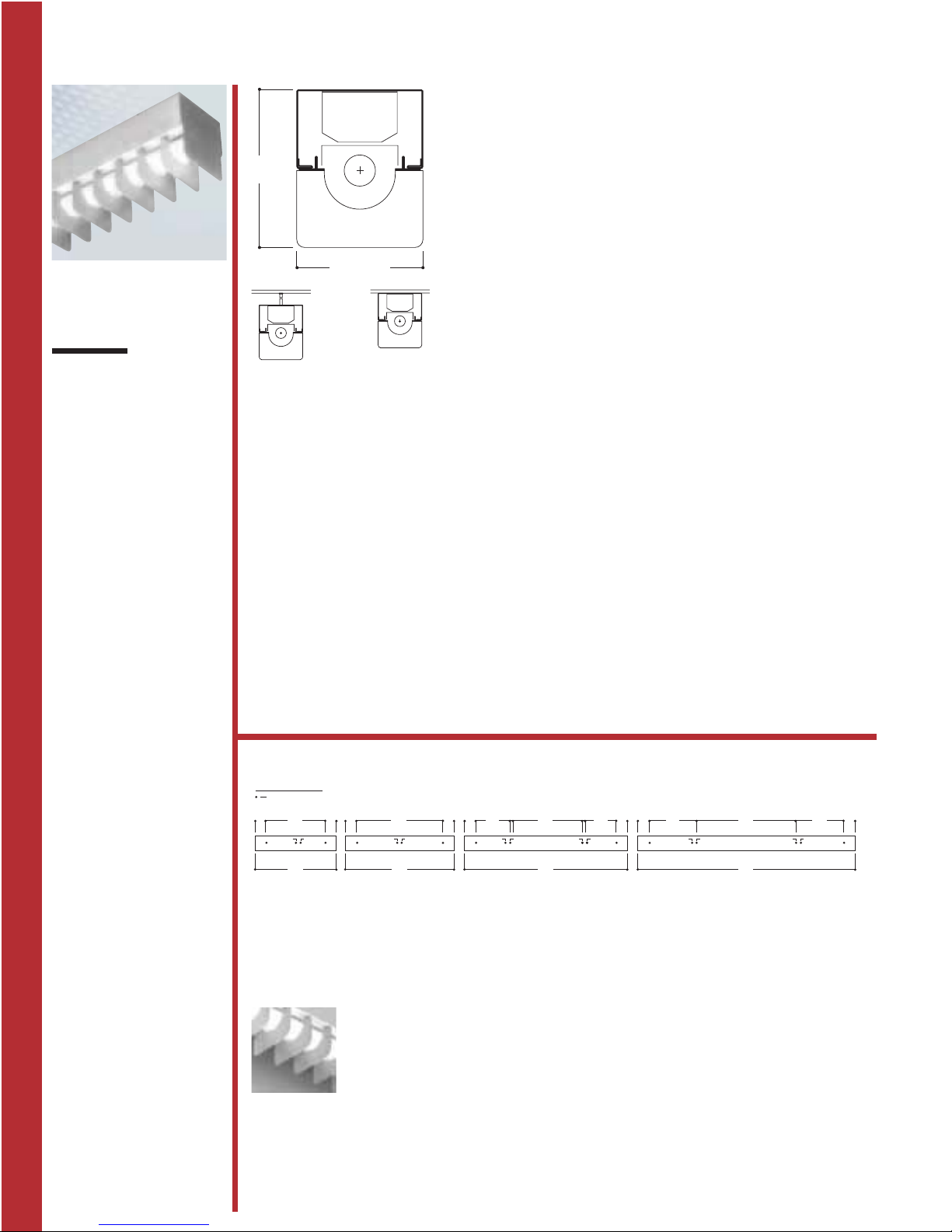

Cooper Lighting NEO-RAY 2-S Manuel utilisateur

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be

modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

2-S

2-S/DP

2-S/DS

SEMI INDIRECT

DIRECT-INDIRECT

SPECIALTY

Construction

20-guage steel housing. Nominal 3’, 4’, 6’ or 8’

illuminated sections.

Shielding

Lateral baffle.

Electrical

120, 277 or 347 volt electronic ballast. Fixtures and

electrical components certified to UL and CUL

standards.

Finish

Durable, low gloss, white, powder coated acrylic

finish.

Mounting

2DP; Pendant with single stem (standard) or single

cable. Canopy: Round 5-1/2” diameter.

ORDERING INFORMATION:

Sample number: 2SDP-1T8-ST8-1EB-SI-S14

Series

2S=Specialty

Light Output

D=Direct

Mounting

P=Pendant S=Surface

Number of Lamps (not included)

1=1 Lamp 2=2 Lamps

Lamp Type

T8 T5 T5HO

Pendant Options

SC=Single Cable ST=Single Stem 2

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’

sections)

Voltage 1

1=120V 2=277V 3=347V U=Universal

Ballast

EB=Electronic Ballast (Standard) DB=Dimming Ballast

Switching

SI=Single Switching DU=Dual Switching (surface mount only)

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding

S14=Contoured Baffle

1 Due to various constraints, some options may not be combined with others.

2 Need a Pendant Option footnote here.

• Direct stack-light distribution.

• Lateral baffles 4” wide by

2.5” high on 2” centers for

vertical illumination.

• The light is continuous and

unbroken.

• Die formed steel housing,

nominal illuminated sections

3’, 4’, 6’ and 8’.

• Runs provided to the nearest

foot.

• Housings may be special

ordered custom finished.

[127mm]

4" [102mm]

MOUNTING INFORMATION

36" 48" 72" 96"

(INDIVIDUAL FIXTURES ONLY)

CONSULT FACTORY FOR CONTINUOUS

RUN APPLICATIONS

26"

1-1/4"

5" 5" 38"5" 5" 36"13" 13"5" 5" 48"19" 19"5" 5"

7/8" DIA KO

TOP HOLE DATA

1-1/4"

1-1/4" 1-1/4" 1-1/4" 1-1/4"

SHIELDING OPTIONS

S14 Contoured Baffle

Suspended Surface

NEO-RAY™

778 COOPER LIGHTING
