Cooper Lighting Invue Vision Wall Manuel utilisateur

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

Your Vision Wall Luminaire has three different types of

mounting interface:

1. Standard Mount—mounts to any standard 4" J-box.

(Included with every fixture) (See Fig. 1).

2. Embedded Mount—mounts to a plate embedded into

the wall (Optional Accessory VWM/EM) (See Fig. 2).

3. Thru Way Box—mounts to surface mounted casting,

allowing a conduit run (Optional Accessory VWM/TB)

(See Fig. 3).

NOTE:

Please refer to your mounting kit for specific instructions.

AVU033142

VISION WALL

Sheet 1 of 4

12/29/03 IMI-498

INSTALLATION INSTRUCTIONS

IMPORTANT: Read carefully before installing fixture. Retain for future reference.

General: Upon receipt of fixture thoroughly inspect for any

freight damage, which should be brought to the attention of

the delivery carrier. Compare the catalog description listed

on the packing slip with the fixture label on the housing to

assure you have received the correct merchandise.

Safety: This fixture must be wired in accordance with

the national electrical code and applicable local codes

and ordinance. Proper grounding is required to insure

personal safety. Carefully observe grounding procedure

under installation section. All work should be done by a

qualified electrician.

WARNING: Make certain power is OFF before starting installation or attempting any maintenance.

Fig. 3

THRU-WAY BOX

VWM/TB

Fig. 2

EMBEDDED MOUNT

VWM/EM

Fig. 1

STANDARD MOUNT

Standard Mount Kit

screws to J Box

4" J Box (By Others)

Embedded Mount Kit

Conduit run by others

Thru Way Mounting

www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 3026 770.486.4800 FAX 770.486.4801 AVU033142

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

WARNING: Make certain power is OFF before starting installation or attempting any maintenance.

VISION WALL

Sheet 4 of 4

12/29/03 IMI-498

INSTALLATION INSTRUCTIONS

IMPORTANT: Read carefully before installing fixture. Retain for future reference.

Adjustment Of Light Throw

Your Vision Wall luminaire has an adjustable forward light

throw.

1. Obtain a 3/16" allen wrench.

2. Locate the stainless steel button head screw on the

outside of the fixture (See Fig. 4).

3. Turn the screw clockwise to pivot the reflector and throw

the light forward.

4. You may monitor the reflector rotation by viewing the

bottom edge of the reflector and the indicator located

inside the fixture. This is viewable through the glass

(See Fig. 5).

5. Rotating the screw counter-clockwise brings the reflector

back down to zero.

Fig. 4

Fig. 5

CAUTION:

Prior to installing lamp in the fixture, verify that lamp source and wattage correspond with the fixture label. Lamp should

be screwed securely into the socket. Do not over tighten.

WARNING:

Recheck to be sure that the fixture has been wired properly. Improper wiring may result in ballast failure which voids all

warranties.

Cleaning

The reflector and door glass may be cleaned with any suitable non-abrasive glass cleaning solution, soap, or detergent

and rinse with clean water. The reflectors efficiency will be retained only if cleaned at regular intervals. Clean with mild

soap or detergent and water, or liquid wax emulsion. The refractor should also be cleaned along with the reflector, using

care not to chip glass surfaces.

CAUTION:

Do not use abrasive, strong alkaline or acid cleaners.

Adjustment

Screw

Degree Indicator

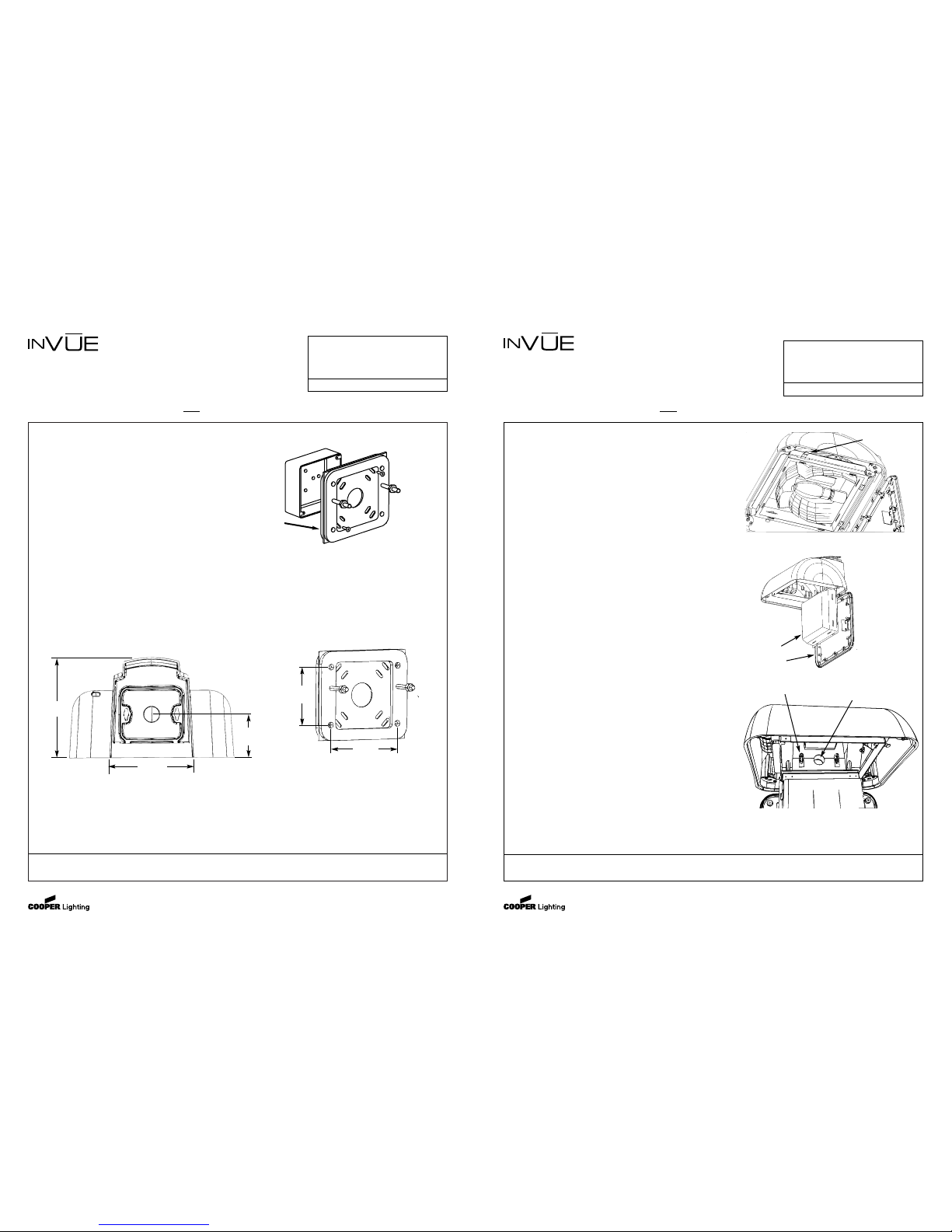

Standard Mounting Kit

1. The standard mounting kit may be mounted to any

standard, embedded, 4" junction box. It is not for use

with a surface mounted J-box. For orientation of fixture

to the junction box (See Fig. 1).

2. Using the two (2) screws supplied with the junction box,

install the mounting plate as shown. The 5/16-18 studs

should be facing away from the wall and above the

center of the bracket (See Fig. 2). For rough or uneven

surfaces, sealant must be applied (by others) between

the rear mounting plate gasket and the mounting

surface (wall).

3. In addition to the screws supplied with the junction box,

the unit must be supported by 1/4" anchor screws

(supplied by others) installed through the four (4) holes

provided. (See Fig. 3).

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

AVU033142

VISION WALL

Sheet 2 of 4

12/29/03 IMI-498

INSTALLATION INSTRUCTIONS

IMPORTANT: Read carefully before installing fixture. Retain for future reference.

Fig. 3

Fig. 2

Fig. 1

WARNING: Make certain power is OFF before starting installation or attempting any maintenance.

12 9/16”

(319.16mm)

4 11/16"

(118.6mm)

9 3/16”

(233.12mm)

3 1/2"

(88.9mm)

6 5/16”

(161.2mm)

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

WARNING: Make certain power is OFF before starting installation or attempting any maintenance.

VISION WALL

Sheet 3 of 4

12/29/03 IMI-498

AVU033142

INSTALLATION INSTRUCTIONS

IMPORTANT: Read carefully before installing fixture. Retain for future reference.

Installing the Fixture

1. You may install the fixture with the light up or down,

as desired.*

2. Make sure all power is off.

3. Visually inspect the mounting bracket to insure correct

placement and check for damaged gaskets (Refer to the

specific mounting instruction sheet used with your fixture.)

4. Loosen the four (4) 1/4-20 captive socket head cap

screws and open the door.

5. Locate two (2) reflector latches on either side of the

forward end of the reflector (See Fig. 1).

6. Turn the latches to disengage and pivot the reflector

assembly out of the way (See Fig. 2).

7. Thread the incoming power leads through the large

center hole in the rear of the fixture while lining up the

bolts (or threaded studs) with the keyhole slots in the rear.

(See Fig. 3)

8. Carefully slide the fixture down the keyhole, taking care

not to damage the gaskets.

9. Tighten the screws or nuts (Depending on mounting type).

DO NOT CAULK AROUND THE FIXTURE.

10. Have a qualified electrician make the power connections.

11. Push the supply wires back through the center hole and

down in the rear fixture cavity.

12. Swing the reflector assembly back up and latch into

position.

13. Install the door and four (4) 1/4-20 screws. Tighten the

screws diagonally opposed.

* When used with Thru-Way Mounting Box Accessory

VWM/TB, unit can only be mounted downward.

Fig. 1

Fig. 2

Fig. 3

Reflector

Door

Thread Power Feed Lines

Thru Here

Mounting Studs

Reflector Latch

Apply Sealant

As Required.

See Note #2.
