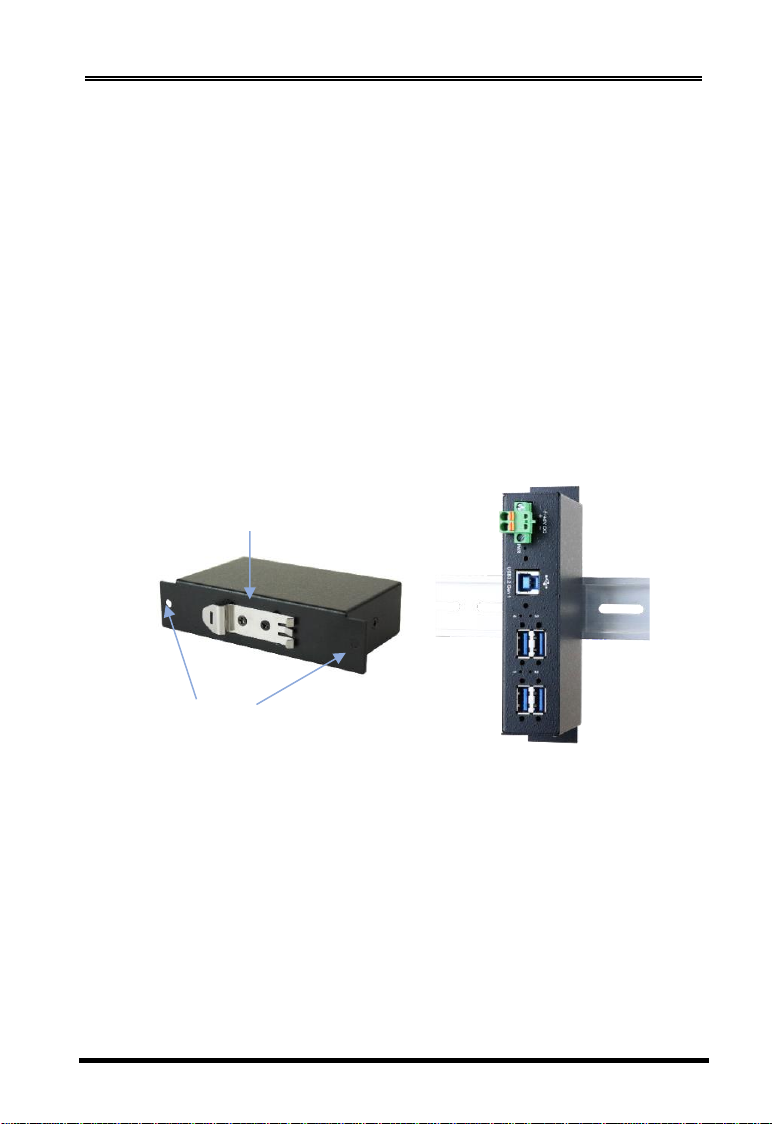

to connect wide range power source to self-power the hub, the voltage
can be in the range from +7V to 48V DC.
1. Use static electricity discharge precautions.
Remove possible static discharge potential from any objects that the
hub may come in contact with before installation. This can be
accomplished by touching a bare metal chassis rail after you have
turned off the power.
2. Apply DC power (range from +7V to 48V) to the 2-pin Screw-Lock
Terminal Block Connector.
Warning!!
Please make sure the polarity of the input power should
correctly match with the marking next to the terminal block
pins
⚫The terminal blocks’ Push-In mechanism allows you to push the
wire directly into the contact hole and latched by its internal latch
spring automatically.
⚫To remove the wire, you need a tool (such as a small flathead
screwdriver) to release the internal latch spring then remove the
wire as the following picture. If the wire is too soft to be inserted
into the contact hole, you need to release the latch string with
above tool, insert the wire then release the latch spring to latch the
wire.
