Converters.TV 921 Manuel utilisateur

HDMI to Video Scan Converter

w/Audio output - ID# 921

Operation Manual

Introduction

HDMI to Video Scan Converter w/Audio output is designed to convert a

digital HDMI source signal to an analog Video / Audio PAL or NTSC

output via Composite Video Now you can display High Def video

content in Standard Def 480i or 576i resolution to suit most TV screens

and monitors Simple plug’n’play feature allows for easy connection to

your source and target devices OSD menu display gives the User

complete control over output format selection, scan characteristics and

aspect ratio

Features

• HDMI 1 2, HDCP1 1 and DVI1 0 compliant

• Converts video signal from HDMI source to NTSC or PAL signal

• Converts digital audio from HDMI source to analog stereo audio

• Accepts a wide range of HDTV input resolutions, from 480p to 720p@60Hz

and PC from VGA@60Hz to WXGA@60Hz

• Output picture size Underscan / Overscan

• Motion adaptive 3-D de-interlacing with pixel-by-pixel motion adaptive

interpolation

• 3D noise reduction in both temporal and spatial domain

• Frame rate conversion with arbitrary conversion ration

• Adaptive contrast enhancement

Applications

• HD signal convert into Composite signal

• Digital audio signal convert into analog audio signal

• HDMI source to NTSC or PAL signal

System

Requirements

Input source equipment such as DVD or Blu-Ray player with HDMI cable and

output display TV/Monitor with composite & L/R RCA jack cable

Operation Controls

and Functions

Top anel

1. NTSC/PAL MENU (3SEC): Press this button to bring up the OSD which will

display the input timing and output TV system information

While the OSD is still displaying press the button again to switch output TV

system from NTSC to PAL or from PAL to NTSC

Press this button for 3 second the OSD will bring up the selection menu Press it

sequentially to select the desire setting

2. Power LED: This LED will illuminate in RED when the power is connected with

the power supply

Left anel

1. HDMI IN: This slot is to connect to the HDMI source equipment such as PC/

NB with HDMI output and the connection cable for input signal sending

2. DC 5V: Plug the 5V DC power supply included in the package into the unit

and connect the adapter to AC wall outlet

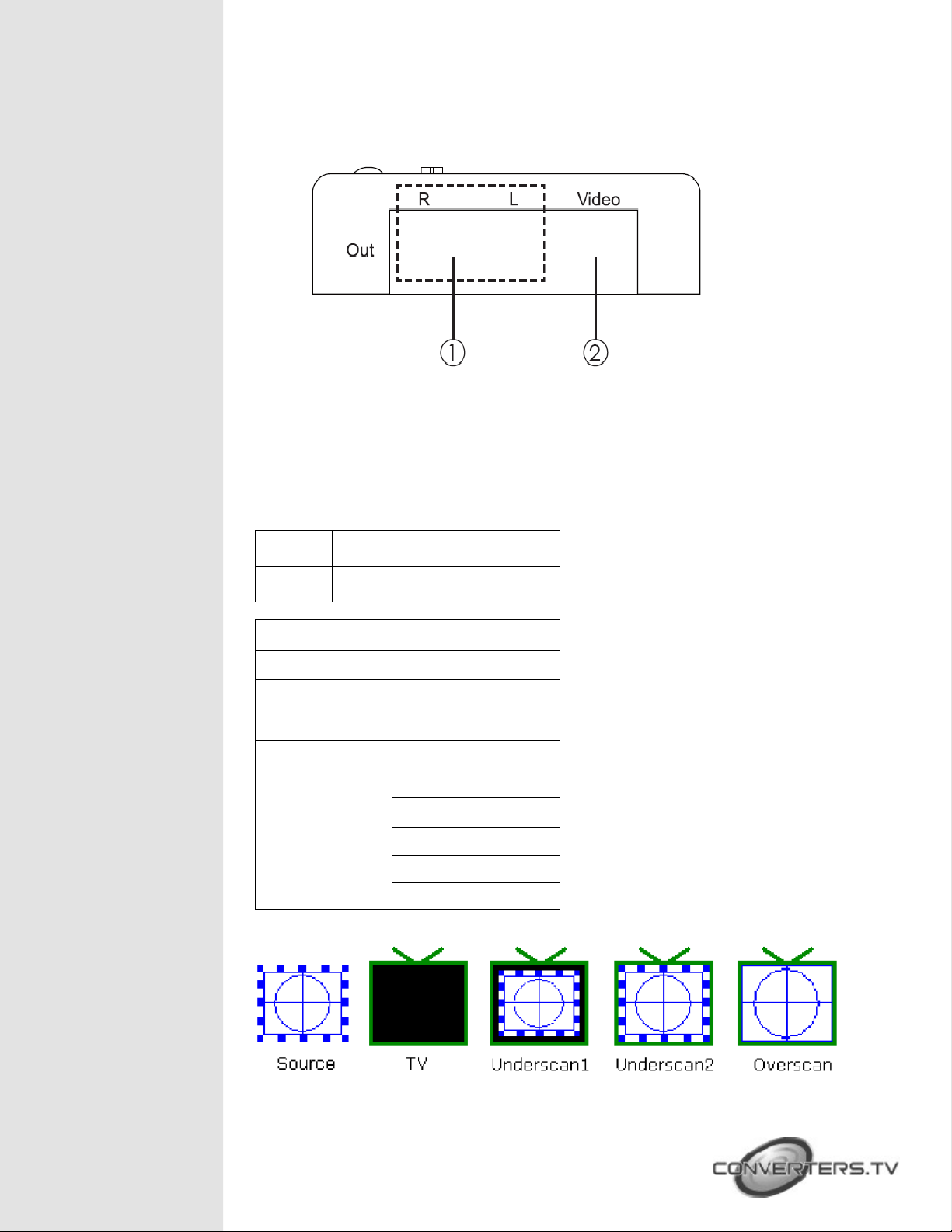

Right anel

1. OUTPUT L/R: These slots are to connect to the active speaker or the TV/

monitor with input L/R jack with RCA cable for output audio sound

2. OUPUT VIDEO: This slot is to connect the display TV or monitor with RCA

cable for output image display

OSD Menu

IN 1280 x 60 @60 (Input Timing)

OUT NTSC (Output TV System)

NTSC

PAL

Underscan 1

Underscan 2

Overscan

Aspect Adj

Full Screen

Letterbox

Pan & Scan

Auto TV 4:3

Auto TV 16:

Below is the example of the scan selection result

Aspect Adjustment: There are a total of 5 different adjustments under Aspect which

include: Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & 16: .

Full Screen: To allow the image to fill out the screen of the TV.

Letterbox: To fit the output image closer to the input source, compressed the upper

and lower image.

an & Scan: To fit the output image closer to the input source, compressed the right

and left image.

Auto TV 4:3: Allowing the device to auto detect input source signal of 4:3 or 16:

and make the auto adjustment.

Auto TV 16:9: Allowing the device to auto detect input source signal of 16: or 4:3

and make the auto adjustment.

Below is the sample chart of the selection result:

Specifications

Input ort 1 x HDMI,

Output ort 1 x CVBS, 1 x L/R RCA Jack

HDMI Input Resolution 480p, 576p & 720p,

VGA@60 / 72 / 75 / 85,

SVGA@56 / 0 / 72 / 75 / 85,

XGA@60 / 70 / 75,

WXGA(15: & 16:10)@60RB / 60

HDMI Input Audio LPCM 2Ch, 48kHz

Output Video NTSC/PAL

Output Audio Stereo L/R

ESD rotection Human body model:

± 8kV (air-gap discharge)

± 6kV (contact discharge)

Dimensions(mm) 114 (W) x 65 (D) x 26(H)

Weight(g) 120

Chassis Material Plastic

Silkscreen Color Black

Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F

ower Consumption W

Relative Humidity 20 ~ 0% RH (non-condensing)

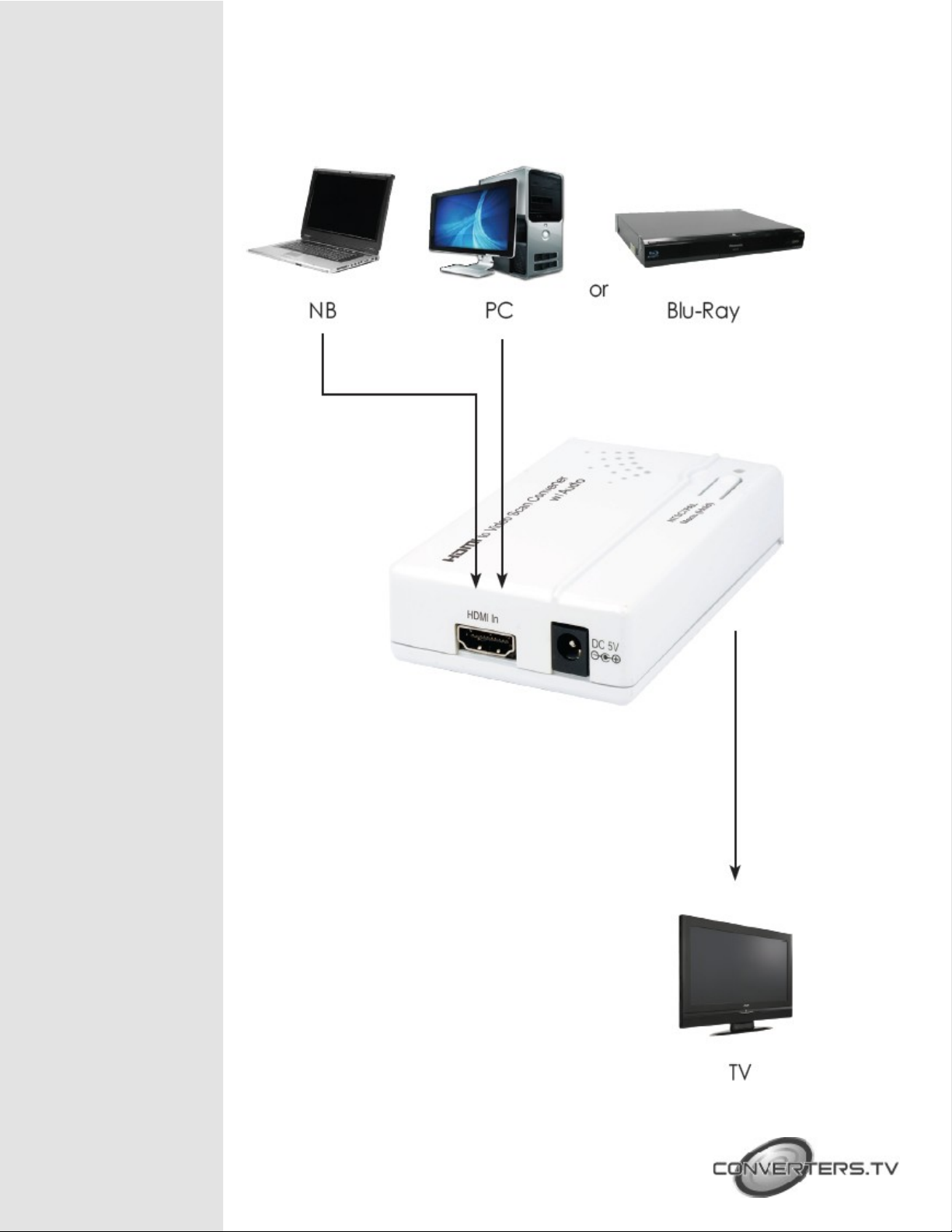

Connection
