Converters.TV 821 Manuel utilisateur

Picture in Picture Converter

(NTSC Only) - ID# 821

Operation Manual

Introduction

Picture in Picture box with built-in TV receiver which allows you to watch two

video inputs at the same time on the same display. The unit will display a

main picture and a sub-picture. This unit is suitable only with NTSC type

signals.

Features

●Real time high resolution picture in picture display for any two video

inputs.

●Full range tuning covers 181 TV and CATV channels

●4 PIP picture size selectable.

●PIP picture may be placed in 9 different positions of the screen.

●Still for PIP picture.

●Main and PIP picture can be swapped by simply pressing a button.

●Stereo sound on main channel and PIP channel; head phone jack for PIP

picture.

●Easy button operation compact size.

Operating Functions

and

Controls

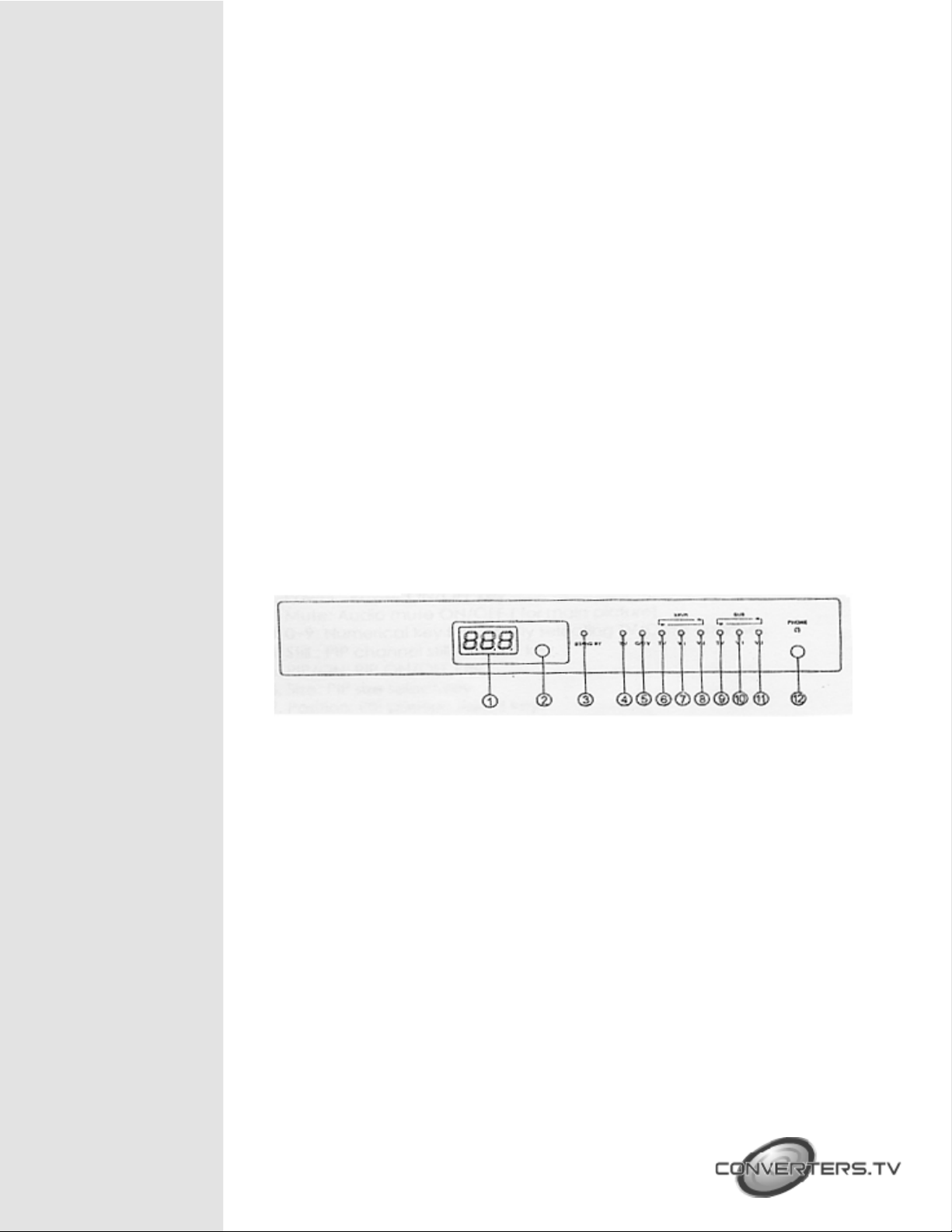

Front Panel

1. Chann el or volume displa y.

2. R emo t e co n tro l rec e iv e r .

3. Stand by indicator: Illuminates when in stand by mode in which the

device is powered by AC but power button is turned off.

4. TV Indicator: Illuminates when tuner is set to TV mode.

5. CATV Indicator: Illuminates when tuner is set to CATV mode.

6. MAI /TV: Illuminates when TV (CATV) input is selected as main

channel.

7. MAI /V 1: Illuminates when V 1' input is selected as main

channel.

8. MAI /V 2: Illuminates when V2 input is selected as main

channel.

9. SUB/TV: Illuminates when TV (CATV) input is selected as sub-

channel.

10. SUB/V 1: Illuminates when V1 input is selected as sub-channel.

11. SUB/V 2: Illuminates when V2 input is selected as sub-channel.

12. Ear phon e j ac k: Au di o out fo r su b- c hann e l.

Rear Panel

1. RF input : Input connector for CATV cable or TV antenna.

2. A/V out pu t: Output c onne ct ors for Vi de o/ Au dio out.

3. A/V inputs: Input connectors for Video/Audio 1 source.

4. A/V inputs: Input connectors for Video/ Audio 2 source.

5. DC 15V input: DC power supply ( 15 volts input )

Remote Controls

and Functions

1. Power : Power ON/OFF key.

2. Mute: Audio mute ON/OFF ( for

main picture).

3.. 0-9: Numerical key for directly

selecting TV/CATV channel.

4. Still : PIP channel still ON/OFF key.

5. PIP/ON: PIP ON/OFF key

6. Size: PIP size select key.

7. Position: PIP position select key.

8. Swap exchanges: Main and PIP

channel.

9. Vol A: M ain channel volume up.

10. V o l V: M a i n c h a n n e l v o l um e

down.

11. CH A: C h ann e l up sel ect i o n.

12. CH 7 : C h anne l do wn s elec tion .

13. TV/CATV: TV/CATV select key.

14. Main: Main channel input selection

15. SUB: SUB channel input selection

Specifications

DC Power 15V/600 mA /NTSC OR (15V/1.5A/PAL

RF input NTSC 75 Ω, Coaxial cable 50m Vp-p

Audio input 300 mVp-p

Video output 2 Vp-p 75 Ω

Audio output 300 m Vp-p

Weight 500 g

Dimensions 290 (W) X 180.5 (D) X 48.8 (H) mm

Connection and

Installation

V Frequency able (U.S)

Air Channel

Channel CC# Pix Carrier

(MHz) Channel CC# Pix Carrier

( MHz)

2 02 55.25 36 36 603.25

3 03 61.25 37 37 609.25

4 04 67.25 38 38 615.25

5 05 77.25 39 39 621.25

6 06 83.25 40 40 627.25

7 07 175.25 41 41 633.25

8 08 181.25 42 42 639.25

9 09 187.25 43 43 645.25

10 10 193.25 44 44 651.25

11 11 199.25 45 45 657.25

12 12 205.25 46 46 663.25

13 13 211.25 47 47 669.25

14 14 471.25 48 48 675.25

15 15 477.25 49 49 681.25

16 16 483.25 50 50 687.25

17 17 489.25 51 51 693.25

18 18 495.25 52 52 699.25

19 19 501.25 53 53 705.25

20 20 507.25 54 54 711.25

21 21 513.25 55 55 717.25

22 22 519.25 56 56 723.25

23 23 525.25 57 57 729.25

24 24 531.25 58 58 735.25

25 25 537.25 59 59 741.25

26 26 543.25 60 60 747.25

27 27 549.25 61 61 753.25

28 28 555.25 62 62 759.25

29 29 561.25 63 63 765.25

30 30 567.25 64 64 771.25

31 31 573.25 65 65 777.25

32 32 579.25 66 66 783.25

33 33 585.25 67 67 789.25

34 34 591.25 68 68 795.25

35 35 597.25 69 69 801.25

CA V Frequency able (U.S.)

Ca le Channel

Channel CC# Pix Carrier

(MHz) Channel CC# Pix Carrier

( MHz)

4A 01 73.25 T 33 277.25

2 02 55.25 U 34 283.25

61.25

289.25

67.25

295.25

77.25

W+1

301.25

6 06 83.25 W+2 38 307.25

175.25

W+3

313.25

181.25

W+4

319.25

9 09 187.25 W+5 41 325.25

10 10 193.25 W+6 42 331.25

11 11 199.25 W+7 43 337.25

205.25

W+8

343.25

211.25

W+9

349.25

121.25

W+10

355.25

B 15 127.25 W+11 47 361.25

C 16 133.25 W+12 48 367.25

D 17 139.25 W+13 49 373.25

145.25

W+14

379.25

151.25

W+15

385.25

G 20 157.25 W+16 52 391.25

163.25

W+17

397.25

I 22 169.25 W+18 54 403.25

217.25

W+19

409.25

K 24 223.25 W+20 56 415.25

229.25

W+21

421.25

235.25

W+22

427.25

N 27 241.25 W+23 59 433.25

247.25

W+24

439.25

29 253.25 W+25 61 445.25

Q 30 259.25 W+26 62 451.25

265.25

W+27

457.25

S 32 271.25 W+28 64 463.25

CATV Frequency Table (U.S.)

Cable Channel

Channel CC# Pix Carrier

(MHz) Channel CC# Pix Carrier

( MHz)

65 65 469.25 A-4 96 97.25

475.25

A-3

103.25

481.25

A-2

109.25

68 68 487.25 A-1 99 115.25

493.25

100

649.25

499.25

101

655.25

505.25

102

661.25

72 72 511.25 103 103

667.25

517.25

104

673.25

523.25

105

679.25

529.25

106

685.25

535.25

107

691.25

541.25

108

697.25

547.25

109

703.25

79 79 553.25 110 110 709.25

80 80 559.25 111 111 715.25

565.25

112

721.25

571.25

113

727.25

577.25

114

733.25

583.25

115

739.25

589.25

116

745.25

595.25

117

751.25

601.25

118

757.25

607.25

119

763.25

613.25

120

769.25

90 90 619.25 121 121 775.25

625.25

122

781.25

92 92 631.25 123 123 787.25

637.25

124

793.25

643.25

125

799.25

A-5 95 91.25
