Converters.TV 710 Manuel utilisateur

Digital-Analog Two Way

Audio Converter - ID# 710

Operation Manual

Introduction

Digital-Analog Two Way Audio Converter. The unit allows you to convert

an Analog L/R audio signal into a Digital output (Toslink ptical or

Coaxial). The unit functions as a two way converter, also allowing you to

convert a Digital Toslink or Coaxial signal into an Analog L/R output.

The Digital to Analog function makes it ideal for the integration of your

older style analog stereo sound system with new digital audio sources

such as Blu-Ray DVD players, Game Boxes, Home Media Centres and full

digital High Definition TV sets, whilst the Analog to Digital function makes

it ideal for use with a digital sound system with analog audio sources

such as VCR players, and Television sets.

The Digital-Analog Two Way Audio Converter also allows you to

simultaneously output both the digital and analog signal. For example

you could output via T SLink to one receiver, and output via L/R to

another receiver at the same time.

Features

 Integrated digital interpolator filter and Digital-to-Analog

Converter (DAC)

 Integrated Analog –to-Digital Converter (ADC)

 Supports sampling frequencies from 16 to 100kHz

 Provides electro-magnetic-noise-free transmission

 Easy to install and to operate

 Compact size with elegant design

Operating Functions

and

Controls

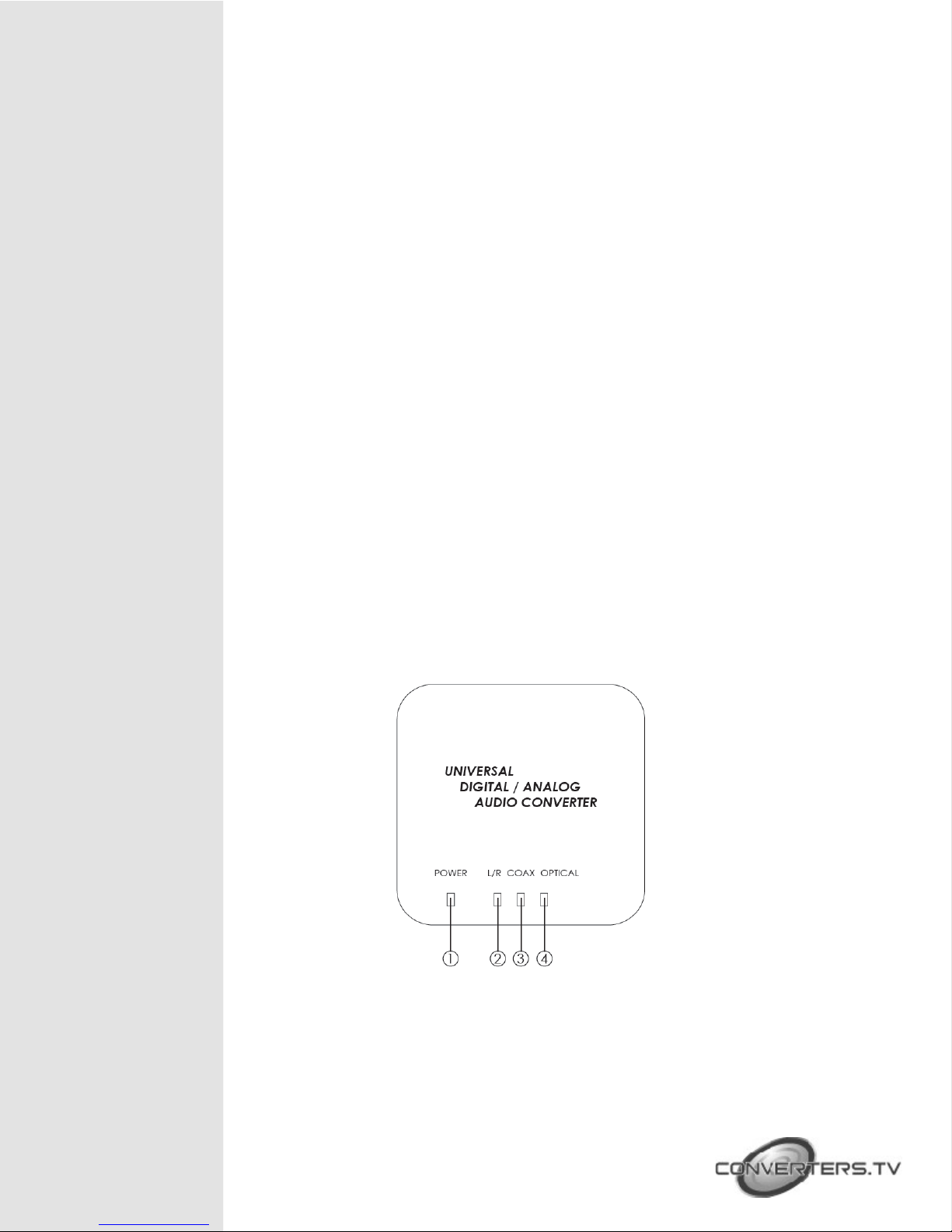

Front Panel

① Power LED indicator.

②Input Analog 2CH LED indicator.

③Input C AX LED indicator.

④Input PTICAL LED indicator.

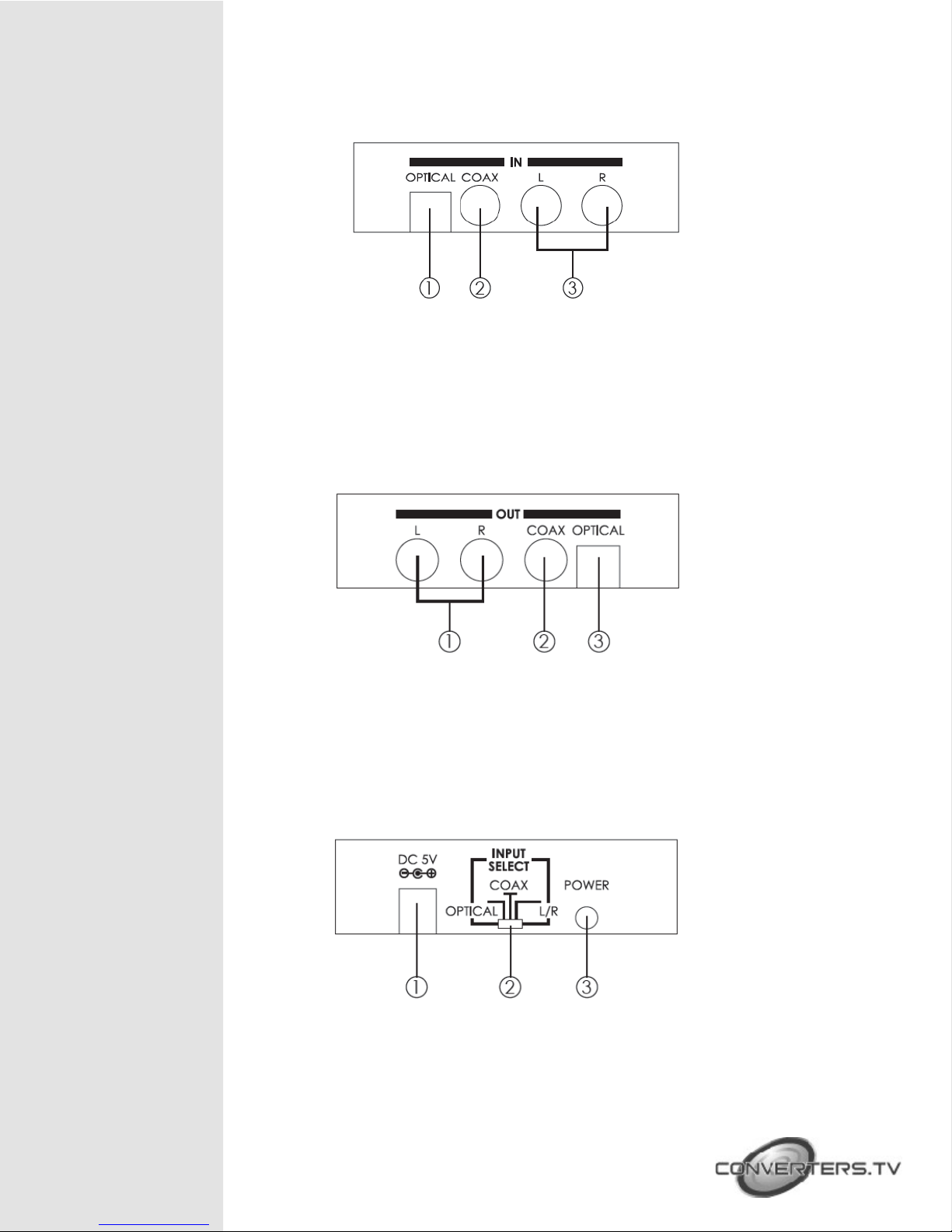

Right Panel

① PTICAL: Connect from audio source equipment’s optical audio output

with optical cable.

②C AX: Connect from audio source equipment’s coaxial audio output

with coaxial cable.

③L/R: Connect from audio source equipment’s L/R audio output with L/R

RCA jack cable.

Left Panel

① L/R: Connect to audio equipment’s L/R input such like TV or amplifier

with L/R RCA jack cable.

②C AX: Connect to audio equipment’s coaxial input such like TV or

amplifier with coaxial cable.

③PTICAL: Connect to audio display equipment’s optical input such like

TV or amplifier with optical cable.

Rear Panel

① DC 5V Power Jack: Plug 5V 1A DC power supply into the unit and

connect the adaptor to AC wall outlet.

②INPUT SELECT: Use this switcher to select input from optical, coaxial or L/R.

③Power Switch: Push to button to turn on or switch off the device.

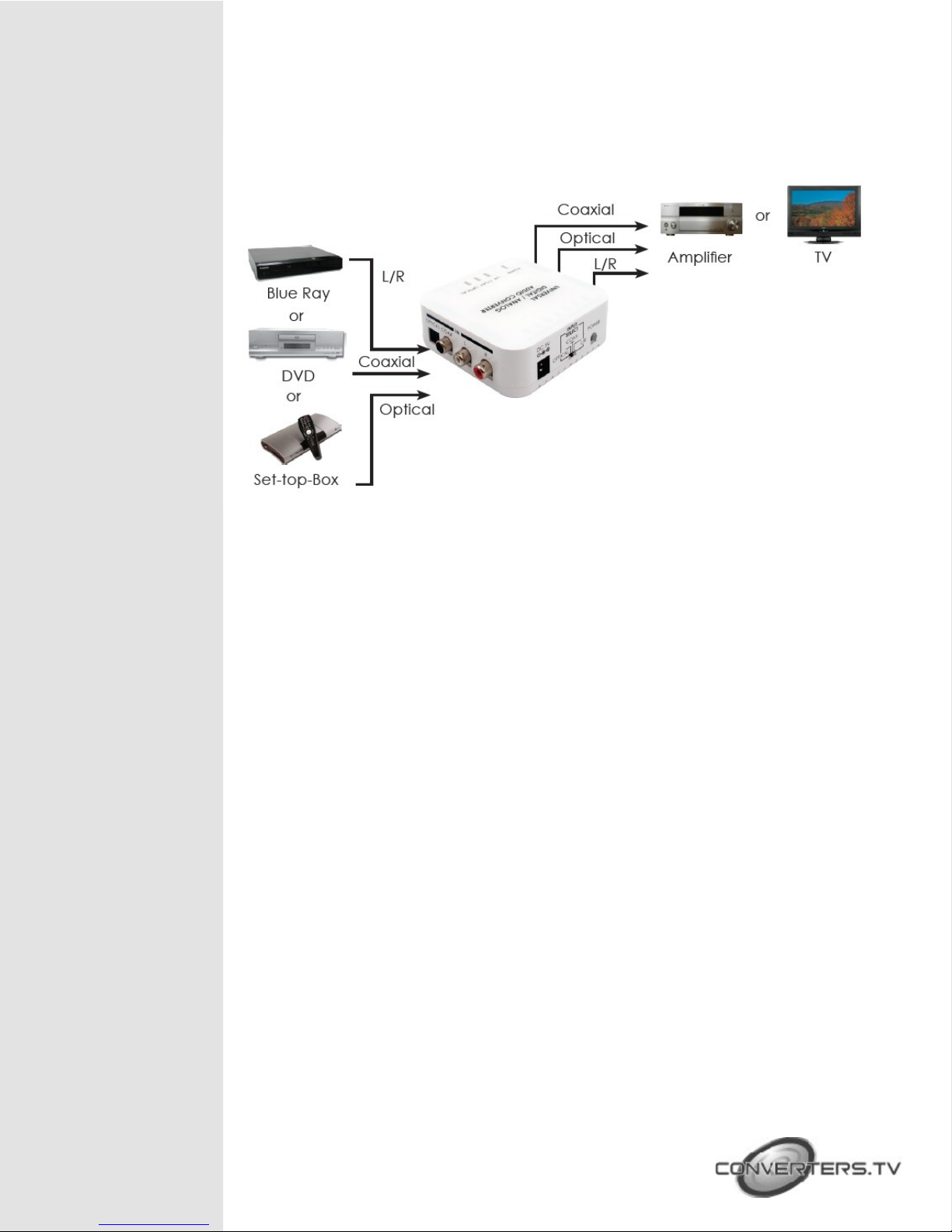

Installation

Specifications

Input Port Optical, Coaxial and L/R

Input Format Toslink, PIDIF and LPCM 2CH

Sample Frequency 32kHz, 44.1kHz, 48kHz and 96kHz

Output Ports Coaxial, Optical and L/R

Output Level 2Vp-p

Output Impedance 100Ω

ESD Protection Human body model: ± 10kV (air-gap discharge)

± 6kV (contact discharge)

Core chipset: ± 2kV

Power Supply 5V / 1A DC (U /EU standard, CE/FCC/UL

certified)

Dimensions(mm) 97(W) x 85(D) x 35(H)

eight(g) 120

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0ºC~40ºC / 32 ºF~104 ºF

Storage Temperature -20ºC~60ºC / -4 ºF~140 ºF

Power Consumption 1W

Relative Humidity 20~90% RH (non-condensing)
