CONTENTS

Duo 2000 QS Guide (511443-00) 18/10/02 7:33 pm Page 1

CONGRATULATIONS

Congratulations on the purchase of your new

camera. Your camera has been carefully engineered

and manufactured to give you dependable

operation. Read this manual before operating the

camera to become more familiar with it.

This manual has been written and formatted with

depth and detail so that you can easily follow the

instructions to maximize the features of your

camera.

ENGLISH

Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 1

Table of Contents

Important Information......................................................................................4

Precautions ......................................................................................................5

Camera Features ..............................................................................................6

System Requirements ......................................................................................7

1. The Camera

Overview of your Concord Eye-Q Duo 2000....................................................8

Loading the Batteries ......................................................................................9

Turning the Camera On and Off ....................................................................10

LCD Menu Screens ..........................................................................................11

LCD Status Messages......................................................................................15

Turning the LCD On and Off ..........................................................................16

Camera Ready LED Status ..............................................................................16

Camera Memory..............................................................................................17

2. Camera Mode

Taking Images ................................................................................................19

Main Menu ......................................................................................................19

Mode..........................................................................................................20

Video Clips ............................................................................................20

Self-timer ................................................................................................21

Size............................................................................................................22

Quality ......................................................................................................23

Flash ..........................................................................................................24

EV ..............................................................................................................25

WB (White Balance) ..................................................................................26

Scene ........................................................................................................27

Brightness ................................................................................................28

Setup ........................................................................................................29

Digital Zoom ..................................................................................................33

Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 2

3. Review Mode

Enlargement ..................................................................................................34

Viewing Video Clips ......................................................................................34

Main Menu ....................................................................................................35

Delete ........................................................................................................35

Thumbnail..................................................................................................37

4. Software Installation

Installing the Camera Drivers and ArcSoft Applications ................................38

5. Transferring Photos to the Computer

Connecting the Camera to the Computer......................................................39

WDM/TWAIN Drivers (PC) ..........................................................................40

ArcSoft PhotoImpression (PC)..............................................................40

Mass Storage Mode (DSC)........................................................................42

Unplugging the camera from the computer ............................................43

6. Other Features

ArcSoft VideoImpression (PC) ........................................................................44

Web Camera ..................................................................................................45

TV Mode ........................................................................................................46

7. Camera Maintenance

Cleaning the camera ......................................................................................49

8. Tips and Troubleshooting ..............................................................................50

9. Camera Specifications ....................................................................................54

Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 3

IMPORTANT INFORMATION

FCC INFORMATION

FCC WARNING: This equipment meets the limits for a Class B digital device,

pursuant to Part 15 of FCC rules. Only the cable supplied with the camera

should be used. Operation with other cables is likely to result in interference to

radio and TV reception and could void the user’s authorization to operate this

equipment. This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

•This device may not cause harmful interference.

•This device must accept any interference received, including interference

that may cause undesired operation.

Tested To Comply

With FCC Standards

for HOME OR OFFICE USE

Changes or modifications not expressly approved by the manufacturer may void

the user’s authority to operate this equipment.

USER INFORMATION

NOTE: This equipment has been tested and found to comply with the limits for

a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment on and off, the

user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 4

VCCI INFORMATION

This is a Class B product, to be used in a domestic environment, based on the

Technical Requirement of the Voluntary Control Council for Interference (VCCI)

from Information Technology Equipment. If this is used near a radio or

television receiver in a domestic environment, it may cause radio interference.

Please install and use the equipment according to this instruction manual.

PRECAUTIONS

Be sure to observe the following precautions when using the camera:

•Do not open the case of the camera or attempt your own repairs. Always

leave this service to authorized repair facilities.

•Keep the camera away from water and other liquids, and never let it get

wet. Never use outdoors when it is raining or snowing.

•Should foreign matter or water get into the unit, immediately turn the

power off and contact your local authorized service center.

•Physical damage and malfunction of this unit can cause the image data

stored in its memory to be deleted. Be sure to always keep backup copies

of data by transferring them to a personal computer.

•Under the environment with electrostatic discharge, the camera may

malfunction and require the user to reset the camera.

•Shielded cables must be used with this unit to ensure compliance with the

Class B FCC limits.

•Do not leave the camera in places subject to extremely high temperatures,

such as in a closed vehicle or in direct sunlight.

•Remove the battery when camera is not used for long periods of time.

•Use 2x AA LR6 batteries only.

•Dispose of the batteries in a manner that complies with applicable laws.

•Do not place the camera in unstable locations where the camera may fall

and be damaged.

•Do not press on the lens.

•Do not unplug the camera from the TV or computer while the camera is in

operation; otherwise, the memory may be corrupted.

•Do not turn the power off or open the battery compartment when the LED

is blinking or lit up; otherwise, the image may not be stored.

Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 5

Camera Features

•Stores approximately 8 Fine, 15 Normal or 27 Economy (1600 x 1200

pixels) mode photos with 7MB internal memory

•Virtually unlimited storage using the removable MultiMediaCard (MMC)

or Secure Digital (SD). (MMC/SD memory cards are sold separately).

•1.6" Color LCD

•USB connection and cable

•TV connection (NTSC and PAL)

•Built-in automatic flash

•Focus free from 4 feet (1.2 meters) to infinity

•1600 x 1200 pixel output (2.0 Megapixels)

•TV On Screen Display (OSD) menu

•Up to 4X Digital Zoom

•EV Compensation

•Preset Scene Selection

•Video Clip Mode

•Web Camera (Windows only)

•Mass Storage Driver

•Self-timer

•Tripod socket

•Multi-language support

Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 6

System Requirements

PC:

•Microsoft Windows 98SE/ME/2000 and XP

•IBM PC/AT or compatible, 200 Mhz or higher

•Minimum 32MB RAM (64MB recommended)

•USB Port

•640 x 480 monitor, minimum 16 bit color (1024 x 768 24 bit color

recommended)

•175MB free hard disk space

•56K or faster modem, ISDN or LAN connection (for the Web Camera

feature only)

•CD-ROM drive

Macintosh:

•Mac OS 9 or higher

•Macintosh Power PC or higher, Minimum 64MB of RAM

•USB Port

•100MB of available Hard Disk Space

Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 7

1. The Camera

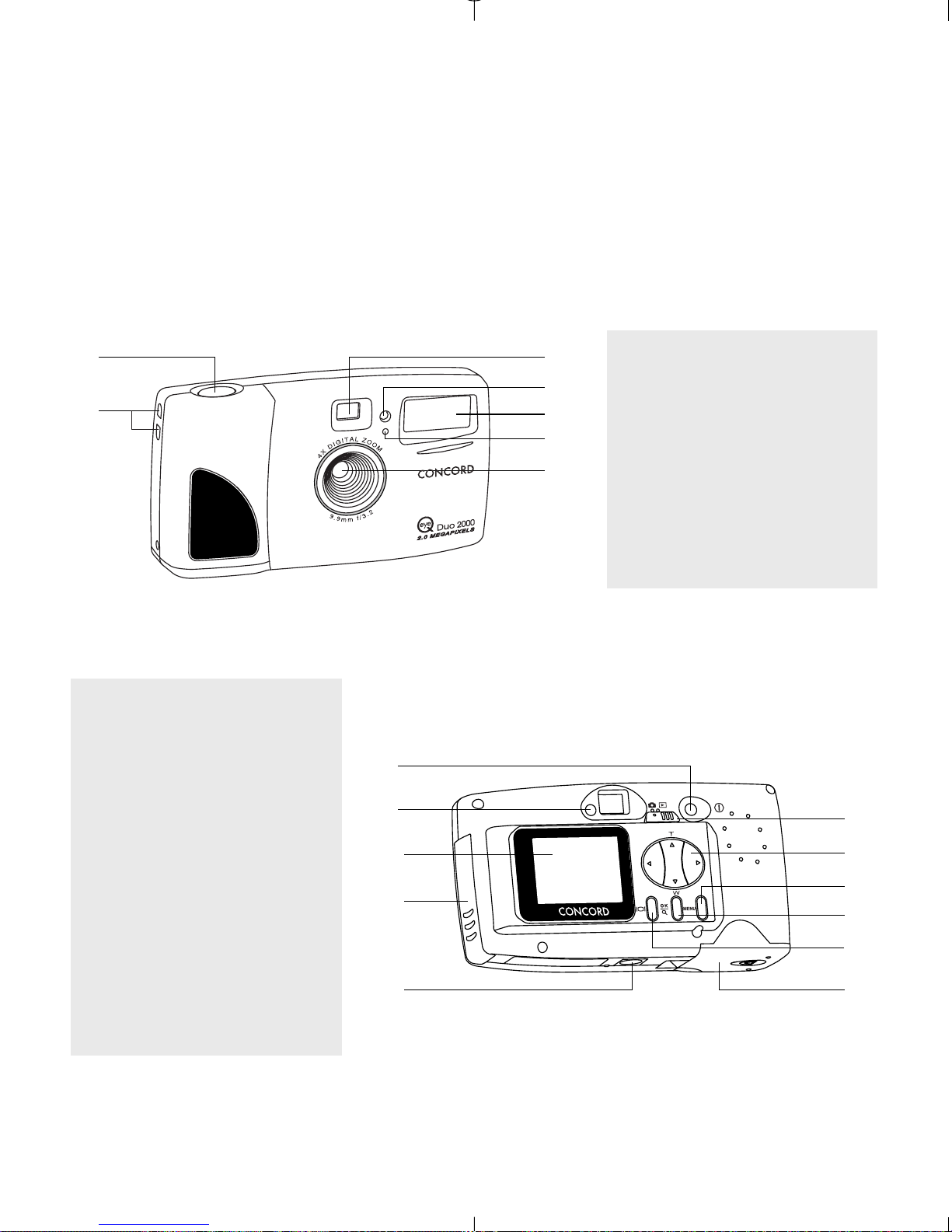

Overview of Your Concord Eye-Q Duo 2000

FRONT/TOP

1. Shutter Button

2. Lug for Neck / Wrist Strap

3. Viewfinder

4. Self-timer LED

5. Flash

6. Flash Sensor

7. Ir Filter and Lens

8. Power Button

9. Camera Ready LED

10. LCD

11. Cable Connection Panel

12. Tripod Socket

13. Mode Switch

14. Navigation Button

15. Menu Button

16. OK Button

17. LCD On/Off Button

18. Battery Door

BACK/BOTTOM

Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 8
