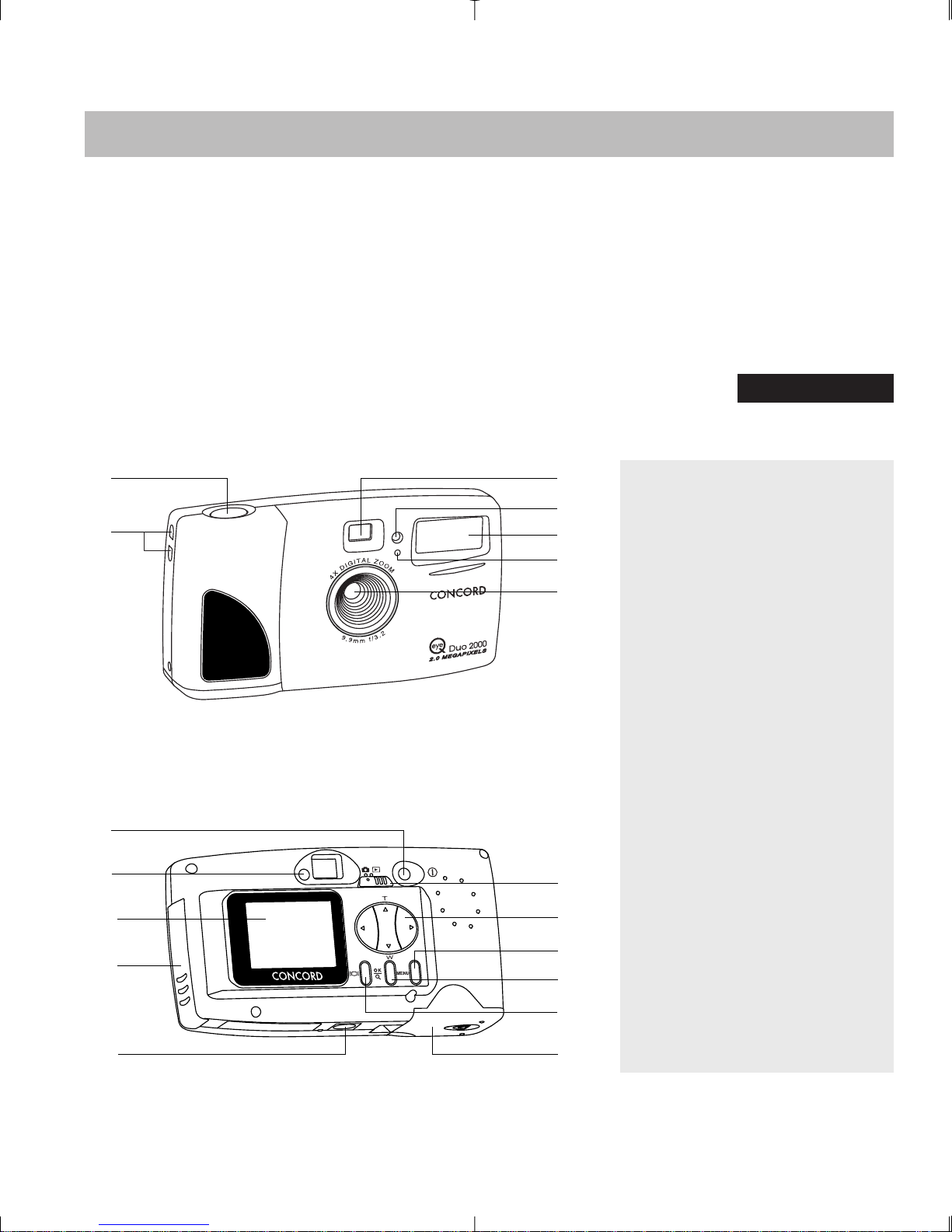

FRONT/TOP

1. Shutter Button

2. Lug for Neck / Wrist Strap

3. Viewfinder

4. Self-timer LED

5. Flash

6. Flash Sensor

7. Ir Filter and Lens

8. Power Button

9. Camera Ready LED

10. LCD

11. Cable Connection Panel

12. Tripod Socket

13. Mode Switch

14. Navigation Button

15. Menu Button

16. OK Button

17. LCD On/Off Button

18. Battery Door

QUICK START GUIDE

This Quick Start Guide provides a quick reference for operating your new

digital camera. Refer to the User’s Guide, which can be found on the CD-

Rom and a hard copy in your Concord Eye-Q Duo 2000 box, for detailed

instructions on how to use all of your camera’s features. Before using the

camera, make sure to read all safety instructions and precautions outlined

in the User’s Guide.

QUICK START GUIDE

ENGLISH

BACK/BOTTOM

Duo 2000 QS Guide (511443-01) 15/10/02 3:53 pm Page 2

LOADING THE BATTERIES

The Concord Eye-Q Duo 2000 uses 2x AA LR6 (sold separately)

batteries.

To load the batteries:

1. Locate the battery door on the bottom of the camera.

2. Slide the button on the battery door toward the center of

the camera. (fig.1.1)

3. Lift the battery door to open.

4. Insert the batteries with the positive terminal toward the +

sign, and the negative terminal toward the – sign. (fig.1.2)

5. Close the battery door.

TURNING THE CAMERA ON AND OFF

When the camera is turned on, the camera ready LED on the

back of the camera blinks and the LCD displays the current

settings.

1. Press the Power button.

2. The camera is ready for picture taking when the camera

ready LED stops blinking and LCD icons appear on the LCD.

(fig.1.3)

3. To turn the camera off, press the Power button.

SETTING THE FLASH

1. In the FLASH menu, press or to choose between Auto ( ), Flash ( ),

and Flash Off ( ).

2. Press OK to select the flash mode and press MENU to exit.

fig.1.1

fig.1.2

fig.1.3

Mode

Size

Quality

Flash

MAIN MENU

MAuto

Flash

Flash Off

OK MENU

FLASH

Duo 2000 QS Guide (511443-01) 15/10/02 3:53 pm Page 3

Flash Status Distance from subject

Auto ( ) 3.9ft (1.2m) to 8.5ft (2.5m)

Flash ( ) 3.9ft (1.2m) to 8.5ft (2.5m)

Flash Off ( ) 3.9ft (1.2m) to infinity

Note: The flash may need time to recharge between photos. While it is charging

the camera ready LED blinks. When it stops blinking you are ready to take

another picture. If the batteries are low, the flash will not work. Insert fresh

batteries.

TAKING IMAGES

1. Set the camera to Camera Mode by moving the Mode Switch

to .

2. Position the subject in the viewfinder OR the LCD.

3. Gently press the Shutter button (fig.1.4) and keep the camera

still until the camera ready LED next to the viewfinder

flashes. (fig.1.5)

4. When the image has been captured, the camera ready LED

next to the viewfinder begins to blink. This indicates that

the image is being processed.

5. A preview of the image will be displayed on the LCD for 1

second after it is captured and the file counter number

displayed in the LCD will be updated.

fig.1.4

fig.1.5

Duo 2000 QS Guide (511443-01) 15/10/02 3:53 pm Page 4

TAKING VIDEO CLIPS

1. When Video Clip is highlighted in the MODE menu press .

2. Press the Shutter button to begin recording a continuous video clip.

3. Press the Shutter button again to stop recording.

4. The camera will continue recording until the memory is full.

5. When the recording is completed, the camera will return to Camera Mode.

Note: If you would like to cancel your video clip session before pressing the

Shutter button, press MENU to exit.

USING THE MMC/SD

In addition to internal memory, the camera features an external memory port that

uses a removable MMC/SD that allows you to store additional images. When the

MMC/SD is inserted, the camera uses it as its default memory. The stored images and

video clips in the internal memory will be transferred automatically to the MMC/SD,

and all photos taken from that point will be stored on it. The images will remain

stored on the MMC/SD until deleted.

Inserting the MMC/SD:

1. Locate the battery door on the bottom of the camera.

2. Slide the button on the battery door toward the center of

the camera.

3. Lift the battery door to open.

4. Insert the MMC/SD in the direction specified on the card.

(fig.1.6)

5. Close the battery door.

NOTE: If a MMC/SD with insufficient memory is inserted, there will only be a

partial transfer and the MMC/SD will be filled. Please insert an MMC/SD with

sufficient memory.

fig.1.6

Mode

Size

Quality

Flash

MAIN MENU

MVideo Clip

Self-timer

Main Menu

MODE

SHUTTER TO •REC

MENU TO CANCEL

SHUTTER TO STOP

•REC

Duo 2000 QS Guide (511443-01) 15/10/02 3:54 pm Page 5

DELETE ONE FILE

To delete a single file from the internal memory:

1. Slide the mode switch towards .

2. Press MENU.

3. When Delete One is highlighted in the DELETE menu, press .

4. The next screen will read "Delete This File?" Press or to highlight No or Yes

and press OK to select.

5. If Yes is selected, the file will be deleted.

6. If No is selected, no change will be made.

SOFTWARE INSTALLATION

NOTE: Do not connect the camera to your computer before the camera drivers

and software installation is completed.

Installing the Camera Drivers and ArcSoft Applications:

1. Insert the CD-ROM included in your Concord Eye-Q Duo 2000 box.

2. The installation screen appears on the computer’s monitor. Follow the software

installation instructions on your screen to install the software.

3. When the CD-Rom installation is finished, connect your camera to the computer to

complete installation.

4. Follow the on-screen instructions to complete the installation.

NOTE: If your computer has the CD-ROM automatic installation disabled,click on

START. Select MY COMPUTER and locate the CD-ROM Drive. Double click on the

CD-ROM Drive icon to show its contents. Double-click on the file named

SETUP.EXE and follow the instructions on your screen.

Delete One

Delete All

Main Menu

DELETE

THIS FILE?

Yes

Delete

Thumbnail

Brightness

Exit

MAIN MENU

Duo 2000 QS Guide (511443-01) 15/10/02 3:54 pm Page 6

TRANSFERRING FILES TO THE COMPUTER

After installing the drivers and software, you may transfer files to your computer.

1. Select either PC (Windows Only) or DSC in the Setup Menu.

•Set the Mode switch to .

•Press the MENU button. Use the button until Setup is highlighted.

•Press to enter the Setup menu.

•In the Setup menu, press until Driver is highlighted.

•Press to select DSC or PC.

2. Connect your camera to the computer using the USB cable provided.

USING THE PC DRIVER MODE:

1. Launch ArcSoft PhotoImpression by clicking on Start-Programs-ArcSoft Camera Suite.

2. Click on the (Camera/Scanner) button.

3. Click on the drop-down list under SELECT SOURCE and choose Concord Eye-Q Duo 2000.

4. Click on the Camera/Scanner icon. A window will appear with the images you have

transferred.

USING THE DSC MODE (Windows):

1. Open My Computer.

2. Click on the removable disk drive.

3. Double-click on an image or video clip and windows will automatically open the file.

USING THE DSC MODE (Mac):

1. The external hard drive will appear on the desktop.

2. Open the “untitled” removable drive that is on your desktop and open DCIM to view your

files.

3. Click on the file that you would like to view.

Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks of Concord

Camera Corp., in the United States and/or other countries. Microsoft and Windows are either registered

trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and

Macintosh are registered trademarks or trademarks of Apple Computer, Inc. in the U.S. and other countries. All

other brands and product names are either registered trademarks or trademarks of their respective owners.

Time-out 60S

Driver DSC

TV PAL

PlayLogo O f f

SETUP

Setup

Exit

MAIN MENU

Time-out 60S

Driver PC

TV PAL

PlayLogo O f f

SETUP

Duo 2000 QS Guide (511443-01) 15/10/02 3:54 pm Page 7

FRANÇAIS

AVANT/DESSUS

1. Déclencheur

2. Fixation pour dragonne

3. Viseur

4. Indicateur Lumineux de la

Minuterie Automatique

5. Flash

6. Capteur du flash

7. Filtre Ir et objectif

8. Bouton d’Alimentation

9. Indicateur Lumineux Prêt à

l’Emploi de votre Appareil-


10. LCD

11. Panneau de Branchement du

Câble

12. Prise d’Adaptation sur

Trépied

13. Bouton Mode

14. Bouton de Fleches

15. Bouton Menu

16. Bouton OK

17. Écran LCD Sous tension/Hors

tension

18. Trappe du Compartiment à

Piles

GUIDE DE DEMARRAGE RAPIDE

Les références de ce guide de démarrage rapide vous permettent d’utiliser

rapidement votre nouvel appareil digital. Pour des explications plus

détaillées sur toutes les caractéristiques de votre appareil, veuillez lire le

guide de l’utilisateur qui se trouve sur le CD-Rom situé dans le coffret du

Concord Eye-Q Duo 2000. Avant d’utiliser l’appareil, veuillez lire toutes les

instructions de sécurité et de précaution décrites dans ce guide.

GUIDE DE DEMARRAGE RAPIDE

ARRIERE/BASE

Duo 2000 QS Guide (511443-01) 15/10/02 3:54 pm Page 8

INSERTION DES PILES

Le Concord Eye-Q Duo 2000 fonctionne avec 2 piles AA LR6.

Insertion des piles

1. Localisez la porte du compartiment à pile au bas de

l’appareil.

2. Poussez le bouton sur la porte du compartiment vers le

milieu de l’appareil. (schéma 1.1)

3. Soulevez la porte du compartiment à pile pour l’ouvrir.

4. Insérez les piles côté positif vers le signe + et côté négatif

vers le signe – . (schéma 1.2)

5. Fermez la porte du compartiment à pile.

MARCHE ET ARRET DE L’APPAREIL

Lorsque l’appareil est en marche, le LED d’appareil "prêt"au dos

de l’appareil se met à clignoter et le LCD de contrôle affiche les

réglages de l’appareil.

1. Appuyez sur le bouton Power (Alimentation).

2. L’appareil est prêt à prendre des photos lorsque le LED

d’appareil "prêt" cesse de clignoter et que les icônes du LCD

apparaissent. (schéma 1.3)

3. Pour éteindre l’appareil, appuyez sur le bouton Power.

FLASH

1. Dans le menu FLASH, appuyez sur ou pour choisir entre Flash

automatique ( ), Flash ( ), et Flash hors fonction ( ).

2. Appuyez sur OK pour sélectionner le mode de flash et appuyez sur MENU pour

sortir.

schéma.1.1

schéma.1.2

schéma.1.3

Mode

Taille

Qualité

Flash

MAuto

Actif

Inactif

OK MENU

FLASH

Duo 2000 QS Guide (511443-01) 15/10/02 3:54 pm Page 9

Autres manuels pour Duo 2000

Table des matières

Langues :

Autres manuels CONCORD Appareil photo numérique

CONCORD

CONCORD Eye-Q Go Wireless Manuel utilisateur

CONCORD

CONCORD Eye-Q DV Cam Mode d’emploi

CONCORD

CONCORD EYE-Q MINI Guide d'installation

CONCORD

CONCORD Eye-Q Fun.Cam Manuel utilisateur

CONCORD

CONCORD DVX Manuel utilisateur

CONCORD

CONCORD Eye-Q 1300 Mode d’emploi

CONCORD

CONCORD EYE-Q DUO Mode d’emploi

CONCORD

CONCORD Eye-Q Go Wireless Manuel utilisateur

CONCORD

CONCORD Eye-Q 4062 AF Manuel utilisateur

CONCORD

CONCORD Eye-Q Go Wireless Manuel utilisateur

CONCORD

CONCORD Eye-Q Duo 1300 Mode d’emploi

CONCORD

CONCORD Eye-Q 3X Mode d’emploi

CONCORD

CONCORD PZ2180 AF Manuel utilisateur

CONCORD

CONCORD Eye-Q 4330z Manuel utilisateur

CONCORD

CONCORD Duo 2000 Manuel utilisateur

CONCORD

CONCORD Eye-Q Go Wireless Mode d’emploi

CONCORD

CONCORD EYE-Q DUO 2000 Guide d'installation

CONCORD

CONCORD Eye-Q 2100 Mode d’emploi

CONCORD

CONCORD Eye-Q Go 2000 Manuel utilisateur

CONCORD

CONCORD DVX Manuel utilisateur

CONCORD

CONCORD DUO 1300 Manuel utilisateur

CONCORD

CONCORD 3045 Manuel utilisateur

CONCORD

CONCORD Eye-Q 2040 Manuel utilisateur

CONCORD

CONCORD Eye-Q 3120 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
