Concord Camera 4340z Manuel utilisateur
40
4340z
CONCORD 4340z
Quick Start Guide
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
NEDERLANDS
PORTUGUÊS
LANGUAGES
1
ENU
CAMERA COMPONENTS
Front
Rear
Top
1
1
Self-portrait mirror
Flash Viewfinder
Lens
Self-Timer/Red-Eye
Reduction LED
Battery/Memory
Card Door
Macro
Drive mode
Flash/ Erase
Up button/
Right button/ Quick View
Down button/
Left button/
button
button
Camera mode button
LCD screen
SET button
Flash Ready LED
Auto Focus (AF) LED
Viewfinder
Tripod Socket
W (zoom out) button
T (zoom in) button
Shutter button
Power button
2
ENU
Side
INSTALLING THE BATTERIES
Insert two (2) AA-size alkaline batteries (included with the camera).
1. Be sure that the camera power is off.
2. Slide the battery/memory card door in the direction of the arrow, and lift it open.
3. Insert two AA batteries with the positive (+) and negative (-) poles matching the directions indicated inside
the battery cover.
4. Close the Battery/Memory Card door.
Battery Status Indications
The battery power level indicator represents the level of power of the batteries. The meaning of each icon is as
follows:
DC IN terminal
USB port
Charge Level High Low
Indicator
+
2
3
ENU
INSTALLING AN SD CARD
1. Turn off the camera.
2. Slide the Battery/Memory Card door in the direction of the arrow
to open the door.
3. Insert the memory card as shown in the diagram.
TURNING THE POWER ON / OFF
Press and hold the POWER button for more than 1 second to turn
the camera on.
To turn off the camera
Press the power button to turn off the camera.
USING THE CAMERA MODE BUTTON
Use the Camera Mode button to change shooting mode.
The camera mode changes as shown in the following diagram when the Camera Mode button is pressed.
OPERATING THE MULTI-CONTROLLER
The multi-controller is used to set shooting mode, to move cursor when the camera Menu is shown, and to
confirm the selection.
Up Button ( )
• To set the Flash mode in Shooting Mode.
• To delete files in Review Mode.
• To move the cursor up when MENU screen is shown.
Right Button ( )
• To enter Quick View mode.
• To move the cursor to right when MENU screen is shown .
• To enter submenu.
3
4
Power button
5
Shooting Mode
Review Mode
Video Mode
For shooting still images
For viewing the recorded images and video clips
For shooting video clips
Shooting Mode Play Mode Movie Mode
6
Up button
Right button
Down button
Left button
4
ENU
Down Button ( )
• To set Continuous Shot in Shooting Mode.
• To set Self-Timer in Shooting Mode and Video Mode.
• To move the cursor down when MENU screen is shown.
Left Arrow ( )
• To set Macro shooting in Shooting Mode and Video Mode.
• To move the cursor left when MENU screen is shown.
SET Button
• To enter submenu.
• To confirm the setting.
USING THE ZOOM FEATURE
The camera has a 3x optical zoom lens with an effective
zoom range 5.8 mm to 17.4 mm (equivalent to 37 mm to
111 mm in 35 mm film format) as well as 4x digital zoom
capability.
Telephoto / Wide Angle
Press Wto zoom out for a wide angle shot.
Press Tto zoom in for a telephoto shot.
BASIC STILL IMAGE SHOOTING
In this mode, all you have to do is press the shutter button
and let the camera do everything else.
1. Set the Camera Mode button to .
2. Aim the camera at the subject.
3. Press the T or W button to zoom in or out.
4. Press the Shutter button halfway down to activate the auto-focus until AF LED stops blinking and the white
AF Frame turned into green.
• The shutter speed and aperture values appear on the LCD monitor.
5. Press the Shutter button fully down to capture the image.
7
8
AF Frame
Aperture value
Shutter Speed
Mode
W mode
T mode
Focus Range
10 cm (3.94 inch) to infinity ()
50 cm (19.89 inch) to infinity ()
5
ENU
REVIEWING THE IMAGE AFTER SHOOTING
The quick playback function is available in both Shooting Mode and
Video Mode.
1. Press to view the just captured photo or video clip.
• To delete the file, press . Then press and to
select YES or NO, and then press SET to confirm.
2. Press again to return to shooting mode.
SETTING THE IMAGE QUALITY AND RESOLUTION
You can change the image quality and resolution to suit your purpose.
1. Press the button.
2. Press the or arrow to select the REC Menu.
3. Press the or arrow to select Resolution or Quality then press the SET button or arrow to
enter its submenu.
4. Press the or to select the settings you wish to set then press the SET button.
5. Press the button twice to close the menu window.
9
10
Resolution
(Large 1)
(Large 2)
(Medium 1)
(Medium 2)
(Small)
Resolution
2592x1944 (fine, normal)
2304x1728 (fine, normal)
1600x1200 (fine, normal)
1024x768 (fine, normal)
640x480 (fine, normal)
Purpose
Print large prints
Print large prints
Print on small size paper
Send images by e-mail
Shoot more images
Image Quality
Fine (5x compression rate)
Normal (8x compression rate)
Economy (12x compression rate)
Purpose
Shoot high quality images
Shoot normal quality images
Shoot more images
6
ENU
USING THE FLASH
Use the flash according to the guidelines below.
1. Press the button to switch between flash modes.
• The selected flash mode icon appears on the LCD monitor.
2. Shoot the image.

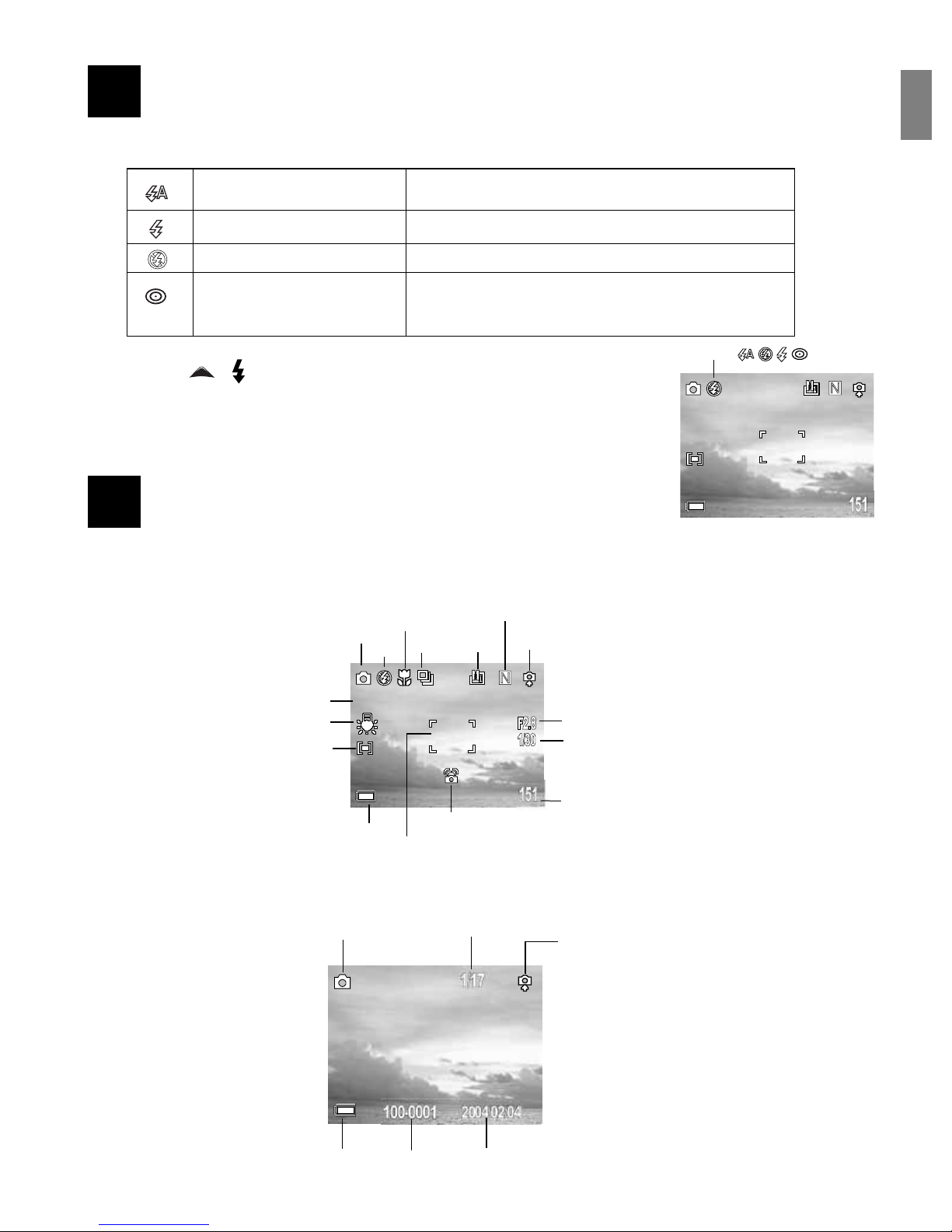

INFORMATION DISPLAYED ON THE LCD MONITOR
The LCD displays information such as the camera settings, remaining image
capacity and shooting date etc.
Shooting Mode
Playback Mode
11
Auto
Force On
Force Off
Red-eye reduction, Auto
The camera judges if a flash is required. If the
environment is too dark, the flash will fire.
The flash always fires.
The flash does not fire.
The camera will automatically detect when the
flash is needed and the flash will fire after a short
delay to prevent Red-Eye phenomenon.
Flash icon
12
Memory Storage Type
Recordable
Images
Battery Status Shake
Warning
AF Frame
Shooting
Mode
Shutter
Speed
Aperture
Value
Metering
Mode
White Balance
Exposure
Flash
Mode
Drive
Mode
Macro
Mode Resolution
Setting
Compression
Setting
+0.3
File Number
Battery Status
Shooting
Mode
Current filenumber /
total filenumber Memory Storage
Type
Shooting Date
1
FRA

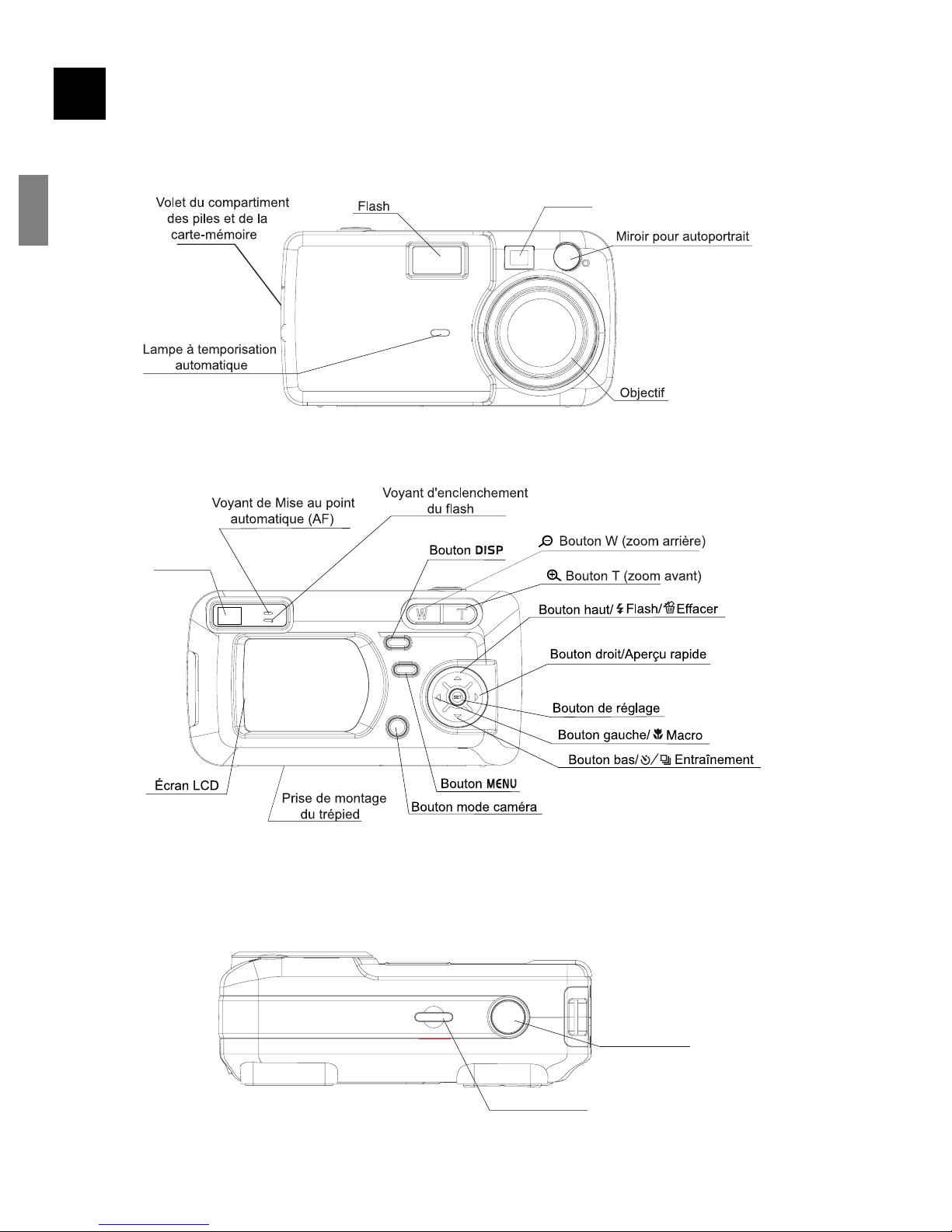

COMPOSANTS DE L’APPAREIL
Avant
Arriére
Dessus
Viseur
1
1
Viseur
Déclencheur
Bouton On/Off
2
FRA
Côté
INSTALLATION DES PILES
Placez deux (2) piles alcalines AA (livrées avec l’appareil photo).
1. Vérifiez que l’appareil ne soit pas en marche.
2. Faites glisser le volet du compartiment de la carte-mémoire/des piles dans le sens indiqué par la flèche et
soulevez-le pour ouvrir le compartiment.
3. Insérez deux piles AA avec les extrémités positives (+) et négatives (-) vers la borne correspondant aux
directions indiquées à l’intérieur du volet du compartiment des piles.
4. Fermez le volet du compartiment de la carte-mémoire et des piles.
Indications sur l’ tat de l’accumulateur
Le voyant de niveau des piles affiche le niveau de charge des piles. Signification de chaque icône :
Branchement
courant continu
Port USB
Niveau de charge Élevé Faible
Indicateur
+
2
