Comunello Automation CU-230V-2M Manuel utilisateur
CU - 230V - 2M
INSTALLATION AND USER’S MANUAL
Control unit
comunello.com
ISTRUZIONI D’USO E DI INSTALLAZIONE
INSTALLATIONS-UND GEBRAUCHSANLEITUNG
INSTRUCIONS D’UTILISATION ET D’INSTALLATION
INSTRUCCIONES DE USO Y DE INSTALACION
ИНСТРУКЦИЯ ПО МОНТАЖУ Cod. 91300137 Rev. 00 - 26.06.14
2COMUNELLO ®Copyright 2014 - All right reserved
ID LED
L1 PGM CODE ON OFF
L2 FOTOTEST ON OFF
L3 DECELERATION OFF ON
L4 LEAVES DELAY ON OFF
L5 RELEASE STROKE ON OFF
L6 SLAM LOCK ON OFF
L7 COURTESY LIGHT ON OFF
LEV MENÙ 1 FLASH
ID LED
L1 SOFT STOP ON OFF
L2 SOFT START ON OFF
L3 DS1 IN OPEN ON OFF
L4 HOLD-TO-RUN ON OFF
L5 FOLLOW ME ON OFF
L6 PAUSE FLASHING ON OFF
L7 ALWAYS CLOSE ON OFF
LEV MENÙ 2 FLASHES
ID LED
L1 DELAY Operator 1 delay Operator 2 delay
L2 STEP BY STEP Step-by-Step Automatic
L3 CODE TX Code entered No code
L4 CONDO ON OFF
L5 MOTOR TIME Programmed time 30 sec.
L6 PAUSE TIME With automatic closing Without automatic closing
L7 PED TIME ON OFF
LEV MENÙ ON
MENÙ LIST
MAIN MENÙ
EXTENDED MENÙ 1
EXTENDED MENÙ 2
3
COMUNELLO ®Copyright 2014 - All right reserved
FIG. 4
TABELLA CONNESSIONI CAVI AG01 - WIRES CONNECTION TABLE AG01
BASIC 230V
ID Description Cable type Lenght (1m to 20m) Lenght (20m to 50m)
1Main power supply
FG7 CEI 20-22
CEI EN 50267-2-1
3Gx1,5mm2 3Gx2,5mm2
6A Motor power supply 4Gx1,5mm2 4Gx2,5mm2
2 Flashing light 2x0,5mm2 2x1,0mm2
4A , 5A Photocell TX 2x0,5mm2 2x1,0mm2
4B , 5B Photocell RX 4x0,5mm2 4x1,0mm2
7 Key selector 3x0,5mm2 3x1,0mm2
3 Antenna RG58 max 20m
4COMUNELLO ®Copyright 2014 - All right reserved
LINEA
POWER SUPPLY
2P+T 230V 50Hz
M
TRASFORMATORE
TRANSFORMER
230 / 24.5V - 0.4A; 12.5V - 0.17A
12.5V
24.5V
CN2
PULSANTE APRI-CHIUDI (N.O.)
PUSCH BUTTON (N.O.)
ALIMENTAZIONE FOTOCELLULE
PHOTCELL POWER
24V 5W
FOTOCELLULA
PHOTCELL
DS 1 (N.C.) IN CHIUSURA
FOTOCELLULA
PHOTCELL
DS 2 (N.C.) IN APERTURA
LAMPEGGIANTE
FLASHING LIGHT
24V 4W
SEL
F2 SET
ELETTROSERRATURA (contatto pulito N.O.)
ELECTRIC LOCK
M
MOTORE 2
MOTOR 2
230V 50HZ
MOTORE 1
MOTOR 1
230V 50HZ
CN1
PULSANTE PEDONALE (N.O.)
PEDESTRIANPUSH BUTTON (N.O.)
CN4
CN3
F1
ANTENNA
FOT+
GND
LAMP
ELS
ELS
DS1
PED
GND
DS2
PP
ANT-
ANT+
L
N
OP1
CM1
CL1
OP2
CM2
CL2
5
COMUNELLO ®Copyright 2014 - All right reserved
ITALIANO
CN1
F1
L
N
OP1
CM1
CL1
OP2
CM2
CL2
ABACUS - connection diagram of the motors
• DELAY LED OFF = DELAY OF THE MOTOR n.2
1
1
2
2
Conguration:
• DELAY LED ON = DELAY OF THE MOTOR n.1
OPEN with OP1
COMMON with CM1
CLOSED with CL1
OPEN with OP2
COMMON with CM2
CLOSED with CL2
6COMUNELLO ®Copyright 2014 - All right reserved
CN1
F1
L
N
OP1
CM1
CL1
OP2
CM2
CL2
RAM - connection diagram of the motors
• DELAY LED OFF = DELAY OF THE MOTOR n.2
1
1
2
2
Conguration:
• DELAY LED ON = DELAY OF THE MOTOR n.1
OPEN with OP1
COMMON with CM1
CLOSED with CL1
OPEN with OP2
COMMON with CM2
CLOSED with CL2
7
COMUNELLO ®Copyright 2014 - All right reserved
CN2
SEL
F2 SET
FOT+
GND
LAMP
ELS
ELS
DS1
PED
GND
DS2
PP
ANT-
ANT+
L
N
OP1
CM1
CL1
OP2
CM2
CL2

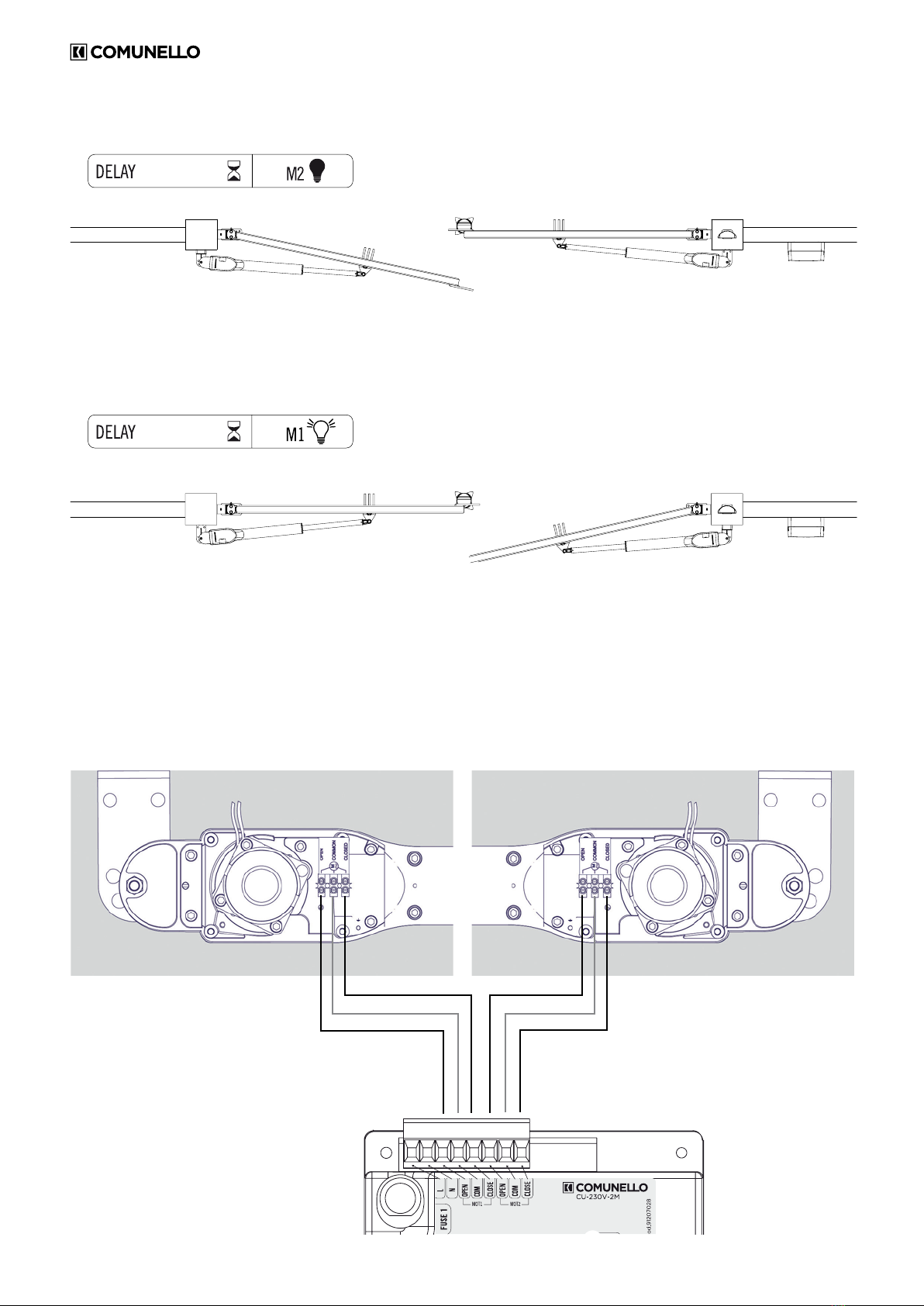

CONDOR - connection diagram of the motors [1/2]
• DELAY LED OFF = DELAY OF THE MOTOR n.2
Conguration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOTOR n.1 WITH CONTROL UNIT (on the left)
BLACK with OP1
COMMON with CM1
BROWN with CL1
MOTOR n.2 WITHOUT CONTROL UNIT (on the right)
OPEN with CL2
COMMON with CM2
CLOSED with OP2
1
1
2
2
• DELAY LED ON = DELAY OF THE MOTOR n.1
Brown
Blue
Black
8COMUNELLO ®Copyright 2014 - All right reserved
CN2
SEL
F2 SET
FOT+
GND
LAMP
ELS
ELS
DS1
PED
GND
DS2
PP
ANT-
ANT+
L
N
OP1
CM1
CL1
OP2
CM2
CL2
Blue
1
2
1
2
CONDOR - [2/2]
• DELAY LED OFF = DELAY OF THE MOTOR n.1
• DELAY LED ON = DELAY OF THE MOTOR n.2
Congurazione - MASTER ON THE RIGHT, SLAVE ON THE LEFT
MOTOR n.2 WITHOUT CONTROL UNIT (on the left)
OPEN with OP2
COMMON on CM2
CLOSED on CL2
MOTOR n.1 WITH CONTROL UNIT (on the right)
[INVERT THE WIRES IN CONTROL UNIT]
BROWN with OP1
BLUE with CM1
BLACK with CL1
Black Brown
9
COMUNELLO ®Copyright 2014 - All right reserved
EAGLE - connection diagram of the motors
• DELAY LED OFF = DELAY OF THE MOTOR n.2
• DELAY LED ON = DELAY OF THE MOTOR n.1
1
1
2
2
CN1
F1
L
N
OP1
CM1
CL1
OP2
CM2
CL2
Conguration - MOTOR n.1 ON THE LEFT, MOTOR n.2 ON THE RIGHT
MOTOR n.1 (on the left)
BROWN with CL1
BLUE with CM1
BLACK with OP1
MOTOR n.2 (on the right)
[INVERTED CONFIG. COMPARED TO MOTOR n.1]
BROWN with OP2
BLUE with CM2
BLACK with CL2
Brown
Brown
Blue
Blue
Black
Black
10 COMUNELLO ®Copyright 2014 - All right reserved
CN1
F1
L
N
OP1
CM1
CL1
OP2
CM2
CL2
CONDOR 500 - connection diagram of the motors
• DELAY LED OFF = DELAY OF THE MOTOR n.2
• DELAY LED ON = DELAY OF THE MOTOR n.1
Conguration - MOTOR n.1 ON THE LEFT, MOTOR n.2 ON THE RIGHT
1
1
2
2
MOTOR n.1 (on the left)
OPEN with OP1
COMMON with CM1
CLOSED with CL1
MOTOR n.2 (on the right)
[INVERTED CONFIG. COMPARED TO MOTOR n.1]
OPEN with CL2
COMMON with CM2
CLOSED with OP2
