Quick Installation Guide

PG-9141s-PoE

Powerline Ethernet Adapter

with Power over Ethernet

Page 2

Introduction

NOTE: An additional PowerGrid 9141s or 9141s-PoE unit and Ethernet cable are

required for each additional device (e.g. PC, Camera, Access Point) you

wish to connect to the network, with a minimum of 2 units required for

setup.

A. Initial Setup

NOTE: This guide assumes that a PowerGrid 9141s will be the primary connection

to the modem/router and a PowerGrid 9141s-PoE will be used within the

network to connect to a PoE-capable device (e.g. Camera, Access Point, IP

Phone).

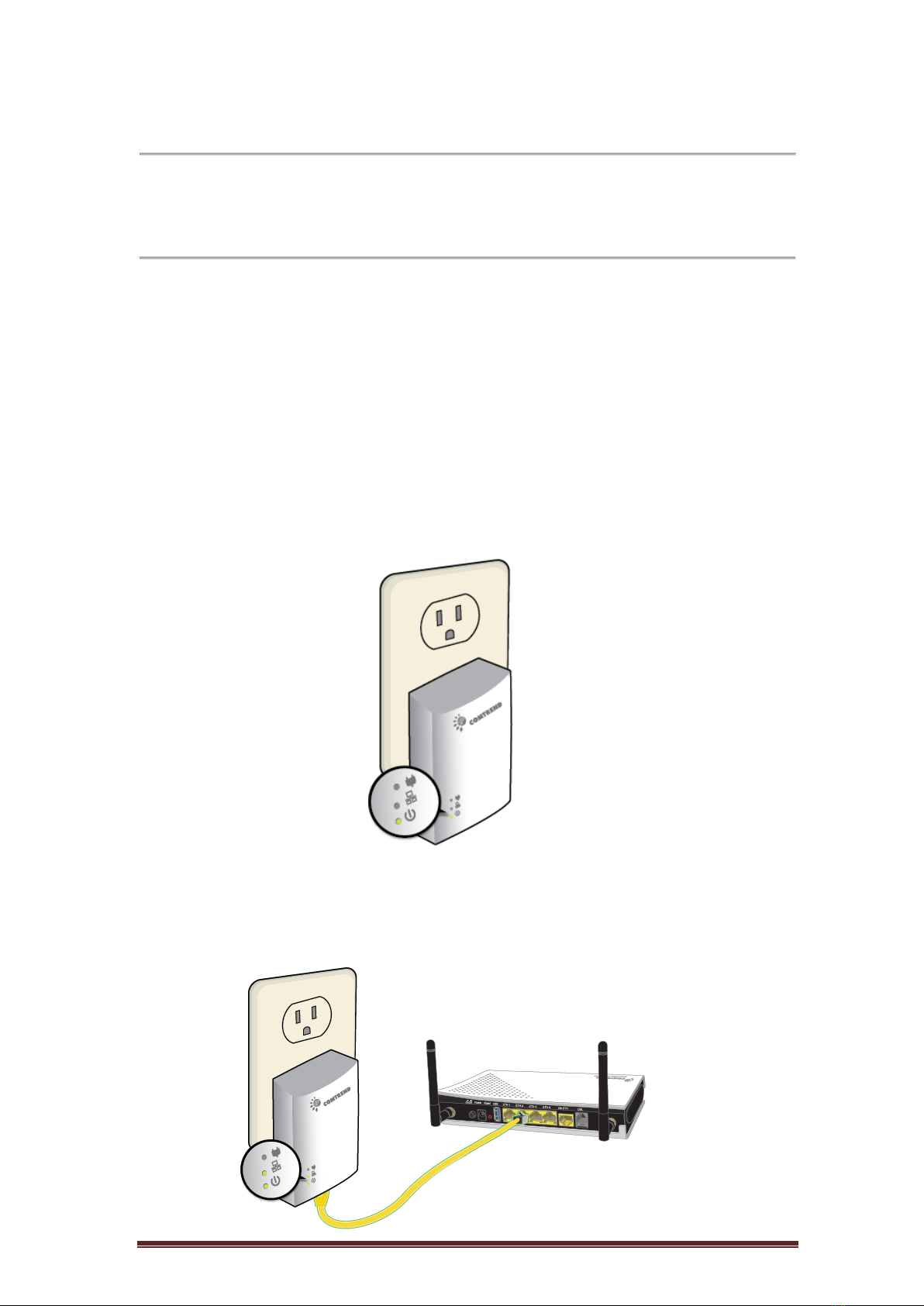

1. Ensure that your modem or router is powered on.

2. Plug a PowerGrid 9141s unit into the power outlet closest to the modem/router.

The POWER LED will blink GREEN.

3. Connect the PowerGrid 9141s unit to the LAN port of the modem/router with an

Ethernet (RJ-45) cable. Wait 10 seconds for the PowerGrid’s Ethernet LED and

Power LED to light up GREEN indicating a stable connection.

Page 3

B. Device Connection

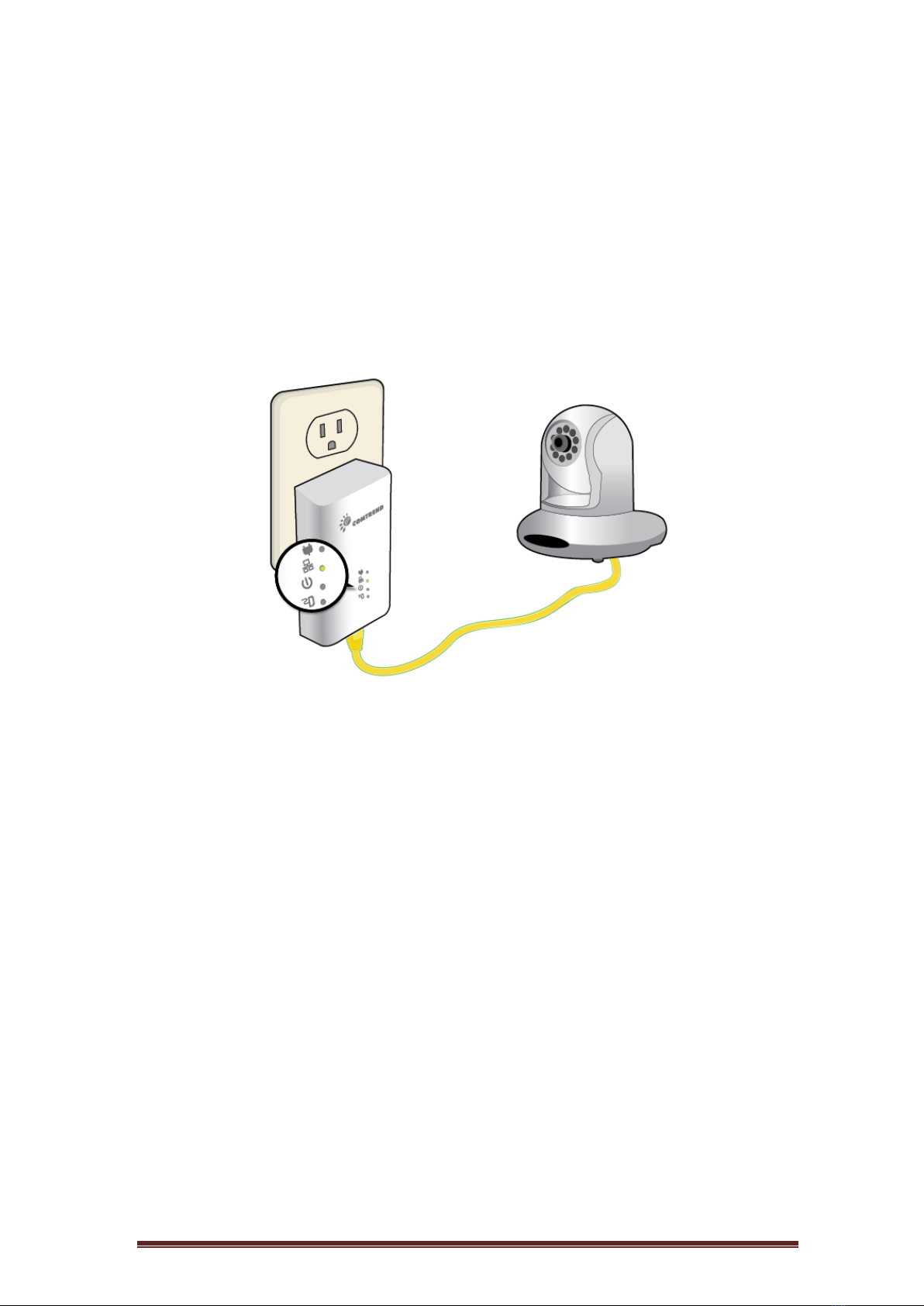

These steps show how to connect a PowerGrid 9141s-PoE to a network device.

Below we use a PoE camera as a network device.

1. Plug a PowerGrid 9141s-PoE unit into the power outlet closest to the

PoE(IEEE 802.3af compliant) camera or other device.The Power LED on the

PowerGrid 9141s-PoE should light up GREEN.

2. Connect the PowerGrid 9141s-PoE to the camera with an Ethernet cable. The

Ethernet and PoE LEDs on the PowerGrid 9141s-PoE should light up GREEN.

3. The STATUS LED on the PowerGrid 9141s-PoE (s) should now be RED,GREEN or

ORANGE.

4. If the STATUS LED is not GREEN, press the “Config”button on each of the two

PowerGrid 9141s and 9141s-PoE devices for 2-5 seconds. Upon successful

connection of the PowerGrid 9141s-PoE, the STATUS LED will light up Green.

5. If the connection process is not successful, please refer to the trouble shooting

steps in section D.

C. Adding a New Device

Follow steps 1-4 in Part B to add additional PowerGrid 9141s-PoE devices to the

network. Press the “Config” button on the new device and one other PowerGrid

device in the network so they can pair and transmit data successfully.

Page 4

D. Troubleshooting

The following information should help you diagnose basic setup or installation

problems.

1) POWER LED BLINKS AND OTHER LEDs are OFF: The POWER LED blinks and

other LED lights switch off when PowerGrid 9141s-PoE(s) unit enters power saving

mode. This occurs 30 seconds after the Ethernet connection is lost (see below).

2) ETHERNET LED is OFF: If the Ethernet LED fails to light up, check that the LAN

port of the PowerGrid unit is connected firmly to the LAN port of the other device. To

check the condition of the Ethernet cable, use another cable to test the same

connection.

3)STATUS LED is OFF: Plug both PowerGrid units that you’re attempting to pair into

power outlets that are within the same room; both PowerGrid devices should have an

Ethernet cable connected to their respective devices (e.g. PC, Router, Set Top Box,

camera, etc…). After 10 seconds (approx, until all the LEDs of the device blink), the

STATUS LED should light up GREEN. If not, press the “Config”button on each for

2-5 seconds and let go.

4) PoE LED is OFF: If the PoE LED fails to light up, check that the LAN port of the

PowerGrid unit is connected firmly to the LAN port of the PoE device. Also, the PoE

capable device needs to support the 802.3af standard and not other proprietary

standards.

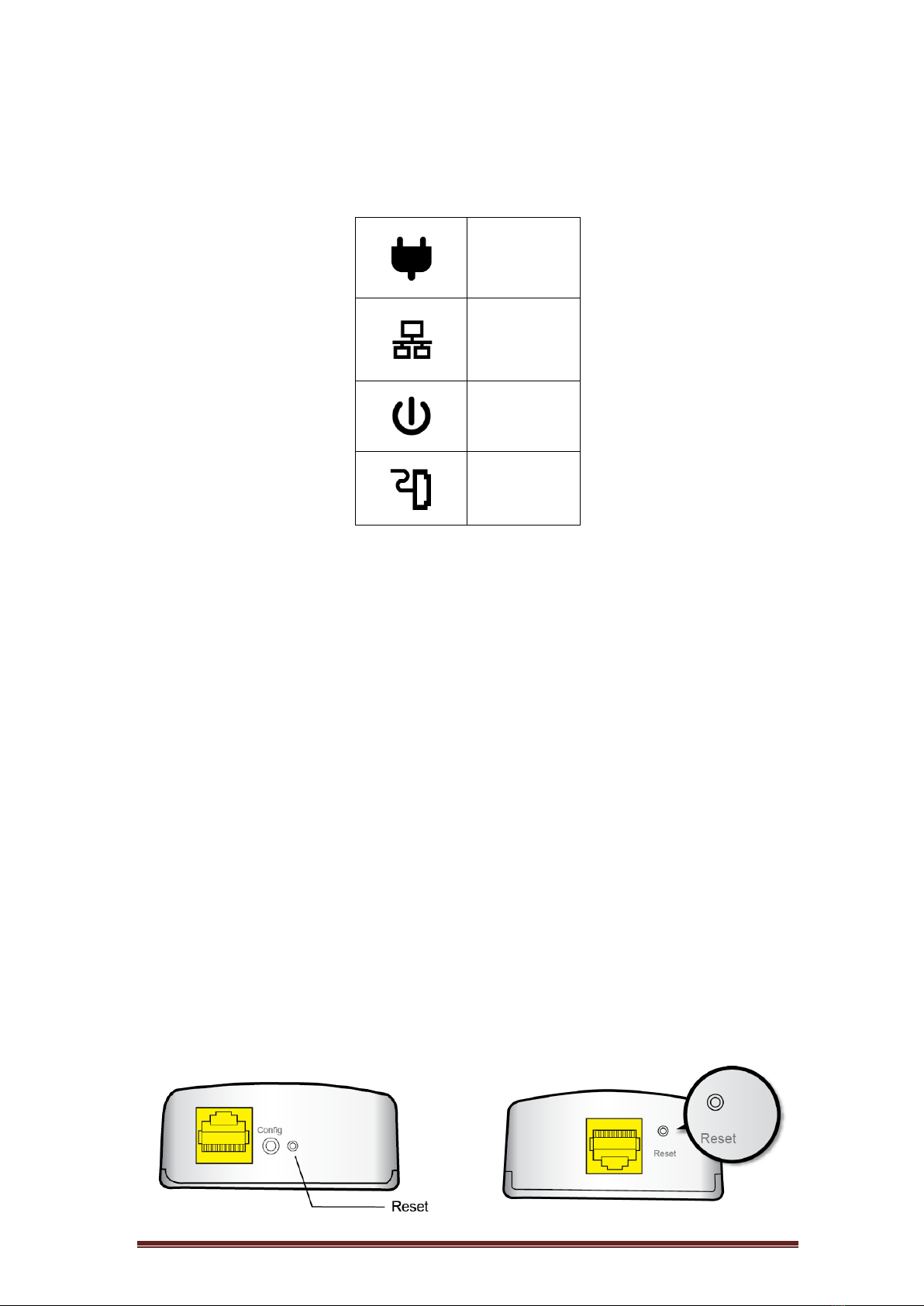

*If you have tried all of the above and are still experiencing problems, you can reset

both devices (PG-9141s & PG-9141s-PoE) to factory default by using a pin to push in

the “Reset”button for 11 seconds (until all the LEDs of the device blink).

PG-9141s-PoE PG-9141s

STATUS

ETHERNET

POWER

PoE

Page 5

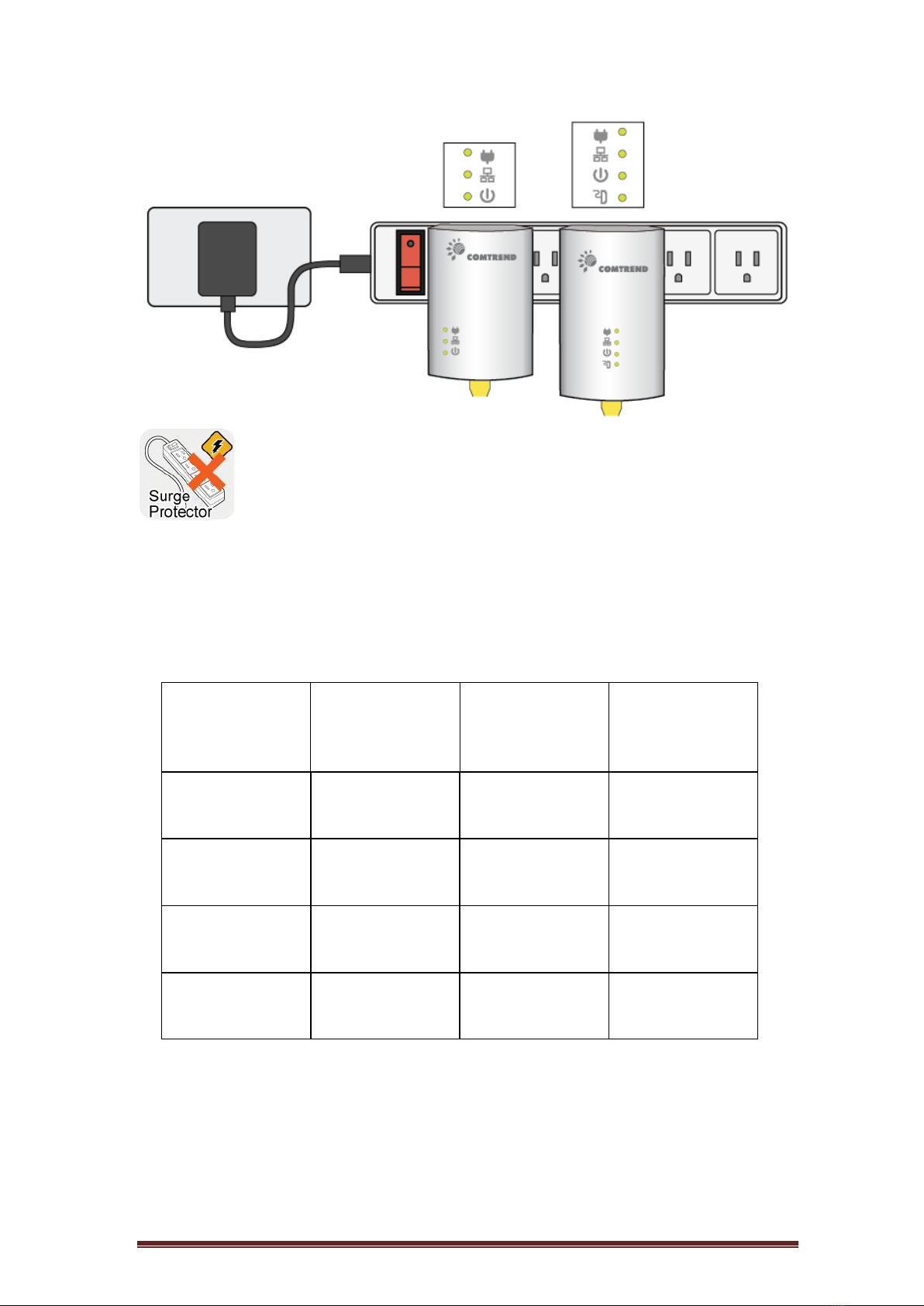

SURGE PROTECTED POWER STRIPS: Avoid plugging

PowerGrid units into power strips with surge protection as

this will reduce network speed and may even prevent

their use.

FOR MORE HELP: If you have further questions or require personal assistance,

please contact your equipment supplier or service provider.

NOTE: RJ45 PIN assignments for the PG-9141s-PoE.

RJ45 PINS

10/100 Mixed DC

& Data (mode A)

RJ45 PINS

10/100 Mixed DC

& Data (mode A)

Pin 1

Rx + / DC +

Pin 5

unused

Pin 2

Rx- / DC +

Pin 6

Tx - / DC -

Pin 3

Tx + / DC -

Pin 7

unused

Pin 4

unused

Pin 8

unused

Page 6

PG-9141s-PoE_QIG_V1.0
