USER MANUAL

PG-9172PT

G.hn Powerline Adapter with

Pass-Through Outlet

Version A1.0, August, 2017

261072-000

Preface

This manual provides information related to the installation and operation of this

device. The individual reading this manual is presumed to have a basic

understanding of telecommunications terminology and concepts.

If you find the product to be inoperable or malfunctioning, please contact technical

support for immediate service by email at INT-support@comtrend.com

For product update, new product release, manual revision, or software upgrades,

please visit our website at http://www.comtrend.com

Important Safety Instructions

With reference to unpacking, installation, use, and maintenance of your electronic

device, the following basic guidelines are recommended:

•Do not use or install this product near water, to avoid fire or shock hazard. For

example, near a bathtub, kitchen sink or laundry tub, or near a swimming pool.

Also, do not expose the equipment to rain or damp areas (e.g. a wet basement).

•To safeguard the equipment against overheating, make sure that all openings in

the unit that offer exposure to air are not blocked.

•Avoid using a telephone (other than a cordless type) during an electrical storm.

There may be a remote risk of electric shock from lightening. Also, do not use

the telephone to report a gas leak in the vicinity of the leak.

WARNING

•For indoor use only

•Do NOT open the casing

•Do NOT use near water

•Do NOT insert sharp objects into the adapter’s socket

•Socket maximum output is 12A

Power Specifications:

I/P：100-240Vac, 50/60Hz, 15A

O/P：100-240Vac, 50/60Hz, 12A

contained herein is proprietary to Comtrend Corporation. No part of this document

may be translated, transcribed, reproduced, in any form, or by any means without

prior written consent of Comtrend Corporation.

This program is free software: you can redistribute it and/or modify it under the

terms of the GNU General Public License as published by the Free Software

Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY

WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS

FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this

program. If not, see http://www.gnu.org/licenses/

NOTE: This document is subject to change without notice.

Protect Our Environment

This symbol indicates that when the equipment has reached the end of its

useful life, it must be taken to a recycling centre and processed separate

from domestic waste.

The cardboard box, the plastic contained in the packaging, and the parts

that make up this PLC can be recycled in accordance with regionally

established regulations. Never dispose of this electronic equipment along

with your household waste; you may be subject to penalties or sanctions

under the law. Instead, please be responsible and ask for disposal

instructions from your local government.

Table of Contents

CHAPTER(1(PRODUCT(INFORMATION!4!

1.1!FRONT%PANEL%AND%LED!INDICATORS!4!

1.2!SIDE$PANEL!5!

1.3!BOTTOM$PANEL!5!

1.4!HOW!TO!UNDERSTAND!THE!COVERAGE!LED!COLORS!6!

1.5!POINT-TO-POINT%NETWORK!7!

1.6!POINT%TO%MULTIPOINT(NETWORK!8!

CHAPTER(2(G.HN/POWERLINE%SETUP!9!

2.1!LOGGING%IN!9!

CHAPTER(3(G.HN(INTERFACE!10!

3.1!BASIC!CONFIGURATION!10!

3.2!NDIM!CONFIGURATION!11!

3.3!ENCRYPTION!CONFIGURATION!VIA!WEB!UI!11!

CHAPTER(4(IP(INTERFACE!12!

4.1!IP!CONFIG!12!

CHAPTER(5(ETHERNET!INTERFACE!14!

CHAPTER(6(DEVICE!INTERFACE!15!

6.1!HARDWARE!INFORMATION!15!

6.2!SOFTWARE!INFORMATION!15!

6.3!SECURITY!15!

6.4!SW!UPDATE!16!

6.5!HTTP!SW!UPDATE!16!

CHAPTER(7(MULTICAST!INTERFACE!17!

7.1!MCAST!CONFIGURATION!17!

CHAPTER(8!QOS$MENU!18!

8.1!QOS!CONFIGURATION!18!

CHAPTER(9(VLAN!INTERFACE!21!

9.1!VLAN!CONFIGURATION!21!

CHAPTER(10(G.HN!SPECTRUM!INTERFACE!22!

10.1!NOTCHES!22!

CHAPTER(11(LOG!FILE!INTERFACE!23!

11.1!LOG!FILE!23!

CHAPTER(12(ADVANCED!INTERFACE!24!

Chapter 1 Product Information

1.1 Front Panel and LED indicators

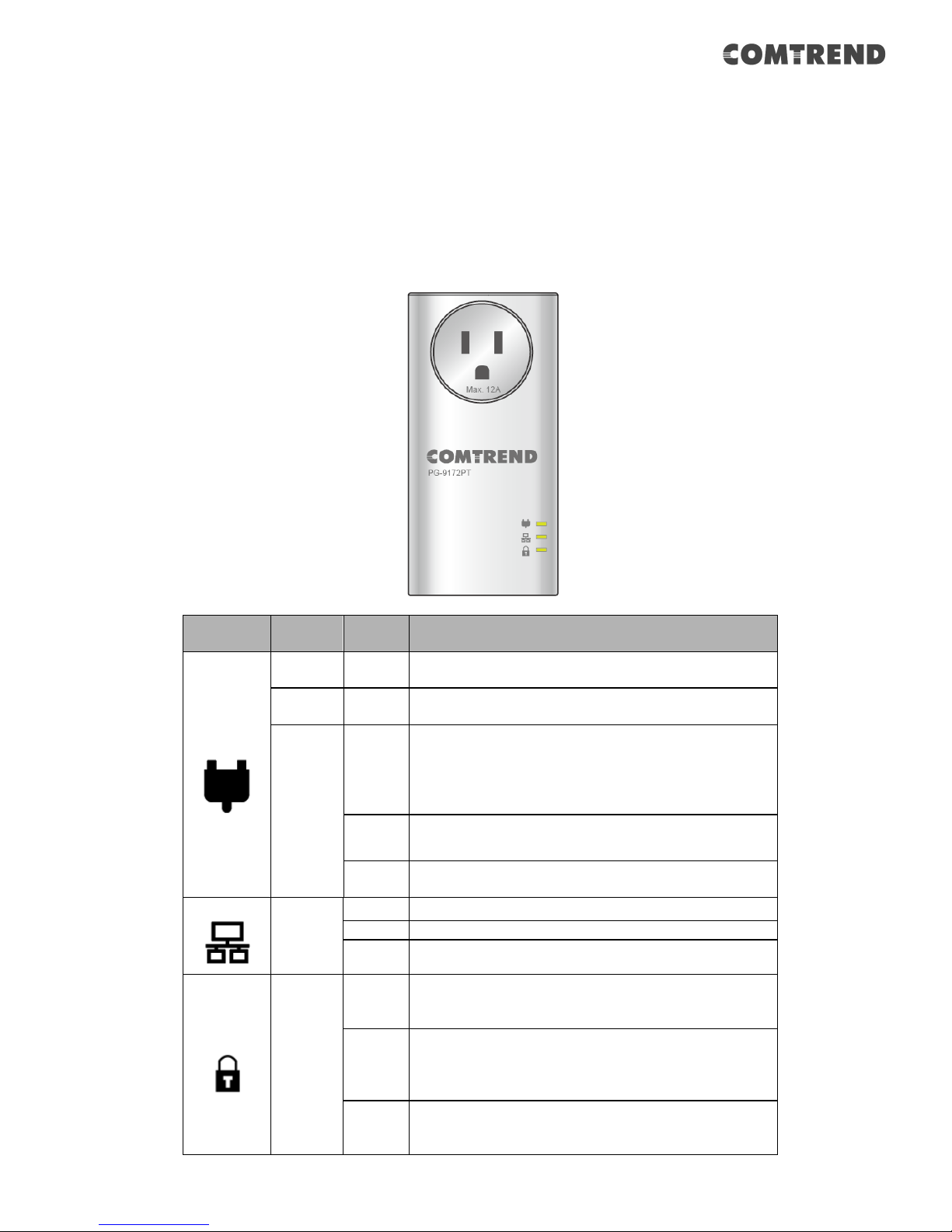

LED

COLOR

MODE

Description

Coverage

Green

The current connection (line rate) is greater

than 40 Mbps

Orange

The current connection (line rate) is greater

than 20 Mbps and less than 40 Mbps

Red

(1). The current connection (line rate) is

between 1 and 20 Mbps per second)

(2). The PLC is unsecured mode and connected

to other PLCs

Off

No PLC connection exists

Blink

Adapter in power saving mode (blinks twice

every 5 seconds)

Ethernet

Green

LAN connection established

Off

LAN connection is not established

Blink

Data transmitting/receiving

Security

Green

Node is secure (it has either received or

generated network keys)

Off

Node is not secure, it has neither received nor

generated network key parameters (domain

name and encryption key)

Blink

Node is in configuration mode (able to exchange

network keys)

1.2 Side Panel

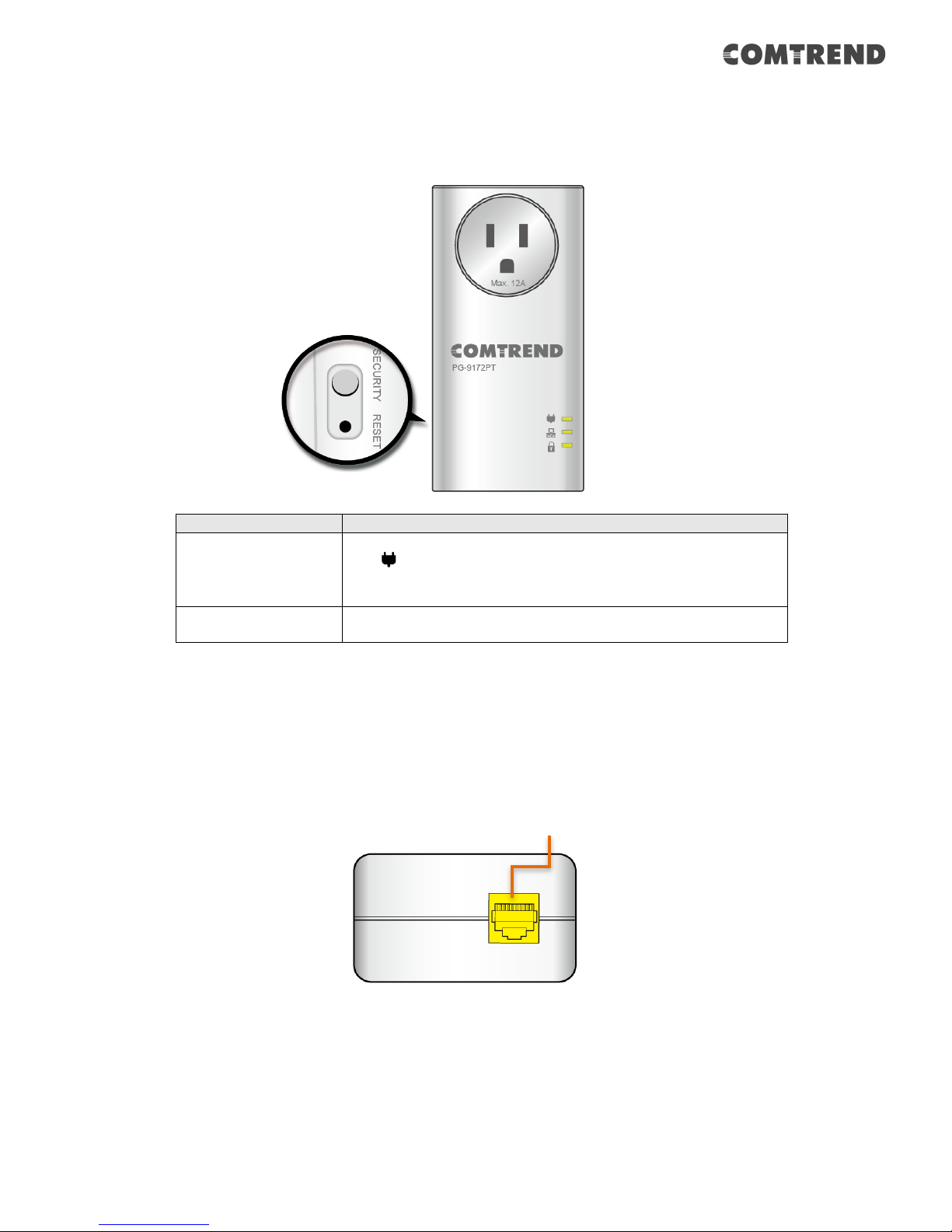

Item Name

Description

Security

Press the Security button for more than 2 seconds (until

the Connection Indicator LED is blinking) and

release: the “One Button Security Setup” (OBUS)

procedure is started and the configuration period is open.

Reset

Press more than 10 seconds (until all three LED’s are ON)

and release: a factory reset is performed.

1.3 Bottom Panel

Ethernet Port

1.4 How to understand the COVERAGE LED colors

The COVERAGE LED displays quality of the network and provides important

information that will provide solutions to common questions, such as why a High

Definition (HD) movie is not showing or shows with pixels. The COVERAGE LED

indicator will vary its color depending on the estimated speed of the Powerline

connection. The speed is measured in Megabits Per Second (Mbps).

Color

Information

RED

The current connection has standard quality, normal Internet

activities ex. 20Mbps are possible but the Powerline is unable to

transmit either a Standard Movie or High Definition (HD) Movie.

ORANGE

The current connection has good quality and Internet activities

ex. greater than 20Mbps and less than 40Mbps to transmit

Standard Movie and HD Movie.

GREEN

The current connection has excellent quality and Internet

activities ex. greater than 40Mbps to transmit multiple Standard

Movies and HD Movies.

1.5 Point-to-Point Network

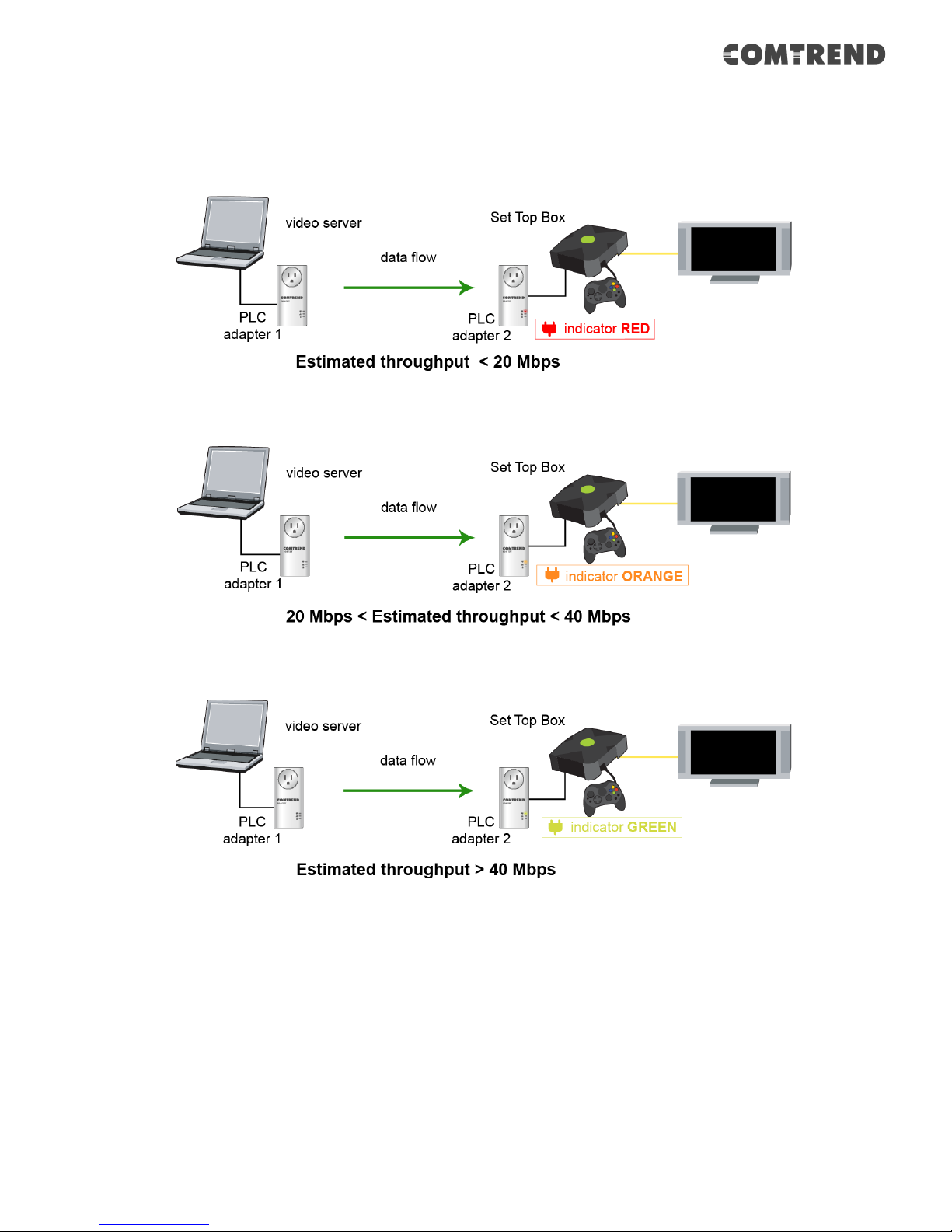

•CASE 1: Estimated throughput is less than 20 Mbps. The COVERAGE LED will

be RED as shown in the following figure:

•CASE 2: Estimated throughput is greater than 20 Mbps but less than 40

Mbps. The COVERAGE LED will be ORANGE as shown in the following figure:

•CASE 3: Estimated throughput is greater than 40 Mbps. The COVERAGE LED

will be GREEN as shown here:

1.6 Point to Multipoint Network

In the case where the PLC network is composed of three or more adapters, similar

situations could arise as with a point-to-point network.

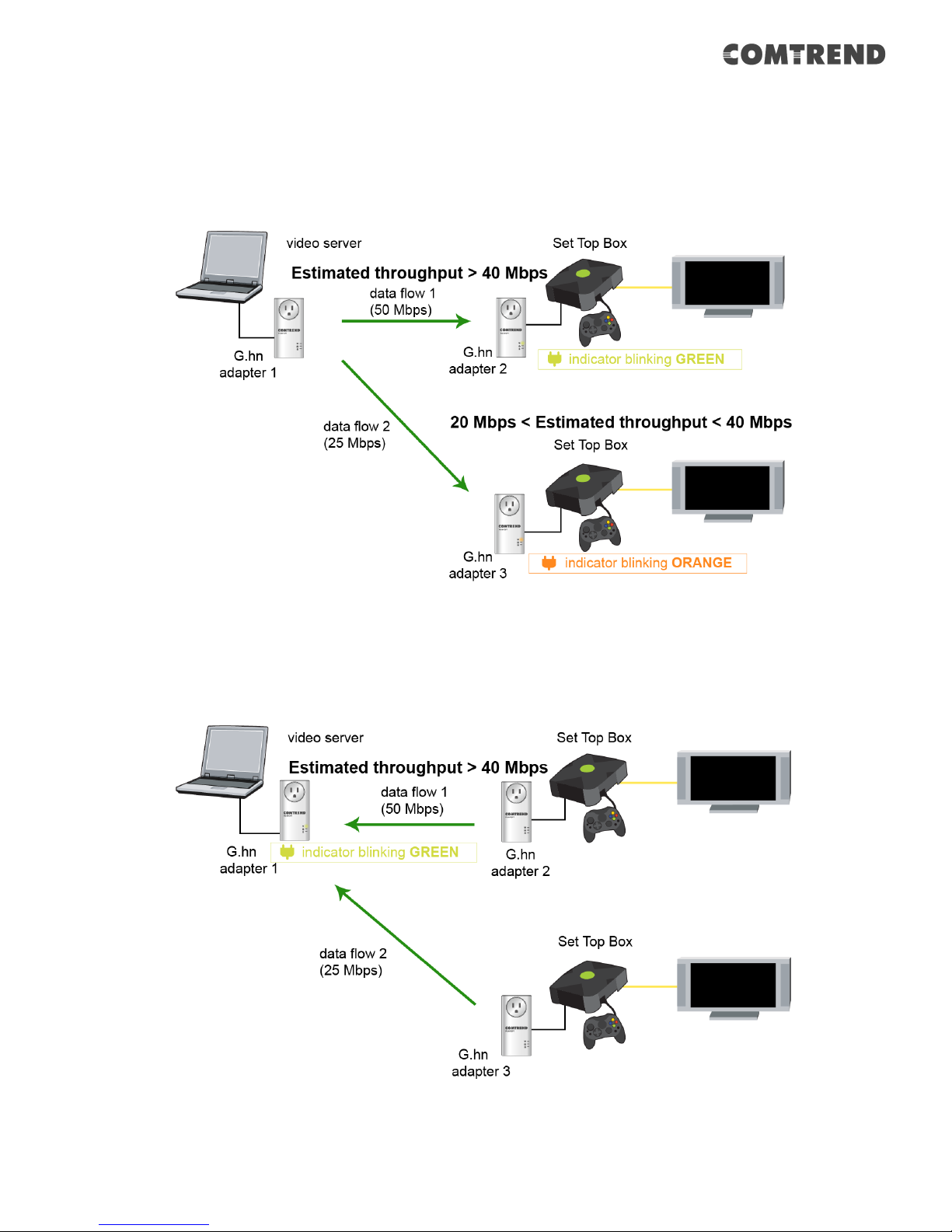

•CASE 1: The COVERAGE LED in G.hn adapter 2 and G.hn adapter 3 will show

the estimated level of the PLC link receiving from G.hn adapter 1.

•CASE 2: The COVERAGE LED in G.hn adapter 1 will show the estimated level of

the PLC link from which it is receiving the most amount of traffic at any given

time. For example, if G.hn adapter 1 is receiving traffic at 50Mbps from G.hn

adapter 2 and is receiving 25Mbps from G.hn adapter 3, the COVERAGE LED will

show the level with reference to the G.hn adapter 2 link, as shown in the

following figure.

Chapter 2 G.hn/Powerline Setup

PG-9172PT uses DHCP mode. It means PG-9172PT has to get IP address via DHCP

server. You should check what IP address is assigned to PG-9172PT via your DHCP

server and configure you PC IP address according to the IP address that was

assigned to PG-9172PT.

2.1 Logging In

Perform the following steps to login to the web user interface.

STEP 1: Start the Internet browser and enter the default IP address for the device

in the Web address field. For example, if the default IP address is

192.168.0.5, type http://192.168.0.5

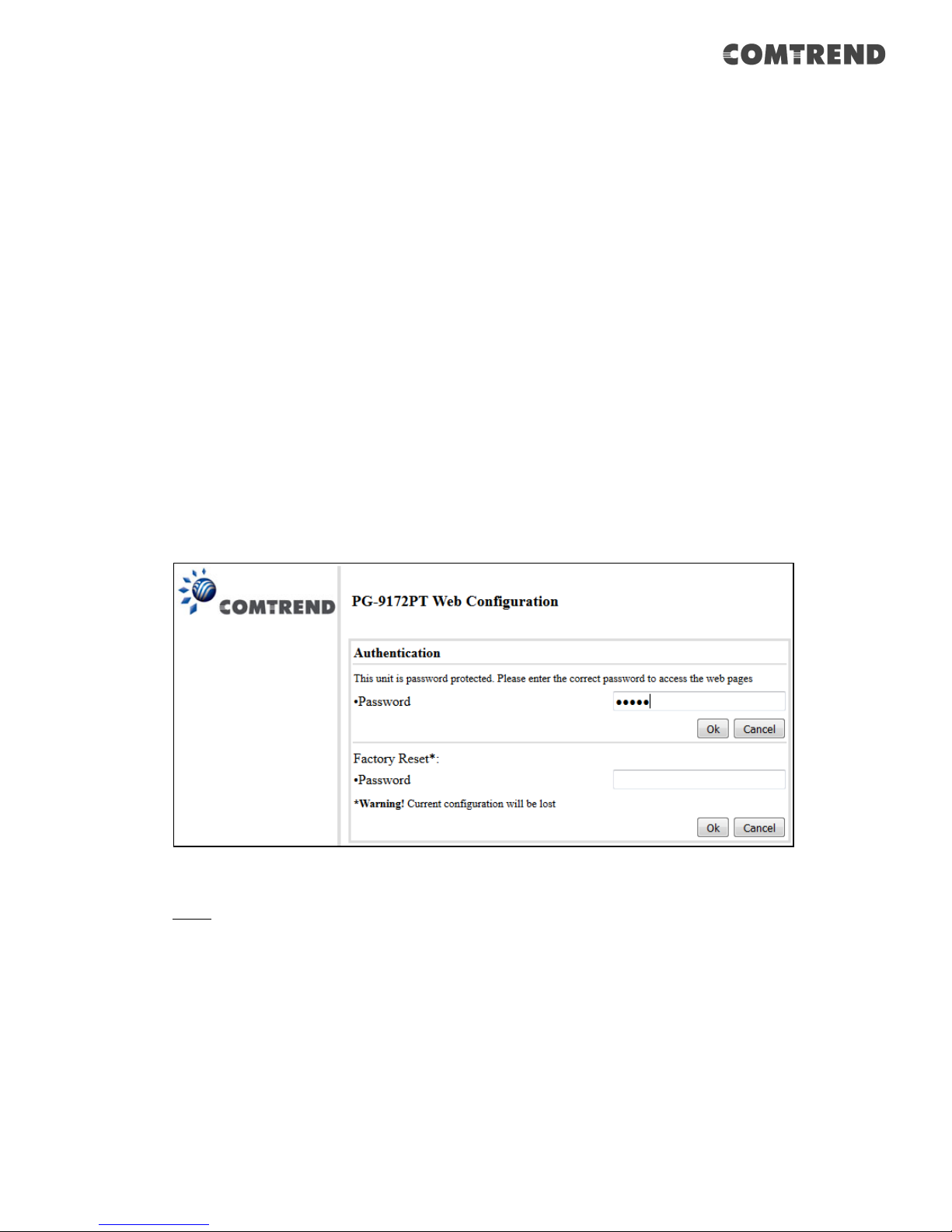

STEP 2: A dialog box will appear, such as the one below. Input the default

Authentication Password.

Authentication Password: admin

Click OK to continue.

Note:

The Factory Reset password is: betera
