Compaq TFT8030 Manuel utilisateur

User’s Guide

Compaq TFT8030 Flat Panel Monitor

Part Number: 237159-001

July 2001

Enhanced for accessibility

Compaq, the Compaq logo, Armada, Deskpro Registered in U. S. Patent

and Trademark Office.

Microsoft, MS-DOS, Windows, Windows NT are trademarks of Microsoft

Corporation in the United States and other countries.

All other product names mentioned herein may be trademarks of their

respective companies.

Compaq shall not be liable for technical or editorial errors or omissions

contained herein. The information in this document is provided “as is”

without warranty of any kind and is subject to change without notice. the

warranties for Compaq products are set forth in the express limited

warranty statements accompanying such products. Nothing herein should

be construed as constituting an additional warranty.

CAUTION: Text set off in this manner indicates that failure to

follow directions could result in damage to equipment or loss of

information.

WARNING: Text set off in this manner indicates that failure to

follow directions could result in bodily harm or loss of life.

Compaq TFT8030 Flat Panel Monitor Reference Guide

First Edition (July 2001)

Part Number: 237159-001

Product Features

The Compaq TFT8030 Flat Panel Display has an active

matrix, thin-film transistor (TFT), liquid crystal display

(LCD). The monitor features include the following:

■ Large 18.1-inch (45.9 cm) viewable area display.

■ 1280 × 1024 resolution, plus full-screen support for

lower resolutions.

■ Wide viewing angle to allow viewing from a sitting

or standing position, or moving side-to-side.

■ Tilt and swivel adjustment capabilities.

■ Removable base for flexible mounting solutions.

■ Dual video input channels with the following

connection options:

❏ Channel 1 supports either VGA analog or DVI-D

digital signals.

❏ Channel 2 supports either VGA analog, DVI-D

digital, Super Video or Composite Video signals.

■ Video input includes PiP (Picture in Picture) option

for windowed video display over data display.

■ VGA analog and DVI-Digital signal cables included.

■ Plug and play capability if supported by your system.

■ On-Screen Display (OSD) adjustments in six

different languages: English, Dutch, French, German,

Italian, and Spanish for ease of set-up and screen

optimization.

■ CD-ROM includes an information file (INF), Image

Color Matching file (ICM), Colorific calibration

software, the Compaq LCD Display Assistant setup

and configuration utility, the Compaq Display

LiteSaver utility, and product documentation.

■ Programmable sleep mode timer.

TFT8030 User’s Guide 1

■ Energy Saver feature for Energy Star compliance.

■ Security lock slot

■ AssetControl

■ Compliant with the following regulated

specifications:

❏ EPA ENERGY STAR

❏ European Union CE Directives

❏ Swedish MPR II 1990

❏ Swedish TCO '99

Information Files

The CD-ROM included with this monitor contains two

information files to be installed onto your computer; an

.INF file and an .ICM file.

■ The .INF file defines monitor resources and provides

specifications used by most operating systems to

install support software for certain hardware devices.

The .INF file ensures monitor compatibility and

optimization with your computer’s graphics adapter.

INF files are downloadable by clicking on:

www.compaq.com/products/monitors/index.html and

selecting the desired monitor.

■ The .ICM file provides color matching consistency

from monitor screen to printer and is activated from

within graphics programs that have this feature.

To install these files on your computer, insert the

Software and User’s Guide CD-ROM in your computer's

CD drive and when the CD-ROM menu launches, select

Install INF and ICM Files and follow the on-screen

instructions.

2 TFT8030 User’s Guide

Setting Up the Monitor

To set up the monitor, ensure that the power is turned off

to the monitor, computer system, and other attached

devices, then follow these steps:

This monitor has multiple connectors on the back panel

that can be used to connect two computers

simultaneously to the monitor. Be sure the Video

Channel Select button on the front of the monitor is set

to the correct position to receive signals from the

connected computer. See the Front Panel Controls table

for more information.

1. Place the monitor in a convenient, well-ventilated

location near your computer.

2. Connect the signal and AC power cables to the

monitor 1. Refer to the next section, “Connecting

the Signal Cables,” for additional information.

3. Connect the monitor signal cable 2to the

appropriate video connector on the rear panel of the

computer.

4. Connect the AC end of the power cable 3to AC

receptacle on the monitor.

5. Connect the power cable 4to an electrical wall outlet.

TFT8030 User’s Guide 3

WARNING: To reduce the risk of electric shock or damage to

your equipment:

■ Do not disable the power cord grounding plug. The grounding

plug is an important safety feature.

■ Plug the power cord into a grounded (earthed) electrical outlet

that is easily accessible at all times.

■ Disconnect power from the monitor by unplugging the power cord

from the electrical outlet.

■ Do not place anything on power cords or cables. Arrange them

so that no one may accidentally step on or trip over them. Do not

pull on a cord or cable. When unplugging from the electrical

outlet, grasp the cord by the plug.

For security purposes, this monitor has been fitted with a slot for

use with a security cable lock that can be purchased separately at

most computer stores.

4 TFT8030 User’s Guide

After you turn on the monitor, install the Compaq LCD Display

Assistant utility included on the CD-ROM. Use the on-screen

instructions to adjust the picture quality of your monitor. To

install this utility, follow the instructions on the “Configuring

Your Compaq LCD Monitor” card located in the Program

License Agreement packet.

Important: Always activate a screen saver program, the

programmable sleep timer, the Compaq Display LiteSaver

utility, or turn off the monitor when it is not in use for a

prolonged period of time. All LCD monitors that display the

same static image on screen for a prolonged period of time may

exhibit screen image retention. Note that image retention is not a

permanent condition and will fade over a period of time. Image

retention is a condition that may occur on all LCD screens.

Connecting the Video Signal Cables

To connect the VGA analog or DVI-D (Digital Visual Interface-

Digital) cable to the corresponding connector on the back of the

monitor, you must first remove the monitor base cover.

WARNING: Before beginning to disassemble the monitor, be sure

the monitor is turned off and the power and signal cables are both

disconnected.

The DVI-D cable supplied with this monitor is for digital- to-

digital connection only. Your computer must have a DVI-

compatible graphics card installed for use with this cable. When

connecting the DVI-D signal cable to the DVI connector on the

monitor, you must connect the other end of the DVI-D cable to

the DVI connector on the computer.

TFT8030 User’s Guide 5

1. Lay the front bezel down on a soft area to prevent it from

getting scratched, defaced, or broken.

2. Remove the cover plate from the monitor base by placing

your fingers in the opening on the bottom of the base and

pulling upward, then pulling out to remove the cover.

3. Remove the back panel from the monitor by pushing the

bottom tabs upward and pulling out to remove the panel.

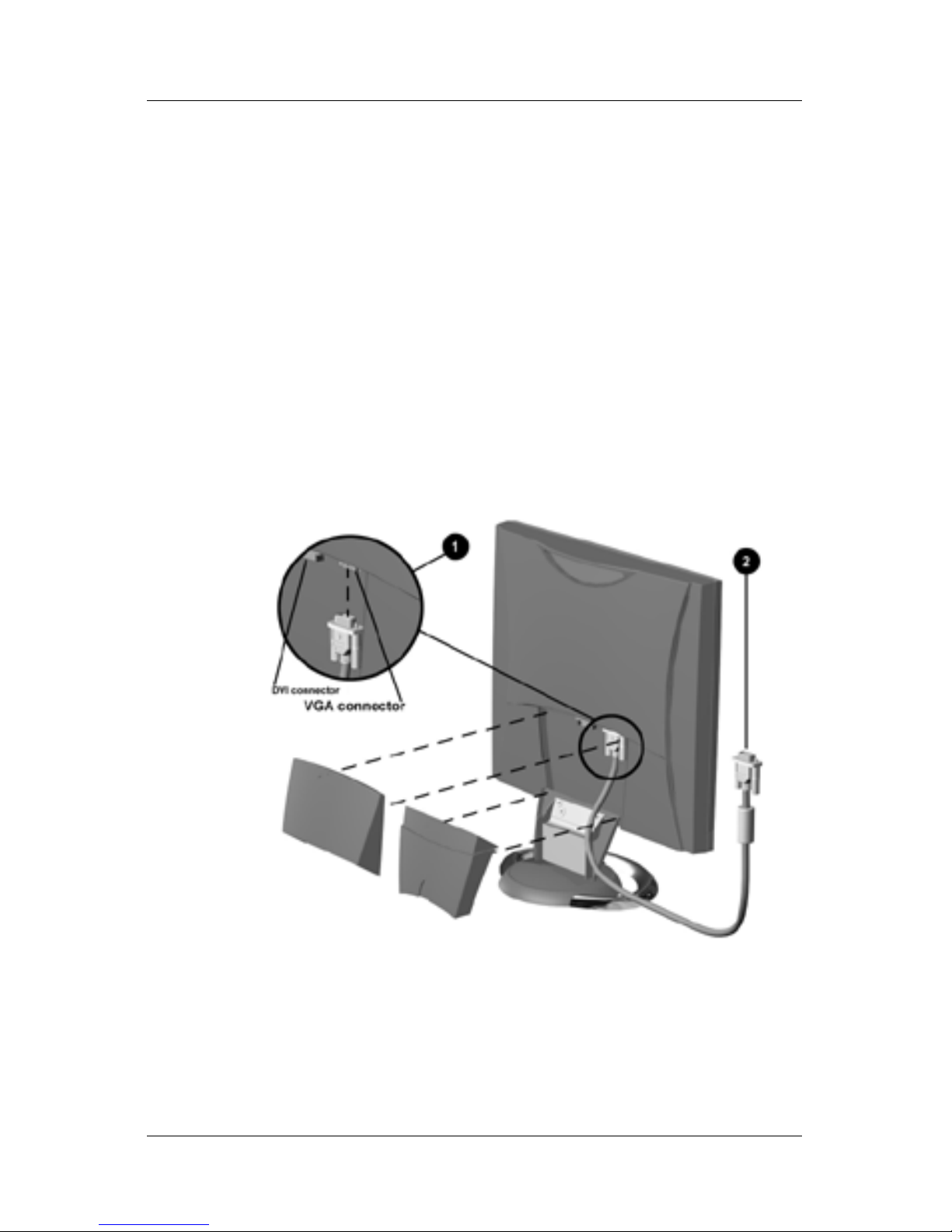

4. Connect the video cable to the corresponding connector on

the back panel of the monitor 1by threading the cable

through the neck on the monitor base to the connector, then

connect the other end of the cable 2to the appropriate video

connector on the back panel of the computer.

5. Replace the monitor back panel and monitor base cover.

6. Reconnect the power cable and power on the monitor and

computer.

6 TFT8030 User’s Guide

The DVI-D connector on this monitor uses digital video

information to provide higher speed for higher display

resolution. The results are more precise video displays without

manually adjusting screen display quality.

Signal Cables Included:

■ VGA (Analog) to VGA Connector (15-pin)

■ DVI-D Cable (Digital only) to DVI Digital Connector

Signal Connectors and Cables

There are six signal input connectors: two VGA connectors, two

DVI-D connectors which support TMDS digital video signals,

and two video connectors which support NTSC, PAL, and

SECAM formats. The monitor will automatically select the two

connectors which will be displayed on the dual channel monitor

using the automatic input selection mode described in the “Initial

Select Switch” section. Alternately, the monitor defaults can be

overridden and Channel 1 or Channel 2 inputs selected using the

On-Screen Display (OSD).

TFT8030 Input Connectors

Video Channel Designator Connector Type

1 1-A VGA Analog

1-D DVI-Digital

2 2-A VGA Digital

2-D DVI-Digital

2-SV Super Video

2-CV Composite Video

TFT8030 User’s Guide 7

Input Select Switch

The Video Channel Select control is located at the left-hand side

of the lower front bezel. To the left and right of the Select

control are two indicators that display the video channel that is

selected. The left indicator is for Channel 1 and the right

indicator is for Channel 2.

The TFT8030 has three video detection modes described in the

following sections:

■ Automatic Input Selection (Monitor Default)

■ Input Recall

■ User Input Selection using the On Screen Display

Automatic Input Selection

This section describes the monitor’s input detection scheme at

the initial power-up or when the user has selected Auto Detect

using the OSD for both Channels 1 and 2.

If only one active video input is connected, the monitor

automatically enables and displays that input. If multiple video

inputs are connected to the monitor (either active or in the

energy saving sleep mode), the monitor detects and displays the

factory default video summarized below.

Channel 1 is assigned to the first valid video connection in the

following order:

■ Analog 1

■ Digital 1

Channel 2 is assigned to the first valid video connection in the

following order:

■ Analog 2

■ Digital 2

■ Super Video

■ Composite Video

8 TFT8030 User’s Guide

Table des matières

Autres manuels Compaq Moniteur

Compaq

Compaq Compaq S720 Manuel utilisateur

Compaq

Compaq Compaq S710 Manuel utilisateur

Compaq

Compaq P1100 Manuel utilisateur

Compaq

Compaq V50 Manuel utilisateur

Compaq

Compaq TFT450 Manuel utilisateur

Compaq

Compaq Compaq S710 Manuel utilisateur

Compaq

Compaq V40 Manuel utilisateur

Compaq

Compaq 378901-008 - FP 700 - 15" LCD Monitor Instructions d'installation

Compaq

Compaq P 110 Manuel utilisateur

Compaq

Compaq 303500-001 - V 900 - 19" CRT Display Manuel utilisateur

Compaq

Compaq CRT Monitor s7500 Manuel utilisateur

Compaq

Compaq Q2022a Manuel utilisateur

Compaq

Compaq MV 540 Manuel utilisateur

Compaq

Compaq 151FS - QVision - 15" CRT Display Manuel utilisateur

Compaq

Compaq TFT5010 Manuel utilisateur

Compaq

Compaq V1100 Manuel utilisateur

Compaq

Compaq V70 Manuel utilisateur

Compaq

Compaq Compaq Q2159 Manuel utilisateur

Compaq

Compaq CPQ-C1786FNSL Manuel utilisateur

Compaq

Compaq TFT1701 Manuel utilisateur

Compaq

Compaq TFT5010R Instructions d'utilisation

Compaq

Compaq TFT1720 Manuel utilisateur

Compaq

Compaq 2025 Manuel utilisateur

Compaq

Compaq P1210 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
