The information in this guide is subject to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR

TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED

HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF

THIS MATERIAL.

This guide contains information protected by copyright. No part of this guide

may be photocopied or reproduced in any form without prior written consent

from Compaq Computer Corporation.

1997 Compaq Computer Corporation.

Compaq, Deskpro, and Qvision are registered in the U. S. Patent and

Trademark Office.

The software described in this guide is furnished under a license agreement or

nondisclosure agreement. The software may be used or copied only in

accordance with the terms of the agreement.

Product names mentioned herein may be trademarks and/or registered

trademarks of their respective companies.

User’s Guide

Compaq TFT500 Flat Panel Monitor

Second Edition (September 1997)

First Edition (March 1997)

Part Number 285012-002

Compaq Computer Corporation

Notice

English

1-1

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

book 1

ENGLISH

Introduction The Compaq TFT500 Flat Panel Monitor has a 15.1-inch

(38.35 cm) flat panel screen with an active matrix, thin-film

transistor (TFT) liquid crystal display (LCD). It supports

resolutions up to 1024 × 768, and has a wide viewing angle of

+/- 60 degrees horizontal and +/- 40 degrees vertical.

The overall size of the monitor is designed for use in small

working areas or for those who need more working space on the

desk.

1-2 English

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

Product Features The monitor features include the following:

■ 15.1-inch (38.35 cm) viewable area display

■ Screen customizing adjustments displayed on-screen in five

different languages: English, Dutch, French, German, and

Spanish

■ Universal Serial Bus Hub interface—plug and play

connectors for use with USB peripherals (mouse, etc.)

■ Plug and play capability if supported by your system

■ Fault Management and Asset Control

■ Desk arm mount (optional)

■ Automatic scanning with screen expansion

■ 1024 × 768 (XGA) resolution

■ Wide viewing angle to allow viewing from a sitting or

standing position, or moving side-to-side

■ Energy Saver feature

■ Compliant with the following regulated specifications:

❏ Swedish MPR II 1990

❏ EPA Energy Star

❏ European Union CE Directives

❏ Swedish TCO 1995

Setting Up the

Monitor To set up the monitor, ensure that the power is turned off to the

monitor, computer system, and other attached devices, then

follow these steps:

1. Place the monitor in a convenient, well-ventilated location

near your computer.

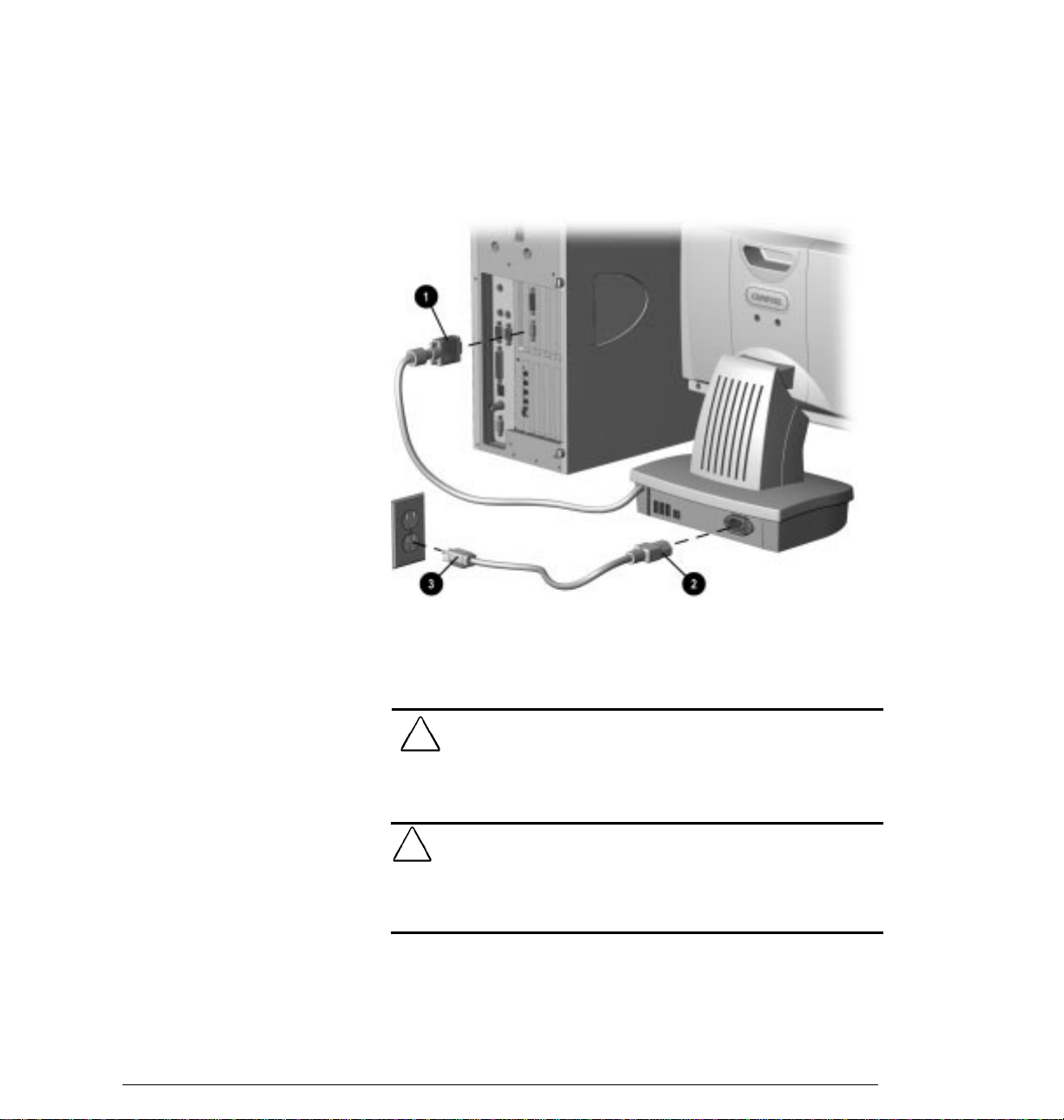

2. Connect the monitor signal cable 1to the 15-pin connector

on the rear panel of the computer and tighten the screws.

English

1-3

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

✎Be sure the signal cable aligns with the 15-pin connector. Do not

force the cable onto the connector or you may damage the signal

cable.

3. Plug the monitor power cord 2into the base of the

monitor, and then into an electrical outlet 3that is easily

accessible and close to the monitor.

!WARNING: To reduce the risk of electric shock or damage to

your equipment, do not disable the power cord grounding feature.

This equipment is designed to be connected to a grounded

(earthed) power outlet that is easily accessible to the operator. The

grounding plug is an important safety feature.

CAUTION: Be sure that the power outlet you plug your power cord

into is easily accessible and located as close to the equipment

operator as possible. When you need to disconnect power to the

equipment, be sure to unplug the power cord from the power

outlet.

1-4 English

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

The base of the monitor also has four Universal Serial Bus

(USB) connectors. Three of these connectors, 1, 2, and 3, are

for connecting USB compatible plug and play devices such as a

keyboard, mouse, or video camera. USB connector 4is used to

connect the USB signal cable to the computer.

Mounting the Display on a Swing Arm

A swing arm mount with tilt and rotation capability can be

purchased separately to use with this monitor. Refer to your

authorized Compaq dealer or reseller for more information on

this.

English

1-5

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

Operating the Monitor

Front Control Panel

No./Icon Control Function

1Select button 1. Launches on-screen display.

2. Selects function adjustments.

3. Exits menus and on-screen display.

2- Minus button Selects and adjusts the functions.

3+Plus button Selects and adjusts the functions.

4Power switch Turns the monitor on and off.

5Power LED 1. Green indicates monitor is turned on.

2. Yellow indicates suspend mode.

3. Amber indicates sleep mode.

1-6 English

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

On-Screen Display Settings

The adjustments for screen settings are located in the on-screen

display and can be viewed in one of five available languages.

The on-screen Main Menu displays the following nine

functions:

Brightness Adjusts the brightness of the screen’s backlights.

Contrast Adjusts screen contrast.

Position Adjusts the horizontal and vertical position of the

screen.

Color Adjusts screen color balance.

Digital Conversion Adjusts the clock and clock phase.

Language Lists five languages available to display on-screen

menus.

Management Turns full screen, power saver, and display modes on

and off, and displays monitor serial number.

Factory Reset Resets the screen to its factory settings.

Exit Turns off the on-screen menu.

How to Adjust Settings

To launch the on-screen display Main Menu:

1. Press the

Select button 1on the monitor front panel. The

Main Menu will display on the monitor screen.

2. To select an item from the Main Menu, scroll down by

pressing the Minus (-) button 2located on the monitor front

panel. To reverse or back up, press the Plus (+) button 3.

3. Highlight your choice and press the Select button 1again.

For example, to select the Position menu, press the Minus

button 2until Size and Position is highlighted, then press

the Select button 1to choose it.

English

1-7

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

Monitor with On-Screen Display

4. A second level menu displays with expanded menu items.

Again, to make a selection, press the Minus (-) button 2to

scroll down or press the Plus (+) button 3to reverse or

back up.

5. Highlight your choice, then select Save and Return. To

void any changes made, select Cancel instead of Save and

Return.

✎The second level menu for Brightness and Contrast displays

an adjustment screen. Use the Minus button to decrease and

the Plus button to increase the screen brightness and contrast.

6. Adjust the third level menu displays in the same manner.

7. To exit from the on-screen menu, select Exit from the Main

Menu. If the display is a second or third level menu, select

Save and Return or Cancel, then select Exit from the Main

Menu.

The on-screen display is easy to use, just follow the instructions

on the screen.

1-8 English

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

Language Selection

When the monitor is turned on for the first time, the on-screen

display is set to the English language. However, the display can

be set to any one of these languages: English, Dutch, French,

German, or Spanish.

To change the display to the language of your choice:

1. Launch the on-screen display by pressing the Select button

➊on the monitor front panel.

2. Move through the list of functions on the on-screen display

by pressing the Minus (-) button ➋repeatedly until the

word Language is highlighted on the screen. To reverse

or back up through the function list, press the Plus (+)

button 3.

3. When

Language is highlighted, press the Select button ➊

to confirm the selection.

Selecting Language on the On-Screen Display

4. From the next screen, press the Minus button ➋to choose a

language.

English

1-9

Writer: Marianne Silvetti Saved by: Marianne Silvetti Saved date: 01/29/98 5:12 PM

Pages: 14 Words: 2323 Template: c:\msoffice\templates\normal.dot

File Name BCh1.doc Part Number 285012-001

5. After the language of your choice is highlighted and

selected, press Save and Return to confirm the selection,

and the Language Menu will escape to the Main Menu.

✎Selecting Cancel redisplays the second level Language menu

again in the original language.

6. Within the Main Menu, select Exit to turn off the on-screen

display. From this point, all on-screen functions will

display in your chosen language.

Display Resolutions

The display resolutions listed below are the most commonly

used modes and are set as factory defaults. This monitor

automatically recognizes these preset modes when they are

requested by a software program and will provide the user with

a properly sized and centered display.

Display Resolutions

Memory Channels Resolutions

1. Industry Standard 640 × 350 at 31.5 kHz/70 Hz

2. Industry Standard 640 × 480 at 31.5 kHz/60 Hz

3. VESA 640 × 480 at 37.5 kHz/75 Hz

4. VESA 640 × 480 at 43.3 kHz/85 Hz

5. Industry Standard 720 × 400 at 31.5 kHz/70 Hz

6. VESA 800 × 600 at 37.8 kHz/60 Hz

7. VESA 800 × 600 at 46.9 kHz/75 Hz

8. VESA *(P) 800 × 600 at 53.7 kHz/85 Hz

9. Macintosh 832 × 764 at 49.7 kHz/75 Hz

10. VESA 1024 × 768 at 48.4 kHz/60 Hz

11. VESA 1024 × 768 at 56.5 kHz/70 Hz

12. VESA 1024 × 768 at 60 kHz/75 Hz

* (P) = Proposed

Autres manuels pour TFT500

Table des matières

Autres manuels Compaq Moniteur

Compaq

Compaq V55 Manuel utilisateur

Compaq

Compaq P700 Manuel utilisateur

Compaq

Compaq COMPAQ Q1859 Manuel utilisateur

Compaq

Compaq TFT5010R Instructions d'utilisation

Compaq

Compaq V1100 Manuel utilisateur

Compaq

Compaq V710 Manuel utilisateur

Compaq

Compaq 8000 - Elite Convertible Minitower PC Manuel utilisateur

Compaq

Compaq Compaq LE1902 Manuel utilisateur

Compaq

Compaq MV 540 Manuel utilisateur

Compaq

Compaq TFT500 Manuel utilisateur

Compaq

Compaq P75 Manuel utilisateur

Compaq

Compaq TFT1701 Manuel utilisateur

Compaq

Compaq 378901-008 - FP 700 - 15" LCD Monitor Instructions d'installation

Compaq

Compaq CV7500 Manuel utilisateur

Compaq

Compaq P700 Manuel utilisateur

Compaq

Compaq TFT 5000R Manuel utilisateur

Compaq

Compaq Compaq S710 Manuel utilisateur

Compaq

Compaq 5017 - TFT - 15" LCD Monitor Manuel utilisateur

Compaq

Compaq Compaq S710 Manuel utilisateur

Compaq

Compaq 7500 Series Manuel utilisateur

Compaq

Compaq WF1907 - Compaq 19" LCD Monitor Comment utiliser

Compaq

Compaq P1100 Manuel utilisateur

Compaq

Compaq TFT5030 Manuel utilisateur

Compaq

Compaq 1825 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
