User’s Guide 1

1825 flat Panel Monitor

Product Features

The 1825 Flat Panel Display has an active matrix, thin-film

transistor (TFT), liquid crystal display (LCD). The monitor

features include:

■Large 18.1-inch (45.9 cm) viewable area display.

■1280 × 1024 native resolution, plus full-screen support for

lower resolutions.

■Wide viewing angle to allow viewing from a sitting or

standing position, or moving side-to-side.

■Tilt and swivel adjustment capabilities.

■Removable base for flexible mounting solutions.

■Multiple video inputs supported:

❏VGA Analog

❏DVI-I supports either Analog or Digital signal input

■VGA analog and DVI-Digital signal cables included.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments in English, French,

German, Italian, Spanish, and Simplified Chinese for ease of

set-up and screen optimization.

Sarah User Guide.book Page 1 Tuesday, September 3, 2002 8:33 AM

2User’sGuide

1825 flat Panel Monitor

■Software and Reference Library CD includes an information

file (INF), Image Color Matching file (ICM), and product

documentation.

■Energy Saver feature for Energy Star compliance.

■AssetControl

■Compliant with the following regulated specifications:

❏EPA ENERGY STAR

❏European Union CE Directives

❏Swedish MPR II 1990

❏Swedish TCO '99

Installing the Information Files

The CD-ROM included with this monitor contains two

information files to be installed onto your computer; an .INF file

and an .ICM file.

■The .INF file defines monitor resources and provides

specifications used by most operating systems to install

support software for certain hardware devices. The .INF file

ensures monitor compatibility and optimization with your

computer’s graphics adapter. INF files are downloadable by

clicking on: www.hp.com/go/support and selecting the desired

monitor.

■The .ICM file provides color matching consistency from

monitor screen to printer and is activated from within

graphics programs that have this feature.

To install these files on your computer, insert the Software and

Reference Library CD in your computer CD-ROM drive. When

the CD menu launches, select Install INF and ICM Files and

follow the on-screen instructions.

Sarah User Guide.book Page 2 Tuesday, September 3, 2002 8:33 AM

1825 flat Panel Monitor

User’s Guide 3

Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the

monitor, computer system, and other attached devices, then

follow these steps:

1. Place the monitor in a convenient, well-ventilated location

near your computer.

2. Connect the monitor signal cable to the video connector on

the rear panel of the computer.

✎The DVI-D cable supplied with this monitor is for

digital-to-digital connection only. Your computer must have a

DVI-compatible graphics card installed for use with this cable.

When connecting the DVI-D signal cable to the DVI connector

on the monitor, you must connect the other end of the DVI-D

cable to the DVI connector on the computer.

3. Connect the monitor signal cable to the back of the monitor.

4. Connect the power cable to the back of the monitor.

5. Connect the power cable to an electrical wall outlet.

Sarah User Guide.book Page 3 Tuesday, September 3, 2002 8:33 AM

4User’sGuide

1825 flat Panel Monitor

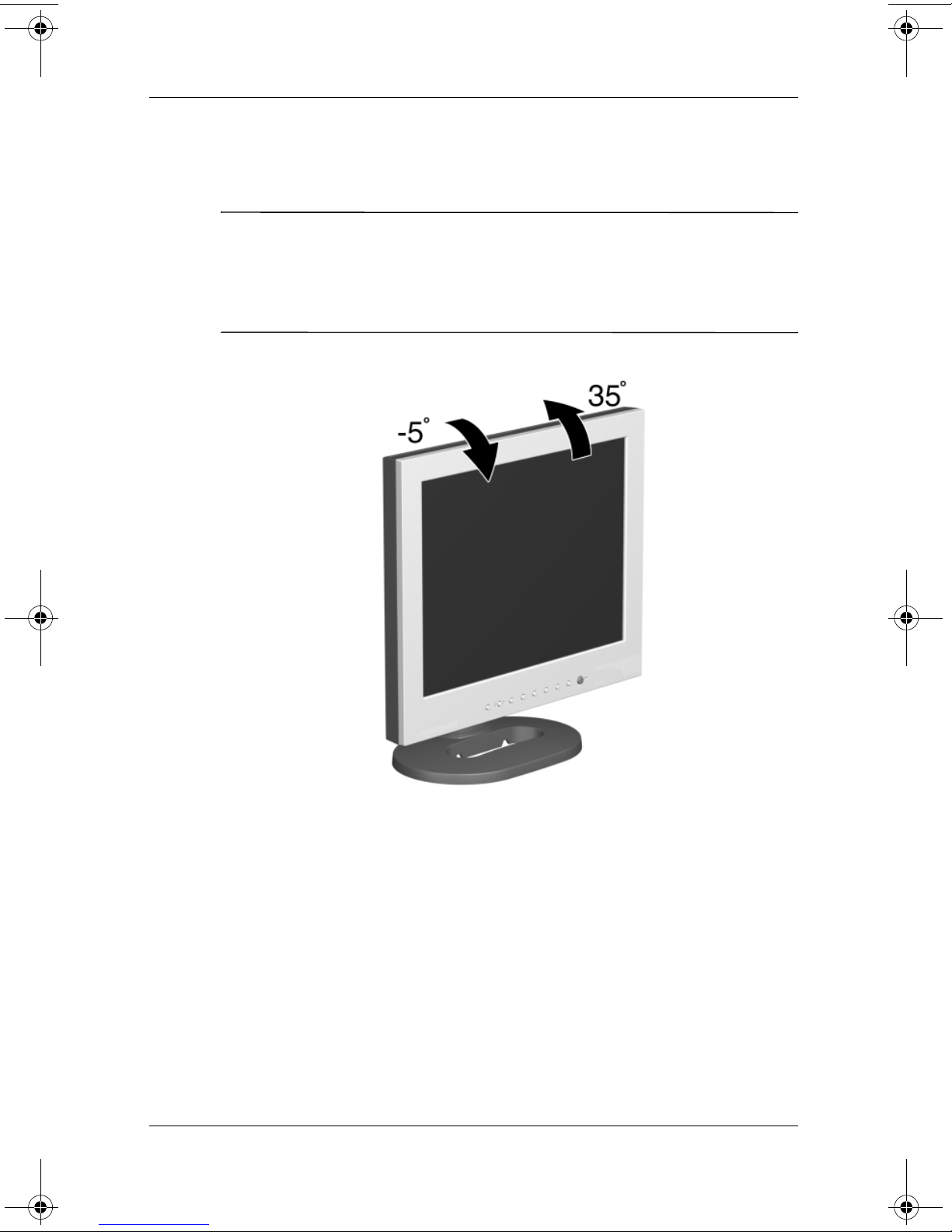

6. Adjust the monitor as needed for your comfort using the

monitor’s tilt, swivel, and height adjustment capabilities.

✎You can change your monitor’s viewing position to portrait. To

rotate your display to the portrait position, you will need to install

the Pivot software, which is contained on the CD included with

your monitor.

Sarah User Guide.book Page 4 Tuesday, September 3, 2002 8:33 AM

1825 flat Panel Monitor

User’s Guide 5

Sarah User Guide.book Page 5 Tuesday, September 3, 2002 8:33 AM

6User’sGuide

1825 flat Panel Monitor

ÅWARNING: To reduce the risk of electric shock or damage to your

equipment: Do not disable the power cord grounding plug. The

grounding plug is an important safety feature.

Plug the power cord into a grounded (earthed) electrical outlet that is

easily accessible at all times.

Disconnect power from the monitor by unplugging the power cord

from the electrical outlet.

Do not place anything on power cords or cables. Arrange them so

that no one may accidentally step on or trip over them. Do not pull on

a cord or cable. When unplugging from the electrical outlet, grasp

the cord by the plug.

ÄCAUTION: Burn-in image damage may occur on monitors that

display the same static image on screen for a prolonged period of

time. To avoid burn-in image damage on your monitor screen, you

should always activate a screen saver application or turn off the

monitor when it is not in use for a prolonged period of time.

Selecting the Signal Connectors and Cables

There are two signal input connectors: one VGA connector and

one DVI-I connector. The monitor will automatically determine

which inputs have valid video signals. The inputs can be selected

via the On-Screen Display (OSD) feature or by pressing the

Signal Input Selection control on the monitor front bezel.

The video mode supported by the DVI-I connector is

determined by the video cable used. For digital operation, use

the DVI-D to DVI-D signal cable provided. For analog operation,

a DVI-I to VGA signal cable must be attached to the DVI-I input

(not provided with the monitor).

Sarah User Guide.book Page 6 Tuesday, September 3, 2002 8:33 AM

1825 flat Panel Monitor

User’s Guide 7

Removing the Monitor Base

You can remove the monitor base to mount the monitor on a wall,

a swing arm or other mounting fixture. To remove the monitor

from the base, read the caution and warning below before

beginning the procedure.

ÄCAUTION: Before beginning to disassemble the monitor, be sure

the monitor is turned off and the power and signal cables are both

disconnected.

Lay the front bezel down on a soft area to prevent it from getting

scratched, defaced, or broken

ÅWARNING: Do not remove the base from the monitor while the

monitor is in the upright position. Before removing the monitor from

the base, ensure that the monitor is lying flat, front bezel down, and

that the base is set to the maximum base extension. Attempting to

remove the monitor from the base while upright in the minimum base

extension may result in injury to the user.

1. Disconnect and remove the signal and power cables from the

back of the monitor.

Sarah User Guide.book Page 7 Tuesday, September 3, 2002 8:33 AM

8User’sGuide

1825 flat Panel Monitor

2. Remove the four screws as shown in the following

illustration.

ÄCAUTION: Ensure that the bottom of the monitor base is positioned

over a table or desktop before removing the base from the monitor.

3. Remove the monitor base from the monitor.

Mounting the Monitor

1. Remove the monitor base. Refer to “Removing the Monitor

Base” steps in the previous section.

When the base is removed, four threaded mounting holes are

exposed on the monitor panel to be used for mounting purposes.

These mounting holes are spaced 100 mm apart and are

compliant with the Video Electronics Standards Association

(VESA) standard for mounting flat panel displays.

Sarah User Guide.book Page 8 Tuesday, September 3, 2002 8:33 AM
