135618-001 1

Addenda #1, 2, and 3 to Compaq

Professional Workstation AP550

Maintenance & Service Guide

Compaq Professional Workstation AP550

Part number 135618-003

Spare part number 158279-001

The complete MSG follows these addenda.

These addenda contain changes to the original document.

registered in the U. S. Patent and Trademark Office. Product names

mentioned herein may be trademarks and/or registered trademarks of their

respective companies. First Edition (July 2000).

2Addenda to MSG 135618-001

Spare Part Numbers

Description Spare Part

Number Warranty

Tier

Intel Pentium III processor with heatsink (154293-001) and

clip (120891-001)

600 MHz/133-MHz 162996-001 A

800 MHz/133-MHz 174768-001 A

867 MHz/133-MHz 180221-001 A

Intel Pentium III processor with heatsink (210720-001), air

bafle (167373-001) and clip (120891-001)

1 GHz/133 MHz 210403-001 A

Memory Modules

64-MB ECC Direct Rambus Inline Memory Module

(RIMM) 800-MHz 157108-001 A

512-MB ECC (100-MHz SDRAM) 317748-001 A

Graphics Controllers

Matrox MGA-G400A, AGP 2x/4x 163361-001 A

Intense3D Wildcat 4110, AGP 2X, 166013-001 A

Intense3D Wildcat 4210, AGP Pro 202996-001 A

Nvidia TNT2 PRO, 16-MB SGRAM 179997-001 A

ELSA Gloria II AGP, 64 MB 174641-001 A

Matrox G200 MMS 171975-001 A

Graphics adapter, DVI-i to VGA 202997-001 A

Hard Drives

10-GB Ultra ATA Hard Drive, 7200 RPM 330520-001 A

20-GB Ultra ATA Hard Drive, 7200 RPM 157403-001 A

20-GB Ultra ATA Hard Drive, 7200 RPM 180475-001 A

30-GB Ultra ATA Hard Drive, 7200 RPM, Quiet Drive 180477-001 A

36.2-GB Wide-Ultra 160 SCSI Hard Drive 192197-001 A

Other Drives

48X Max CD-ROM Drive 187263-001 A

32X Max R-W CD-ROM Drive 173747-001 A

DVD-ROM Drive, 6x/32x, Opal 120417-001 B

DVD-ROM Drive, 10x/40x, Opal 161430-001 B

LS-120 SuperDisk 209938-001 AContinued

135618-001 3

Spare Part Numbers (continued)

Description Spare Part

Number Warranty

Tier

Fast Ethernet NIC PCI, 10/100, Wake-On-LAN 116188-001 A

NIC 10/100 PCI card with Wake-On/Alert-On LAN 118042-001 A

Miscellaneous Cable Kit

CD-ROM data, 12.5”(179048-001)

CD-ROM data, 12.5”(105876-001)

Diskette drive, 15.5”(179049-001)

CD-ROM audio, 12”(288489-001)

Thermal sensor (166785-001)

Hard drive/CD-ROM drive data, 14”(242947-001)

Hard drive data, 7”(247116-001)

Hard drive/CD-ROM drive data, 14.25”(242947-008)

Diskette drive data, 12”(247176-003)

Hard drive, CD-ROM drive data, 10”(247116-002)

Y-adapter, hard drive data (296563-001)

179182-001 D

4Addenda to MSG 135618-001

Specifications –Graphics Controllers

Matrox MGA-G400A Graphics Controller

Maximum display resolution

Graphics

memory Color palette* Double-buffering

without Z-buffering

Double buffering

with 16-bit Z-

buffering

Double buffering

with 32-bit Z-

buffering

16 MB 64 K colors (16-bit) 2048 x 1536 1800 x 1440 1600 x 1200

16 M colors (32-bit) 1600 x 1200 1280 x 1024 1280 x 1024

32 MB 64 K colors (16-bit) 2048 x 1536 2048 x 1536 2048 x 1536

16 M colors (32-bit) 2048 x 1536 2048 x 1536 1800 x 1440

* 3D acceleration is only available with a 16- or 32-bit color palette.

Intense3D Wildcat 4110 Graphics Controller

Supported Resolutions Without Multisampling

bits per pixel

Aspect Ratio 96 128 160 192

4 x 3 1824x1368

(65 Hz) 1600x1200

(75 Hz) 1824x1368

(65 Hz) 1600x1200

(75 Hz)

5 x 4 1280x1024

(85 Hz) 1280x1024

(85 Hz)

16 x 9 2048x1152

(70 Hz) 1920x1080

(75 Hz) 2048x1152

(70 Hz) 1920x1080

(75 Hz)

16 x 10 1920x1200

(70 Hz) 1824x1128

(75 Hz) 1920x1200

(70 Hz) 1824x1128

(75 Hz)

5 x 4 Frame Sequential Stereo 1280x1024

(52 Hz) N/A 1280x1024

(52 Hz) N/A

4 x 3 Frame Sequential Stereo 1280x960

(60 Hz) 1152x864

(60 Hz) 1280x960

(60 Hz) 1152x864

(60 Hz)

Supported Resolutions with Multisampling

Aspect Ratio 128 bits per pixel 192 bits per pixel

4 x 3 1152x864 (85 Hz) 1024x768 (85 Hz)

5 x 4 N/A N/A

16 x 9 1360x766 (85 Hz) 1280x720 (85 Hz)

16 x 10 1280x800 N/A

4 x 3 Frame Sequential Stereo 800x600 (60 Hz) 800x600 (60 Hz)

135618-001 5

Specifications –Graphics Controllers (continued)

Intense3D Wildcat 4210 Graphics Controller

Supported Resolutions Without Multisampling

bits per pixel

Aspect Ratio 96 128 160 192

4 x 3 1920 x 1440

(60 Hz) 1920 x 1440

(60 Hz)

5 x 4 1600 x 1280

(76 Hz) 1600 x 1280

(76 Hz)

16 x 9 2048 x 1152

(75 Hz) 2048 x 1152

(75 Hz)

16 x 10 1920 x 1200

(75 Hz) 1920 x 1200

(75 Hz)

5 x 4 Frame Sequential Stereo 1280 x 1024

(60 Hz) 1280 x 1024

(60 Hz)

4 x 3 Frame Sequential Stereo 128 0x 960

(60 Hz) 1280 x 960

(60 Hz)

Supported Resolutions with Multisampling

Aspect Ratio 128 bits per pixel 192 bits per pixel

4 x 3 1600 x 1200 (85 Hz) 1360 x 1024 (85 Hz)

5 x 4 1600 x 1280 (76 Hz) 1280 x 1024 (94 Hz)

16 x 9 1920 x 1080 (85 Hz) 1600 x 900 (85 Hz)

16 x 10 1824 x 1128 (75 Hz) 1600 x 1024 (76 Hz)

4 x 3 Frame Sequential Stereo 1280 x 960 (60 Hz) 1280 x 960 (60 Hz)

6Addenda to MSG 135618-001

Specifications –Graphics Controllers (continued)

Matrox G200 Quad MMS Graphics Controller

Refresh Rate/Display

Graphics

Memory Aspect Ratio Resolution Vertical Horizontal

32 MB 4:3/5:4 640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1600 x 1200

1800 x 1440

60 - 200 Hz

30 - 140 Hz

60 - 120 Hz

60 - 100 Hz

60 - 90 Hz

60 - 70 Hz

31 –102 kHz

38 –114 Khz

48 - 113 kHz

54 - 110 kHz

64 - 107 kHz

75 - 13 kHz

89 - 1 04 kHz

32 MB 16:9/16:10 856 x 480

1280 x 720

1600 x 1024

1920 x 1080

1920 x 1200

60 –200 Hz

60 –100 Hz

60 - 100 Hz

60 - 80 Hz

60 - 76 Hz

30 –108 kHz

44 –76 kHz

64 –108 kHz

70 –94 kHz

75 –95 kHz

ELSA Gloria II AGP Graphics Controller

Graphics

Memory Maximum Colors

Supported Resolution Maximum Refresh

Rate Memory Dedicated

to Texture Support

64 MB 16.7M 640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 800

1280 x 960

1280 x 1024

1600 x 1000

1600 x 1200

1600 x 1280

1900 x 1080

1920 x 1080

1920 x 1200

1900 x 1200

2048 x 1536

120 Hz

100 Hz

100 Hz*

85 Hz

75 Hz

85 Hz

75 Hz

85 Hz*

75 Hz

60 MB

58 Mb

54 MB

52 MB

49 MB

48 MB

45 MB

41 MB

40 MB

39 MB

37 MB

27 MB

* Refresh rate may function but may not be officially supported by Compaq.

135618-001 7

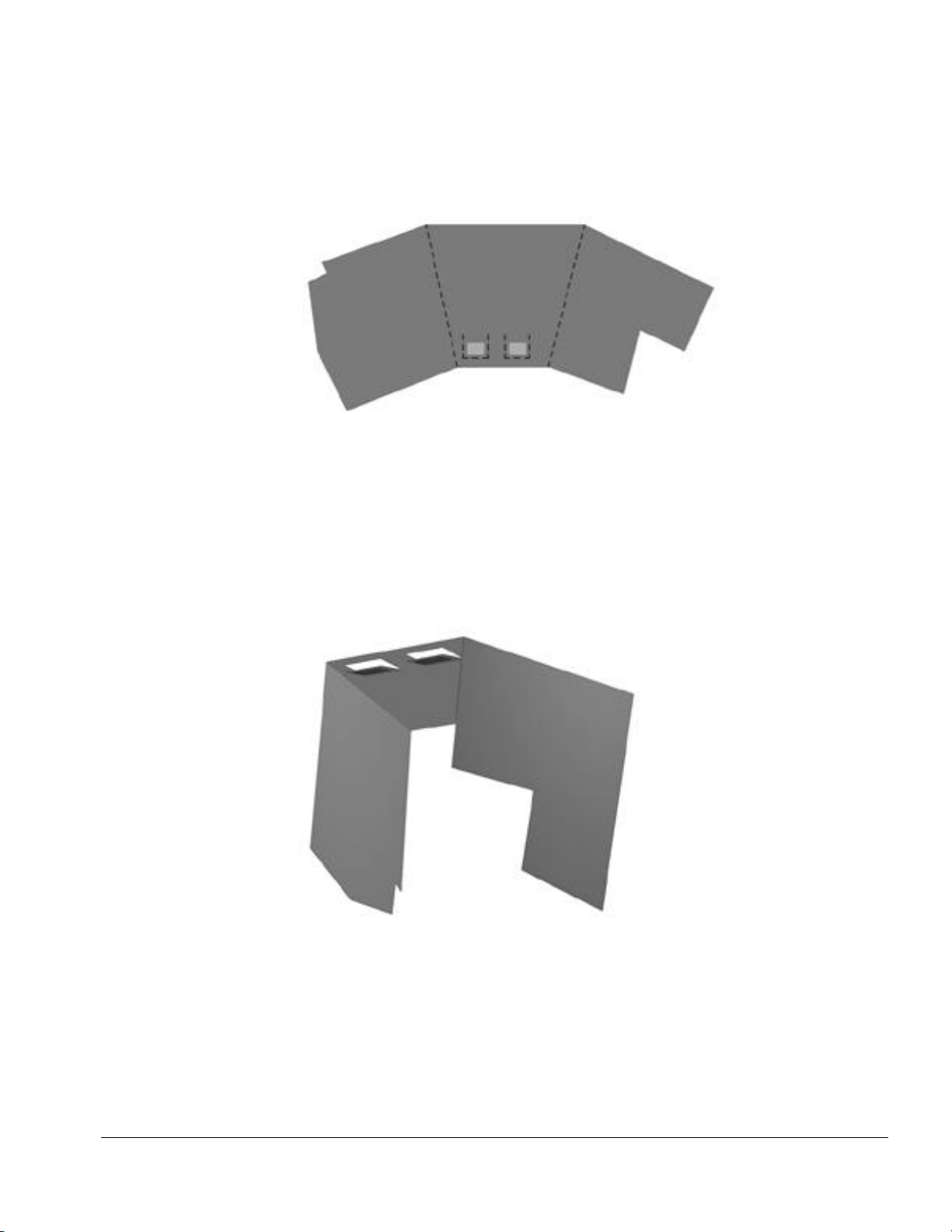

Air Baffle Assembly

Compaq Professional Workstation AP550

Maintenance and Service Guide

Professional Workstation AP550

Maintenance and Service Guide

First Edition (October 1999)

Part Number 135618-001

Spare Part Number 158279-001

Compaq Computer Corporation

Notice

The information in this publication is subject to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL OR

EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN, NOR FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE

OF THIS MATERIAL. THIS INFORMATION IS PROVIDED “AS IS” AND COMPAQ COMPUTER

CORPORATION DISCLAIMS ANY WARRANTIES, EXPRESS, IMPLIED OR STATUTORY AND

EXPRESSLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR

PARTICULAR PURPOSE, GOOD TITLE AND AGAINST INFRINGEMENT.

This publication contains information protected by copyright. No part of this publication may be

photocopied or reproduced in any form without prior written consent from Compaq Computer Corporation.

The software described in this guide is furnished under a license agreement or nondisclosure agreement.

The software may be used or copied only in accordance with the terms of the agreement.

Compaq, Compaq Insight Manager, ROMPaq, QVision, NetFlex, QuickFind, PaqFax, registered United

States Patent and Trademark Office.

Fastart, Netelligent and SoftPaq are trademarks and/or service marks of Compaq Computer Corporation.

Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation.

Pentium is a registered trademark and Xeon is a trademark of Intel Corporation.

Other product names mentioned herein may be trademarks and/or registered trademarks of their respective

companies.

Compaq Professional Workstation AP550

Maintenance and Service Guide

First Edition (October 1999)

Part Number 135618-001

Spare Part Number 158279-001
