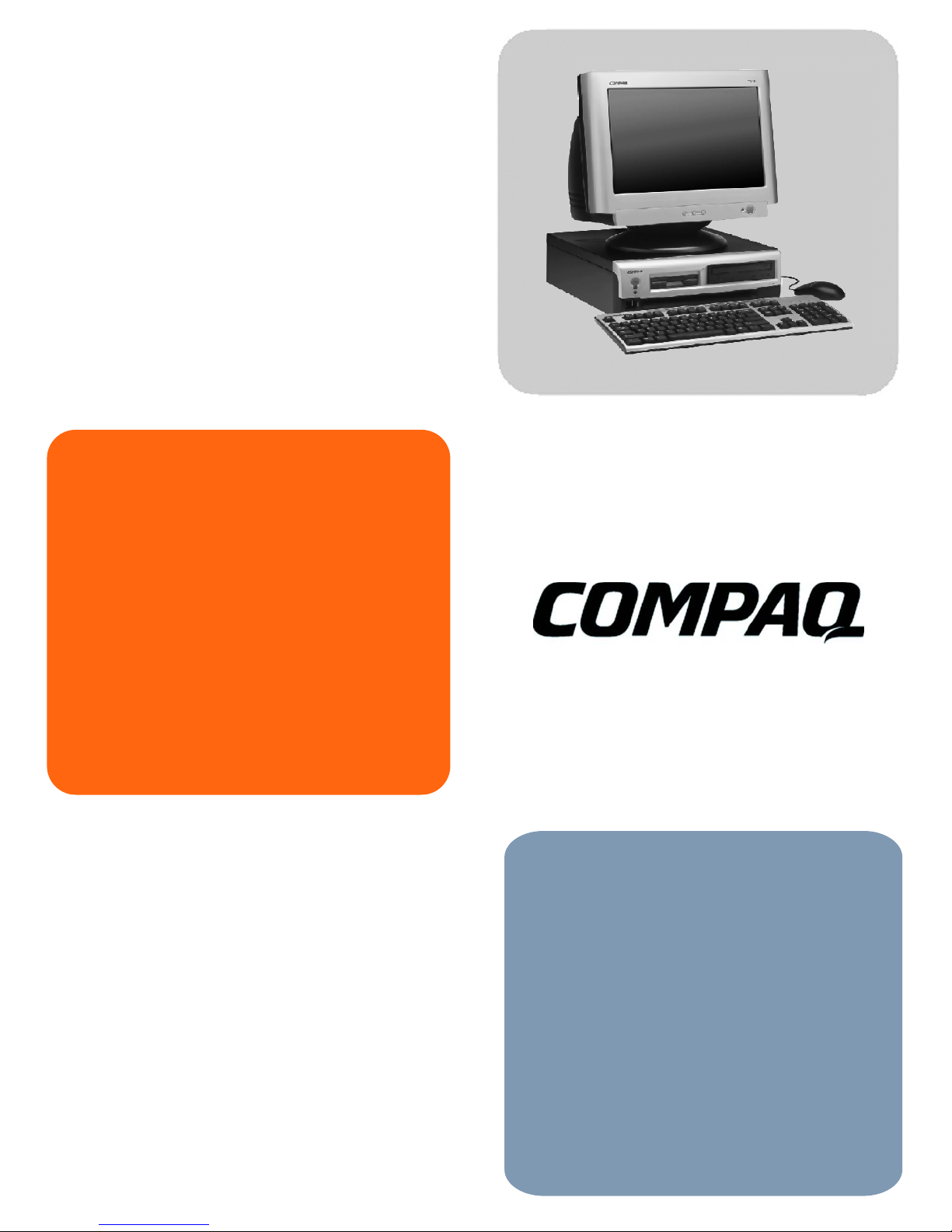

Compaq Evo D310 Micro-Desktop Manuel du produit

Compaq Evo D310

Micro Desktop

www.hp.com/go/support

technical

reference

manual

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited

to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall

not be liable for errors contained herein or for incidental or consequential damages in connection with

the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved.

No part of this document may be photocopied, reproduced, or translated to another language without

the prior written consent of Hewlett-Packard Company.

Compaq™, the Compaq logo™, and Evo™ are trademarks of Compaq Information Technologies Group,

L.P. in the U.S. and other countries.

Acrobat ™ is a trademark of Adobe Systems Incorporated.

Microsoft®, Windows®and Windows XP®are U.S. registered trademarks of Microsoft Corporation.

Intel®, Celeron®and Pentium®are registered trademarks of Intel Corporation.

Analog Devices®and SoundMax®are registered trademarks of Analog Devices Incorporated.

ATI™ and RADEON™ are trademarks of ATI Technologies Inc.

HP France

Business Desktop Division

38053 Grenoble Cedex 9

France

Evo D310 Micro Desktop 3

Information Roadmap

Use the icon in Acrobat Reader to search for information in this PDF.

The following types of information are available for HP Compaq Business PCs:

Installing, Configuring and Upgrading

See the HP Compaq Service Handbook Chapter or the HP Compaq Upgrade Guide.

The Service Handbook Chapter, available in PDF format on the HP support web site

(www.hp.com/go/support), provides information on:

•HP Compaq Business PC configurations

•Replacement parts

•Available accessories.

The Upgrade Guide will help you upgrade and replace components in your HP Compaq Business PC,

including the hard drive, memory, battery, power supply, and optical drives. More information is available

on the HP support web site (www.hp.com/go/support).

Troubleshooting

See the HP Compaq Troubleshooting Guide.

The Troubleshooting Guide, available in PDF format on the HP support web site

(www.hp.com/go/support) will help you:

•Troubleshoot your HP Compaq Business PC

•Find out where to get more information.

Discover and use your product

See the HP Compaq Quick Start card and HP Compaq Quick User’s Guide.

The Quick Start card provided with your HP Compaq Business PC will help you:

•Set up and begin using your HP Compaq Business PC for the first time

•Upgrade and replace components in your HP Compaq Business PC, including the hard drive, processor

memory, add-on cards and optical drives. More information is available on the HP support web site

(www.hp.com/go/support).

•Find out where to get more information.

The Quick User’s Guide provided with your HP Compaq Business PC includes basic troubleshooting

information, technical specifications, warranty and legal information.

4 Evo D310 Micro Desktop

Your computer’s online information

Your computer may contain online help information on the hard disk. It includes information on:

•Troubleshooting and how to use HP Instant Support

•Linking to useful HP web sites.

Information on the hp support web site

Refer to the HP support web site (www.hp.com/go/support) for a wide range of information,

including:

•Downloadable documentation

•Service and support options

•The latest BIOS, drivers and utilities

•Answers to Frequently Asked Questions.

System recovery cd-roms

Used for a full system recovery or alternative OS installation. Includes instructions on how to recover

your preloaded software including operating system, drivers and utilities.

Evo D310 Micro Desktop 5

Finding Information

Use the following table to determine where to locate particular types of information:

Type of Information Location

•Support phone numbers

•Technical support contact information

•Warranty information

Quick User’s Guide

•How to set up your computer Quick Start Card (details)

Quick User’s Guide (general information)

•Operation of your computer Operating system and application manuals

•Diagrams and detailed instructions on installing add-on devices

•Internal wire connections for adding hard drives, CD-ROM, etc.

•Memory expansion and replacing devices

Upgrade Guide

•LAN configuration

•LAN controller

Technical Reference Manual

•Identifying the problem

•Information on errors

•Problem solving

•Troubleshooting

Troubleshooting Guide

•Parts list

•Accessories list

Service Handbook Chapter

•BIOS

•Connectors

•IRQ

•POST setup

•Specifications

•System board layout

•Technical diagrams

Technical Reference Manual

6 Evo D310 Micro Desktop

Bibliography

Datasheets and other information can be obtained at:

❒Intel Chipsets

developer.intel.com

❒Intel Dynamic Video Memory Technology

www.developer.intel.com/business/products/chipsets/dvmt_white.pdf

❒Pentium 4 Processors

www.intel.com/design/pentium4

❒Analog Devices AD1981A

www.analogdevices.com

❒Intel LAN card

www.intel.com/support/network

❒ATI graphics cards

www.ati.com

❒Hewlett-Packard white papers are available on a variety of subjects including AGP graphics and

SDRAM memory at:

www.hp.com/go/library

Evo D310 Micro Desktop 7

Table of Contents

System Overview

System Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Package Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Rear Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Inside the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Physical Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . 13

Acoustic Noise Emission. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System Features

System Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

System Board Components . . . . . . . . . . . . . . . . . . . . . . . 17

Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Intel 845G System Block Diagram:. . . . . . . . . . . . . . . . . . . 19

Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Intel Pentium 4 (Socket 478) . . . . . . . . . . . . . . . . . . . . . . . 20

Intel Celeron (Socket 478) . . . . . . . . . . . . . . . . . . . . . . . . . 20

Main Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Accessory Board Slots . . . . . . . . . . . . . . . . . . . . . . . . . . 22

PCI Slot Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

System Board Switches . . . . . . . . . . . . . . . . . . . . . . . . . 23

Hard Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Ultra-ATA/100 Hard Disk Drives. . . . . . . . . . . . . . . . . . . . . 24

Floppy Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Optical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Features of the CD-RW Drive . . . . . . . . . . . . . . . . . . . . . . . 25

Features of the DVD-ROM Drive . . . . . . . . . . . . . . . . . . . . . 26

Features of the CD-ROM Drive . . . . . . . . . . . . . . . . . . . . . . 29

8 Evo D310 Micro Desktop

Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Intel 845G Chipset Integrated Graphics . . . . . . . . . . . . . . . 30

ATI Radeon 7000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

ATI Radeon 7500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Analog Devices AD1981A . . . . . . . . . . . . . . . . . . . . . . . . . 33

LAN Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

LAN Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

USB 2.0 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Serviceability

Evo D310 Micro Desktop . . . . . . . . . . . . . . . . . . . . . . . . 38

BIOS Overview

BIOS Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Entering the Configuration and Diagnostics menu . . . . . . . . 40

Using the PC Setup Program . . . . . . . . . . . . . . . . . . . . . . . 41

Power Management and Wake Up Events . . . . . . . . . . . . 43

BIOS Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

System Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

HP I/O Port Map (I/O Addresses Used by the System). . . . . 44

POST Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

HP e-DiagTools Preboot Diagnostics (Beep Codes) . . . . . 52

Drivers and Software

Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

e-DiagTools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

BIOS Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Status

System Overview

This chapter introduces the internal and external features, and lists the specifications of the

Compaq Evo D310 Micro Desktop PC.

System Overview

10 Evo D310 Micro Desktop

System Features

Component Description

Package

Description

1 front-accessible shelf for CD-ROM, DVD-ROM or CD-RW drive.

1 internal shelf for standard 3.5in hard disk drive (one pre-installed).

4 accessory board slots (3 PCI, 1 AGP).

Width: 35.9cm (14.36in.) Height: 13.7cm (5.48in.) Depth: 41cm (16.4in.).

Processor Intel Pentium 4: 1.7GHz and above (400/533MHz FSB).

Intel Celeron: 1.7GHz and above (400MHz FSB).

System Board:

Chipset Intel 845G.

Integrated I/O 6 USB 2.0 connectors (2 front, 4 rear), 2 serial ports (1 optional), 1 parallel port, audio (microphone, line in, line

out).

Graphics

Integrated Intel graphics solution.

Optional graphics card:

- ATI Radeon, 7000 32MB

- ATI Radeon, 7500 64MB

Audio Integrated Analog Devices AD1981A AC’97 SoundMAX CODEC.

LAN Integrated Intel Pro/100 VE Network Adapter (10 Base-T/100 Base-TX LAN Interface) or 3COM LAN controller.

Mass storage

Choice of hard disk drives:

Ultra ATA/100: 20GB (5400 rpm), 20GB (7200 rpm), 40GB (7200 rpm), 80GB (7200 rpm).

Floppy drive: standard 1.44MB 3.5” (or alternative second hard drive).

CD-ROM drive: 48X IDE.

DVD-ROM drive: 16X, 40X IDE (WinDVD MPEG2 decoding software from InterVideo included).

CD-RW drive: 40X, 10X, 40X IDE (DLA and MyCD software from Veritas included).

Main memory Two DDR-SDRAM sockets using: 128MB, 256MB and 512MB 266MHz DDR-SDRAM. Maximum of 1GB.

Input devices Compaq PS/2 keyboard and scrolling mouse.

Power supply

Input Voltage: 100-127V 6A max.

200-240V 4A max ac (voltage selection switch).

Input Frequency: 50/60 Hz.

Connectors Keyboard, mouse, VGA, parallel, serial, video, 6 x USB (4 rear, 2 front), 1 Ethernet port, 3 x audio (stereo-in,

stereo-out, microphone-in).

BIOS Based on American Megatrends Inc. (AMI) core 7.00T. BIOS, Version: JH.01.yy. This BIOS is not localized.

Autres manuels pour Evo D310 Micro-Desktop

Table des matières

Autres manuels Compaq Ordinateur de bureau

Compaq

Compaq 5000 - Professional - 32 MB RAM Manuel

Compaq

Compaq Presario 6500 - Desktop PC Instructions d'installation

Compaq

Compaq Deskpro 2000 Series Manuel utilisateur

Compaq

Compaq Evo Workstation W4000 Manuel d'utilisation et d'entretien

Compaq

Compaq Deskpro EN Series Manuel utilisateur

Compaq

Compaq Presario SR2100 - Desktop PC Comment utiliser

Compaq

Compaq Presario SR5000 - Desktop PC Comment utiliser

Compaq

Compaq Deskpro EN Series Manuel utilisateur

Compaq

Compaq Presario SR1100 - Desktop PC Instructions d'installation

Compaq

Compaq dc5850 - Microtower PC Manuel utilisateur

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Manuel technique

Compaq

Compaq PC938A Manuel utilisateur

Compaq

Compaq AP200 - Professional - 128 MB RAM Manuel utilisateur

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Guide d'installation

Compaq

Compaq S6035IL Manuel utilisateur

Compaq

Compaq Deskpro EN Series Manuel

Compaq

Compaq ProSignia 320 - Desktop PC Manuel utilisateur

Compaq

Compaq Presario SR1600 - Desktop PC Instructions d'installation

Compaq

Compaq 6005 - Pro Microtower PC Mode d’emploi

Compaq

Compaq Compaq Evo Deskpro D300 Instructions d'utilisation

Compaq

Compaq CQ5110F - Presario - 3 GB RAM Manuel utilisateur

Compaq

Compaq 6000 - ProLiant - 128 MB RAM Manuel utilisateur

Compaq

Compaq CQ2009F - 1 GB RAM Manuel d'utilisation et d'entretien

Compaq

Compaq 6000 - ProLiant - 128 MB RAM Manuel de programmation

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
