INSTALLATION AND OPERATION MANUAL

CWGE24MS2

COMMERCIAL GRADE MANAGED LAYER 2+ ETHERNET SWITCH

WITH 20 × 100/1000BASE-FX + 4 × GIGABIT COMBO PORTS

v1.0 November 29, 2016

The ComNet CWGE24MS2 has twenty 100/1000Base-FX SFP ports and four Gigabit

combo ports that allow for TX or FX transmission. All SFP ports utilize ComNet SFP

modules for fiber, connector type and distance. The IEEE802.3-compliant unit offers

multiple Ethernet redundancy protocols (ERPS G.8032 and MSTP/RSTP/STP) which

protect your applications from network interruptions or temporary malfunctions by

redirecting transmission within the network. The CWGE24MS2 implements complete

Layer 2 to Layer 4 ACLs to restrict access to your sensitive network resources by filtering

specific packets based on TCP/UDP ports, source and destination IP addresses or

particular network devices. Furthermore, DHCP snooping, TACACS+, ARP, IEEE 802.1X

and Port Security provide additional tools to manage access and levels of use of the

network. These defence mechanisms of the CWGE24MS2 along with advanced DoS

auto prevention deliver robust network security and enables network administrators

to offer more stable services on a more secure network.

INS_CWGE24MS2_REV–

10/05/16 PAGE 2

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

Contents

Regulatory Compliance Statement 5

Warranty 5

Disclaimer 5

Safety Indications 5

FCC Warning 6

CE 6

Overview 7

Introduction 7

Software Features 8

Hardware Features 10

Hardware Overview 11

Front Panel 11

Installation 13

Desktop Installation 13

Mounting on a Rack 13

Getting Connected 13

Powering On the Unit 13

Installing the SFP modules and Fiber Cable 14

Connecting a Copper Cable 14

Connecting to the Console 15

Connecting to Computer or a LAN 15

LED Indicators 16

GUI Login 22

System Information 23

Basic Settings 25

General Settings 25

MAC Management 38

CLI Configuration 45

INS_CWGE24MS2_REV–

10/05/16 PAGE 3

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

Advanced Settings 53

Bandwidth Control 53

DHCPv6 70

IGMP Snooping 72

VLAN 94

DHCP Option 122

Dual Homing 133

ERPS 136

Link Aggregation 143

Link Layer Discovery Protocol (LLDP) 151

Loop Detection 155

PPPoE IA 159

Static Route 168

STP 173

UDLD 195

Security 200

IP Source Guard 200

ACL 218

802.1x 224

Port Security 233

TACACS+ 236

Monitor 241

Alarm 241

Hardware Information 242

Port Statistics 243

Port Utilization 244

RMON Statistics 245

SFP Information 247

Traffic Monitor 249

INS_CWGE24MS2_REV–

10/05/16 PAGE 4

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

Management 252

SNMP 252

Auto Provision 263

Mail Alarm 266

Maintenance 270

System log 276

User Account 278

INS_CWGE24MS2_REV–

10/05/16 PAGE 5

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

Regulatory Compliance Statement

Product(s) associated with this publication complies/comply with all applicable regulations. Please

refer to the Technical Specifications section for more details.

Warranty

ComNet warrants that all ComNet products are free from defects in material and workmanship for

a specified warranty period from the invoice date. ComNet will repair or replace products found

by ComNet to be defective within this warranty period. This warranty does not cover product

modifications or repairs done by persons other than ComNet-approved personnel, and this

warranty does not apply to ComNet products that are misused, abused, improperly installed, or

damaged by accidents.

Please refer to the Technical Specifications section for the actual warranty period(s) of the

product(s) associated with this publication.

Disclaimer

Information in this publication is intended to be accurate. ComNet shall not be responsible for its

use or infringements on third-parties as a result of its use. There may occasionally be unintentional

errors on this publication. ComNet reserves the right to revise the contents of this publication

without notice.

Safety Indications

» The equipment can only be accessed by trained ComNet service personnel.

» This equipment should be installed in secured location.

or transmitted in any form or by any means, whether electronic, mechanical, photo copying,

recording or otherwise, without the prior written permission of the publisher.

INS_CWGE24MS2_REV–

10/05/16 PAGE 6

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

FCC Warning

This equipment has been tested and found to comply with the limits for a class A device, pursuant

to part 15 of FCC rules. These limits are designed to provide reasonable protection against

harmful interference in a commercial installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communication. Operation of this equipment in a residential

area is likely to cause harmful interference, in which case, the user will be required to correct the

interference at the user’s own expense.

This is a Class A product. In a domestic environment, this product may cause radio interference in

which case the user may be required to take adequate measures.

INS_CWGE24MS2_REV–

10/05/16 PAGE 7

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

Overview

Introduction

The ComNet CWGE24MS2 has twenty 100/1000Base-FX SFP ports and four Gigabit combo

ports that allow for TX or FX transmission. All SFP ports utilize ComNet SFP modules for fiber,

connector type and distance. The IEEE802.3-compliant unit offers multiple Ethernet redundancy

protocols (ERPS G.8032 and MSTP/RSTP/STP) which protect your applications from network

interruptions or temporary malfunctions by redirecting transmission within the network. The

CWGE24MS2 implements complete Layer 2 to Layer 4 ACLs to restrict access to your sensitive

network resources by filtering specific packets based on TCP/UDP ports, source and destination

IP addresses or particular network devices. Furthermore, DHCP snooping, TACACS+, ARP,

IEEE 802.1X and Port Security provide additional tools to manage access and levels of use of

the network. These defence mechanisms of the CWGE24MS2 along with advanced DoS auto

prevention deliver robust network security and enables network administrators to offer more

stable services on a more secure network.

In this guide, the term “Switch” (first letter upper case) refers to the CWGE24MS2 Switch, and

“switch” (first letter lower case) refers to other switches.

INS_CWGE24MS2_REV–

10/05/16 PAGE 8

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

Software Features

Network Functions

» Port-based Mirroring

» GARP/GVRP Support

» 4K Active VLAN

» IGMP Snooping v1/v2/v3

» IGMP Querier

» MVR

» DHCP Relay/Option 82

» Dual Homing

» Link Aggregation

» Link Layer Discovery Protocol

» Loop Detection, Auto Recovery Timer

» STP/RSTP/MSTP

» ERPS (G8032v2)

» SFP DDMI Support

» RMON Statistics

» Static Route

» Network Security

» Access Control List (L2/L3/L4)

» MAC Limitation

» Port Security

» 802.1x Port Authentication

» TACACS+

» Traffic management & QoS

» Port Priority

» Rate Limitation

» Storm Control

» Port Isolation

» 802.1Q Tag-based VLAN

» Auto MDI/MDI-X

INS_CWGE24MS2_REV–

10/05/16 PAGE 9

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

Network Management

» Command Line Interface, Telnet

» Web GUI

» SNMP v1/v2c/v3

» Management VLAN

» Auto Provisioning

» System log

» Firmware Upgradable

» Configuration Upload/Download

» LED, SNMP trap, and email alarm

Specifications

» IEEE 802.3 10Base-T

» IEEE 802.3u 100Base-TX/FX

» IEEE 802.3ab 1000Base-T

» IEEE 802.3z 1000Base-SX/LX

» IEEE 802.3x Flow Control

» IEEE 802.1d Spanning Tree Protocol

» IEEE 802.1w Rapid Spanning Tree Protocol

» IEEE 802.1s Multiple Spanning Tree Protocol

» IEEE 802.1q VLAN Tagging

» IEEE 802.1p Class of Service

» IEEE 802.1x Port Authentication

» IEEE 802.1ab Link Layer Discovery Protocol

» IEEE 802.3ad Port Trunk with LACP

» ITU-T G8032v2 Ethernet Ring Protection Switching

INS_CWGE24MS2_REV–

10/05/16 PAGE 10

INSTALLATION AND OPERATION MANUAL CWGE24MS2

TECH SUPPORT: 1.888.678.9427

Hardware Features

Performance

» Switching fabric 48 Gbps

» L2 forwarding 35.7 Mpps

» MAC Entries 16 K

» Jumbo frame 10 K

Ports

» 20-slot 100FX/Gigabit SFP

» 4 × Gigabit Combo (10/100/1000 RJ-45 or 100FX/GbE SFP)

» 1 × DB-9 console

Maximum Distances

» RJ-45 up to 100 m

» SC/SFP up to 120 km

» Console 15 m

Mechanical & Environmental

» Operating temperature 0°C to 50°C

» Storage temperature -20°C to 70°C

» Operating humidity 10% to 90% RH

» Storage humidity 5% to 95% RH

Power

» Front access AC power 100-240 V, 50~60Hz

» 12V DC battery back-up

» Power consumption Max. 25 W (System)

Dimensions & Weight

» Dimensions (WxHxD) 440 × 44 × 284mm, 19” rack-mountable

» Weight 3.7 kg

Table des matières

Autres manuels Comnet Routeur réseau

Comnet

Comnet CWFE8TX8MS Manuel utilisateur

Comnet

Comnet CNGE24MS-OB Manuel utilisateur

Comnet

Comnet CNFE10MS Manuel utilisateur

Comnet

Comnet NW7/M Manuel utilisateur

Comnet

Comnet CNGE2FE24MS Manuel utilisateur

Comnet

Comnet CWGE9MS Manuel utilisateur

Comnet

Comnet CNGE3FE7MS4 Manuel utilisateur

Comnet

Comnet CNGE20FX4TX16MS Manuel du propriétaire

Comnet

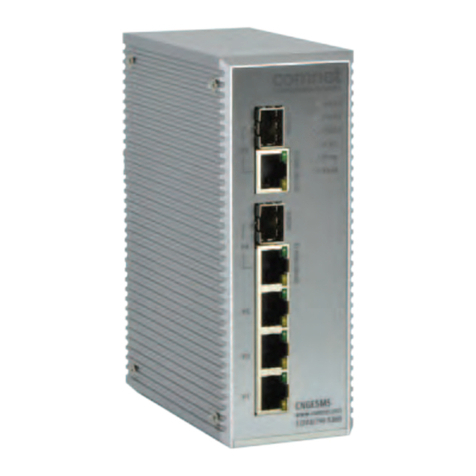

Comnet CNGE5MS Manuel utilisateur
