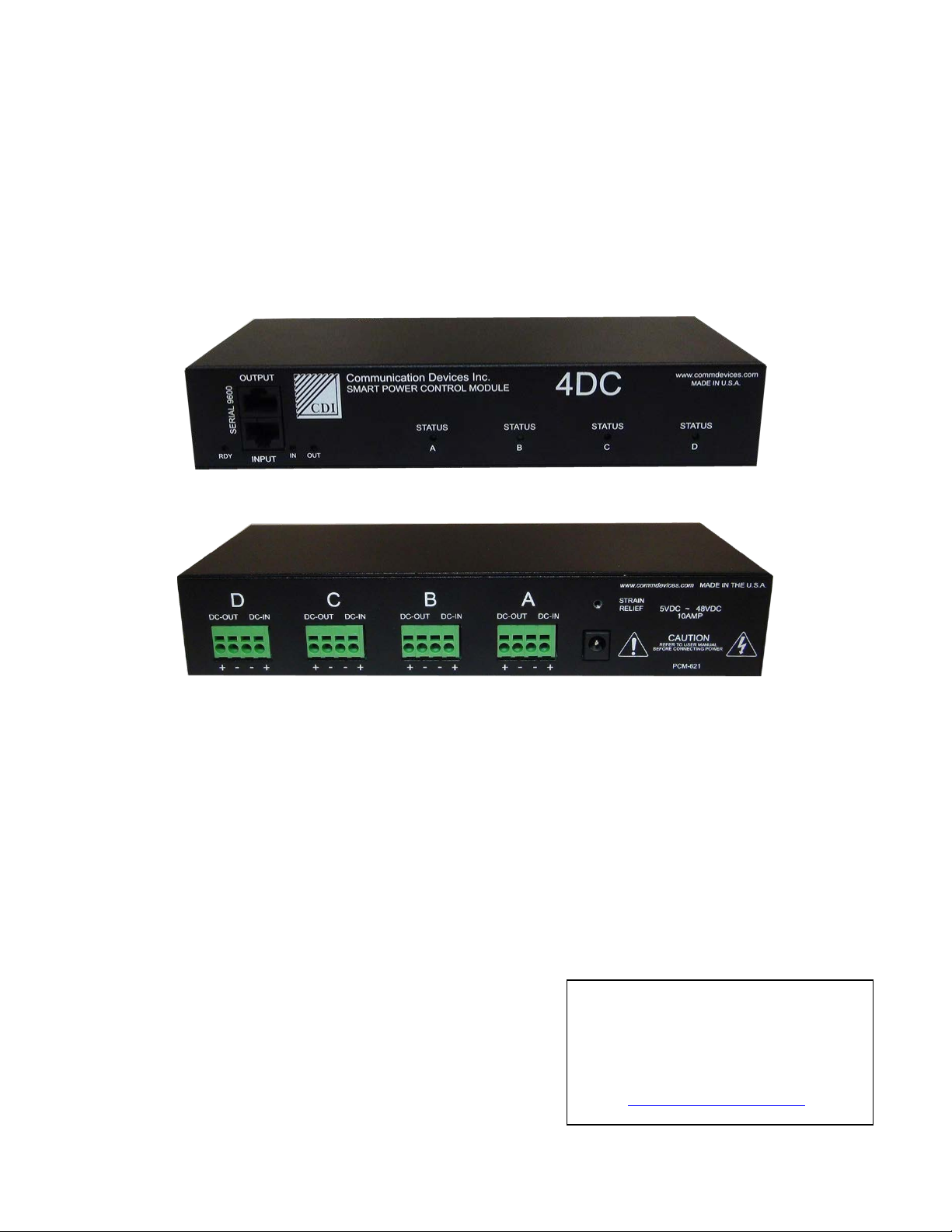

Communication Devices DC Series Manuel utilisateur

Serial DC Power Control Module

PCM621

User Manual

Manual Version 1.1

Communication Devices Inc.

85 Fulton Street

Boonton, NJ 07005

USA

Phone: +1 973 334-1980

Fax: +1 973 334-0545

Internet: support@commdevices.com

Warranties, Disclaimers and Restriction

A.1 Copyright



Notice

This equipment, all software, firmware and the

entire contents of this manual are the copyright

property of Communication Devices Inc.,

Boonton, NJ 07005 USA with all rights

reserved.

The information contained in this manual is

considered proprietary to Communication

Devices Inc. And is intended for the exclusive of

the original purchaser of the equipment.

A.2 Warranty

Communication Devices Inc. Warranties to the

original purchaser that these devices are free

from defects in material or faulty workmanship,

in normal use for a period of one (1) year from

the date of purchase.

This warranty is limited to repair or replacement

at the option of Communication Devices Inc., of

any defective part or component which within

one (1) year of the original purchase is

determined by Communication Devices Inc. To

be defective. All warranty repairs will be made at

Communication Devices Inc. Main factory in

Boonton, NJ 07005.

A.3 Disclaimer

While extreme care has been taken in the

preparation of the design, software, firmware,

hardware and documentation, Communication

Devices Inc accepts no liability. For loss of

profits or any other incidental, special or

consequential damage suffered by the purchaser,

even if Communication Devices Inc. has been

advised of the possibility of such damages, nor

for the claim against the purchaser by any other

party.

Table of Contents

1. SERIAL POWER CONTROL MODULE......................................................................................1-1

1.1 PCM621 –4TERMINAL BLOCKS 10 AMP EACH...........................................................................1-1

1.2 POWER CONNECTIONS.................................................................................................................. 1-1

1.3 SERIAL CONNECTIONS..................................................................................................................1-2

1.4 SERIAL PINOUTS......................................................................................................................1-2

1.5 GETTING STARTED .......................................................................................................................1-3

1.5.1 Connecting Power to Device...............................................................................................1-3

1.5.2 Power on.............................................................................................................................. 1-3

1.5.3 Serial Power Control Port................................................................................................... 1-3

1.5.4 RJ45 Pinout.........................................................................................................................1-4

1.5.5 Cable connection for Power Modules .................................................................................1-4

1.5.6 Service .................................................................................................................................1-4

3. MENU’S.............................................................................................................................................3-5

3.1 INITIAL MENU...............................................................................................................................3-5

3.2 POWER CONTROL 1 ......................................................................................................................3-6

4. LINKING PCM621’S........................................................................................................................4-7

5. PROGRAMMING.............................................................................................................................5-8

5.1 PROGRAMMING MENUS................................................................................................................5-8

5.2 SCRIPT FILE ..................................................................................................................................5-9

5.3 LOADING THE SCRIPT FILE ....................................................................................................... 5-10

6. ENVIRONMENTAL.......................................................................................................................6-11

FIGURE 1PCM621 REAR VIEW..................................................................................................................... 1-1

FIGURE 2PCM621 FRONT VIEW.................................................................................................................. 1-2

FIGURE 3CDI RJ45 SERIAL PINOUT....................................................................................................... 1-2

FIGURE 4CDI RJ45 SERIAL PINOUT....................................................................................................... 1-4

FIGURE 5PCM621 MENU............................................................................................................................ 3-5

FIGURE 6PCM621 POWER CONTROL MENU ............................................................................................... 3-6

FIGURE 7PCM621 POWER CONTROL STATUS ............................................................................................. 3-6

FIGURE 8PCM620 LINK 2......................................................................................................................... 4-7

FIGURE 9PCM621 LINK 1.......................................................................................................................... 4-7

FIGURE 10 PCM621 PRIMARY..................................................................................................................... 4-7

FIGURE 11 PROGRAMMING MENU................................................................................................................ 5-8

FIGURE 12 SCRIPT LOAD ............................................................................................................................ 5-10

1. Serial Power Control Module

1.1 PCM621 – 4 Terminal Blocks 10 Amp Each

The Power Control Module “PCM621” amp is a quad DC power relay designed to work in conjunction

with any Serial interface, However the device has additional features when used with a CDI Secure Out of

Band Management device. The purpose of the device is to remotely power reset DC devices that are in a

“locked up” condition.

The PCM621 will interrupt the power to a connected device when it is commanded to “switch off” the

power relay to that particular output connector. The PCM621 can “reboot” the connected device by

interrupting the power for a few seconds, or it can turn off the device off for longer periods of time.

Features of the PCM621:

1. Four Separate DV terminal blocks 10AMPs each.

2. Voltage – 3VDCVDC to 100VDC

3. Current – 10AMP

4. Device DOS NOT supply DC current it only passes it through.

1.2 Power Connections

Wire Gauge can be from 12 to 24AWG, Solid Preferred.

The PCM621 requires an external 12VDC power supply, provided with each PCM621.

The PCM621 has 4 DC terminal blocks:

1. The Blocks are “screwless”, and work on pressure to hold the wires in the blocks.

2. Solid wire will work best with the blocks as insertion force is required to depress the metal spring

in the circular hole in the block to allow the wire to be grabbed and held in the block

3. There is a square cutout above each circular hole where a paper clip or very small screwdriver can

be inserted to release the captive wire.

4. If stranded wire is used, a paper clip can be used in the square cutout to open the spring to allow

the stranded wired to enter the block. When the paper clip is removed the spring will release and

clamp down on the stranded wire to hold it in the block.

Figure

1 PCM621 rear view

WIRE

PAPER

CLIP

1.3 Serial Connections

The PCM621 has Two Serial connections

1. Serial Input – this is connected the device that is controlling the PCM

a. This is a 9600 BAUD interface

b. It is pinned out to connect directly with a straight RJ45-RJ45 cable to the SERIAL HOST

PORT of ANY CDI OOB device.

2. Serial Output – This can connect to the Serial Input of an additional CDI PCM621 device to

realize more power control interfaces off of one serial interface.

a. The MASTER PCM621 device will DETECT any co0nnect CDIPCM devices and

present a SINGLE MENU to the OOB device.

b. It is pinned out to connect directly with a straight RJ45-RJ45 cable to the input of a

connected CDI SERIAL PCM device.

c. You can LINK multiple PCM621 devices together.

3. The connection to All of the interfaces is a STRIAGHT RJ45 to RJ45 cable.

1.4 SERIAL PINOUTS

Figure

2 PCM621 Front View

CONNECT TO SERIAL PORT OF OOB DEVICE

Figure

3CDI RJ45 SERIAL PINOUT

1.5 Getting Started

1.5.1 Connecting Power to Device.

The device will connect to a standard alternating current (AC) wall outlet (100VAC ~ 240VAC,

50/60Hz). The socket outlet should be installed near the equipment and should be easily accessible. Make

sure the power cord supplied is of the correct type for the country being installed.

The user is to disconnect all telecommunication network connectors before disconnecting the power

supply cord. In addition the equipment should be installed by a qualified service person and connected to a

socket-outlet with a protective earthing contact.

In English: equipment must be connected to an earthed mains socket-outlet.

In Finland: Laite on liitettava suojakosketinpistorasiaan

In Norway: Apparatet ma tilkoples jordet stikkontakt

In Sweden: Apparaten skall anslutas till jordat uttag

The power parameters are:

Voltage

Frequency

Current

110VAC

60Hz

10amp

240VAC

50Hz

6amp

1.5.2 Power on

When the device is properly powered, the status LED on the front panel will illuminate. This is an

indication that the device is powered and the relayed is closed (“on”). When the relay is opened (“switched

off”) the LED will extinguish.

1.5.3 Serial Power Control Port

Each PCM has two RJ45 interfaces. The INPUT interface is used to connect to an OOB device through a

straight RJ45-RJ45 cable, and accepts serial commands to control the device. The Power Modules are used

to power cycle the remote devices that may have become inoperative. This will reset the device and usually

restore operation.

Power Ports can also be used to shut down (turn off the power to) a device that should not be operating.

The power can also be restored to a Power Module that has been turned off.

The SERIAL OUTPUT interface is used to LINK PCM’s together using straight RJ45-RJ45 cables. The

OUTPUT of the first PCM is connected to the INPUT of the next PCM. Multiple PCM’s can be linked to

realize larger power control configurations from a single serial interface.

CAUTION!

THIS DEVICE SHOULD BE INSTALLED BY A

QUALIFIED SERVICE PERSON AND

MUST BE CONNECTED TO AN

EARTHED MAINS SOCKET-OUTLET

The MASTER PCM will detect all devices connected through the OUTPUT interface and present a single

menu to the OOB device connected to the SERIAL INPUT interface.

1.5.4 RJ45 Pinout

The RJ45 connection uses serial 9600 BAUD 8 Data bits, no Parity.

1.5.5 Cable connection for Power Modules

All RJ45-RJ45 cables are straight.

1.5.6 Service

There are no user serviceable parts inside the PCM. Do not open or

attempt to repair this device. Return it to the factory if it is suspect of

operating improperly.

Figure

4CDI RJ45 SERIAL PINOUT

3. Menu’s

3.1 Initial menu

P1 – Power Port 1

P2 – Power Port 2

P3 – Power Port 3

P4 – Power Port 4

MP Control Multiple Power Ports

Figu

re 5 PCM621 Menu

3.2Power Control 1

Enter P1 to control POWER OUTPUT 1

You will be prompted for:

1 Timed reset : This will turn the power off for 5 seconds and turn it back on automatically

2 Turn Off : This will turn the power off to the output forever until you turn it back on

3 Turn On : This will turn the power back on to the power output

An Escape will ALWAYS return you to the previous menu

Figure

6 PCM621 Power Control Menu

Figure

7 PCM621 Power Control Status

4. Linking PCM621’s

You can link several PCM621’s and PCM620’s together using serial RJ45 cables to achieve more power

control outputs off of a single Serial connection to an OOB device.

When you link devices together, they “learn” about each other so that the “First” PCM621 will display a

menu including all the connected devices. So you may see 8 Power powers instead of two.

The Linked devices will assume higher numbers in the menu so that the primary device may show

P1 – Power Port 1

P2 – Power Port 2

P3 – Power Port 3

P4 – Power Port 4

P5 – Power Port 5

P6 – Power port 6

P7 – power Port 7

P8 – Power Port 8

OOB DEVICE SERIAL PORT

Figure

10 PCM621 Primary

Figure

9 PCM621 LINK 1

Figure

8 PCM620 LINK 2

STRAIGHT RJ45 cables

PCM621

PCM620
