CommScope NG4access ODF Platform Value-Added Module Manuel utilisateur

300100105359 Rev D Page 1

Installation

Instructions

Installing a Single Height VAM

Install the module from the rear of the universal chassis (“left” module on left side, “right”

module on right side). Use the following procedure, referring to the illustration below.

1. Pull out the access tray handle.

2. Snap the module down in locations 1, 2, and 3, as shown in Figure 1, then squeeze the

module and access tray crossbar at location 4 and 5, as shown, until the module snaps in.

3. Slide in the access tray handle to close the access tray.

4. Connect cables to the module front ports and route the cables on the front of the frame per

instructions on laminated cards hanging on front of the frame (TECP-90-705).

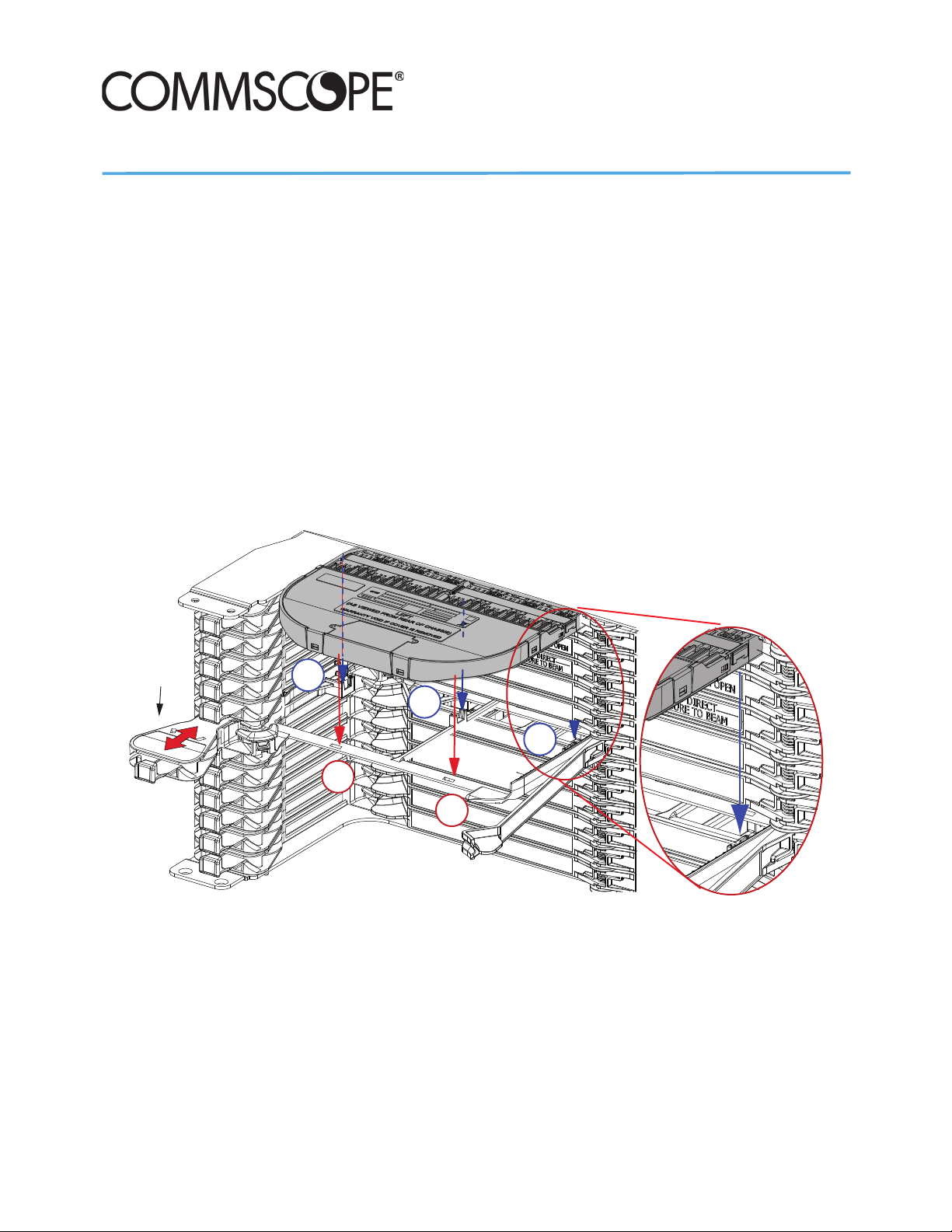

Figure 1. Installing a Single Height VAM

Installing a Double or Triple Height VAM

Install the module from the rear of the universal chassis (“left” module on left side, “right”

module on right side). Use the following procedure, referring to the illustration below.

1. Identify the two or three trays where the double or triple high VAM is to be installed.

2. Remove the top one or two trays (see instruction video: https://youtu.be/xRx4xUo2fkA).

25239-A

ACCESS

TRAY

HANDLE

TECP-90-720 •Rev D •December 2019

NG4access ODF Platform Value-Added Module (VAM)

All Front Access

TECP-90-720 • Rev D • December 2019

Page 2 Technical Support or Product Information

http://www.commscope.com/SupportCenter

3. Install clips between access tray doors referring to Figure 2.

Figure 2. Installing a Clip on an Access Tray Door

4. Snap the module down in locations 1, 2, and 3, as shown in Figure 3, then squeeze the

module and access tray crossbar at location 4 and 5, as shown, until the module snaps in.

5. Slide in the access tray handle to close the access tray.

6. Connect cables to the module front ports and route the cables on the front of the frame per

instructions on laminated cards hanging on front of the frame (TECP-90-705).

Figure 3. Installing a Double or Triple Height VAM

25614-A

ACCESS

TRAY

HANDLE

PRESS CLIP ON ACCESS

TRAY DOOR IN

ORIENTATION SHOWN

25612-A

ACCESS

TRAY

HANDLE
