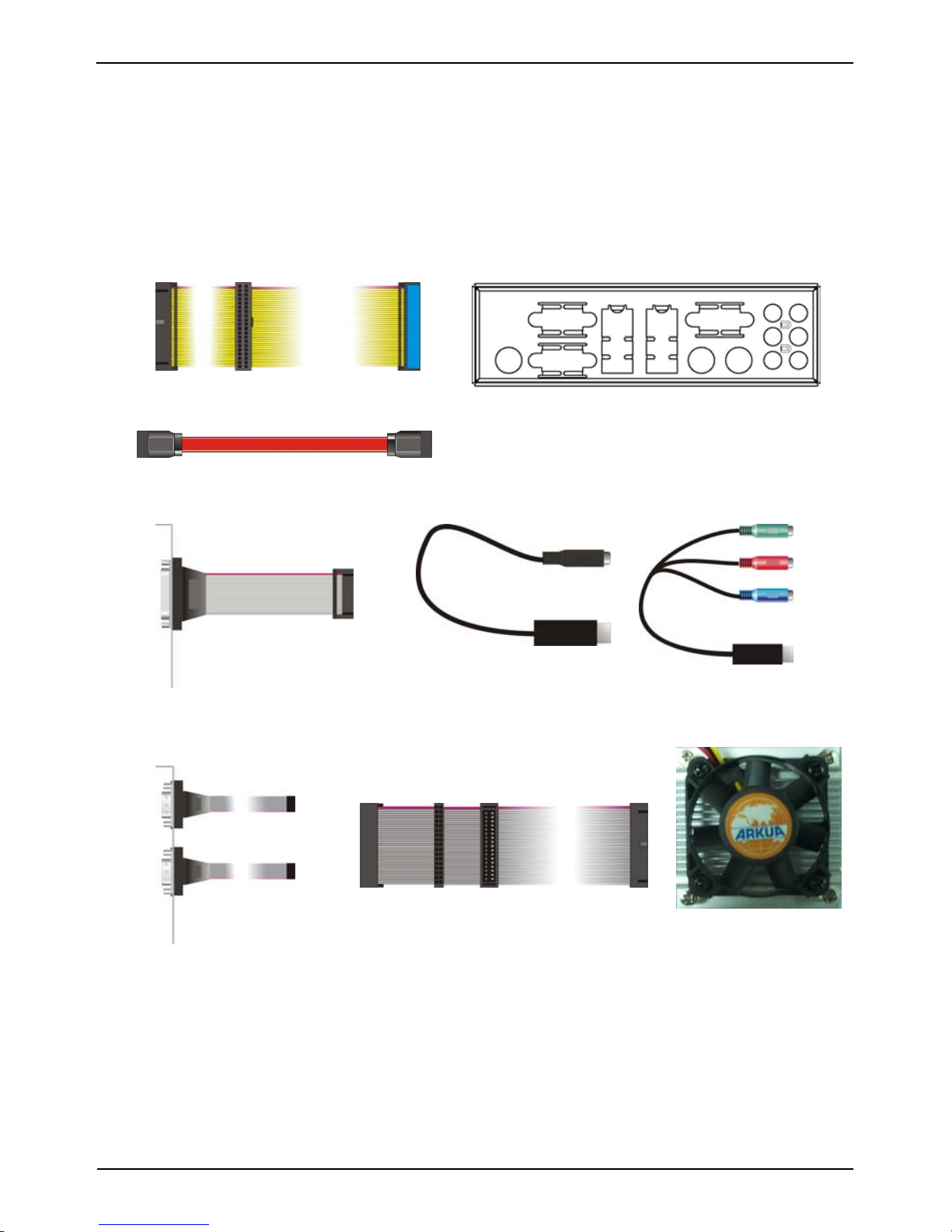

Hardware:

PMCA series motherboard x 1

Cable Kit:

COM port Cable x 2

I/O Shield x 1

CPU Cooler x 1

40-pin ATA100 IDE Cable x 1

Floppy Cable x 1

SATA Cable x 2

Composite Cable x 1 YPbPr Cable x 1

Printer port Cable x 1

Printed Matters:

User’s Manual x 1

Driver CD x 1

PMCAUser’sManual

Index

Chapter 1 <Introduction>…………………………………………………7

1.1 <Product Overview> ...............................................................................7

1.2 <Product Specification>.........................................................................8

1.3 <Mechanical Drawing> .........................................................................10

1.4 <Block Diagram>...................................................................................11

Chapter 2 <Hardware Setup>………………………………….………12

2.1 <Connector Location>..........................................................................12

2.2 <Jumper Reference>………………………………………………………..13

2.3 <Connector Reference>........................................................................14

2.3.1 <Internal Connector>..................................................................14

2.3.2 <External Connector>.................................................................14

2.4 <CPU and Memory Setup>...................................................................15

2.4.1 <CPU Setup> .............................................................................15

2.4.2 <Memory Setup>........................................................................16

2.5 <CMOS Setup>……………………………………………………………..17

2.6 <Enhanced IDE & CF Interface> ..........................................................18

2.7 <Serial ATA Interface>..........................................................................19

2.8 <Floppy Port>........................................................................................19

2.9 <LAN Interface>.....................................................................................20

2.10 <Onboard Display Interface>…………………………….……………..20

2.10.1 <Analog VGA Interface> ..........................................................20

2.10.2 <Digital Display>.......................................................................21

2.10.3 <HDTV Interface>.....................................................................24

2.11 <Onboard Audio Interface>................................................................25

2.12 <USB2.0 Interface> .............................................................................26

2.13 <GPIO Interface>.................................................................................28

2.14 <Serial Port Jumper Setting >............................................................29

PMCAUser’sManual

2.15 <Power and Fan Connector>……………………………………………31

2.15.1 <Power Connector>..................................................................31

2.15.2 <Fan Connector>…………………………………………………..31

2.16 <Indicator and Switch>……………………………………………………33

2.17 <Expansion Interface>........................................................................34

Chapter 3 <System Configuration>……………………..36

3.1 <Video Memory Setup> ........................................................................36

Chapter 4 <BIOS Setup>…………………………………..38

Appendix A <I/O Port Pin Assignment>………………..40

A.1 <IDE Port> .............................................................................................40

A.2 <Serial ATA Port>.................................................................................40

A.3 <Floppy Port>........................................................................................41

A.4 <IrDA Port>............................................................................................41

A.5 <Serial Port>..........................................................................................42

A.6 <CRT Port>............................................................................................42

A.7 <LAN Port>............................................................................................43

A.8 < USB Port >..........................................................................................43

Appendix B <Flash BIOS>………………………………...44

B.1 BIOS Auto Flash Tool...........................................................................44

B.2 Flash Method ........................................................................................44

Appendix C <System Resources>…………………………………45

C1.<I/O Port Address Map>……………………………………………………..45

C2.<Memory Address Map>……………………………………………………..47

C3.<System IRQ Resources>…………………………………………………...48

Appendix D <Watch Dog timer Setting >……………………...49

Contact Information…………………………………………………………51

PMCAUser’sManual

(The Page is Left For Blank)

PMCA User’s Manual Introduction

Product Overview 7

Chapter 1 <Introduction>

1.1 <Product Overview>

PMCA is the micro ATX industrial motherboard, with supporting Intel Core 2 Duo/Core

Duo/Core Solo processors for 533/667MHz front side bus, Intel 945GM(E) and ICH7-M

chipset, integrated GMA950 graphics, DDR2 memory, Realtek High Definition Audio, Serial

ATA, PCI Express x1,x16 interface and two Intel 82573L Gigabit LAN .

Intel Yonah dual core Processor

The board supports Intel Core 2 Duo/Core Duo/ Core Solo processors with 533/667MHz

front side bus, 2MB L2 cache, to provide more powerful performance than before.

New features for Intel 945GM(E) chipset

The board integrates Intel 945GM(E) and ICH7-M chipset, to provide new generation of the

mobile solution, supports Intel GMA950 graphics, DDR2 533/667 memory, built-in high

speed mass storage interface of serial ATA, High Definition Audio with 7.1 channels

surrounding sound.

All in One multimedia solution

Based on Intel 945GM(E) and ICH7-M chipset, the board provides high performance

onboard graphics, 18-bit Dual channel LVDS interface, HDTV and 7.1 channels High

Definition Audio, to meet the very requirement of the multimedia application.

Flexible Extension Interface

The board provides one PCI-Express x16 slots for graphics card, it also can support

PCI-Express x1 for LAN card or other devices. The board also provides CompactFlash Type

II slot and one mini-PCI socket.

PMCA User’s Manual Introduction

Product Specification

1.2 <Product Specification>

General Specification

Form Factor micro ATA industrial motherboard

CPU Intel® Core 2 Duo/Core Duo/ Core Solo processor

Package type: Micro- FCPGA478

Front side bus: 533/667MHz

Memory 2 x 240-pin DDR2 533/667MHz SDRAM up to 3GB

Up to 10.67GB/s of bandwidth with dual-channel interleaved mode

Dual-Channel technology supported

Unbufferred, none-ECC memory supported only

Chipset Intel® 945GM(E) and ICH7-M

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend

modes. ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel® ICH7-M built-in RTC with lithium battery

Enhanced IDE UltraATA100 IDE interface supports up to 2 ATAPI devices

One 40-pin IDE port onboard

One CompactFlash Type II socket on solder side

Serial ATA Intel® ICH7-M integrates 2 Serial ATA interfaces(No RAID

Function)

Up to 150MB/s of transfer rate

Multi-I/O Port

Chipset Intel® ICH7-M with Winbond® W83627THG controller

Serial Port Two external & four internal RS-232 serial ports

USB Port Four external & four internal Hi-Speed USB 2.0 ports with

480Mbps of transfer rate

Parallel Port One 26-pin internal parallel port

Floppy Port One 34-pin internal Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

Smart Fan One CPU fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel® 945GM(E) GMCH (Graphic Memory Controller Hub)

Frame Buffer Up to 224MB shared with system memory

Display Type CRT, LCD monitor with analog display

Connector External DB15 female connector on rear I/O panel

Onboard 40-in LVDS connector

PMCA User’s Manual Introduction

Product Specification 9

Onboard Mini Din 7-pin TV-out connector

Ethernet Interface

Controller 2 x Intel 82573L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Two External RJ45 connector with LED on rear I/O panel

Audio Interface

Chipset Intel® ICH7M with Realtek® ALC880 High Definition Audio

compliance

Interface 7.1 channels sound output

Connector External Audio phone jack for Line-out, Line-in, MIC-in,

Surround, Center and Backsurround

Onboard audio connector with pin header

Onboard CD-IN and SPDIF connector

Expansive Interface

PCI-Express One x16 PCI-Express slot (compatible with x1 slot)

One x1 PCI-Express slot

Up to 8GB/s of transfer bandwidth

Power supply: +3.3V, +12V

PCI One Mini-PCI socket for TYPE III A (32-bit, 33MHz)

Two PCI slot

Power supply: +3.3V, +5V

ISA One ISA slot

Power and Environment

Power Requirement Standard 24-pin ATX power supply (20-pin is compatible)

Dimension 244 (L) x 244 (H) mm

Temperature Operating within 0 ~ 60℃(32 ~ 140℉)

Storage within -20 ~ 85℃(-4 ~ 185℉)

Ordering Code

PMCA Intel Core 2 Duo/Core Duo processor with onboard VGA, AUDIO,

HDTV,ISA, SATA, Giga LAN, USB2.0, LPT, CF, GPIO, LVDS,

Mini PCI

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

PMCA User’s Manual Introduction

MechanicalDrawing

1.3 <Mechanical Drawing>
