CBPE-1X2P

PICMG1.3 Half-size Backplane

User’s Manual

Edition 1.0

2016/11/04

CBPE-1X2P User’s Manual

-1-

The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

CBPE-1X2P User’s Manual

-2-

CBPE-1X2P User’s Manual

-3-

The specifications may be different as the actual production.

For further product information please visit the website at http://www.commell.com.tw/

General Specification

Form Factor

PICMG1.3 Half size Backplane

Extended Interface

1 x PCIe x16 slot, 2 x PCI slot

Power Requirement

Standard 24-pin ATX power supply

Dimension

175.07 x 96.39 mm

Connector

Function

SHB Express

SHB PICMG 1.3 Half-SIZE SBC Slot

PCIe x16

164-pin support PCIe x16 slot

PCI 1

120-pin PCI slot

PCI 2

120-pin PCI slot

CN_12V

ATX12V connector auxiliary power support

ATX

20+4-pin main power connector

JPBT

Power , Reset button connector

FAN

3-pin fan connector

SHB Express

ATX

FAN

CN_12V

PCIe x16

PCI

JPBT

CBPE-1X2P User’s Manual

-4-

< Power Input >

Connector: ATX

Connector Type:

Main power 24-pin connector (as input)

Signal

3.3V

-12V

GND

PSON

GND

POWER_OK

-5V

5VSB

12V

3.3V

GND

ATX

CN_12V

1 12

13 24

1 12

CBPE-1X2P User’s Manual

-5-

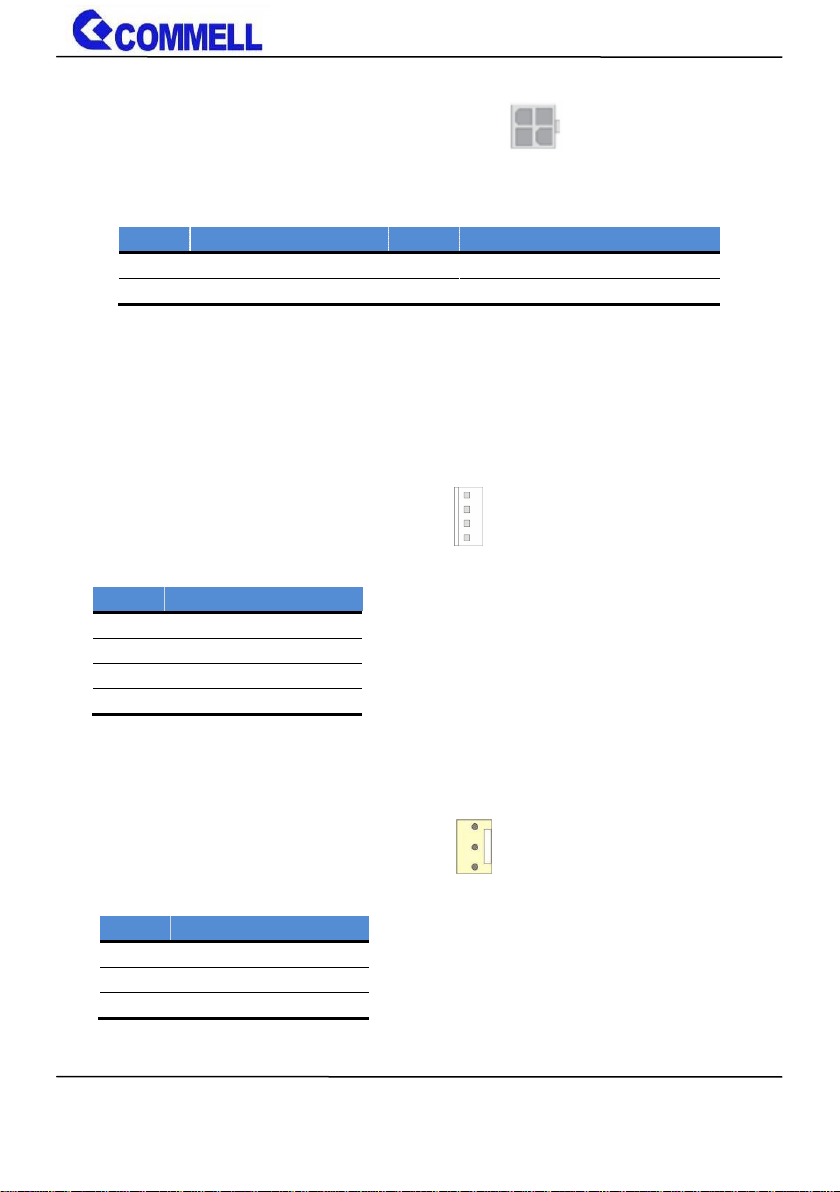

Connector: CN_12V

Connector Type:

ATX12V 4-pin connector

“CN_12V”for increase the current input.

< Power Switch & FAN >

Connector: JPBT

Connector Type:

Panel Switch 4-pin header

Connector: FAN

Connector Type:

Cooler fan 3-pin header

Signal

GND

12V

Signal

Power Button

GND

Reset

GND

Signal

GND

12V

N/A

1 3

JPBT

2 4

FAN

CBPE-1X2P User’s Manual

-6-

Contact information

Any advice or comment about our products and service, or anything we can help

you please don’t hesitate to contact with us. We will do our best to support you for

your products, projects and business.

Taiwan Commate computer Inc.

Address

19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei

City 22102, Taiwan.

TEL

+886-2-26963909

FAX

+886-2-26963911

Website

www.commell.com.tw

E-mail

[email protected] (General information)

[email protected] (Technical Support)

Commell is a brand name of Taiwan Commate computer Inc.
