Commax T45-K Manuel utilisateur

USER MANUAL

T45-K

www.commax.com

Thank you for purchasing COMMAX products.

Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and

follow instructions to use a product exactly.

The company is not responsible for any safety accidents caused by abnormal operation of the product.

CONTENTS

Cautions

Product description

Includid items

Parts and their functions

Dimensions

Fingerprint registration

Verification mode

Functions key

Displays

Menu navigation buttons

Access to the system menu

Enroll

CONTENTS

Delete

Amend

Set temp ID

User

Getting Started

Start

Operationg menu

COMMAX Access Control Solutions

Basic Time, Data, Language, Volume, Background Image

CONTENTS

Verification Mode, ID Mask, Use Tamer Alarm

Use Touch Sensor, Calibrate Sensor, Lumidigm Spoof, Restore Factory

Advanced

Setting

AC Setting▶ Define Timezone, User Timezone, Lock Type(NC,NO), Lock Door,Release Time,

Door Open Warning, Instrsion Detection Sensor Mode, Reaccess Count,

Reaccess Limit Time, Wiegand Format, Anti-Passback, Setting Reader Of Outer Fingerprint

Communication▶Device ID, Baud Rate, TCP/IP Settings, Setting Wireless LAN,

Managing Computer IP Address, Communication Password

Schedule▶ Set Tmode, Ring Settings, Auto Door, Auto Funckey, None-Relay Funckey,

Day Light, Holiday, Funckey Alram, CD2 Auto Funckey, Idle Settings

Log Setting▶ Management Log Warning, General Log Warning

3.USB MEMORY

Dounload General Log/ Download All General Log/ Download Management Log/

Download All Management Log/ Download User Info/ Upload User Info/ Upgrade Firmware

4.SYSTEM INFO

Memory▶ User, Fingerprint, ID Card, General Log, Management Log, Number of photo

Device Info▶ Release Date, Serial Number, Manufacturer, Product Name,

Product Type, Engine Version, Firmware Version

Advanced▶ View General Log, View Management Log, View User Info

5.TEST

Test All/ Test Memory/ Test LCD/ Test Sound(AUTO)/ Test Sound(MANUAL)/ Test Sensor/ Test RTC/

Test cast status/ Test Card Reader

COMMAX Access Control Solutions

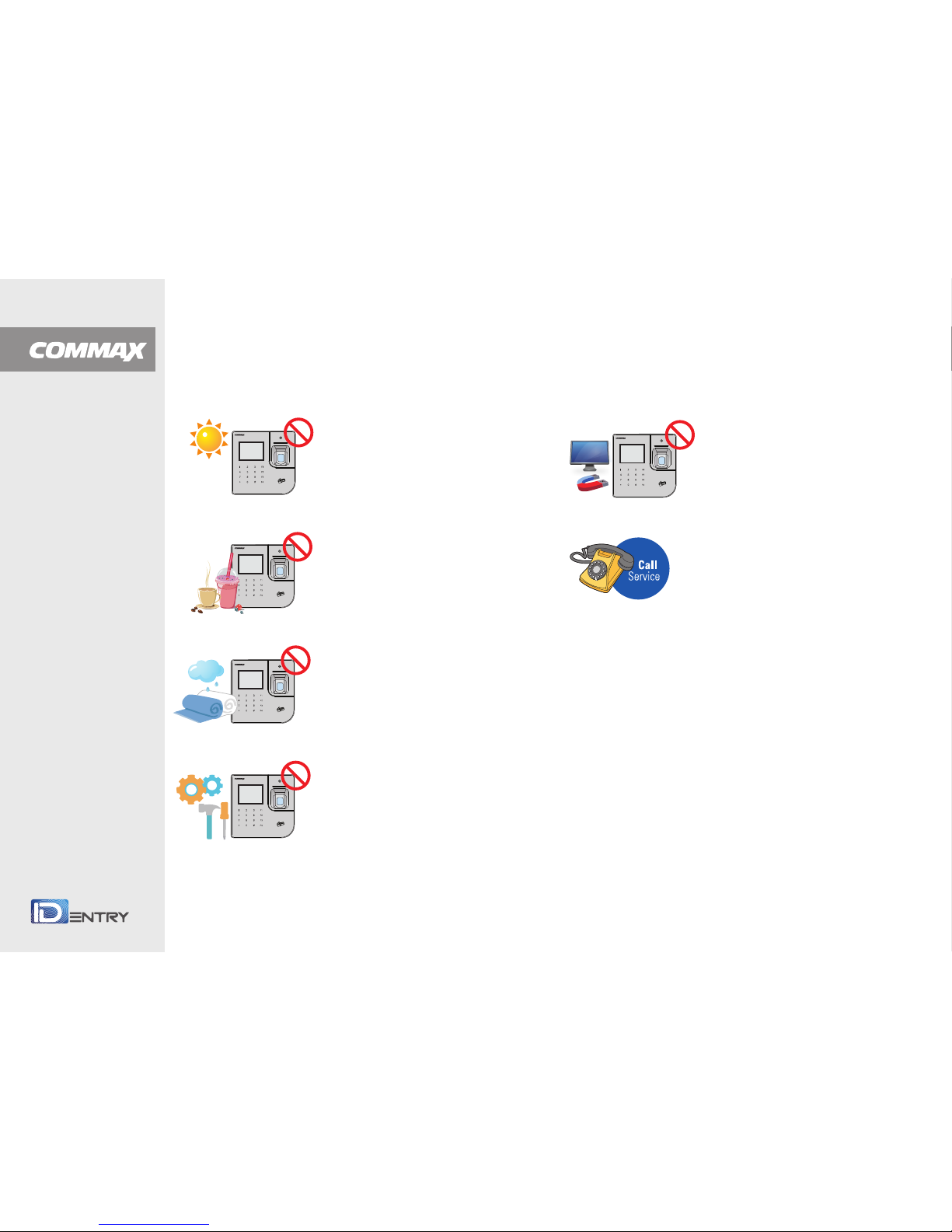

Keep out of direct sunlight

and heat radiation sources

Before using this device, read and follow all instructions for safety.

Shall not be exposed to dripping

or splashing and no objects filled

with liquids such as vases,

shall be placed on the products.

When cleaning, do not use liquid solvent or

wet cloth. Wipe with soft cloth.

Never disassemble or modify this device in any way.

(KJTECH Co., Ltd is not liable for porblems caused

by unauthorized modification or attempted repair )

Do not install this device

near by TV,monitor or magnetic

interference

If the product fails to operate

normally, contact the authorized

dealer or service senter

Cautions

COMMAX Access Control Solutions

Product Specification

Confirm the specifications.

ARM926E_21bit

NAND Flash 8G + 256RAM

4.3TFT COLOR LCD

5K, 10K, 30K, 50K

Loading function

RS-485, TCP-IP

Loading function

Loading function (inner skin way)

Micro SD, USB 2 Slot

500K, 100K

2 EA

VOIP function

125Khz (EM/HID/Prox)

13.56Mhz (Mi fare/I-calss SE/ Felice)

26/34/37/40 bit

4.3inches full touch

143x143x42(mm)

CPU

Memory

display

Fingerprint Capacity

Camera

Communication method

Wi-Fi

Fingerprint forgery prevention

USB

Event Data

Relay

Door phone function

OE(Power of Ethernet)

RF Card

Wie gand input / Output

KEY PAD

Product Size

COMMAX Access Control Solutions

Includid Items

Bracket

9PIN 6PIN 5PIN 4PIN

(Power, 485 CON)

Cable Screw / Program CD

For Bracket 4ea T3x20mm

For T45-K 2ea M3x6mm

T45-K

Wiring harness by the

'wiring manual' to see it.

This system comes with the following comeponents.

COMMAX Access Control Solutions

LED

Product statu.

CAMER

Face capture

Mike

Door phone function.

Fingerprint Sensor

User registration,

authentication,

On the fingerprint input

Be used.

Card Sensor

Is used for user

authentication.

Color TFT LCD

Displays time,

device status,

user list and UI

for operation

USB & Micro SD

USB & micro SD memory devices

For connecting slot.

Connector

Cable for connection to

Connector.

Parts and Their Functions

Function Key

It would be used

event selection key

such as time attendance

or enter/exit administration.

COMMAX Access Control Solutions

Dimensions

Front View Bracket Bracket

Side View

T45-K

COMMAX Access Control Solutions

Fingerprint Registration

You have to register fingerprint in proper way to

enhance recognition rate. Recommended to use

finger which has no damage. Recommended to

Place the finger on the sensor as seen in below in the proper way. Place the entire area of your finger firmly to the sensor.

Notes on the fingerprint input

Proper way

Improper Way

COMMAX Access Control Solutions

Card Authentication Method ID Authentication Method Fingerprint Authentication Method

Verification mode can be setup in verification mode (Settings>Basic>Verification Mode)

Vertfication Mode

CD&FD

ID&CD

ID&CD&FD

ID&FD

OPEN

KJ-3500 supports various type of access mode : Combination of Fingerprint, Card and ID(PIN)

Setting of operating mode

in accordance with security

level refer to environment

setting > advanced setting >

operating mode
