Commax DRC-4Y Manuel utilisateur

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

Color Door Camera DRC-4Y

User Manual

1.Introduction................................................... 2

2.Cautions ....................................................... 3

3. Overview....................................................... 4

4. Installation..................................................... 5

5. Package contents ......................................... 6

6. Specification ................................................. 7

Contents

The model number is located on the bottom. Please record the serial number in the space provided below.

Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.

Model No. Serial No.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the use of uninsulated “dangerous Voltage” within the product that may cause the insufficient

magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the use to the presence of important operating and maintenance(servicing) instructions in the

literature accompanying the appliance.

CAUTION: To reduce the risk of electric shock, do not remove cover (or back cover) no user-

serviceable part inside. Refer service to the service personnel

caution

Risk of electric shock

do not open

1. Introduction

2. Cautions

▲

Do not install it to extremely

hot or cold places.

▲

Do not install it under humid

environment.

▲

Do not install it to the

flickering place.

▲

Do not install it to the place

where it will be exposed to oil

and gas.

If used at a place where the

temperature is higher than

40 ℃ or lower than -10 ℃,

it may cause deterioration of

image quality or failure.

Pay attention to the

ventilation, especially when

installing in a hot place.

Installing in a humid place will

cause deterioration of the lens

and cause low quality image.

Malfunctions may occur in high

illumination changing areas,

such as unstably flickering

lightings.

Malfunctions may occur

when oil or gas permeate

to the products.

①

②

Microphone : It delivers voice from a visitor

③

Camera Lens : Transferring image

※It should be kept clean

④Speaker : It delivers voice to a visitor

⑤Call Button : Call a residence

⑥

⑦

⑧

⑨

Door Release Connection Terminal

Monitor Connection Terminal

olume Control (1.2~1.5mm [ - ] driver available)

Wall Bracket

3. O er iew

LED & Illumination Sensor : Offer clear image at night

1. Fix a bracket on a wall with screws

Connect wire #1, 2, 3, 4 on the back side of a door camera with a monitor as shown in

[FIG-2] (#1 : OICE, #2 : GND, #3 : DC12 , #4 : IDEO)

3. Put a door camera unit into a wall bracket

4. Wire door release connection terminal as shown in [FIG-2]

5. Tighten a screw at the bottom side of a door camera. [FIG-1]

4. Installation

 

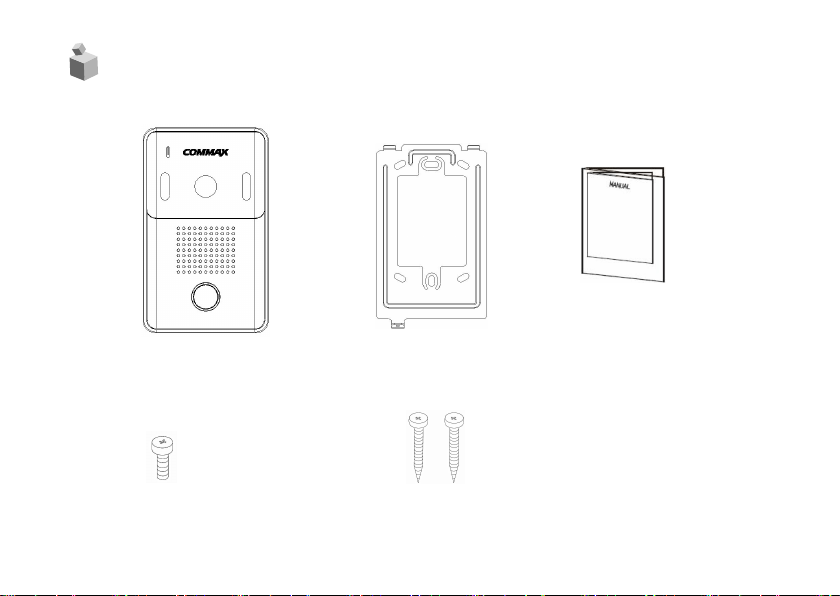

SCREW GH1T 4*18(2EA)

Monitor Cable

Door Release Cable

Door Release

SCREW BHM M3*6(1EA)

Power Source

5. Package contents





 

92(W) x 150(H) x 35(D)

Model No.

Rated Voltage

Wiring

Video Transmission Standard

Sensor Type

Transmission

Minimum Illumination

LED

Effective Viewing Angle

Operating Temperature

Weight (g)

Dimension (mm)

Installation between a Door

camera and a monitor(TIV Cable)

Wiring

12V (Supplied from monitor)

4 wires (polarity) to a monitor

2 wires (non-polarity) to a electric door lock

NTSC or PAL STANDARD.

C-MOS(COLOR / 0.52 megapixel)

Full Duplex

0.1 Lux (within 300mm)

Embedded LED (night working)

98°

-10°C (tested up to -40°C)~ +40°C

186g

Diameter(pie) Ø

0.5

0.65

0.8

Distance(meter)

28m 50m 70m 115m

6. Specification

DRC-4Y

Memo

Printed In Korea / 2019.04.105

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea

Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133

Web site : www.commax.com
