ComAp InteliGen 200 Manuel

Written by Michal Slavata

Prague, Czech Republic

ComAp a.s., U Uranie 1612/14a,

170 00 Prague 7, Czech Republic

Tel: +420 246 012 111

E-mail: info@comap-control.com, www.comap-control.com Operator Guide

InteliGen 200

Controller for parallel gen-set

applications

SW version 1.1.0

1 Front panel elements 2

2 Display screens and pages structure 5

3 Browsing alarms 21

4 Password 22

5 Information screen 29

6 Language selection 31

7 Configuration level 33

8 Display contrast adjustment 35

InteliGen 200 Global Guide 2

1 Front panel elements

Image 1.1 Operator interface of InteliGen 200

Control buttons

Position Picture Description

LEFT button. Use this button to move left or to change the mode. The button can

change the mode only if the main screen with the indicator of currently selected

mode is displayed.

Note: This button will not change the mode if the controller mode is forced by

one of binary inputs listed in the Reference Guide – “Operating modes”

chapter.

RIGHT button. Use this button to move right or to change the mode. The button

can change the mode only if the main screen with the indicator of currently

selected mode is displayed.

Note: This button will not change the mode if the controller mode is forced by

one of binary inputs listed in the Reference Guide – “Operating modes”

chapter.

HORN RESET button. Use this button to deactivate the horn output without

acknowledging the alarms.

InteliGen 200 Global Guide 3

FAULT RESET button. Use this button to acknowledge alarms and deactivate

the horn output. Inactive alarms will disappear immediately and status of active

alarms will be changed to "confirmed" so they will disappear as soon as their

reasons dismiss.

UP button. Use this button to move up or increase value.

PAGE button. Use this button to switch over display pages.

DOWN button. Use this button to move down or decrease value.

ENTER button. Use this button to finish editing a setpoint or moving right in the

history page.

START button. Works in MAN mode only. Press this button to initiate the start

sequence of the engine.

STOP button. Works in MAN mode only. Press this button to initiate the stop

sequence of the gen-set. Repeated pressing of button will cancel current phase

of stop sequence (like cooling) and next phase will continue.

GCB button. Works in MAN and TEST modes only. Press this button to open or

close the GCB or start synchronization manually.

MCB button. Works in MAN and TEST modes only. Press this button to open or

close the MCB or start the reverse synchronization manually.

Indicators and others

Position Description

GENERATOR status indicator. There are two states - Gen-set OK (indicator is green) and Gen-

set failure (indicator is red). Green LED is on if the generator voltage is present and within limits.

Red LED starts flashing when gen-set failure occurs. After FAULT RESET button is pressed,

goes to steady light (if an alarm is still active) or is off (if no alarm is active).

GCB ON. Green LEDs are on if GCB is closed and Gen-set is healthy. If Gen-set is not healthy

and GCB is closed than middle LED is on. It is driven by GCB CLOSE/OPEN output or by GCB

feedback signal.

InteliGen 200 Global Guide 4

LOAD. Green LED is ON if load is supplied by mains or by generator. It means, that Gen-set or

mains is OK and proper circuit breaker is closed.

Graphic B/W display, 132x64 pixels.

MAINS status indicator. There are two states - Mains OK (indicator is green) and Mains failure

(indicator is red). Green LED is on, if mains is present and within limits. Red LED starts blinking

when the mains failure is detected and after the gen-set has started and connected to the load it

lights permanently until the mains failure disappears.

MCB ON. Green LEDs are on if MCB is closed and Mains is healthy. If Mains is not healthy and

MCB is closed than middle LED is on. It is driven by MCB CLOSE/OPEN output or by MCB

feedback signal.

InteliGen 200 Global Guide 5

2 Display screens and pages

structure

The displayed information is structured into "pages" and "screens". Use PAGE button to switch over the pages.

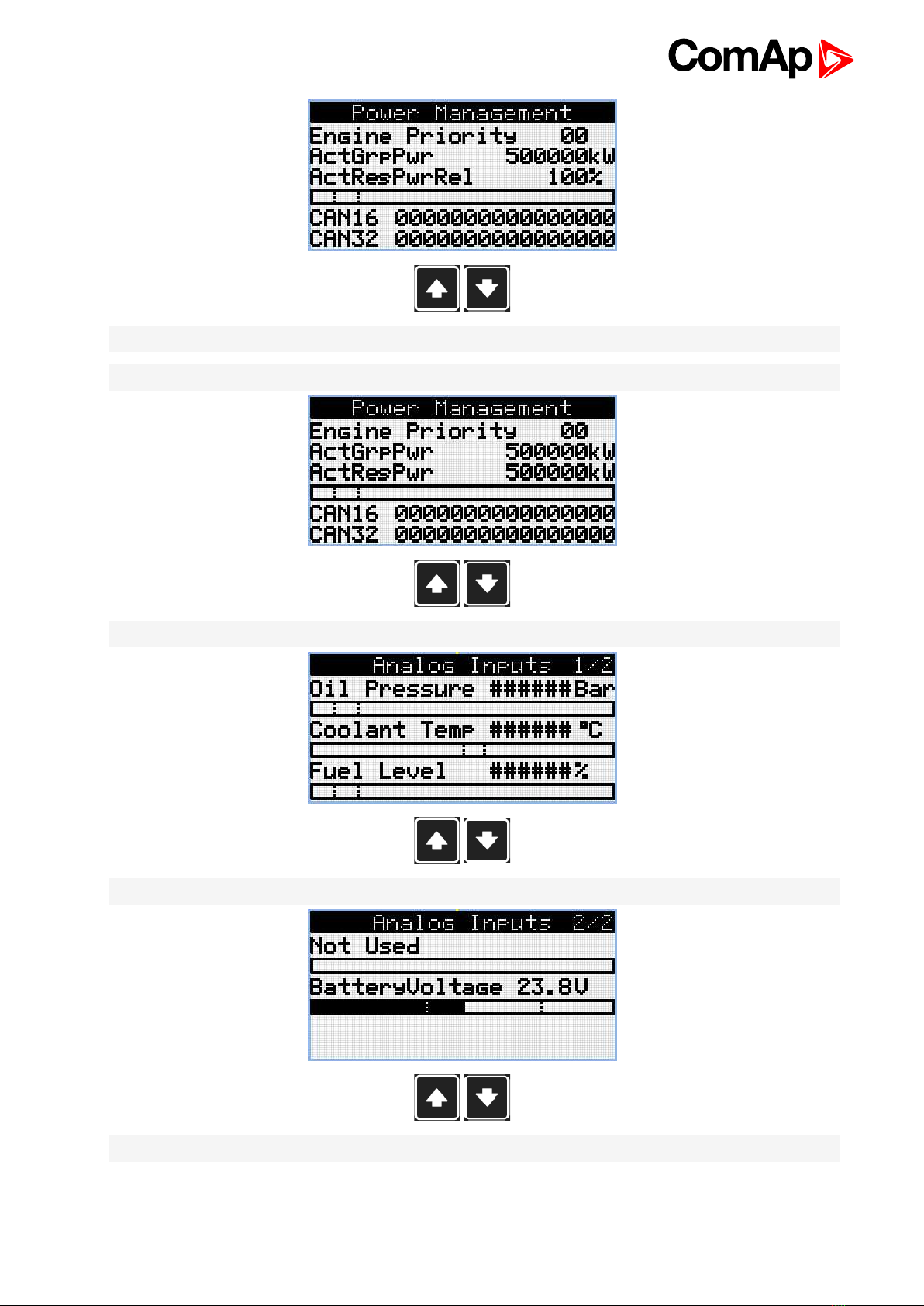

The page Measurement consists of screens which display measured values like voltages, current, oil

pressure etc., computed values like i.e. gen-set power, statistic data and the alarm list on the last screen.

The page Setpoints contains all setpoints organized to groups and also a special group for entering

password.

The page History log shows the history log in the order that the last record is displayed first.

2.1 Main Screen

2.1.1 Symbols

Padlock - active when LBI ACCESS LOCK is active

R - active when there is active remote connection to controller

Exclamation mark - active when there is any alarm in alarmlist
