Cognex MX-1500 Manuel utilisateur

MX-1502

Quick Reference Guide

2020 June 05

Revision:1.0.0.10

Precautions

To reduce the risk of injury or equipment damage, observe the following precautions

when you install the Cognex product:

lRoute cables and wires away from high-current wiring or high-voltage

power sources to reduce the risk of damage or malfunction from the

following causes: over-voltage, line noise, electrostatic discharge (ESD),

power surges, or other irregularities in the power supply.

lChanges or modifications not expressly approved by the party responsible

for regulatory compliance could void the user’s authority to operate the

equipment.

lEnsure that the cable bend radius begins at least six inches from the

connector. Cable shielding can be degraded or cables can be damaged or

wear out faster if a service loop or bend radius is tighter than 10X the cable

diameter.

lThis device should be used in accordance with the instructions in this

manual.

lAll specifications are for reference purposes only and can change without

notice.

MX-1502 Layout

Layout

1Standard front cover

2 Indicator LEDs

3 Side trigger buttons

4 Power button

5 Touch screen

6 Home button

7 Speaker vents

8 Recessed area for mobile camera

9 Slider to lock battery cover

10 Battery cover

11 Lanyard hook

12 End cap of pistol grip*

13 Trigger button on the pistol grip*

*Pistol grip is optional

MX-1502 Accessories

Accessory

Battery for reader (3120 mAh) DMA-MTBATTERY-01

Battery for pistol grip accessory (3070 mAh) DMA-HHBATTERY-01

Pistol grip

Note: The grip features its own

trigger button and an additional

battery which can be charged via the

charging station.

DMA-GRIP-01

Belt holster DMA-HOLSTER-01

DMA-HOLSTER-02

Charging station (inductive) DMA-MTBASE-US

DMA-MTBASE-EU

Charging station (non-inductive) DMA-MTBASEP-US

DMA-MTBASEP-EU

Multi-device charger DMA-MTBASE4-US

DMA-MTBASE4-EU

DMA-MTBASE4BKT-US

DMA-MTBASE4BKT-EU

Multi-battery charger DMA-MBC-US

DMA-MBC-EU

Wireless car charger DMA-VMCHARGER-00

Power supply for charging station 24V/24W DMA-24VPWR-US

DMA-24VPWR-EU

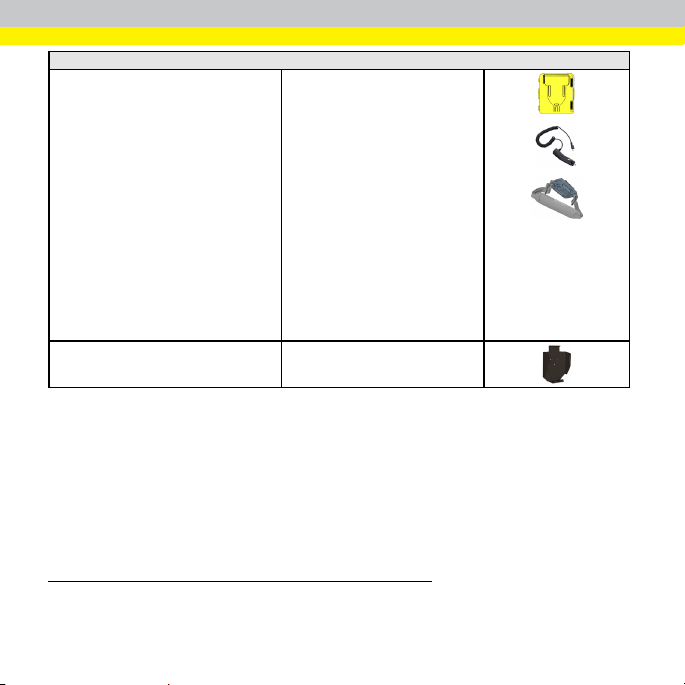

Accessory

USB Type-C battery charger kits

1. USB Type-C Battery Cover

(DMA-MXUSB-00) + USB

Type-C 3Amp Car Charger

(DMA-MXUSB-CHARGER)

2. USB Type-C Battery Cover

(DMA-MXUSB-00) + Handstrap

(DMA-MXSTRAP-00)

3. USB Type-C Battery Cover

(DMA-MXUSB-00) + USB

Type-C 3Amp Car Charger

(DMA-MXUSB-CHARGER) +

Handstrap (DMA-MXSTRAP-

00)

1. DMA-MXUSB-01

2. DMA-MXUSB-02

3. DMA-MXUSB-03

Passive car holder1DMA-VMHOLDER-00

1Using or storing the device outside of the recommended temperature ranges may damage or reduce the lifespan of

the battery. Leaving the MX Series Mobile Terminal with a mobile device in direct sunlight for an extended amount

of time can raise the temperature above the recommended limit.

Accessory

Top Cover DMA-COVERKIT-S6

DMA-COVERKIT-S7

DMA-COVERKIT-S8

DMA-COVERKIT-S9

DMA-COVERKIT-I5

DMA-COVERKIT-I6

DMA-COVERKIT-S4

DMA-COVERKIT-S5

DMA-COVERKIT-J3

DMA-COVERKIT-J327

DMA-COVERKIT-J330

DMA-COVERKIT-A3

DMA-COVERKIT-X4

DMA-COVERKIT-N42

DMA-COVERKIT-s10e

DMA-COVERKIT-iX

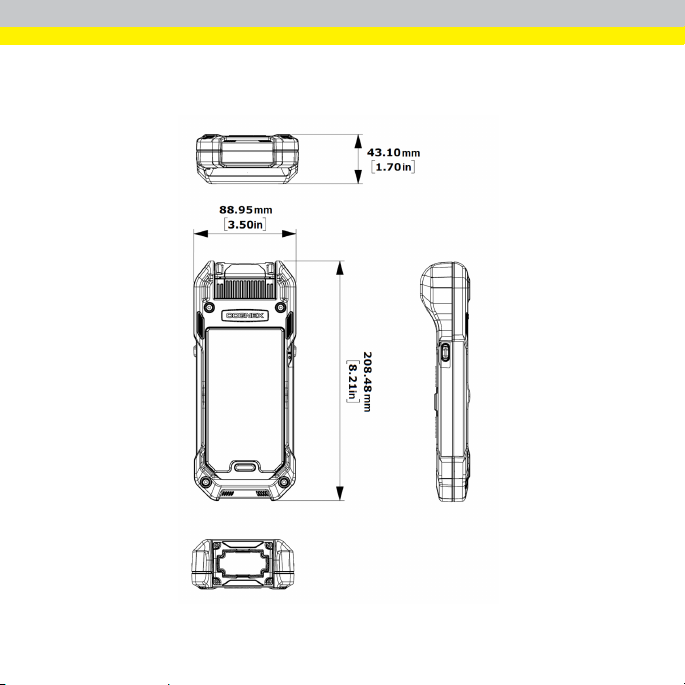

Dimensional Drawings

MX-1502 standard front cover model:

Field of View and Reading Distances

MX-1502-LR Readers with 6.2 mm Lens

Distances in mm 1D min. code

320 10 MIL

2000 50 MIL

4100 100 MIL

Distances in mm 2D min. code

170 10 MIL

900 50 MIL

1700 199 MIL

MX-1502-ER Readers with 12 mm Lens

Distances in mm 1D min. code

300 4 MIL

4500 50 MIL

9500 100 MIL

Distances in mm 2D min. code

300 7 MIL

1000 25 MIL

2000 50 MIL

MX-1502-XR Readers with 20 mm Lens

Distances in mm 1D min. code

300 4 MIL

8000 50 MIL

14500 100 MIL

Distances in mm 2D min. code

300 4 MIL

1000 14 MIL

2000 28 MIL
