Quick Reference Guide

09/08/2017

Version:5.7.1.51

Precautions

Observe these precautions when installing the Cognex product, to reduce the risk of

injury or equipment damage:

lTo reduce the risk of damage or malfunction due to over-voltage, line noise,

electrostatic discharge (ESD), power surges, or other irregularities in the

power supply, route all cables and wires away from high-voltage power

sources.

lChanges or modifications not expressly approved by the party responsible

for regulatory compliance could void the user’s authority to operate the

equipment.

lCable shielding can be degraded or cables can be damaged or wear out

more quickly if a service loop or bend radius is tighter than 10X the cable

diameter. The bend radius must begin at least six inches from the

connector.

lThis device should be used in accordance with the instructions in this

manual.

lAll specifications are for reference purpose only and may be changed

without notice.

MX-1000 Layout

1 Scanner head (rotatable by 45°)

2 Indicator LEDs

3 Side trigger buttons

4 Power button

5 Touch screen

6 Home button

7 Speaker vents

8 Recessed area for mobile camera

9 Slider to lock battery cover

10 Battery cover

11 Lanyard hook

12 End cap of pistol grip*

13 Trigger button on the pistol grip*

*Pistol grip is optional

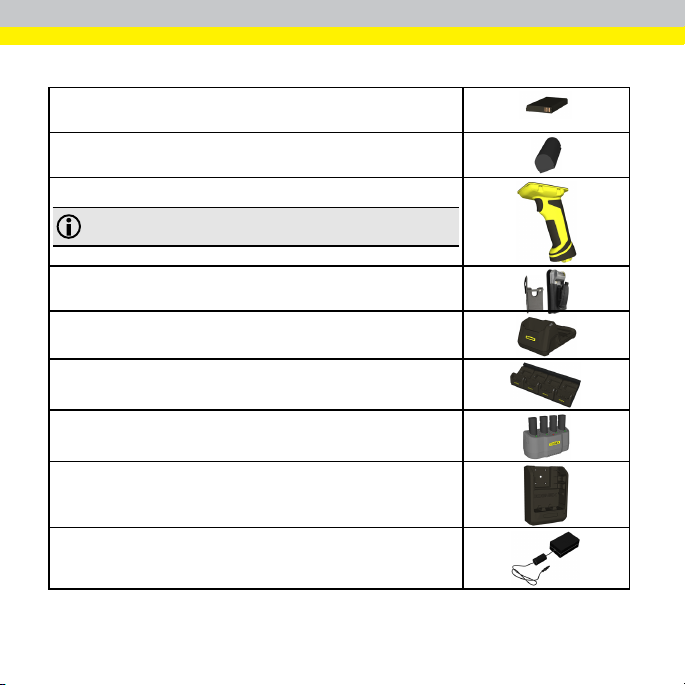

MX-1000 Accessories

Battery for reader (DMA-MTBATTERY-01)

Battery for pistol grip accessory (3070 mAh, DMA-HHBATTERY-01)

Pistol grip (DMA-GRIP-01)

Note: The grip features its own trigger button and an additional battery

which can be charged via the charging station.

Belt holster (DMA-HOLSTER-01, and DMA-HOLSTER-02)

Wireless charging station (DMA-MTBASE-xx*)

Multi-device charger (DMA-MTBASE4-US, DMA-MTBASE4-EU, DMA-

MTBASE4BKT-US, DMA-MTBASE4BKT-EU)

Multi-battery charger (DMA-MBC-xx)

Wireless car charger (DMA-VMCHARGER-00)

Power supply for charging station 24V/18W (DMA-24VPWR-xx*)

USB Type-C battery charger kits:

lDMA-MXUSB-01: USB Type-C Battery Cover (DMA-MXUSB-00)

+ USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER)

lDMA-MXUSB-02: USB Type-C Battery Cover (DMA-MXUSB-00)

+ Handstrap (DMA-MXSTRAP-00)

lDMA-MXUSB-03: USB Type-C Battery Cover (DMA-MXUSB-00)

+ USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER) +

Handstrap (DMA-MXSTRAP-00)

Passive car holder (DMA-VMHOLDER-00)

Note: Using or storing the device outside of the recommended

temperature ranges may damage or reduce the battery’s lifespan.

Leaving the MX Series Mobile Terminal with a mobile device in direct

sunlight for an extended amount of time can raise the temperature above

the recommended limit.

Top Cover (DMA-COVERKIT-S6, DMA-COVERKIT-S7)

* xx can be US or EU

Dimensional Drawings

Field of View and Reading Distances

Note: Due to tolerances, ranges can vary by +/- 5 mm for small codes to +/- a couple of centimeters for

large codes.

Assembling the Reader

Note: For details, see the MX-1000 Reference Manual.

For a list of supported mobile devices, please contact Cognex.

Installation

Installation procedures and specifications are presented in detail in the MX-

1000Reference Manual, which is installed with the DataMan Setup Tool. From the

Windows Start menu, select the following to access the manual: All Programs >

Cognex > DataMan Software v5.7.0 > Documentation.

Note: If any of the standard components appear to be missing or damaged,

immediately contact your Cognex Authorized Service Provider (ASP) or

Cognex Technical Support.

CAUTION:All cable connectors are “keyed” to fit the connectors on the

reader; do not force the connections or damage may occur.

Install Software and Documentation and

Connect the Reader

To configure an MX-1000 reader, the DataMan Setup Tool software must be

installed on a networked PC. The DataMan Setup Tool is available from the

DataMan support site: http://www.cognex.com/support/dataman.

Note: The DataMan Setup Tool only works if the DataMan Quick Setup is

installed on the mobile device. For further details, see the MX-1000 User

Guide.

1. After installing the software, connect the MX-1000 to your PC.

2. Launch the DataMan Setup Tool and click Refresh.

3. Select your MX-1000 reader from the list and click Connect.

MX-1000 Specifications

Weight 510 g (675 g with pistol grip)

Charging Temperature

Operating Temperature

0ºC — +35ºC (+32ºF — +95ºF)

0ºC — +40ºC (+32ºF — +104ºF)

Storage Temperature -40ºC — +60ºC (-40ºF — +140ºF)

Maximum Humidity < 95% (non-condensing)

Environmental IP65

Codes 1-D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93,

Pharmacode, GS1 DataBar, PDF417, Micro PDF417

2-D: Data Matrix, QR Code, and MicroQR Code, DotCode* and postal code*

Power Supply Requirements Battery power

Expected operating time for

typical scan batches (400 scan

per hour) with a fully charged

battery

12 hours

*MX-1000X only

Imager Specifications

Specification MX-1000 Imager

Image Sensor 1/3 inch CMOS

Image Sensor Properties 6.0 μm square pixels

Image Resolution (Pixels) 752 x 480 global shutter sensor

Lens Type 3 focal position 6.2 mm, M12 lens with IR blocking filter
