Coffee Queen MOCCA Manuel utilisateur
User manual
MOCCA
Your dealer
Rev. 110607
U_EN
1. Table (list) of contents MOCCA
1. Table of contents page. 2
2. General 3
3. Overview of the components, front. 4
3. Overview of the components, inside 5
3. Activate with user card 6
4. Installation and start 7-8
Important! Safety and maintenance of grinder 8
5. Operation Brewing of coffee in cup 9
Brewing of jug 10
Hot water 10
6. Cleaning program
Cleaning of In/Outlet valves 11
Cleaning brewmechanism 12
Cleaning of brew chamber 13
Dismantling brew chamber 14
7. Cleaning and care 15-16
8. Messages shown on display 17
9. PROGRAMMING Activate with user card 18
10. Programming Main menu 19
Clean Machine 20
Counters 21-22
10. Dimension sketch 23
11. Storage / Transport 24
2.
2. General MOCCA
Thank you for choosing a Mocca machine. We hope you enjoy it !
- The machine must be connected correctly for your own safety.
Read the user guide before using the machine.
- The guide contains important instructions for proper and safe use of the machine
- Always keep the guide close at hand.
The machine must be disconnected from mains electricity supply before carrying out any
maintenance.
All installation work must be carried out by qualified personnel.
Mocca
- Making coffee cup by cup
- Jug facility with key switch
- Brewing mechanism with coffee filter
- Electronically temperature controlled
- Adjustable coffee strength
- Illuminated cup while brewing
- Energy saving mode
Facts:
Height 675mm
Width 270mm
Depth 530mm
Weight 15 kg
Tank volume 2.0 litre
Electricity: 230V/2200W
Water connection: ½” outside thread
Capacity:
Approx. cups of coffee 100 / filling, max 140/hour.
3.
3. Overview of components, front MOCCA
Outlet
(warm drinks)
Drip tray insert
Drip tray
Door lock
Display
Strength of drinks ++ / - -
Key switch
4.
Options:
Base cabinet with waste box
Large coffee
Small coffee
Hot water
5.

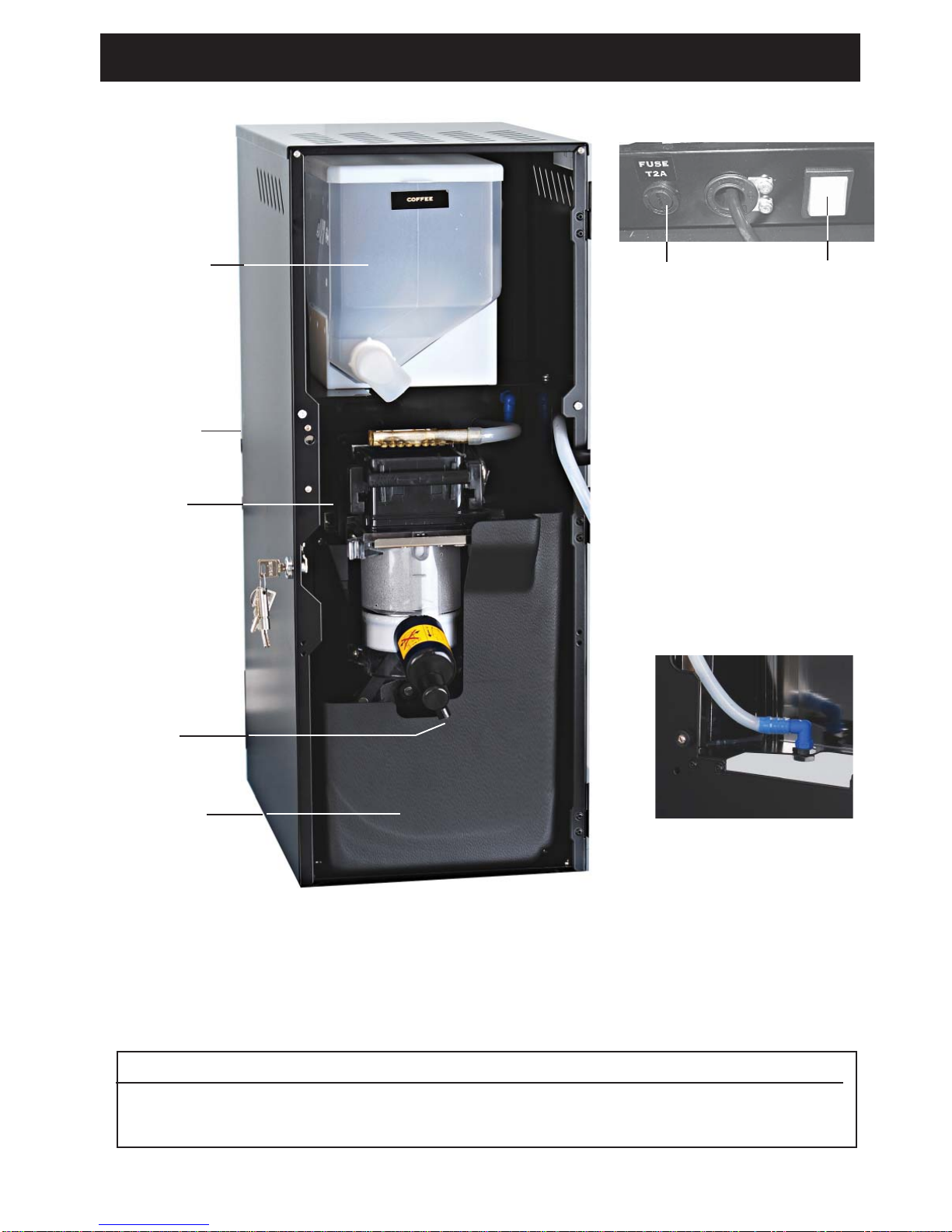

3. Overview of components, inside MOCCA
Detail; Ingredients; Width; Height; Amount/unit
Canister; Coffee 160 250 1
ON/OFF
switch
FUSE
holder
Outlet hot water
Brewing
mechanism
Outlet
Coffee
Waste box
Door lock
Ingredients
canister
5. Overview of components, function buttons AC12
6.
3. Overview. Activate with user card MOCCA
USER CARD.
Insert the user card with the chip upwards, according to the illustration.
The display will show the Service Menu, Clean Machine and you can now browse
forwards through the menu.
Service Menu
Clean Machine
To use the machine again. Remove the card and keep it in a safe place.
USER CARD Item number: 1602692.
Is used for cleaning and setting jug beverages.
The user card is supplied by your dealer.
Activate with a key. Choose coffee in jug
4. Service. Installation och igångsättning MOCCA
1. Place the brewer on a flat
level and waterproof surface. Connect the electrical plug to a separate
grounded wall socket 230V 10A
OBSERVE!
Make sure there is a space behind the
machine for free flow of air.( minimum 10cm )
2. Connect attached water tube to cold water with an R 1/2”.
Make sure that the water hose not are kinked anywhere when machine is
pushed into place.
Please flush the water tube before connecting to machine, this to avoid any particles to
damage the inlet valve.
3. Open the water inlet.
4. Turn on the ON-OFF switch.
Water is been filled into the tank automatically
with 2,0 litres of water. The heating will not start
before the water level reaches the level sensor.
Set temperature is approx 97ºC.
5. Close door.
7.
90º
ON/OFF
switch
Fuse
holder
4. Service. Installation and start MOCCA
6. Fill canisters with ingredients.
Take out (this to avoid unnecessery spillage in
the machine) ingredient canisters and fill them
with ingredients.

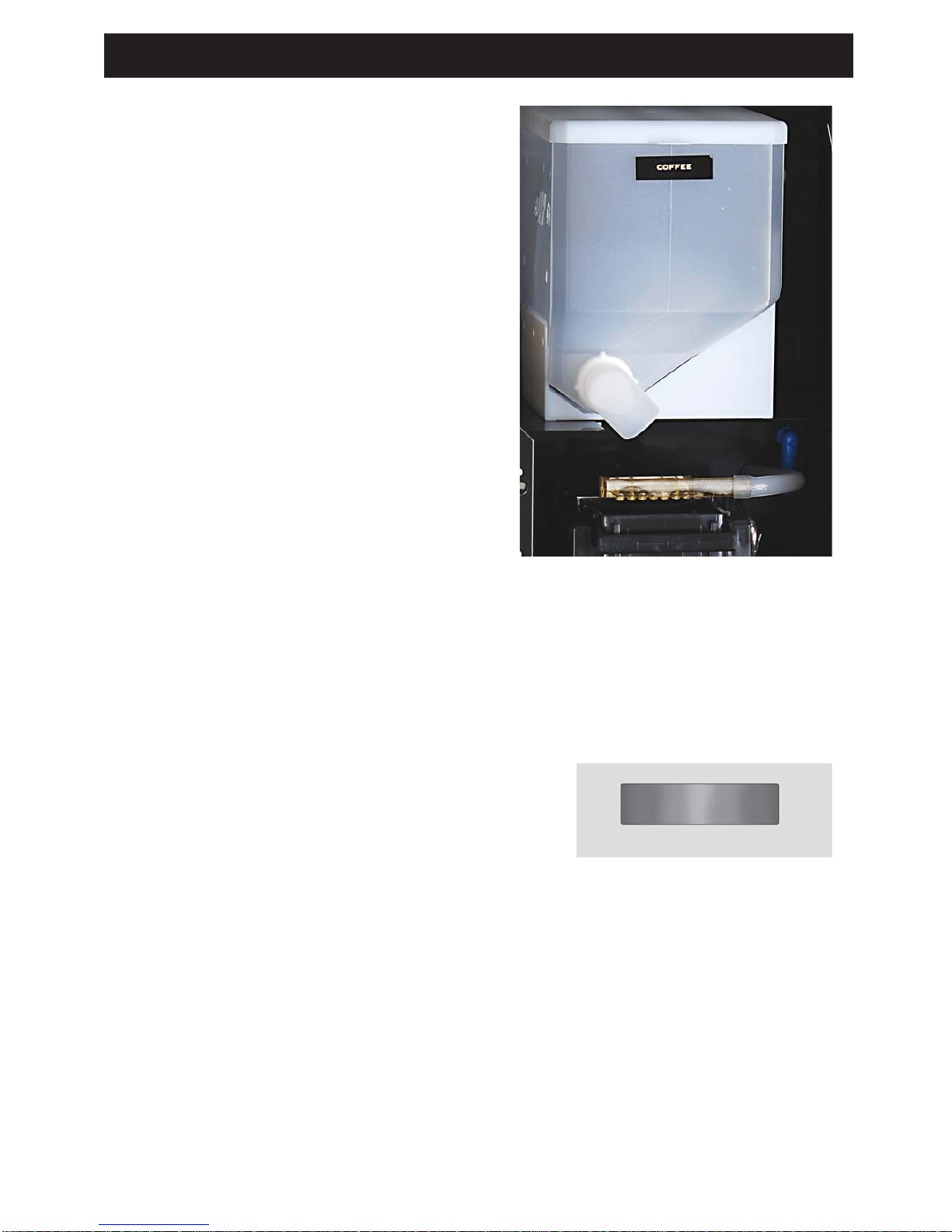

7. When placing the ingredient canister
Make sure that the outlet pipe have the
position of pointing straight into the
brew mechanism. See (A).
8.
(A).
When the water is heated up to right temperature
the message ”Low temp” will disappear and ”Low temp”
”Low temp.” machine is ready to use.
1. Place a cup in the centre of the cup holder.
2. The strength has a standard setting,
if you wish to increase or decrease it, do as follows
if not continue to point 3.
Stronger drink;
Increase by pushing + or ++ for 5% or 10%
alternative
Weaker drink;
Decrease by pushing - or -- for 5% or 10%
(the indication lamp will go up or down
depending of choice).
3. Choose drink by pushing on the button to the right
of each menu. The display will show; ”Please wait”,
and the cup will be illuminated.
Wait until the light on cup and the message
”Please wait”
has been turned off before you take your cup.
4. Hot water
9.
5. Operation: Brewing of coffee in cup MOCCA
2.
3.
4.
5. Operation; Hot water MOCCA
5. Operation: Brewing of coffee in jug MOCCA
Brewing of jug
1. Place a jug in the centre of drip tray.
Serving jug 1,2L art.no. 1103091
2. Turn on the key with jug symbole clockwise.
3. 6 cups of brewing is standard setting.
Change amount of cups by pushing + or - button.
Optional up to 12 cups or down to 1 cup brewing.
4. Push the button for drink 1.
Wait until the light and message ”Please wait” has
been turned off before you take out the jug.
Button for Hot water.
Serving jug 1,8L art.no. 110001
Serving jug 1,2L art.no. 1103091
10.
4
3
3
2
