Code Alarm Professional Series CA 4050 Manuel utilisateur

PROFESSIONAL

SERIES

Remote Start

Installation Guide

CA 4050

Before You Begin ......................................................................................3

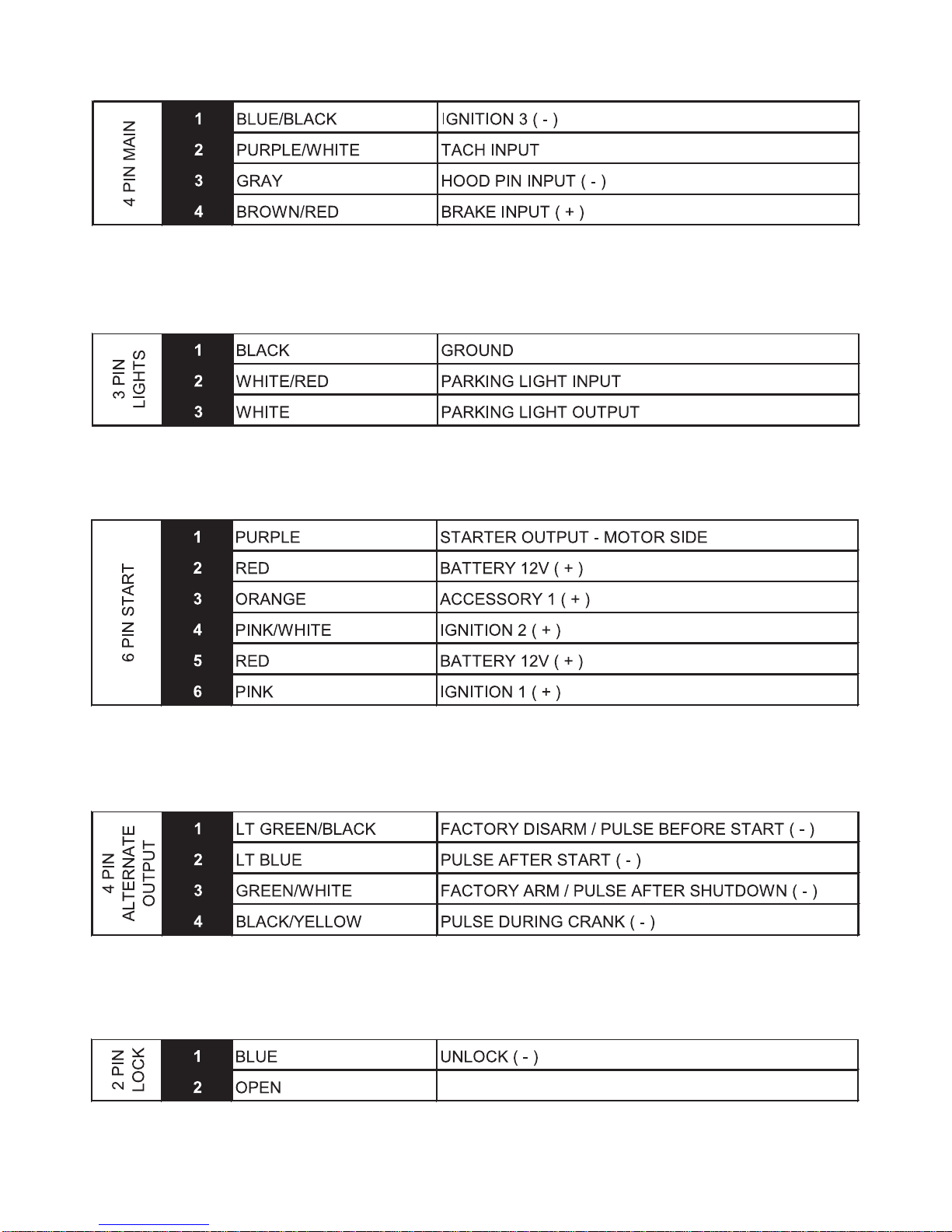

Wire Connection Guide ...........................................................................4

7 Pin Main Harness ...................................................................................5

3 Pin Parking Light Harness .....................................................................7

6 Pin Start Harness ...................................................................................8

4 Pin Auxiliary Harness ............................................................................9

2 Pin Door Lock Output Harness ...........................................................10

Additional Ports ......................................................................................14

Antenna / LED / Programming Port .......................................................14

DBIPort....................................................................................................14

Set Up & Programming..........................................................................15

Transmitter Programming........................................................................15

Manual Feature Programming.................................................................15

Programming Feature Banks ..................................................................16

Tach Programming ..................................................................................17

Feature Descriptions .............................................................................18

Transmitter Button Functions .............................................................21

Remote Start Shutdown Diagnostics ................................................22

System Layout.........................................................................................23

PROFESSIONALINSTALLATION

STRONGLYRECOMMENDED

Installation Precautions:

Roll down window to avoid locking keys in vehicle

during installation

Avoid mounting components or routing wires near

hot surfaces

Avoid mounting components or routing wires near

moving parts

Tape or loom wires under hood for protection and

appearance

Technical Support (800) 421-3209

or go to

http://techservices.codesystems.com

Use a Digital Multi Meter for testing and verifying

circuits. DO NOT USE A TEST LIGHT, OR

"COMPUTER SAFE PROBE" as these can set off air

bags or damage vehicle computers.

Use grommets when routing wires through metal

surfaces

BEFORE YOU BEGIN

6 Pin Start Harness

4 Pin Auxiliary Output Harness

2 Pin Lock Output Harness

4 Pin Main Harness

3 Pin Parking Light Harness

4 Pin Main Harness

1 BLUE/BLACK IGNITION 3 / ACTIVE OUTPUT ( - )

The Active Output/Ignition 3 output wire provides a ground output when the remote

start function is activated and remains until 4 seconds after the remote start is

shutdown. The Ignition 3 output wire can be used for several functions listed

below. If this wire will be used for multiple application's a 1 amp diode is required

in-line with the stripe facing the control module.

Factory transponder (coded key) bypass.

General Motors VATS bypass, see the following diagram. Use an SPDT relay (not

supplied).

Ignition 3 output, see the following diagram. Use an SPDT relay (not supplied).

Accessory 2/3 output, see the following diagram. Use an SPDT relay (not

supplied).

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK ActiveOutput

Wire

VATS Control Module

Matching Value

Resistor

Ignition Switch

VATS Wire #1, WHITE or WHITE/BLACK

VATS Wire #2, WHITE or VIOLET/WHITE

X CUT

GM VATS

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or

3rd Ignition Wire

Jump To PINK

Ignition Output

Wire From

Control Module

Ignition 3 Accessory 2/3

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or 3rd

Accessory Wire

Jump To ORANGE

Accessory Output

Wire From

Control Module

2 PURPLE/WHITE TACH INPUT

Locate the vehicle’s ignition coil or fuel injector in the engine compartment.

Verification: Test using the following procedure:

1. Set voltmeter to AC VOLTS.

2. Attach positive lead of a volt meter to a constant 12-volt source.

3. Attach negative lead of a volt meter to the wire to be tested.

4. Start the engine.

5. Have someone press on the gas pedal slightly as you monitor the meter. If

connected to the correct wire, the voltage reading will increase as the engine’s

RPM increases.

Connect the PURPLE/WHITE wire to the negative side of the vehicle ignition coil

or fuel injector.

3 GRAY HOOD PIN INPUT ( - )

Install a Hood Pin Switch and connect to the GRAY wire. This connection is

required for Remote Start.

Verification: This wire when connected will register ground when the

vehicle's hood is opened.

Connect the GRAY wire to the hood pin.

NOTE: Be sure to loom the wire, and seal the grommet.

4 BROWN/RED BRAKE INPUT ( + )

Locate the vehicle’s brake light wire at the brake pedal mounted switch.

Verification: This wire registers positive voltage when the brake pedal is

pressed.

Connect the BROWN/RED wire to the vehicle’s brake light wire.

1 BLACK GROUND

Connect the BLACK wire to a solid chassis ground point using a ring terminal and

self tapping screw (not supplied). Scrape away paint from the grounding point to

ensure a good connection. The recommended grounding point is a metal surface

in the driver’s side kick panel area.

NOTE: Do not ground the BLACK wire with any other vehicle components.

3 Pin Parking Light Harness

2 WHITE/RED PARKING LIGHT INPUT

3 WHITE PARKING LIGHT OUTPUT

Locate the parking light output wire at the vehicle’s light switch.

Verification: This wire registers positive voltage when the parking lights are

turned on.

Positive switching Parking Lights:

Connect the WHITE/RED wire to a 15 Amp max fused battery source.

Connect the WHITE wire to the parking light output wire.

Negative switching Parking Lights:

Connect the WHITE/RED wire to a good chassis ground.

Connect the WHITE wire to the parking light output wire.

6 Pin Start Harness

1 PURPLE STARTER OUTPUT ( + )

Locate the vehicle starter wire.

Verification: This wire registers voltage only when the key is turned to the

START position.

Verification:

The starter wire registers voltage when the key is turned to the

START position.

Connect the PURPLE wire to the MOTOR SIDE of the vehicle starter wire.

2 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

3 ORANGE ACCESSORY 1 ( + )

Locate the vehicle’s accessory wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to ACC

(Accessory) and the ON (or RUN) position. The voltage drops out when the

key is turned to the START(or CRANK) position.

Connect the ORANGE wire to the vehicle’s accessory wire.

4 PINK/WHITE IGNITION 2 ( + )

Locate the vehicle’s 2nd ignition wire at the ignition switch (if equipped).

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position, but not the ACC (Accessory) position. The voltage does not

drop out when the key is turned to the START(or CRANK) position.

Connect the PINK/WHITE wire to the vehicle’s ignition 2 wire.

Programmable output: IGN, ACC, Start.

6 PINK IGNITION1 (+ )

Locate the vehicle’s ignition wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position. The voltage does not drop out when the key is turned to the

START(or CRANK) position.

Connect the PINK wire to the vehicle’s Ignition wire.

This wire is also used for Ignition 1 Output.

5 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

4 Pin Auxiliary Output Harness

1 LT GREEN/BLACK FACTORY DISARM /

PULSE BEFORE START ( - )

This wire will supply a ( - ) 500mA pulse both upon disarming the system and when

the remote start feature is activated. Locate the factory perimeter alarm disarm

wire from the key cylinder inside the drivers door.

Verification: This wire registers ground if the key is turned to the unlock

position in the driver’s door cylinder.

Connect the LIGHT GREEN/BLACK wire to the factory alarm disarm wire.

2 LT BLUE PULSE AFTER START ( - )

This wire will supply a ( - ) 500mA pulse upon successful completion of the remote

start activation sequence and is typically used to re-lock the vehicle’s doors upon

remote start if necessary.

4 BLACK/YELLOW PULSE DURING CRANK ( - )

Locate the vehicle’s second starter (crank) wire at the ignition switch. (if equipped)

Verification: This wire registers voltage only in the start (crank) position of

the ignition switch.

Connect the BLACK/YELLOW wire as shown in the diagram below. Use an SPDT

relay (not supplied).

F us ed +12 Volt

B a tte ry S ourc e

87a

86 85

BLACK/YELLOW Pulse

During Crank Wire

To Vehicle's 2nd

S tarter W ire

J ump To P UR PLE

S tarter Output

Wire From The

C ontrol Module

2 Pin Lock Output Harness

1 BLUE UNLOCK ( - )

The door unlock output wire provides an output only while the remote start feature

is active.

3 GREEN/WHITE FACTORY ARM /

PULSE AFTER SHUTDOWN ( - )

This wire will supply a ( - ) 500mA pulse both upon arming the system and after

the remote start shuts down. This is typically used to re-lock the vehicle’s doors if

they unlock upon remote start shutdown. It can also be used to pulse a door pin-

switch wire to prevent the vehicle’s accessories from remaining on after remote

start shutdown.
