Code Alarm PROFESSIONAL SERIES Manuel utilisateur

PROFESSIONAL

SERIES

Remote Keyless Entry

Installation Guide

CA 2050

Before You Begin ...................................................................................... 3

Wire Connection Guide ...........................................................................4

8 Pin Main Harness ...................................................................................5

6 Pin Door Lock Output Harness .............................................................7

Additional Ports ........................................................................................ 8

LEDPort.....................................................................................................8

ProgrammingPort......................................................................................8

Set Up & Programming............................................................................9

Transmitter Programming ..........................................................................9

Manual Feature Programming...................................................................9

Programming Feature Banks ..................................................................10

Chirp Delete - User Accessible..............................................................10

Feature Descriptions ............................................................................. 11

Transmitter Button Functions .............................................................12

System Layout......................................................................................... 13

Table of Contents

PROFESSIONALINSTALLATION

STRONGLYRECOMMENDED

Installation Precautions:

Roll down window to avoid locking keys in vehicle

during installation

Avoid mounting components or routing wires near

hot surfaces

Avoid mounting components or routing wires near

moving parts

Tape or loom wires under hood for protection and

appearance

Technical Support (800) 421-3209

or go to

http://techservices.codesystems.com

Use a Digital Multi Meter for testing and verifying

circuits. DO NOT USE ATEST LIGHT, OR

"COMPUTER SAFE PROBE" as these can set off air

bags or damage vehicle computers.

Use grommets when routing wires through metal

surfaces

BEFORE YOU BEGIN

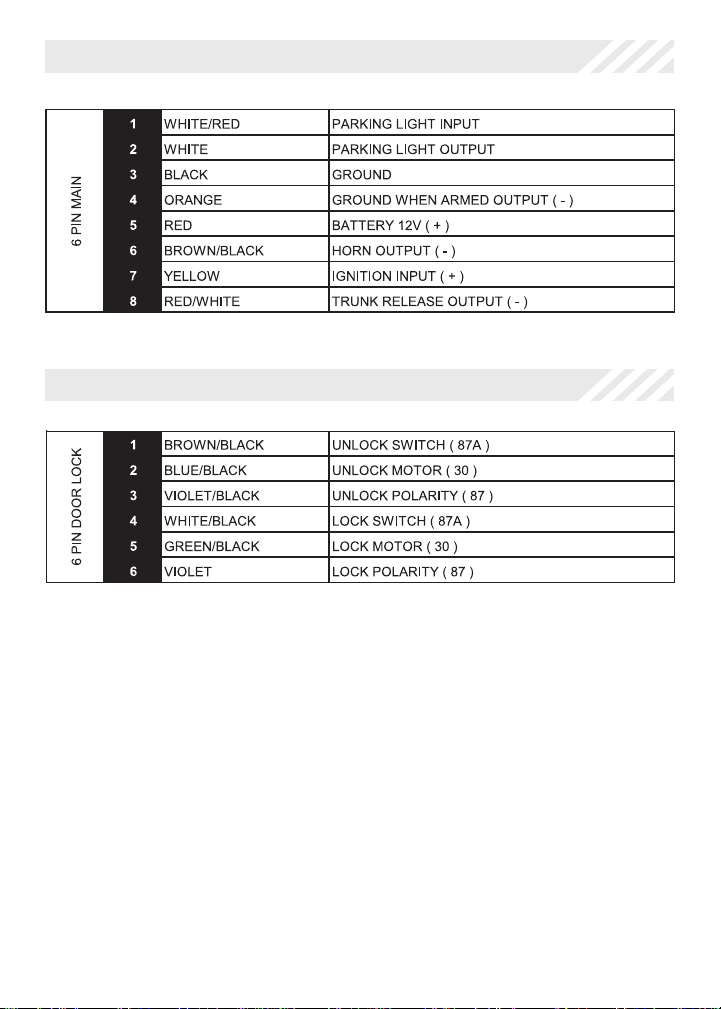

8 Pin Main Harness

6 Pin Door Lock Output Harness

3 BLACK GROUND

Connect the BLACK wire to a solid chassis ground point using a ring terminal and

self tapping screw (not supplied). Scrape away paint from the grounding point to

ensure a good connection. The recommended grounding point is a metal surface

in the driver’s side kick panel area.

NOTE: Do not ground the BLACK wire with any other vehicle components.

8 Pin Main Harness

1 WHITE/RED PARKINGLIGHTINPUT

2 WHITE PARKINGLIGHTOUTPUT

Locate the parking light output wire at the vehicle’s light switch.

Verification: This wire registers positive voltage when the parking lights

are turned on.

Positive switching Parking Lights:

Connect the WHITE/RED wire to a 15 Amp max fused battery source.

Connect the WHITE wire to the parking light output wire.

Negative switching Parking Lights:

Connect the WHITE/RED wire to a good chassis ground.

Connect the WHITE wire to the parking light output wire.

4 ORANGE GROUNDWHENARMEDOUTPUT(-)

This wire will have a continuous ( - ) 200mA output when the system is Armed. This

wire is typically used for controlling window modules or additional sensors.

6 BROWN/BLACK HORNOUTPUT ( - )

Locate the vehicle’s horn wire.

Verification: This wire will register at positive voltage and register

ground when the horn switch is pressed.

Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current

output, 200mA.

5 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

7 YELLOW IGNITIONINPUT ( +)

Locate the vehicle’s ignition wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position. The voltage does not drop out when the key is turned to the

START(or CRANK) position.

Connect the YELLOW wire to the vehicle’s Ignition wire.

8 RED/WHITE TRUNKRELEASEOUTPUT( - )

Locate the vehicle’s trunk release wire at the trunk release switch.

Verification: This wire will register either positive voltage or ground when the trunk

release is activated.

This is a low current output, 200mA.

6 Pin Door Lock Output Harness

1 BROWN/BLACK UNLOCKSWITCH( 87A )

2 BLUE/BLACK UNLOCK MOTOR ( 30 )

3 VIOLET/BLACK UNLOCK POLARITY ( 87 )

4 WHITE/BLACK LOCK SWITCH ( 87A )

5 GREEN/BLACK LOCK MOTOR ( 30 )

6 VIOLET LOCK POLARITY ( 87 )

The door lock / unlock outputs are designed to control several different types of

systems which may require additional parts.

3 Wire Ground Switched Door Locks:

Connect the GREEN/BLACK wire to the wire that provides a ground signal from

the factory door lock switch to the factory door lock control relay.

Connect the BLUE/BLACK wire to the wire that provides a ground signal from the

factory door unlock switch to the factory door lock control relay.

Connect the VIOLET and the VIOLET/BLACK wires to a solid chassis ground

point. The WHITE/BLACK and BROWN/BLACK wires are not required for this type

of door lock/unlock system.

3 Wire Positive Switched Door Locks:

Connect the GREEN/BLACK wire to the wire that provides a +12 volt signal from

the factory door lock switch to the factory door lock control relay.

Connect the BLUE/BLACK wire to the wire that provides a +12 volt signal from

the factory door unlock switch to the factory door lock control relay.

Connect the VIOLET and the VIOLET/BLACK wires to a +12 volt battery source.

The WHITE/BLACK and BROWN/BLACK wires are not required for this type of

door lock/unlock system.

LED Port

The LED included in the kit will serve as a visual indicator of the alarm’s status. It

should be installed in the dash, located where it can be easily seen from outside

the vehicle, yet not be distracting to the driver. Once a location has been

selected, check behind the panel for wire routing access, and to confirm the drill

will not damage any existing components as it passes through the panel. Drill a

1/4" hole, and pass the red and blue wires from the LED through the hole, from

the front of the panel. Firmly press the body of LED into the hole until fully seated.

Additional Ports

Programming / Valet Button Port

Select a mounting location that is within reach of the ignition switch, as this

switch in combination with the ignition switch, will be used to program the certain

features of the system. It is suggested that the switch be mounted to the lower

dash panel in the driver’s area within reach of the driver.

Manual Feature Programming - Feature Bank 2 & 3

1. Turn the ignition ON.

2. Press and hold the valet/override button.

3. Within 10 seconds the system will chirp (3) three times.

4. Use the valet/override button to advance through each option bank. For

feature programming advance to Feature Bank 2 or 3, which is (4) four or (5) five

chirps.

5. Use the transmitter button to scroll through the selections in each feature

bank, the system will chirp to match the feature number.

6. Press the transmitter button to change the desired feature. The LED will

flash indicating the changed feature.

Set Up & Programming

Transmitter Programming - Feature Bank 1

1. Turn the ignition ON.

2. Press and hold the valet/override button.

3. Within 10 seconds the system will chirp (3) three times.

4. Press 1 button of each transmitter you wish to program.

5. The system will respond with 1 chirp for each accepted transmitter.

6. Pressing the override button at anytime during programming will advance to the

next bank.

NOTE: The system will exit transmitter programming after 15 seconds of inactivity.

NOTE: This system has 1 button programming which programs all channels of the

system.

NOTE: The system will hold up to 4 transmitters in memory, programming a 5th

transmitter will erase the oldest transmitter in memory.

Defaulting All Features: Pressing the button anytime while in any of the

feature banks will default all features and return you to feature bank 2 - 4 chirps.

NOTE: The system will remain in feature programming mode as long as the

ignition is on, there is no time limit. To exit programming turn the IGNITION OFF.

Chirp Delete - User Accessible

System ARM/DISARM chirps can be toggled ON or OFF without entering the

programming feature banks.

1. Turn the ignition ON then OFF.

2. Press and release the valet/programming button 3 times. The system will

respond with 1 chirp for ON or 2 chirps for OFF.

Feature Bank 1 - 3 Chirps

Transmitter Programming

Refer to transmitter programming.
