CA 100 Owners Manual

128-6530

2 of 10

Page 2

Your System has many features and available options some of which are

selected at time of installation. Consult your installing dealer for options that

may have been installed and are not listed.

ARMINGTHESYSTEM:

1. Turn the engine OFF, exit the vehicle, and close all doors, hood and trunk.

2. Press and release the LOCK button of your key chain transmitter one time.

The parking lights will flash once, the siren will chirp once, and the dash

mounted LED will begin to flash slowly confirming the system is armed. If you

have the optional door lock/unlock circuit installed, the doors will lock.

NOTE: If the siren/horn sounds 3 chirps, then you have left a door, trunk, or

hood lid ajar. Simply close the opened entry point to provide full protection. If

the siren "chirped" 3 times, sometime after arming, the exclusive delayed

dome light learn circuit has been programmed and the system detected a

open entry point after the learned delay expired. Again, closing the hood,

trunk, or doors will correct the problem and you do not need to disarm the

system to make the correction.

ARMINGTHESYSTEM:

If the passive arming feature has been selected:

Turn the engine OFF, exit the vehicle, and close all doors, hood and trunk.

The dash mounted LED will begin to flash rapidly indicating that the 30

second passive arming timer has begun. If the LED does not begin to flash

rapidly, then you have left a door, hood, or trunk ajar. Closing this entry point

will allow the arming cycle will begin. If any entry point is opened during the

30 second arming cycle, arming will be suspended. When all entry points are

closed, the arming cycle will begin again.

At the end of the 30 seconds, the parking lights will flash once, the siren will

chirp once, and the dash mounted LED will begin to flash slowly confirming

the system is armed. If the siren did not sound when arming, then the chirps

have been turned off. Refer to the section on "Eliminating the Arm/Disarm

Chirps" shown later in this manual. Passive door locking is a selectable

feature. If you have the optional door lock/unlock circuit installed, the doors

may or may not lock passively depending upon the setup during installation.

128-6530

3 of 10

PROTECTIONWHILETHE SYSTEM ISARMED:

Opening any protected entry point, hood, trunk, or doors will cause the alarm

to trigger immediately. The siren will sound and the parking lights will flash

for 30 seconds, then stop and continue to monitor all protected entry points. If

the thief left the door opened, the system will sound for six 30 second cycles

then shut down, isolate the triggered zone and continue to protect all other

zones.

Whenever the system is armed, the dash mounted LED will slowly flash. This

serves as a visual deterrent to a potential thief. This LED is a very low current

light emitting diode, and will not cause the battery to drain even if left

unattended for long periods of time.

Whenever the system is triggered, the vehicle's parking lights will flash for the

full siren sounding period. Optional - whenever the system is triggered, the

interior courtesy light will flash for the full siren sounding period.

Whenever the system is armed, the vehicle starter circuit is disabled, and the

vehicle will not start with the ignition key.

Whenever the system is armed, any strong impact to the vehicle will cause

the shock detector to trigger the alarm. Any lesser impact will cause the pre-

detect stage of the shock sensor to emit a few short series of warning tones

from the siren.

DISARMINGTHESYSTEM:

As you approach the vehicle, press and release the DISARM button on the

keychain transmitter. The parking lights will flash 2 times, the siren will chirp 2

times, and the dash mounted LED will turn off.

If you have the optional door lock/unlock circuit installed, the doors will unlock.

NOTE: If the passive arming mode was selected at time of installation, the

dash mounted LED will start flashing rapidly indicating that the system is

rearming. Opening any door will suspend the automatic arming.

If the parking lights flashed 3 times, and the siren chirps 4 times, this

indicates that the alarm system was triggered during your absence. Before

turning on the ignition key, examine the dash mounted LED's flash pattern.

The number of flashes identifies the triggered zone. For additional

information, refer to INTRUSION WARNING SIGNALS found later in this

manual.

Page 3

128-6530

4 of 10

Page 4

INTRUSIONWARNINGSIGNAL:

This system will inform you if an intrusion attempt has occurred while you

were away from the vehicle. Upon disarm, the siren will chirp 4 times and the

parking lights will flash 3 times. Enter the vehicle and before turning on the

ignition switch, observe the LED flash pattern.

If the LED flashes 2 times...pause, 2 times...pause etc., then an intrusion

attempt was made to open the hood, trunk, or by an accessory triggering

device. Check the vehicle for indications of forced entry to these openings.

If the LED flashes 3 times...pause, 3 times...pause etc., then an intrusion

attempt was made to the vehicle doors. Check all doors for indications of

forced entry.

If the LED flashes 4 times...pause, 4 times...pause etc., then an intrusion

attempt was made by impact or a strong vibration that the shock sensor

detected. Check the vehicle for possible damage to the glass or body panels.

If the LED flashes 5 times...pause, 5 times...pause etc., then an intrusion

attempt was made by the ignition switch.

NOTE: The LED intrusion warning indications are stored in the system's

memory and will be erased when the ignition switch is turned on.

VALET SWITCH:

The valet switch allows you to temporarily bypass all alarm functions,

eliminating the need to hand your transmitter to parking attendants or garage

mechanics. When the system is in valet mode, all alarm functions are

bypassed, however the remote panic feature and remote door locks will

remain operational.

1. Enter the vehicle, and turn the ignition key to the ON position.

2. Press and hold the valet pushbutton switch until the dash mounted LED

turns on solid. The system will remain in the valet mode.

3. To return to normal operation, press and release the push button switch

any time the ignition is on.

NOTE: Always remember to return the vehicle to the valet OFF position. This

will ensure that the vehicle remains protected at all times.

128-6530

5 of 10

Page 5

MANUALLYOVERRIDINGYOURSYSTEM:

USINGTHEVALETSWITCH/MANUALOVERRIDE

Your system can be disarmed without the use of the keychain transmitter. This

is necessary, since you will need the ability to operate your vehicle if the

transmitter is lost or its battery fails. To by-pass the alarm system;

1. Open the vehicle door. The alarm will sound.

2. Turn the ignition key to the ON position.

3. Within 5 seconds, press and release the valet pushbutton switch.

The alarm system will stop sounding and enter the (by-passed) mode. You

can now start and operate the vehicle normally.

Typically this override mode is used only if the transmitter has become

inoperative.

ELIMINATINGTHE NORMAL ARM/DISARMCHIRPS

You can selectively eliminate the normal arm & disarm chirps by holding the

transmitter button slightly longer when arming or disarming. This will prevent

the siren chirps for one arm or disarm cycle. If you find this inconvenient and

wish to eliminate these chirps permanently, please check with your

installation center.

REMOTEPANICOPERATION:

The LOCK button on your keychain transmitter also functions as a panic

switch for use in emergency situations. To use remote panic,

1. Press and hold the LOCK button on the keychain transmitter for 3 or more

seconds. The alarm will immediately sound.

2. To stop the alarm, press and hold the LOCK button on the transmitter

again for 3 seconds. If the button is not pressed, the alarm will

automatically stop after 30 seconds.

NOTE: While in the Panic mode, pressing and releasing the Lock, or the

Unlock buttons will, if the option is installed, lock and unlock the doors

respectively. While in the panic mode, anytime the unlock button is pressed,

128-6530

6 of 10

Page 6

the panic feature will continue for the allotted 30 seconds, however, the

security system will be disarmed allowing the vehicle to start.

ADDITIONALREMOTEFUNCTIONCHANNEL3

The system has an optional feature, (Channel 3), that can be connected to the

Trunk Release. To operate channel 3, press and hold the UNLOCK button of

your keychain transmitter for four seconds.

ANTIHI-JACKMODEOPERATION

1. a) With the ignition switch on, and the doors closed, press and hold both

buttons of your keychain transmitter for 1 second to initiate the anti hi-jack

mode or open the door any time the ignition is on.

b) If while the ignition is on, and a door is opened and then all doors are

closed, the system will enter the anti hi-jack mode. The parking lights will turn

on for 1.5 seconds to indicate the mode was initiated.

2. 60 seconds after initiation, the siren will begin to sound and the parking

lights will begin to flash.

3. 90 seconds after initiation, the starter inhibit circuit, (if installed) will be

activated, the siren will sound and the parking lights will flash until the

vehicle's battery is dead, or until the system is reset.

Note: If you are the unfortunate victim of a vehicle hi-jack, for your personal

safety, it is best to leave the vehicle as quickly as possible. Never attempt to

oppose the teief in any way. If the thief prevents you from leaving the vehicle,

disarm the anti hi-jack mode to prevent the system from soundin while you are

in the presence of your captor. Once you exit the vehicle, opening and then

closing the door will initiate the anti hi-jack mode,and the system will go

through the cycle mentioned above. Once the engine is turned off, it cannot be

restarted if the optional starter inhibit circuit is installed. The system will

continue to make noise from the siren or horn and the parking lights will

continue to flash until the vehicle's battery is dead, or until the system is reset.

DISARMINGANTIHI-JACKMODE

Anytime after the anti hi-jack mode has been triggered, the circuit can be

disarmed simply by pressing the hidden push button switch. Depressing this

128-6530

7 of 10

Page 7

switch one time will reset the anti hi-jack mode.

128-6530

8 of 10

ALARMDASHLED INDICATORS

RAPIDFLASHING = PASSIVEARMING

SLOWFLASHING = ARMED

OFF = DISARMED

ONSOLID = VALETMODE

5 FLASH...PAUSE = INTRUSIONZONE5

4 FLASH...PAUSE = INTRUSIONZONE4

3 FLASH...PAUSE = INTRUSIONZONE3

2 FLASH...PAUSE = INTRUSIONZONE2

ALARMSIREN CHIRPINDICATION

1CHIRP* = ARM

2CHIRPS* = DISARMED

3CHIRPS = ARMINGWITHENTRYPOINTOPENED

4CHIRPS = DISARMAFTERINTRUSION

ALARMPARKING LAMPINDICATIONS

1FLASH = ARM

2FLASH = DISARM

3FLASH = DISARMAFTERINTRUSION

CA-100

SYSTEM FUNCTIONS AT A GLANCE

128-6530

9 of 10

Code Systems, Inc. Limited Lifetime Warranty

Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE

vehicle security product (the “Product”), purchased from an authorized CODE dealer, that (except as

provided below) should this Product under normal use and conditions, be proven defective in material

or workmanship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGINALLY

INSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge for parts

directly related to repairs of the defect(s).

Switches, indicator lights, and transmitter cases are similarly warranted to the original

purchaser for a period of one (1) year from the date of purchase of the Product.

CODE accessories, sold separately, are covered by the applicable warranty accompany-

ing the accessory.

This warranty is non-transferable, non-assignable and is voided when: (1) the Product is

removed from the vehicle in which it was originally installed; or (2) the vehicle in which the Product

was originally installed is transferred to another party.

This warranty does not apply to any product damaged by accident, physical or electrical

abuse, improper installation, alteration, or use contrary to its intended function, fire, flood, or other

natural acts.

In order for the Product to be repaired or replaced under the terms of this warranty, the

defective Product must be returned to an authorized CODE dealer and accompanied by a copy of the

retail sales receipt. The date of purchase and year, make and model of the vehicle in which the

Product was originally installed must be clearly indicated on the sales receipt.

This warranty is exclusive and CODE MAKES NO OTHER WARRANTIES EXPRESSED

OR IMPLIED. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE

DURATION OF THIS WRITTEN WARRANTY. IN NO CASE SHALL CODE BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WAR-

RANTY, EXPRESS OR IMPLIED, WHATSOEVER.

CODE does not warrant that the Product cannot be compromised or circumvented. THE EXTENT OF

CODE’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT

PROVIDED ABOVE AND, IN NO EVENT SHALL CODE’S LIABILITY EXCEED THE PURCHASE

PRICE PAID BY THE ORIGINAL PURCHASER OF THE PRODUCT WITHOUT INSTALLATION

LABOR.

Some states do not allow the exclusion or limitation of incidental or consequential dam-

ages, so the above limitation may not apply to you. This warranty gives you specific legal rights and

you may also have other rights which vary from state to state.

128-6530

10 of 10

Autres manuels pour CA100

Table des matières

Autres manuels Code Alarm Alarme de voiture

Code Alarm

Code Alarm CATX130 Mode d'emploi

Code Alarm

Code Alarm PRO 3500 Caractéristiques techniques

Code Alarm

Code Alarm CA-120 Manuel utilisateur

Code Alarm

Code Alarm Elite CA6155e Manuel utilisateur

Code Alarm

Code Alarm CA 170 Manuel utilisateur

Code Alarm

Code Alarm caSEC Manuel d'installation et d'exploitation

Code Alarm

Code Alarm ca 1151 Manuel utilisateur

Code Alarm

Code Alarm Professional ca6153 Manuel utilisateur

Code Alarm

Code Alarm PowerCode PC 7300 Manuel utilisateur

Code Alarm

Code Alarm CA 671 Manuel utilisateur

Code Alarm

Code Alarm ca6554 Manuel utilisateur

Code Alarm

Code Alarm CATX110 Mode d'emploi

Code Alarm

Code Alarm CA 6151 Manuel utilisateur

Code Alarm

Code Alarm CA-640 Manuel utilisateur

Code Alarm

Code Alarm 2000 Manuel utilisateur

Code Alarm

Code Alarm CA-160 Manuel utilisateur

Code Alarm

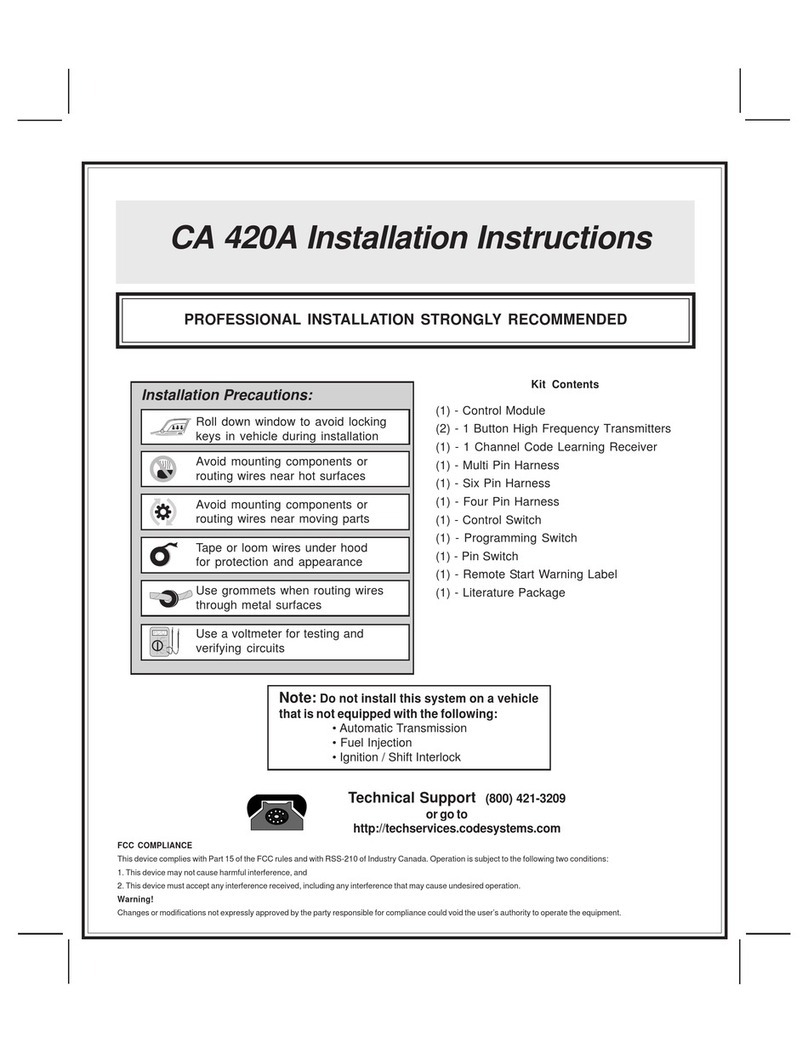

Code Alarm 420A Manuel utilisateur

Code Alarm

Code Alarm SRT 5500 Manuel utilisateur

Code Alarm

Code Alarm ca1554 Manuel utilisateur

Code Alarm

Code Alarm Car Alarm CA-310 Manuel utilisateur

Code Alarm

Code Alarm CATX120 Mode d'emploi

Code Alarm

Code Alarm PROFESSIONAL SERIES CA 1551 Manuel utilisateur

Code Alarm

Code Alarm PROFESSIONAL CA 1045 Manuel utilisateur

Code Alarm

Code Alarm CA-125 Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur
