PROFESSIONAL

SERIES

Security and Keyless Entry

Installation Guide

ca 1151

2 ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Before You Begin ......................................................................................3

Wire Connection Guide ...........................................................................4

6 Pin Main Harness ...................................................................................5

6 Pin Input / Output Harness ....................................................................6

3 Pin AUX Output Harness .......................................................................8

6 Pin Door Lock Output Harness .............................................................9

Additional Ports ......................................................................................10

LEDPort...................................................................................................10

ProgrammingPort....................................................................................10

Shock Sensor Port..................................................................................10

DBIPort....................................................................................................10

Set Up & Programming.......................................................................... 11

Transmitter Programming........................................................................ 11

Manual Feature Programming................................................................. 11

Programming Feature Banks ..................................................................12

Adjusting the Shock Sensor ..................................................................13

Testing the Shock Sensor ......................................................................13

Chirp Delete - User Accessible..............................................................13

Dome Light Delay / Theater Dimming .....................................................13

Feature Descriptions ............................................................................. 14

Transmitter Button Functions .............................................................16

Security Trigger Zones .........................................................................17

System Layout.........................................................................................18

Table of Contents

3ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

PROFESSIONALINSTALLATION

STRONGLYRECOMMENDED

Installation Precautions:

Roll down window to avoid locking keys in vehicle

during installation

Avoid mounting components or routing wires near

hot surfaces

Avoid mounting components or routing wires near

moving parts

Tape or loom wires under hood for protection and

appearance

Technical Support (800) 421-3209

or go to

http://techservices.codesystems.com

Use a Digital Multi Meter for testing and verifying

circuits. DO NOT USE A TEST LIGHT, OR

"COMPUTER SAFE PROBE" as these can set off air

bags or damage vehicle computers.

Use grommets when routing wires through metal

surfaces

BEFORE YOU BEGIN

4 ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

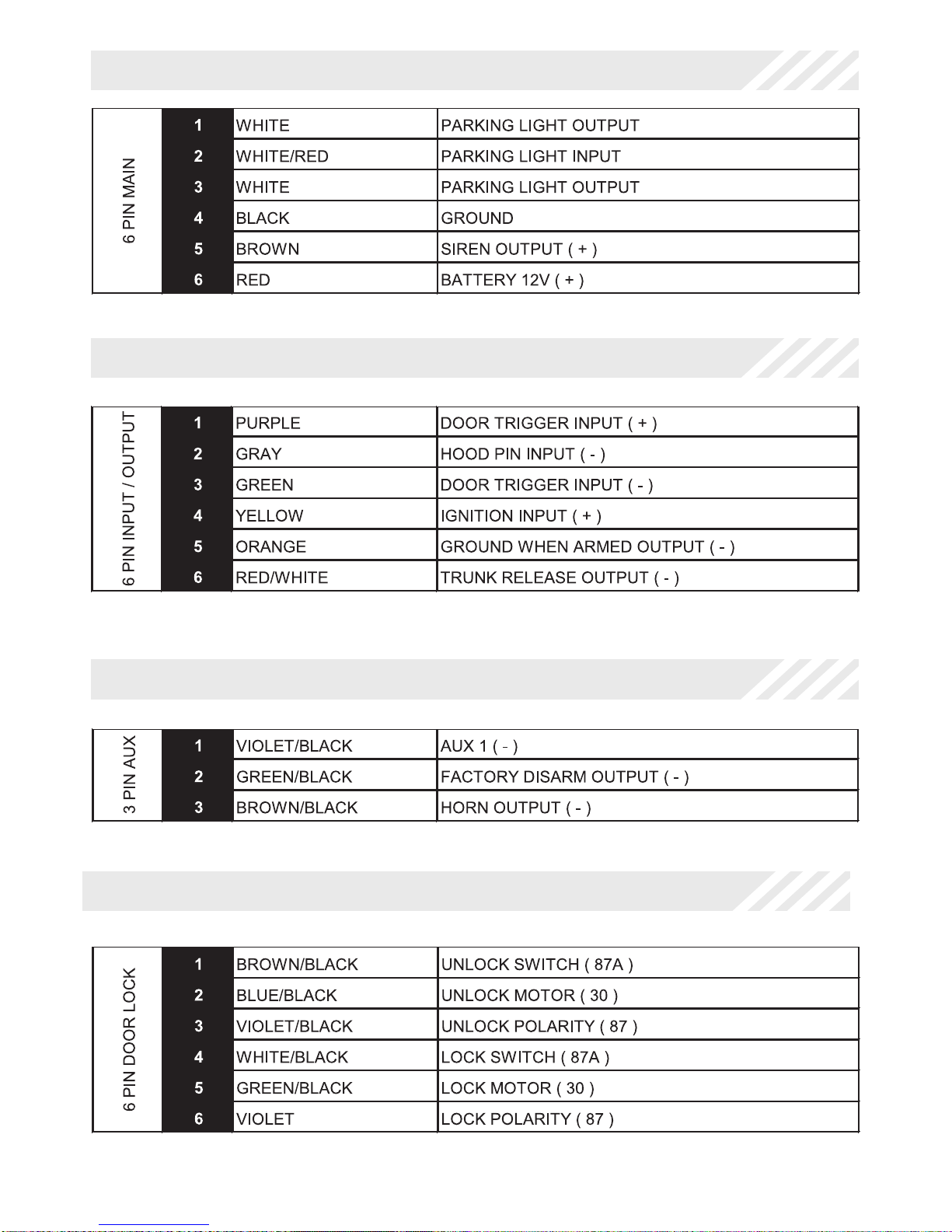

3 Pin AUX Output Harness

6 Pin Input / Output Harness

6 Pin Main Harness

6 Pin Door Lock Output Harness

5ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

4 BLACK GROUND

Connect the BLACK wire to a solid chassis ground point using a ring terminal and

self tapping screw (not supplied). Scrape away paint from the grounding point to

ensure a good connection. The recommended grounding point is a metal surface

in the driver’s side kick panel area.

NOTE: Do not ground the BLACK wire with any other vehicle components.

6 Pin Main Harness

1 WHITE PARKINGLIGHTOUTPUT

2 WHITE/RED PARKINGLIGHTINPUT

3 WHITE PARKINGLIGHTOUTPUT

Locate the parking light output wire at the vehicle’s light switch.

Verification: This wire registers positive voltage when the parking lights

are turned on.

Positive switching Parking Lights:

Connect the WHITE/RED wire to a 15 Amp max fused battery source.

Connect the WHITE wire to the parking light output wire.

Negative switching Parking Lights:

Connect the WHITE/RED wire to a good chassis ground.

Connect the WHITE wire to the parking light output wire.

5 BROWN SIRENOUTPUT( +)

Locate a suitable mounting location in the engine compartment for the siren, away

from moving parts.

With the bell of the siren aiming downwards, secure the siren in place using self

tapping screws, being careful not do drill into any hoses, wiring or components.

Connect the BLACK siren wire to a chassis ground using a ring terminal and self

tapping screw (not supplied).

Route the BROWN siren output wire from the control module through the firewall

and connect to the RED wire on the siren.

NOTE: Be sure to loom the siren wires, and seal the grommet.

6 ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

6 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

6 Pin Input / Output Harness

1 PURPLE DOORTRIGGERINPUT( +)

Locate the vehicle’s dome light or door pin switch wire.

Verification: This wire will register positive voltage (POS) when the door is

opened and the interior light is on. This wire will

off.

Connect the PURPLE wire to the vehicle’s positive door input wire(s).

NOTE: Certain vehicles may require multiple connections. Refer to vehicle

application guide

2 GRAY HOODPIN INPUT( -)

Install a Hood Pin Switch and connect to the GRAY wire.

Verification: This wire when connected will register ground when the

vehicle's hood is opened.

Connect the GRAY wire to the hood pin.

NOTE: Be sure to loom the wire, and seal the grommet.

7ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

5 ORANGE GROUNDWHENARMEDOUTPUT(- )

This wire will have a continuous ( - ) 300mA output when the system is Armed. This

wire is typically used for controlling window modules or additional sensors.

4 YELLOW IGNITIONINPUT(+)

Locate the vehicle’s ignition wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position. The voltage does not drop out when the key is turned to the

START(or CRANK) position.

Connect the YELLOW wire to the vehicle’s Ignition wire.

6 RED/WHITE TRUNKRELEASE OUTPUT(- )

Locate the vehicle’s trunk release wire at the trunk release switch.

Verification: This wire will register either positive voltage or ground when

the trunk release is activated.

This is a low current output, 300mA.

3 GREEN DOORTRIGGERINPUT (- )

Locate the vehicle’s dome light or door pin switch wire.

Verification: This wire will register ground (NEG) when the door is opened

and the interior light is on. This wire will register positive voltage when the

door is closed and the interior light is off.

Connect the GREEN wire to the vehicle’s negative door input wire(s).

NOTE: Certain vehicles may require multiple connections. Refer to vehicle

application guide

8 ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

1 VIOLET/BLACK AUX 1 OUTPUT ( - )

This wire provides a ( - ) 300mA output capable of driving relays. For Control of

optional accessories (i.e. Power Window/Sunroof, etc.).

To activate refer to the transmitter button configuration chart. Please refer to the

selectable options for timing.

3 BROWN/BLACK HORNOUTPUT (- )

Locate the vehicle’s horn wire.

Verification: This wire will register at positive voltage and register

ground when the horn switch is pressed.

Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current

output, 300mA.

3 Pin AUX Output Harness

2 GREEN/BLACK FACTORY DISARM ( - )

This wire will supply a ( - ) 300mA pulse both upon disarming the system and

when the trunk release feature is activated. Locate the factory perimeter alarm

disarm wire from the key cylinder inside the drivers door.

Verification: This wire registers ground if the key is turned to the unlock

position in the driver’s door cylinder.

Connect the GREEN/BLACK wire to the factory alarm disarm wire.

9ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

6 Pin Door Lock Output Harness

1 BROWN/BLACK UNLOCKSWITCH (87A )

2 BLUE/BLACK UNLOCK MOTOR ( 30 )

3 VIOLET/BLACK UNLOCK POLARITY ( 87 )

4 WHITE/BLACK LOCK SWITCH ( 87A )

5 GREEN/BLACK LOCK MOTOR ( 30 )

6 VIOLET LOCK POLARITY ( 87 )

The door lock / unlock outputs are designed to control several different types of

systems which may require additional parts.

3 Wire Ground Switched Door Locks:

Connect the GREEN/BLACK wire to the wire that provides a ground signal from

the factory door lock switch to the factory door lock control relay.

Connect the BLUE/BLACK wire to the wire that provides a ground signal from the

factory door unlock switch to the factory door lock control relay.

Connect the VIOLET and the VIOLET/BLACK wires to a solid chassis ground

point. The WHITE/BLACK and BROWN/BLACK wires are not required for this type

of door lock/unlock system.

3 Wire Positive Switched Door Locks:

Connect the GREEN/BLACK wire to the wire that provides a +12 volt signal from

the factory door lock switch to the factory door lock control relay.

Connect the BLUE/BLACK wire to the wire that provides a +12 volt signal from

the factory door unlock switch to the factory door lock control relay.

Connect the VIOLET and the VIOLET/BLACK wires to a +12 volt battery source.

The WHITE/BLACK and BROWN/BLACK wires are not required for this type of

door lock/unlock system.

10 ca1151revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Data Bus Interface Port

This 4 pin port is used for Flashlogic Door Lock and Transponder Databus

Interfaces to communicate with the vehicle's Databus. When using the DBI port to

control the Flashlogic Door Lock and Transponder Interface modules the

following options may be available. Please refer to the D2D (Data to Data)

function list available per vehicle on the tech service web site.

Door Trigger

Trunk/Hatch Open Door Lock Control

Dome Light Supervision Factory Alarm Arm / Disarm

Manual Arm / Disarm Inputs (factory keyless controls system)

LED Port

The LED included in the kit will serve as a visual indicator of the alarm’s status. It

should be installed in the dash, located where it can be easily seen from outside

the vehicle, yet not be distracting to the driver. Once a location has been

selected, check behind the panel for wire routing access, and to confirm the drill

will not damage any existing components as it passes through the panel. Drill a

1/4" hole, and pass the red and blue wires from the LED through the hole, from

the front of the panel. Firmly press the body of LED into the hole until fully seated.

Additional Ports

Programming / Valet Button Port

Select a mounting location that is within reach of the ignition switch, as this

switch in combination with the ignition switch, will be used to program the certain

features of the system. It is suggested that the switch be mounted to the lower

dash panel in the driver’s area within reach of the driver.

Shock Sensor Port

Select a solid mounting surface for the shock sensor inside the passenger

compartment (behind the dash), and mount the sensor using cable ties, making

sure to allow access to the sensitivity adjustment for use later in the installation.

Autres manuels pour ca 1151

Table des matières

Autres manuels Code Alarm Alarme de voiture

Code Alarm

Code Alarm CA 521 Manuel utilisateur

Code Alarm

Code Alarm Elite CA6155e Manuel utilisateur

Code Alarm

Code Alarm CA 170 Manuel utilisateur

Code Alarm

Code Alarm Professional Series CA 1050 Manuel utilisateur

Code Alarm

Code Alarm CA1B5 Manuel utilisateur

Code Alarm

Code Alarm CA-230 Manuel utilisateur

Code Alarm

Code Alarm ca 1552 Professional Series Manuel utilisateur

Code Alarm

Code Alarm CA 420 Manuel utilisateur

Code Alarm

Code Alarm CA-120 Manuel utilisateur

Code Alarm

Code Alarm CATX130 Mode d'emploi

Code Alarm

Code Alarm Elite ca1155E Manuel utilisateur

Code Alarm

Code Alarm PRO 3500 Caractéristiques techniques

Code Alarm

Code Alarm CA 110 Manuel utilisateur

Code Alarm

Code Alarm ca6355E Manuel utilisateur

Code Alarm

Code Alarm CA 180 Manuel utilisateur

Code Alarm

Code Alarm ca6554 Manuel utilisateur

Code Alarm

Code Alarm CA 1550 Manuel utilisateur

Code Alarm

Code Alarm SRT 1600 Manuel utilisateur

Code Alarm

Code Alarm CA 680 Manuel utilisateur

Code Alarm

Code Alarm CATX510 Mode d'emploi

Code Alarm

Code Alarm CA-125 Manuel utilisateur

Code Alarm

Code Alarm CATX610 Mode d'emploi

Code Alarm

Code Alarm CA-500 Manuel utilisateur

Code Alarm

Code Alarm 420A Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur

Code Alarm ca 1151 Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques
