CLiC-iT RiDER Instructions d'utilisation

#Ed17 05-09-22ENENCLiC-iT RiDER CONTINUOUS BELAY SYSTEMfor:INSTRUCTIONS AND MAINTENANCE MANUAL

#INDEXAPPENDIX. Path examples 26

A.Components 3

GlossaryŸMCD: Mobile Connection Device. Technical deﬁnition that describe a pulley-type product according to En17109..ŸIMN&CLiC-iT CBS: Continuous Safety Line System of IMN & CLiC-iT.1.CliC-iT Rider components compatibility 32.Anchor 43.Anchor Wedge 64.Articulated arms 85.Positionners 106.Anchor plate for trees 117.Non-Returns 128.Inverters 149.Cable connector 1410.Route Swapper 15B.Parcours design 16 C.Responsability & General Recommendations 21 D.Control & Maintenance sheet 23 1.Optimal path 162.Installation according to different slopes and inclinations 173.Safety line height 174.Ziplines 185.Safety line cable installation 19

#Structural anchorages compatible with the CLiC-iT Rider Pulley must meet the requirements of the UNE EN 795:2012 standard to ensure user safety. Moreover the instructions of the lifeline must comply with the En15767 standard.Below are the dimensional requirements that an anchorage must meet to be considered compatible with the CLiC-iT Rider Pulley:ŸThe anchorage must be inclined 35º with the vertical axis to ensure correct movement of the MCD, correct stability and avoid collisions in the system.

Ø20mm max. thickness: 5mmmin. neck length:20mm

80mm min.

70mm min.

1.11 CLiC-iT Rider components compatibilityClic-It Rider Pulley12341243Pin Lock CarabinerAnchorCableIMN & Clic-it CBS system is exclusively compatible with the Clit-it Rider Pulley.Do not use other type of pulleys on this safety line. In order to ensure a safe installation use only components supplied or recommended by CLiC-iT or IMN.Please refer to the Clic-it Rider pulley manual, pinlock manual and lanyard manual for complete instructions for use.SAFETY LINE CABLE FOR CLiC-iT Rider Pulley:Type: 6x19 + IWRC (steel core compacted) Nominal diameter: 12 mm Core: steel Surface Treatment: hot-deep galvanized Real diameter: ø = 12mmResistance: 127 kN Cable compatibilityA. COMPONENTS1

#Reference: LAN-V2x1x3x4x3x3x4ACDBEFACEBDFAnchor BodyFix screw.DIN 933 M10x40 Thin nut.DIN 936 M10 Anchor Screw.DIN 912 M8x35 Self-Locking nut.DIN 985 M8 Fastening partThe Anchor installation and maintenance requires the use of a calibrated torque wrench.The installation of the Anchor on the Anchor Wedge or in the Artculated arm is carried out using the components D and F according to the assembly procedure of this manual.Anchor allows a continuous movement for CLiC-iT Rider Pulley along the entire game course. Its function is to guide the IMN&CliC-iT Safety Line cable and keeping it ﬁxed at a certain point. To do this, 3 gripping pieces press the cable and prevent any movement.2Required tools:

Manual or Digital Torque Wrench

Ex: Irimo

Supported safety cable diameter

12 mm

17mm Hexagonal head or 17mm Hexagonal socket

! The use of an impact wrench is not allowed.! Never exceed the indicated torque.! Ignoring these indications can lead to anchor fracture.To ﬁx the safety cable, you must exert a torque of 40 N / m on each M10 screw.A torque wrench must be used to not exceed this value.Finally, manually tighten the nuts of each screw.ŸDon´t clean Anchor with soap or water.ŸTo remove dirt from Anchor use air or a damp cloth.ŸAvoid long exposure of the product in saline environments.40 N/m40 N/m40 N/m Anchorx4G*G*Flat washer DIN 125 M8. *Only to be used when assembled on articulated arms. Anchor and Anchor Wedge assemblyAnchor and Articulated arm assembly2.5 Assemblies2.4 Cleaning recommendations2.3 Essential instructions2.1 Description2.2 Anchor components

#Essential Technical Specications.Anchorage designed for safety lines equipped with 12 mm diameter steel cable.Code respective to the production batch and correlative to the part version.Standard for personal protective equipment against falls in height.It establishes the technical requirements necessary to cover the possible health and safety risks associated with the use of the product.Compliance with European Directive 89/686/EEC: Personal protective equipment (PPE).Individual identiﬁcation code. (A):part denomination.(XXXX): unique numeric code.Limit load capacity established by the manufacturer for use in the indicated direction.

A0854

A0854Essential instructions for product use described in the manual.Marking a line on the screws will indicate if the anchor loosens over me.The screws will not be ght if the line is not straight.2.6 Traceability and Marking

#Articulated arms Other IMN & CLiC-iT CBS components Anchor Plate for TreesPositionerInvertersReferences:References:Reference: AP-V2Simple articulated Arm (Left side)Simple articulated Arm (Right side)Double articulated arm (Left side)Double articulated arm (Right side)References:SAL-V1BAL-V1BAR-V1SAR-V1Anchor Plate for Trees is used in adventure parks installed on trees. On this are mounted the necessary elements to drive the IMN & CLiC-iT CBS in the desired direction. The installation system prevents damage to the natural environment.This element inverts the po sit ion ing o f t he anchorage and allows to adjust the inclination of this to adapt to a certain trajectory of IMN & CLiC-iT CBS.Vertical PositionerHorizontal Positioner.Structural Inverter Non Structural InverterVP-V2VH-V1IN-V3INP-V15Anchor WedgeReference: LDV-C-ED3Anchor Wedge is a piece of cast steel whose function is to provide the ideal inclination of 35º for Anchor. This is the standard connecting element for attaching the Anchors to the structural poles of an adventure park.3Positioners are auxiliary anchors wich are located at points where high structural strength is not required required.More info in page 14Connection for AnchorConnection for AnchorConnection for AnchorConnection for Vertical PositionerConnection for Vertical PositionerConnection to structural surfaceConnection for Non ReturnConnection for Anchor Wedge

Anchor Wedge ScrewsDIN 933 M8x35 Assembly order Anchor Anchor Wedge Self-Locking nutsDIN 985 M8 AnchorWedgex81st Step

2nd Step

Required tools:Hex Key - 6mm (7/32'')Tightened 20 N/mRequired tools:Spanner - ISO/DIN13mmTighttened 20 N/m1st Step2nd Step3.1 Description3.2 Anchor and Anchor Wedge assembly

#DIN 933 ScrewM8x35 (min.)A2DIN 933 Self-Locking nutM8 8.8x4x4The location where the IMN&CLiC-iT CBS elements will be installed shall meet the following requirements:ŸMust have suﬃcient mechanical strength to install the system.ŸA vertical surface is required to install Anchor Wedge.ŸThis vetical surface must have the necessary holes to screw Anchor Wedge.The connection of Anchor Wedge on a vertical surface is carried out according to the following scheme:Before the purchase of MN&CLiC-iT CBS items it´s necessary to know the park characteristics and design the structural components necessary for the installation of the system.Holes dimensions to install Anchor WedgeExample for structural parksAnchor + Anchor Wedge + Connection PartExample of connection part design for structural parks Anchor Wedge holesdimensionsRequired tools:Spanner - ISO/DIN13mm 68

8,5

68 *For Le-Clou system. Please contact for more information.3.3 Anchor Wedge Installation*

#4.1 Articulated arms. Types and connections Simple articulated Arm (Left side)Simple articulated Arm (Right side)Double articulated arm (Left side)Double articulated arm (Right side)Reference: SAL-V1Reference: BAL-V1Reference: BAR-V1Reference: SAR-V1The arm is installed with one or two 1/2 inch shacle with safety bolt depending on the case. For horizontal structural connections, two shackles For vertical structural connections, one 5.1Articulated Arms41/2 inch shackle with safety boltUse only shackles provided by IMN & CLiC-iTArm connection in tree parksFor tree sling connections, one shackle are required.Left armRight armThe front part falls to the right sideThe front part falls to the left side

Anchor ScrewsDIN 912 M8x35 Flat WasherDIN 125 M8 x4x4x4x4x4x4Anchor Articulated Arm Self-Locking nutsDIN 985 M820 Nm

4.3 Articulated arms installaton in structural parks4.2 Anchor and Articulated arms assemblyRequired tools:Spanner - ISO/DIN13mmHex Key - 6mm (7/32")

#Ratchet Tape1.500Kg x (?)m. Width 35mmPlastic Tube.Ratchet tape protector D32mm x L160mmWood Plank.Tree protector x2x1x21/2 (inch) Shackle with safety bolt10-15cmØ Tree ++2.000Kg Lifting SlingLark´s headAnchor Articulated Arm To install an Articulated Arm on a tree a 2000 Kg lifting sling is required.The remaining length after the knot should protrude between 10 and 15 cm.Be sure to measure the diameter of the tree at the height where the installation will be made.The ratchet tape must be located in an inaccessible position to the user.Slings are measured end to endRequired items: Anchor Plate for Trees using ratchet tape.4.4 Articulated Arm installation on trees using lifting sling Secure the ratchet with a cable tieThe nut of the shackle must be instaled on the opposite side where the arm falls

4.5 Articulated Arm installation on trees using “Le Clou” system1/2 (inch) Shackle with safety boltReference: CMU 2T MR Bolt shackleFollow carefully all recommendations of Le Clou safety line user manualFor axial load onlyFor axial & radial load 1/2 (inch) Shackle with safety boltM22 1T2 Female lifting eyeNail for Safety line M22+Anchor Articulated Arm 1/2 (inch) Shackle ith wsafety bolt

Nail for Safety lineM22Junction linkMR ø10-8 CMU3T150 Type

+Anchor Articulated Arm

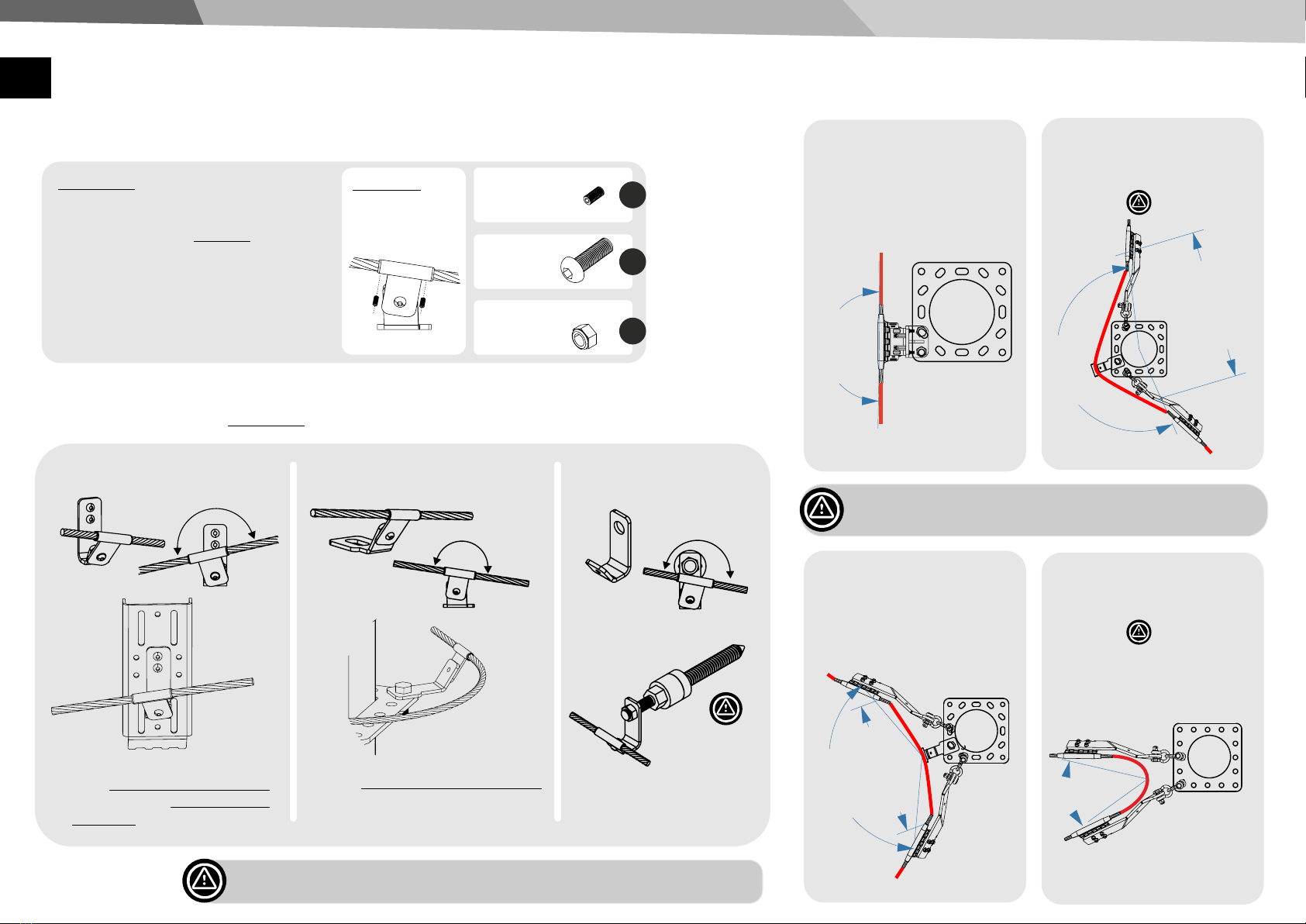

#Positioners are an economical option to guide the safety line cable at points where the structural strength provided by an Anchor is not required.Vertical Positioners can be installed on the back of the Inverters for situations where a double lifeline is required.Ex: Vertical Positioner installed on Anchor Plate for TreesEx: Vertical Positioner installed on Non Structural InverterEx: Horizontal Positioner installed on structural pole.There are two types of Positioners, depending on whether a vertical or horizontal installation is required.This devices can rotate to accommodate the path inclination required by the safety line.Vertical Positioner.Horizontal Positioner.Reference: HP-V1Reference: VP-V2DIN 7380 ScrewM8x20 (min.)A2DIN 7380 Set ScrewM5x5A2DIN 933 Self-Locking nutM8 8.8x1x1x2Positioners ﬁxes cable using two M5x5 set screws.

20,7

250

12,7 20,7

250

12,7

5.1 Descriptionα = 180º ± 6º

α > 200º

α < 180º

>50 cm

α < 45º

> 50 cm

Positioners55.2 ReferencesVertical Positioner for Le Clou BackupReference: CR-PO-ADEx: Positioner with backup nail M20 in Le Clou Safety lineFollow carefully all recommendations of Le Clou safety line user manual5.3 How to use positionersNO POSITIONERS1 or 2 POSITIONERSFor further information and your parcour design test please contact usNO POSITIONERS1 or 2 POSITIONERS1 POSITIONERNO POSITIONER
