CLiC-iT RiDER Instructions d'utilisation

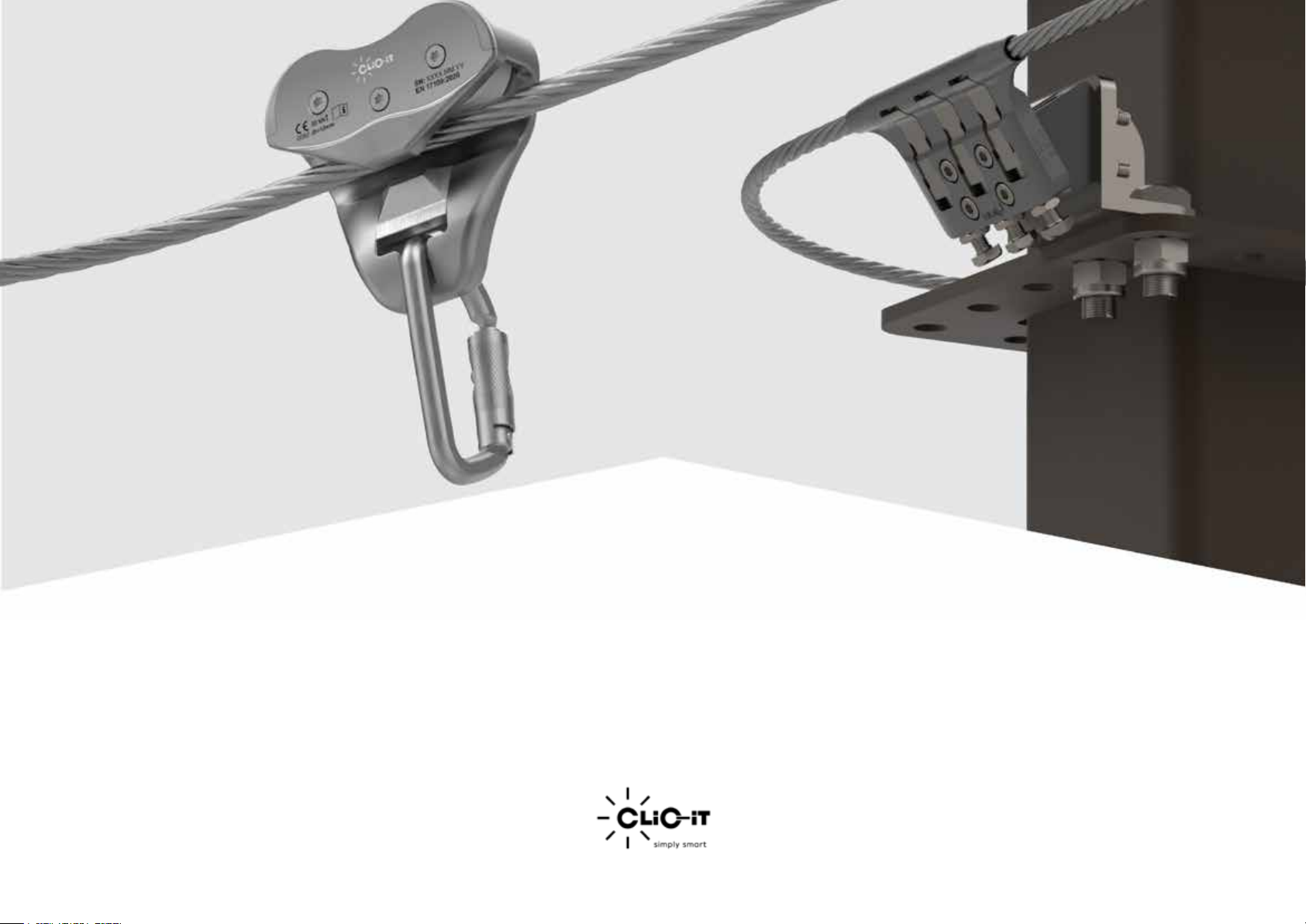

CLiC-iT RiDER
CONTINUOUS BELAY SYSTEM
INSTRUCTIONS AND MAINTENANCE MANUAL Rev B // 27-11-2023
a. components
1. CLiC-iT RiDER components compatibility
2. Anchor
3. Anchor wedge
4. Articulated arms
5. Positionners
6. Anchor plate for trees
7. Non-returns
8. Inverters
9. Cable connector
10. Route swapper
B. PARCOURS DESIGN
1. Optimal path
2. Installation according to different slopes and inclinations
3. Safety line height
4. Ziplines
5. Safety line cable installation
C. RESPONSABILITY & general recommendations
D. Control & MAINTENANCE SHEET
GLOSSARY
MCD: Mobile Connection Device.
Technical denition that describe
a pulley-type product according to
EN17109...
IMN&CLiC-iT CBS: Continuous
Safety Line Systrem of IMN &
CLiC-iT
INDEX 3
3
4
6
8
11
12
13
14
15
16
17
17
18
18
19
20
22
24
1
A. COMPONENTS

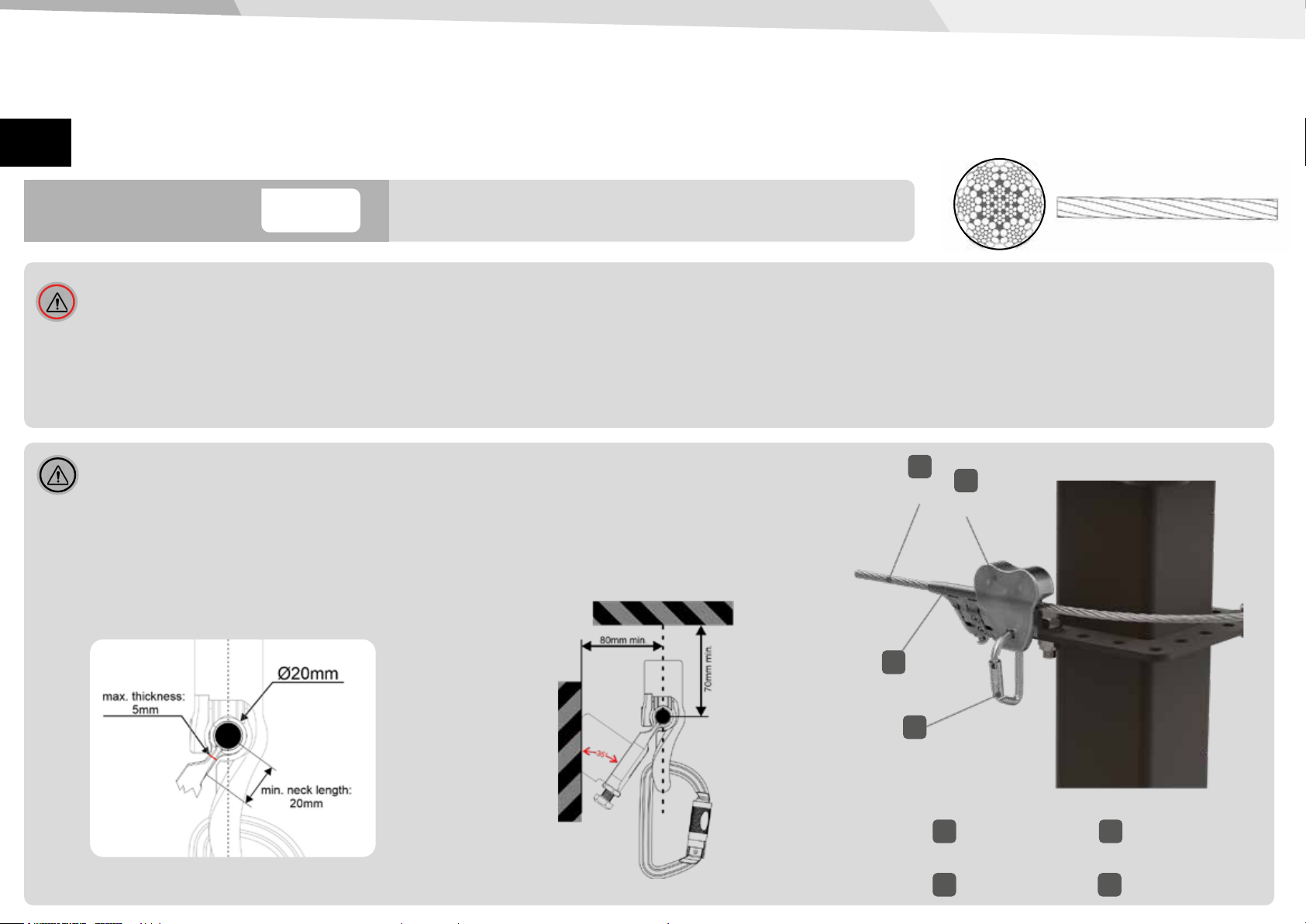

Clic-it rider components compatibility
The CLiC-iT RiDER continuous belay system is compatible exclusively with the CLiC-iT RiDER pulley. Do not use any other type of pulley on this lifeline. To
ensure safe installation, use only components and rope supplied or recommended by CLiC-iT or IMN. Using other components (screws, shackles, cable,
etc.) may affect the safety or durability of the continuous belay system. Please refer to the CLiC-iT RiDER Pulley, PIN-LOCK, Lanyard, LE CLOU Lifeline,
Spacer and Platform instruction manuals for full operating instructions. To avoid premature wear of the pulley, observe the installation recommendations
(distances, radii, angles, slopes, etc.). Failure to do so may result in the pulley rubbing against components (anchors, positioners, etc.). To avoid prema-
ture wear of the pulley, it is essential to check before opening the course that the pulley passes the anchors and positioners without impact or friction
over the entire course. For further information and to test your course design, please contact us.
Type: 6x19 + IWRC (steel core compacted)
Core: steel
Surface treatment: hot-deep galvanized
Nominal diameter: 12mm
Resistance: 127 kN
Real diameter: Ø = 12mm
1
4
3
2
1
2
3
4
CLiC-iT RiDER Pulley
PIN LOCK Carabiner
Anchor
Cable
Réf :
CR-CA-LDV

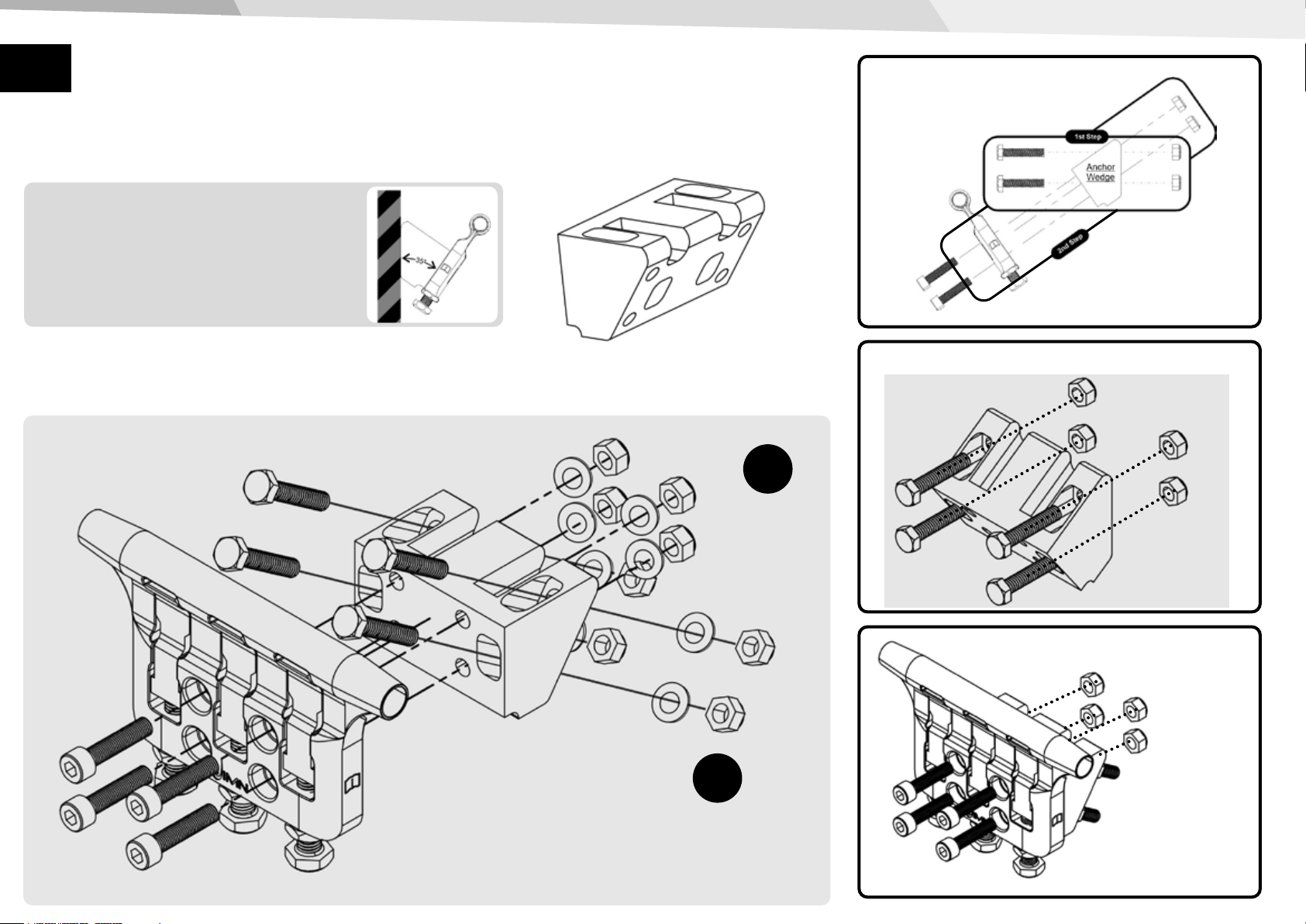

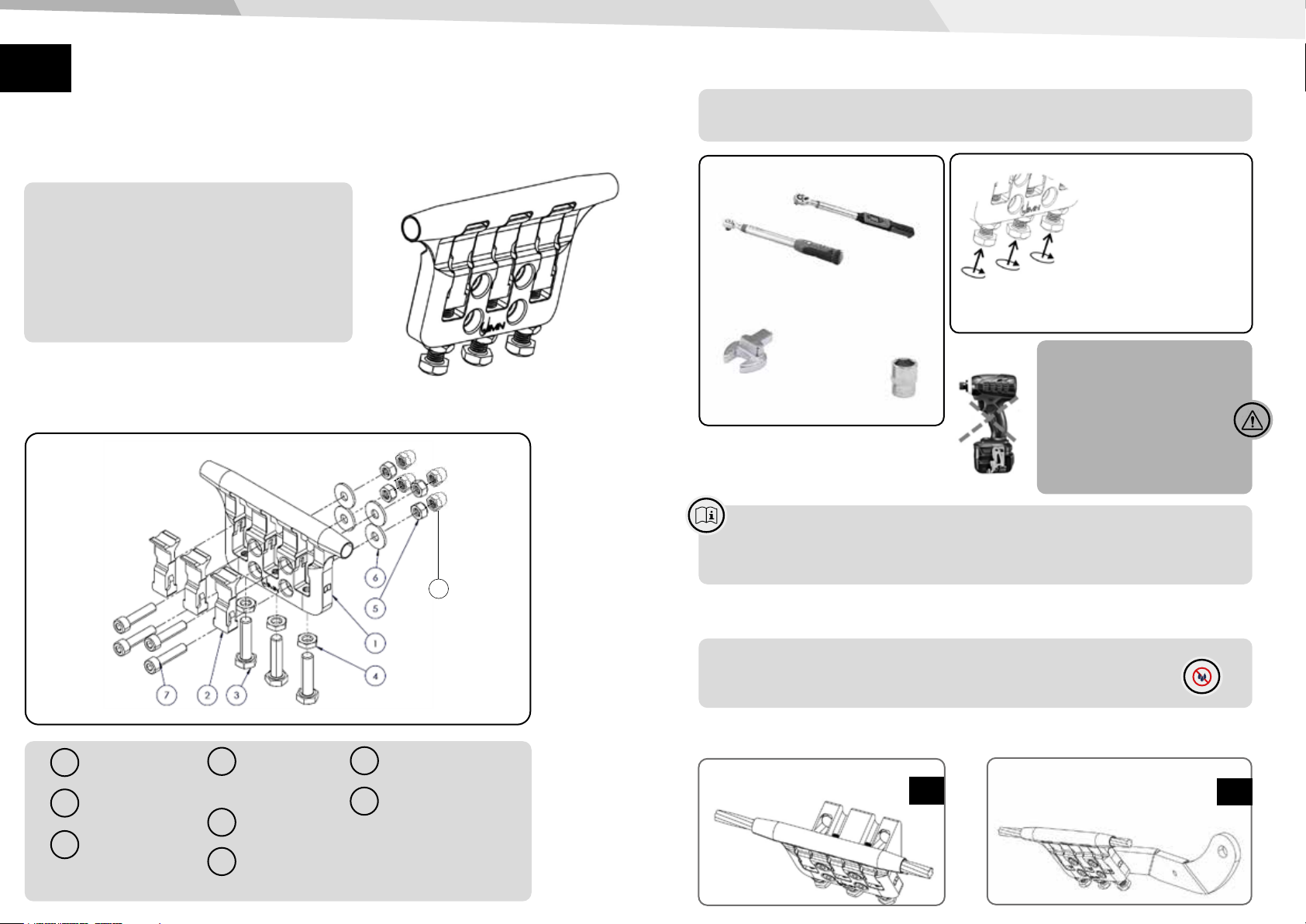

2ANCHOR
Reference: CR-AN
Anchor allows a continuous movement
for CLiC-iT RiDER Pulley along the entire
game course. Its function is to guide the
IMN&CliC-iT SafetyLine cable and kee-
ping it xed at a certain point. To do this,
3 gripping pieces press the cable and
prevent any movement.
2.1 Description
2.2 ANCHOR COMPONENTS
2.3 ESSENTIAL INSTRUCTIONS
2.4 CLEANING RECOMMENDATIONS
2.5 ASSEMBLIES
The Anchor installation and maintenance requires the use of
a calibrated torque wrench.
The installation of the anchor on the anchor wedge or on the art-
culated arm is carried out using the components 5, 6, 7 & 8 accor-
ding to the assembly procedure of this manual.
• Don´t clean Anchor with soap or water.
• To remove dirt from Anchor use compressed air or a damp cloth.
• Avoid long exposure of the product in saline environments.
Anchor and Anchor
Wedge assembly
Anchor and Articulated
arm assembly
! The use of an impact
wrench is not allowed.
! Never exceed the indi-
cated torque.
! Ignoring these indica-
tions can lead to anchor
fracture.
To x the safety
cable, you must exert
a torque of 40 N / m
on each M10 screw.
A torque wrench must
be used to not exceed
this value.
Finally, manually tighten the nuts of each screw.
Required tools:
Manual or Digital Torque Wrench
Ex: Irimo
17mm Hexagonal head
17mm Hexagonal socket
or
40N/m40N/m40N/m
8
1
2
3
4
5
6*
7
Anchor body
Fastening part
ScrewM8x35 A2
DIN912
Fixing screw
M10x40 ISO4017
geomet 500A
Bottom nut
M10 ISO4035
geomet 500A
Self-locking nut
M8 DIN985
Washer
M8 NFE25514
*Only to be used when assembled on articulated arms
8Cap nut M8 A2 DIN1587 3. 4.

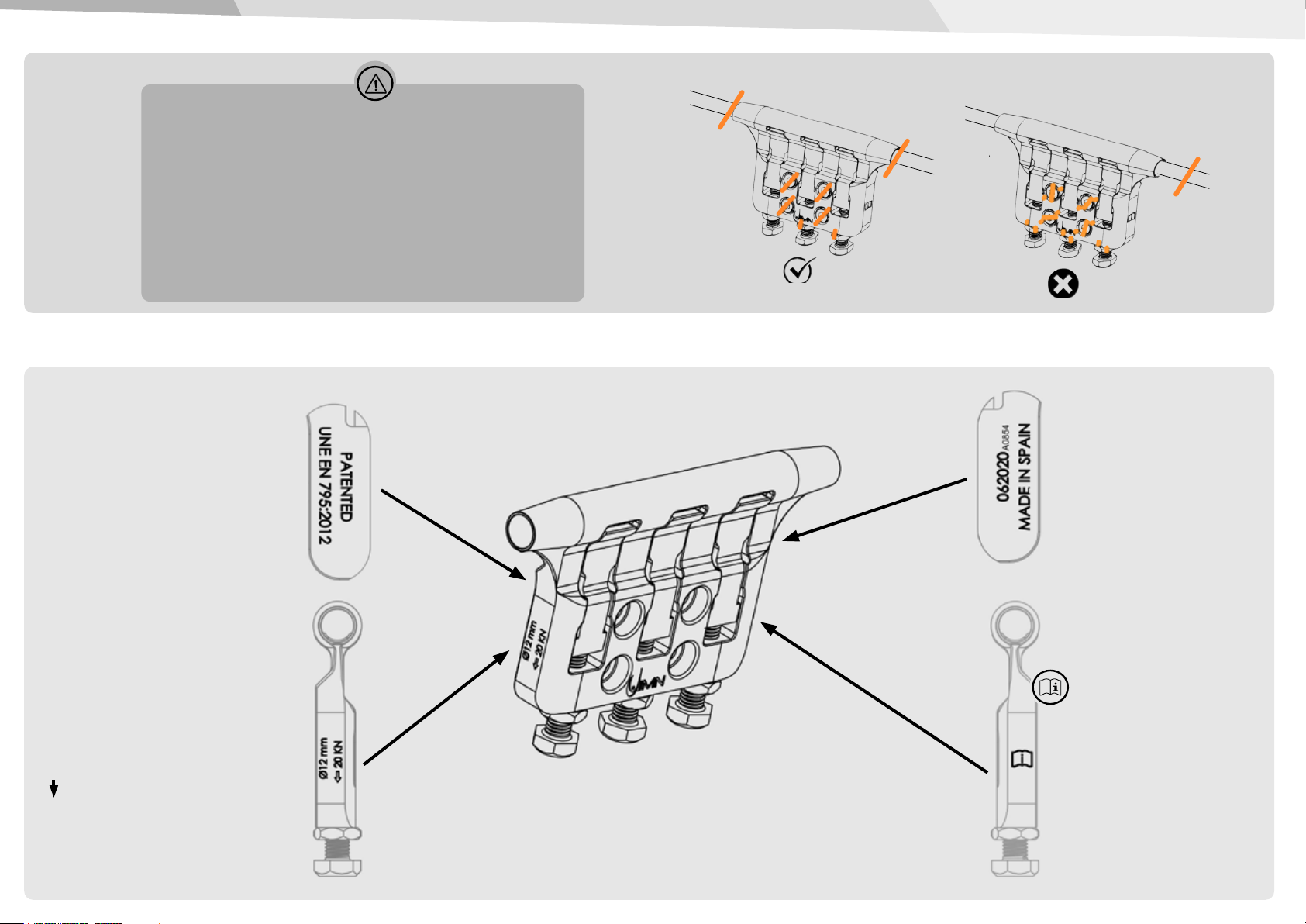

2.6 TRACEABILITY AND MARKING
Standard for personal protective
equipment against falls in height.
It establishes the technical require-
ments necessary to cover the possible
health and safety risks associated with
the use of the product.
Compliance with European Direc-
tive 89/686/EEC: Personal protective
equipment (PPE).
UNE EN 795:2012
Anchorage designed for safety lines
equipped with 12 mm diameter steel
cable.
ESSENTIAL
TECHNICAL SPECIFICATIONS
Limit load capacity established by the
manufacturer for use in the indicated
direction.
Code respective to the production bat-
ch and correlative to the part version.
062020
Individual identication code.
(A):part denomination.
(XXXX): unique numeric code.
A0854
Essential instructions for
product use described in the
manual.
Marking a line on cable will indicate if the cable has slipped.
Marking a line on the screws will indicate if the anchor
loosens over time.
The screws will not be tight if the line is not straight.
Use a permanent marker in a visible,
weather-protected color
Ø12mm
20kN

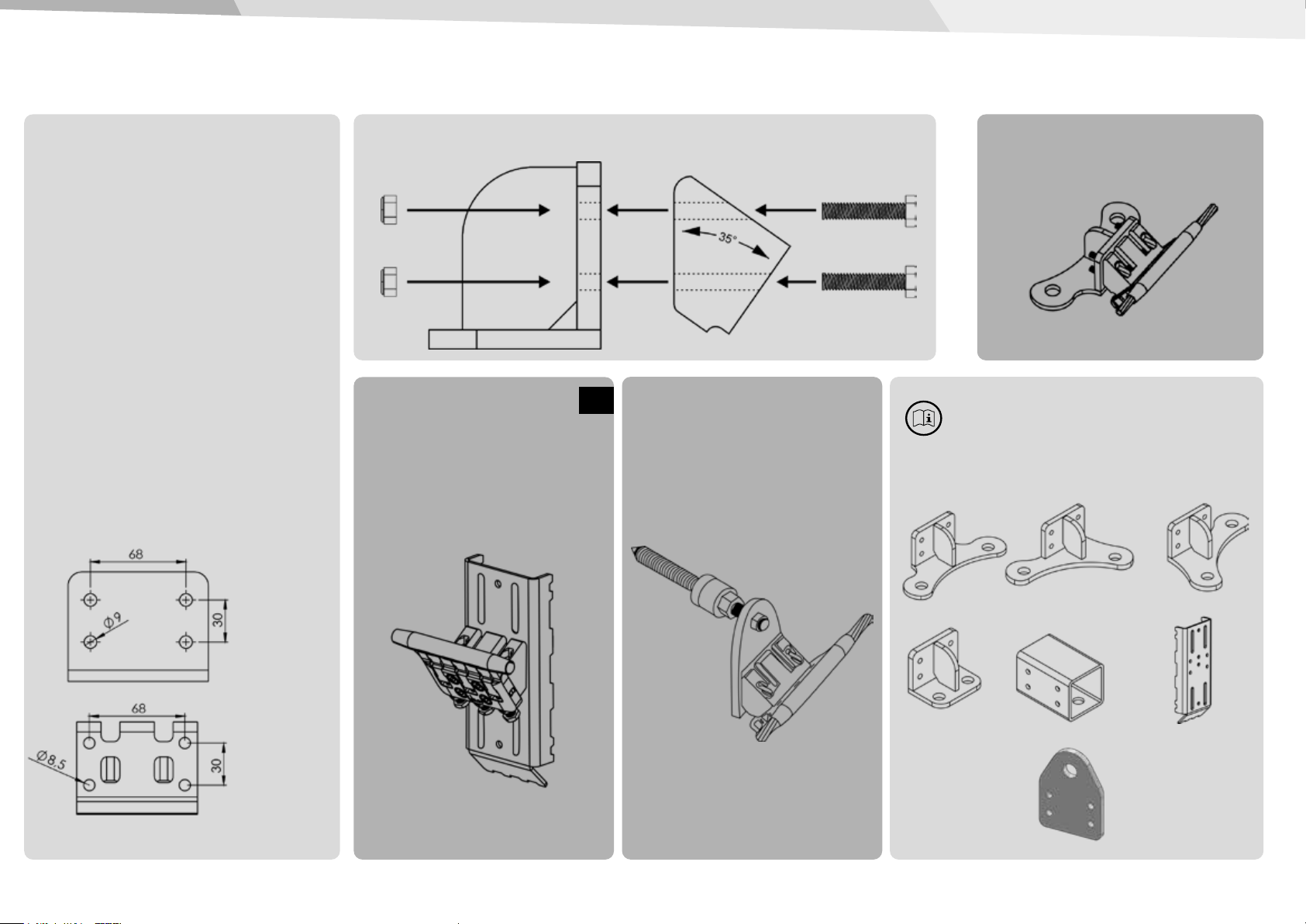

3ANCHOR WEDGE
Reference: CR-AW
Anchor Wedge is a piece of cast steel
whose function is to provide the ideal in-
clination of 35º for Anchor. This is the
standard connecting element for atta-
ching the Anchors to the structural poles
of an adventure park.
3.1 Description
3.2 ANCHOR & ANCHOR WEDGE ASSEMBLY
ASSEMBLY ORDER
1ST STEP
2ND STEP
Required tools:
Spanner - ISO/DIN13mm
Tighttened 20 N/m
Required tools:
Hexagonal torque wrench -
6mm (7/32’’)
Tighttened 20 N/m
Anchor Wedge Screws
DIN 933 M8x35
Anchor
Anchor Wedge
Self-Locking nuts
DIN 985 M8
x8
Washer
M8 NFE25514
x8
The location where the IMN&CLiC-iT CBS
elements will be installed shall meet the
following requierements:
• Must have sufcient mechanical
strength to install the system
• A vertical surface is required to install
Anchor Wedge
• This vertical surface must have the
necessary holes to screw Anchor
Wedge
Holes dimensions to
install Anchor Wedge
3.3 ANCHOR WEDGE INSTALLATION
The connection of Anchor Wedge on a vertical surface is carried out according
to the following scheme:
Required tools:
Spanner - ISO/DIN13mm
Example for structural parks
Anchor + Anchor Wedge + Connection part
Example of
connection part
design for struc-
tural parks
Anchor Wedge
holes dimensions
Before the purchase of IMN&CLiC-iT CBS
items it is necessary to know the park cha-
racteristics and design the structural com-
ponents necessary for the installation of
the system
Example on anchor
adapted for trees
Anchor + Anchor wedge +
Anchor adapted for trees
6.
Example on wedge adaptator
LE CLOU
Anchor + Anchor wedge + Wedge adaptator
LE CLOU (ref. CR-AN-AD) +
LE CLOU SPACER (ref. CL-CBUM22)
For starts and nishes courses only

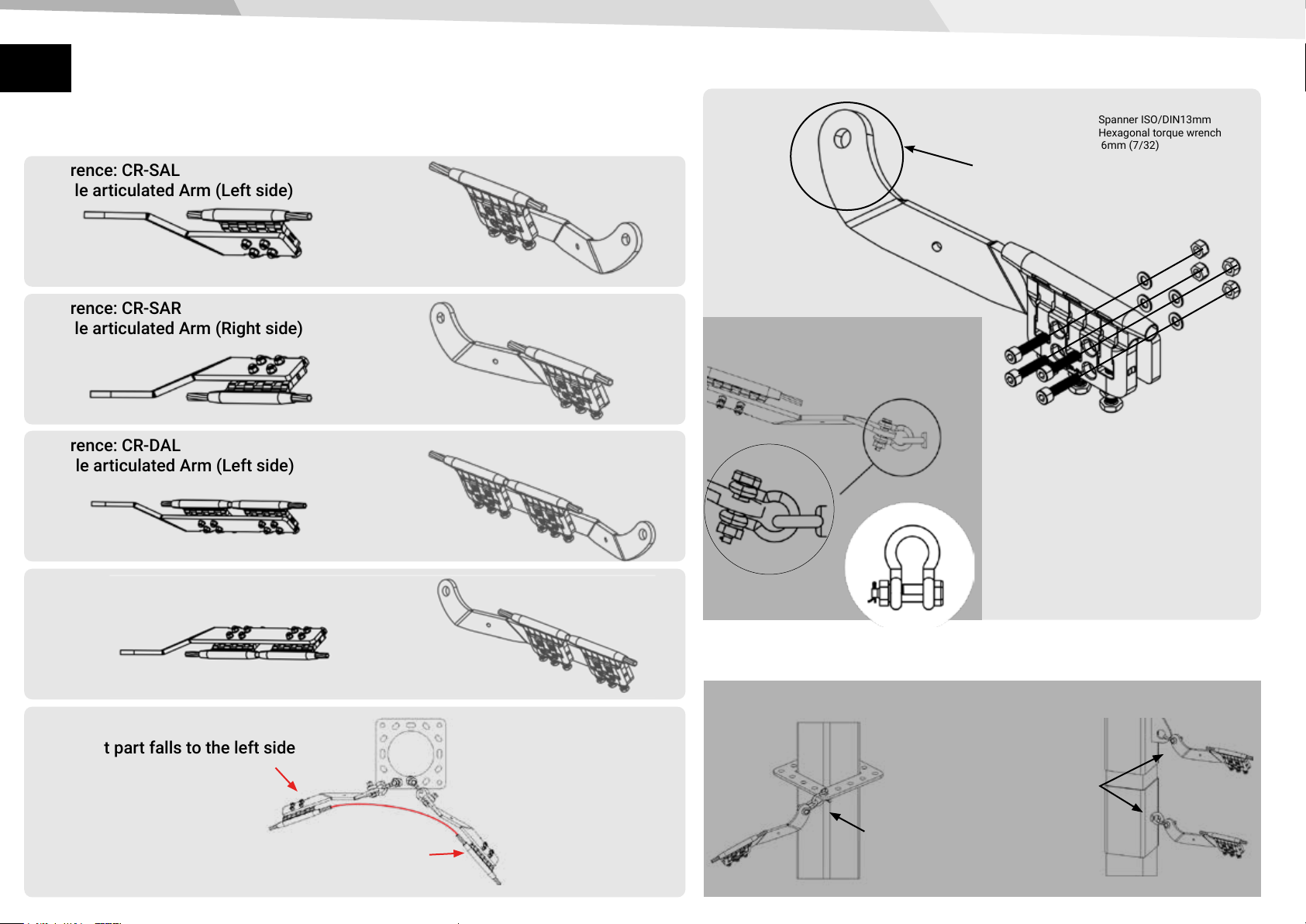

4ARTICULATED ARMS
Reference: CR-SAL
Simple articulated Arm (Left side)
4.1 ARTICULATED ARMS. TYPES AND CONNECTIONS
4.2 ANCHOR AND ARTICULATED ARMS ASSEMBLY
Reference: CR-SAR
Simple articulated Arm (Right side)
Reference: CR-DAL
Double articulated Arm (Left side)
Left arm
The front part falls to the left side
4.3 ARTICULATED ARMS installation in structural parks
Reference: CR-DAR
Simple articulated Arm (Right side)
Right arm
The front part falls to the right side
The arm is installed with one or
two 1/2 inch shackle with safety
bolt depending on the case.
For vertical structural
connections, one
For horizontal structural
connections, two shackles
Required tools:
Spanner ISO/DIN13mm
Hexagonal torque wrench
6mm (7/32)
Anchor
Articulated arm
For a smooth passage of the pulley over the anchors,
install articulated arms with this part vertical
TO BE USED TO FIX
ARTICULATED ARMS
The shackle nut must be
installed on the opposite side to
the anchor
Shackle with safety bolt CMU2T MR 1/2 inch
Reference : CR-MLA

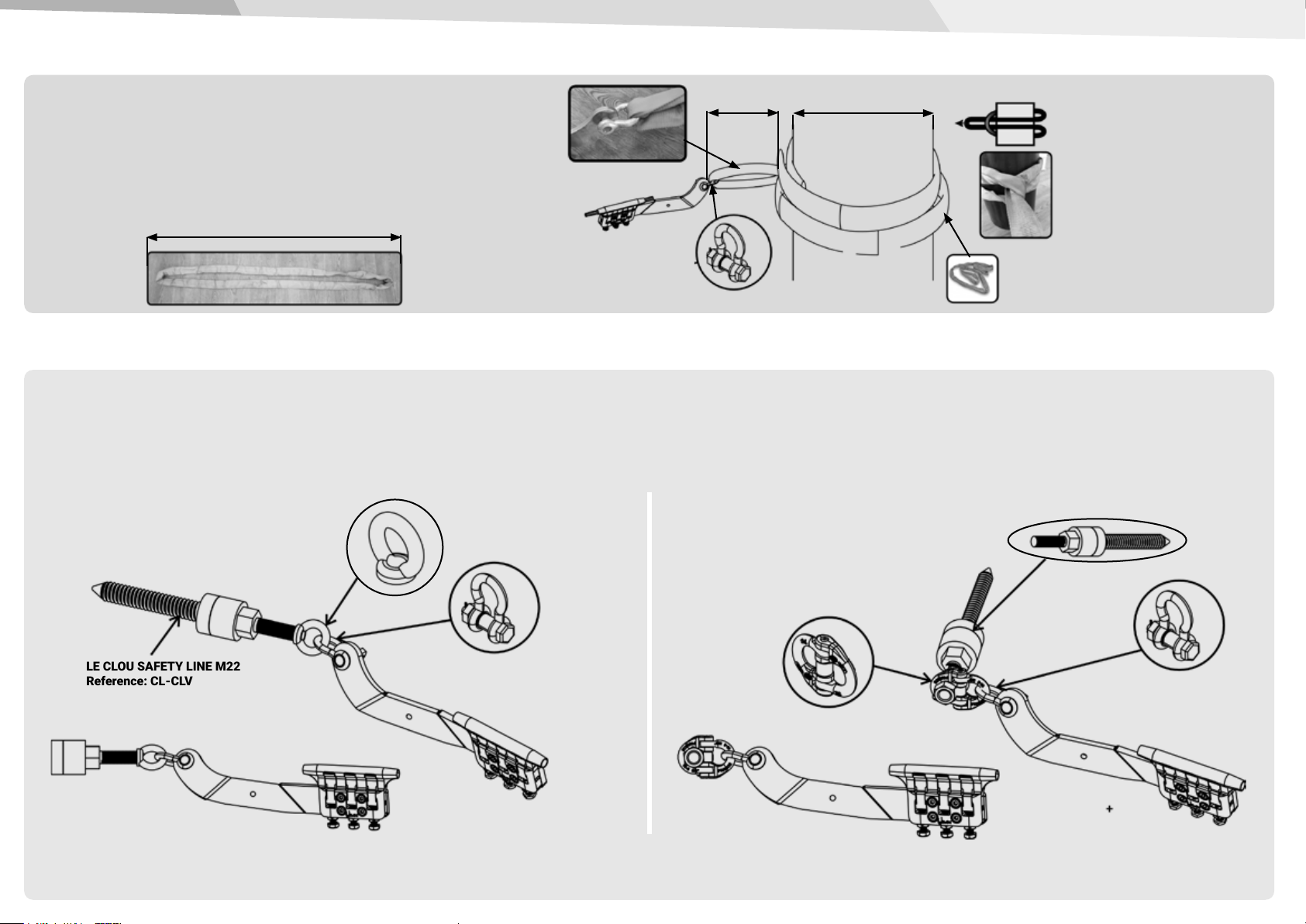

4.5 ARTICULATED ARM INSTALLATION ON TREES USING LE CLOU system
FOR AXIAL LOAD ONLY
To install an Articulated Arm on a tree, a a sling with a
strength greater than 2000 Kg is recommended.
The remaining length after the knot should protrude
between 10 and 15 cm.
Be sure to measure the diameter of the tree at the height
where the installation will be made.
LE CLOU SAFETY LINE M22
Reference: CL-CLV
4.4 ARTICULATED ArM INSTALLATION ON TREES USING LIFTING SLING
Slings are measured end to end
Ø Tree10-15cm
Lark’s head
Articulated Arm
+
Anchor 2.000Kg
Lifting Sling
1/2 (inch) Shackle with safety bolt
FOR AXIAL & RADIAL LOAD
M22 1T2
Female lifting eye
Reference: CL-ALM22
Articulated Arm
+
Anchor
1/2 (inch)
Shackle
with safety
bolt
Junction link
MR Ø10-8 CMU
3T150 Type
Reference: CL-MJ
1/2 (inch)
Shackle
with safety
bolt
Articulated Arm
+
Anchor
+
LE CLOU SAFETY LINE M22
Reference: CL-CLV

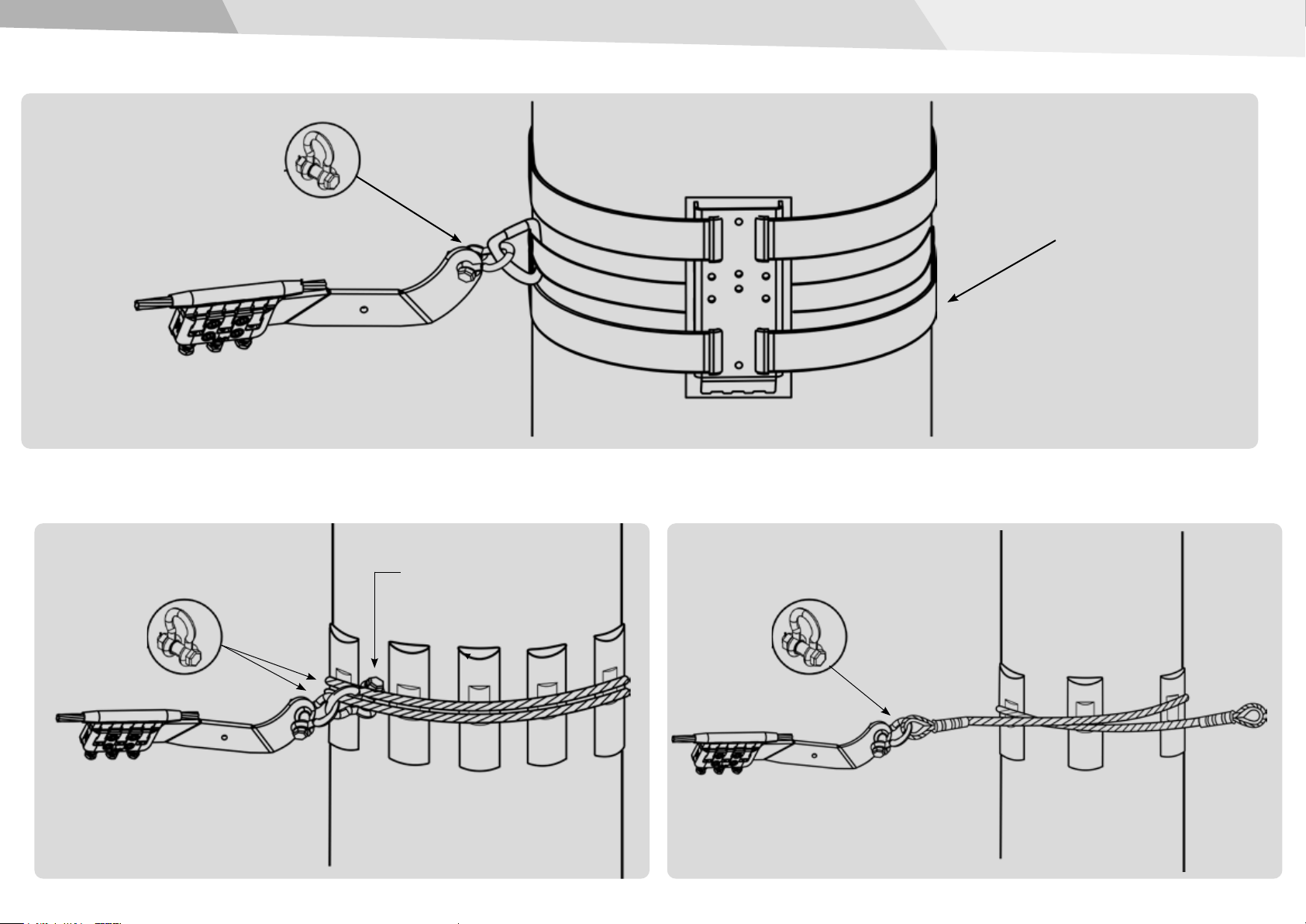

4.7 INSTALLATION of articulated arm on tree with CABLE SLING
4.6 INSTALLATION OF ARTICULATED ARM ON TREE WITH RACTHET STRAP
Articulated arm
+
Anchor
Articulated arm +
Anchor
The shackle in direct contact
with the cable must be posi-
tioned with the screw facing
the tree.
CABLE SLING
Preferred for zipline installations
Double SHACKLES
Ratchet strap 3m
Référence : CR-RT-30
1/2 (inch)
Shackle
with safety
bolt
1/2 (inch)
Shackle
with safety
bolt
Articulated arm +
Anchor
1/2 (inch)
Shackle
with safety
bolt
Autres manuels pour RiDER
2
Table des matières
Autres manuels CLiC-iT Équipements de sécurité
CLiC-iT
CLiC-iT ADVENTURE Instructions d'installation
CLiC-iT
CLiC-iT RiDER Instructions d'utilisation
CLiC-iT
CLiC-iT RiDER Instructions d'utilisation
CLiC-iT
CLiC-iT CLiC-iT 21 Manuel utilisateur
CLiC-iT

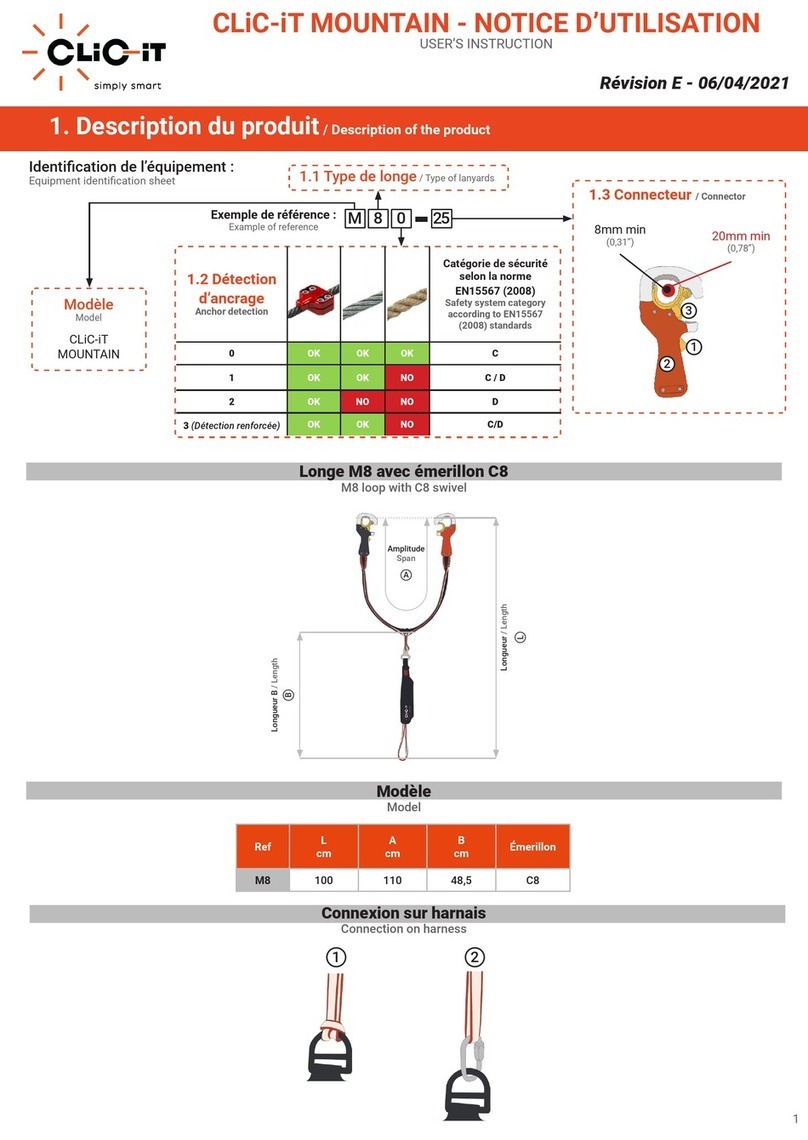

CLiC-iT M8 Manuel utilisateur
