ASSEMBLY INSTRUCTIONS
GC0416
5-SHELF BOLTLESS SHELVING UNITS
MODEL NO: CSR4200
PART NO: SEE TABLE PAGE 2
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE Shelving Unit.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Please keep these instructions in a safe place for future reference.
SCOPE
These instructions cover the following models
SPECIFICATIONS
Description Model Part Number
4-Shelf 200kg Boltless Shelving (Light Grey) CSR4200/40LG 6600710
4-Shelf 200kg Boltless Shelving (Blue) CSR4200/40BL 6600712
4-Shelf 200kg Boltless Shelving (Red) CSR4200/40RP 6600714
Model Dimensions
(W x D x H)
Weight
(Empty)
Load per
shelf (evenly
distributed)
All CRS4200 Units 900 x 400 x 1800 mm 14.2kg 200 kg
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

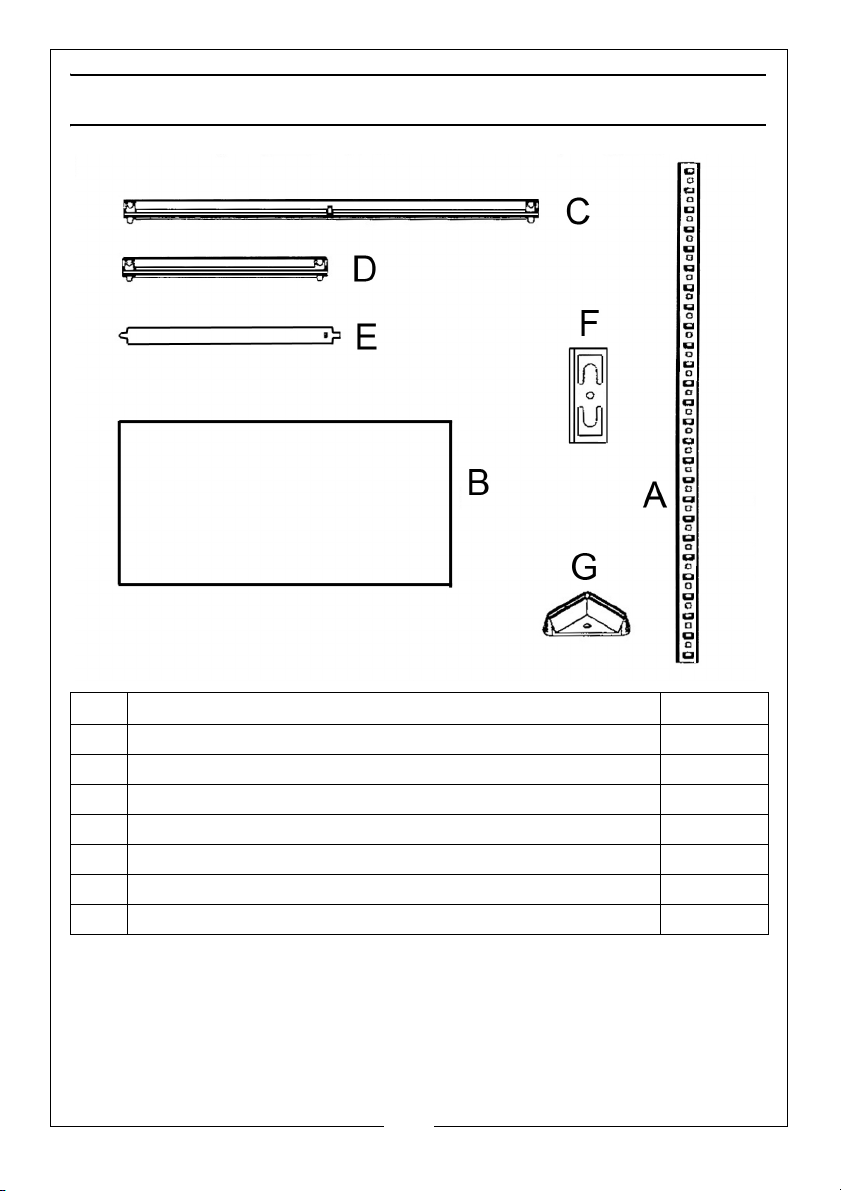

INVENTORY
No Description Quantity
APost 8
B Shelf 4
CLongBeam 8
DShortBeam 8
ESupportBeam 4
F Post Joining Insert 4
G Plastic End Cap 8
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ASSEMBLY ADVICE
1. Assemble on a strong, level surface. Avoid assembly on a domestic carpet.
2. Use a cloth or softwood block to protect the surface finish of the product
when using a mallet. Strike the flat surface of each beam to prevent
damage to the beam.
3. Always ensure that the tabs enter fully into the slots.
4. It is recommended that the assembly should be done by two persons.
5. Always wear protective gloves when assembling the shelving unit.
6. The shelving unit is not recommended for outdoor use.
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED
• Rubber mallet or hammer
• Protective cloth/wood block
The tabs of the beams will often enter
the slots fully using just firm hand
pressure but if they are too tight, you
may require a rubber mallet to assist.
If so, always use a cloth to protect
the product paint finish.
Tap gently with the mallet to drive the
tabs of the beams fully into the slots in
the post. Always strike the edge close
to the post.
1. Use the short beams (D) to
connect the front and rear posts
(A) together.
NOTE: The short and long beams
should be installed with the
recessed edge uppermost to
retain the shelf.
• Repeat this again to create the
other end assembly, making sure
that the corresponding beams
are at the same height.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
2. Ensure the tabs lie flat against the
surface of the post.
3. Join the two end assemblies
together with the long beams (C).
4. Connect the support beams (E) to
the long beams (C). First bend the
flexible tabs to 90 degrees to pass
them through the slotsin the long
beams.
• The tab initially pays flat against
the long beam (C).
5. Next, bend the tab back through
180 degrees to grip the long
beam.
• Use a screwdriver or similar tool to
bend the tabs.
6. Finally bend the tab again through
90 degrees the opposite way, to
seat tightly against the support
beam (E).
7. . Ensure there is no movement
between the beams.
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
8. Fit post joining inserts (F) into the
posts (A), ensuring that the inserts
are fitted with their tabs to match
the slots of the posts.
9. Construct more upper end
assemblies onto the post inserts (F)
before adding more long beams
and support beams as previously
to complete the framework.
10. Lay the shelf panels (B) into
position.
• Always assemble the top shelf at
the highest possible position.
11. Fit the plastic end caps (G) to the
end of each post (A).
We recommend that the shelving be
secured to an adjacent wall using
typical wall insert plugs and screws
(not supplied) aligned with the slots in
the posts.
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GENERAL SAFETY RULES
1. Always maintain shelving in good condition for the best/safest
performance.
2. Never exceed the maximum load for these shelving units as stated in the
specification.
3. Never use these shelving units if they are damaged.
4. Always load small, stable items on the top shelves, heavier and bulky items
should be stored on the lower shelves.
5. Always distribute heavy loads evenly across the shelves.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Do not dispose of old products or damaged parts with general household
waste. All tools, accessories and packaging no longer required should be
sorted, taken to a recycling centre and disposed of appropriately.
