Clarke CIR450 Manuel d'installation et d'exploitation

OPERATING & MAINTENANCE

INSTRUCTIONS

GC0309

PROFESSIONAL CORDLESS

IMPACT WRENCH

Model CIR450

Part No 4500630

INTRODUCTION

Thank you for purchasing this CLARKE Impact Wrench.

Before attempting to operate the machine, it is essential that you read this

manual thoroughly and carefully follow all instructions given. In doing so you

will ensure the safety of yourself and that of others around you, and you can

also look forward to the product giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of

12 months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All tools,

accessories and packaging should be sorted, taken to a recycling

centre and disposed of according to the laws governing Waste

Electrical and Electronic Equipment.

BATTERY DISPOSAL

Dispose of old batteries in accordance with local authority regulations. Do

not incinerate or crush, as this will increase the risk of explosion and

contamination. If the battery contents come into contact with skin or the

eyes, rinse with clean water for several minutes and seek medical advice

immediately afterwards.

CONTENTS

Introduction ............................................................................................ 2

Guarantee .............................................................................................. 2

Environmental Protection ...................................................................... 2

Component Inventory ........................................................................... 3

Safety Precautions ................................................................................. 4

Electrical Connections .......................................................................... 6

Safety Symbols ....................................................................................... 7

Component Identification .................................................................... 7

Initial Battery Charging ......................................................................... 9

Operation ............................................................................................... 9

Recharging ........................................................................................... 11

Maintenance ........................................................................................ 11

Parts List and Diagram......................................................................... 12

Parts & Service Contacts ..................................................................... 12

Technical Specifications ..................................................................... 14

Accessories .......................................................................................... 14

Declaration of Conformity .................................................................. 15

COMPONENT INVENTORY

The CIR450 is a professional, cordless impact wrench which is rechargeable

using the mains power adaptor.

Upon receipt, unpack and lay out the components, checking against the

following list. Any damage or deficiency should be reported to your CLARKE

dealer immediately.

1. 24V Impact Wrench with 1.7Ah battery cartridge

2. Battery-charging unit

3. Side handle

4. Moulded tool-case

5. Operators manual (this document)

SAFETY PRECAUTIONS

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - do not let children handle the wrench.

4. DO NOT use in damp or wet conditions. Keep the work area well lit. Do not

use where a risk of fire or explosion is present.

5. Although the impact wrench may be used outdoors, DO NOT leave it

exposed to the elements. Avoid direct sunlight, direct heat, rain/moisture

etc.

6. Always keep body and clothing dry. Never work in damp area without

adequate insulation against electric shock.

7. Do not fit the wrench to a stand or clamping device that may damage it.

GENERAL USE

1. This product vibrates during use. Vibration may be harmful to your hands

or arms. Stop using the machine if discomfort, a tingling feeling or pain

occurs and seek medical advice before resuming use.

2. ALWAYS use ear defenders.

3. ALWAYS stay alert and use common sense - do not use this product when

you are tired or under the influence of alcohol or medication.

4. ALWAYS ensure that the socket is correctly installed before switching on.

5. ALWAYS only use sockets which are specified for impact wrench use.

6. ALWAYS ensure the workpiece is firmly secured leaving both hands free to

control the impact wrench.

7. ALWAYS store this product in a dry, secure place out of reach of children

or untrained users.

8. ALWAYS keep all equipment dry especially the battery & battery charger.

9. ALWAYS keep metal objects such as coins, keys, nails or other small metal

objects which could make a connection from one terminal to another,

away from the battery cartridge. A short circuit across the terminals could

cause sparks, burns or start a fire.

10. ALWAYS ensure the machine has stopped before putting it down after use.

11. ALWAYS set the forward/reverse Switch-bar to neutral when changing bits

or when the machine is not required for immediate use. This will avoid

accidental starting.

12. ALWAYS check for any damage or any condition that could affect its

operation. Any damaged part should be properly repaired.

13. NEVER force or misuse the machine. It will do a better and safer job at the

rate for which it was designed.

14. NEVER use this product if it is defective / operating abnormally.

15. NEVER carry the machine with your finger on the trigger.

16. NEVER abuse the mains cable of the battery charger. Never yank the

cable to disconnect it from the socket. Keep the cable away from sharp

edges/hot surfaces.

17.NEVER over-reach. Keep proper footing and balance at all times.

18. NEVER use this product for any other purpose than that described in this

booklet.

19. NEVER carry out any alterations or modifications to this product.

20. NEVER attempt to wipe the machine clean with solvents. Wipe plastic

parts with a soft cloth, slightly dampened with soapy water.

21. NEVER attempt any repairs yourself. If you have a problem with this

product contact your local CLARKE dealer.

IMPACT WRENCH SAFETY INSTRUCTIONS

1. ALWAYS use the impact wrench in the manner and for the functions

described in these instructions.

2. ALWAYS ensure the machine is not moving with the switchbar in the centre

position when changing sockets etc. Use only Impact Wrench

sockets....DO NOT use standard sockets.

3. ALWAYS finish tightening wheel nuts or engine parts with a torque wrench

or suitable spanner to the correct torque as recommended by the vehicle

manufacturer.

4. ALWAYS avoid excessive use of the wrench. When tightening a nut or bolt,

never allow the wrench to impact more than 8 times - to avoid over

tightening - 3 to 4 impacts is normally sufficient.

5. ALWAYS use outdoor extension leads if working outdoors. Always use an

approved cable extension suitable for the power rating of the battery

charger (see specifications), the conductor size should also be at least the

same size or larger than that on the charger. When using a cable reel,

always unwind the cable completely.

Additionally, please keep these instructions in a safe place for future reference.

ELECTRICAL CONNECTIONS

This product is provided with a 13 amp, 230 volt (50Hz), BS 1363 plug, for

connection to a standard, domestic electrical supply. Should the plug need

changing at any time, ensure that a plug of identical specification is used.

The battery charger for this appliance is of double insulated design

No earth conductor is provided. The two wires in the mains lead should be

wired up in accordance with the following colour code:

Blue — Neutral

Brown — Live

Connect the BROWN coloured cord to the plug terminal marked a letter “L”

Connect the BLUE coloured cord to the plug terminal marked a letter “N”

If the battery charger for this appliance is fitted with a plug which is moulded

on to the electric cable (i.e. non-rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a

danger of electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace the fuse cover, ensure that the correct

replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local Clarke dealer

or most electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating and this

replacement must be ASTA approved to BS1362.

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical

repairs yourself.

CABLE EXTENSION

Do not use an extension longer than 10 metres and one where the

conductors, are less than 1.5mm2.

If used outdoors, ensure the extension cable is designed for outdoor use.

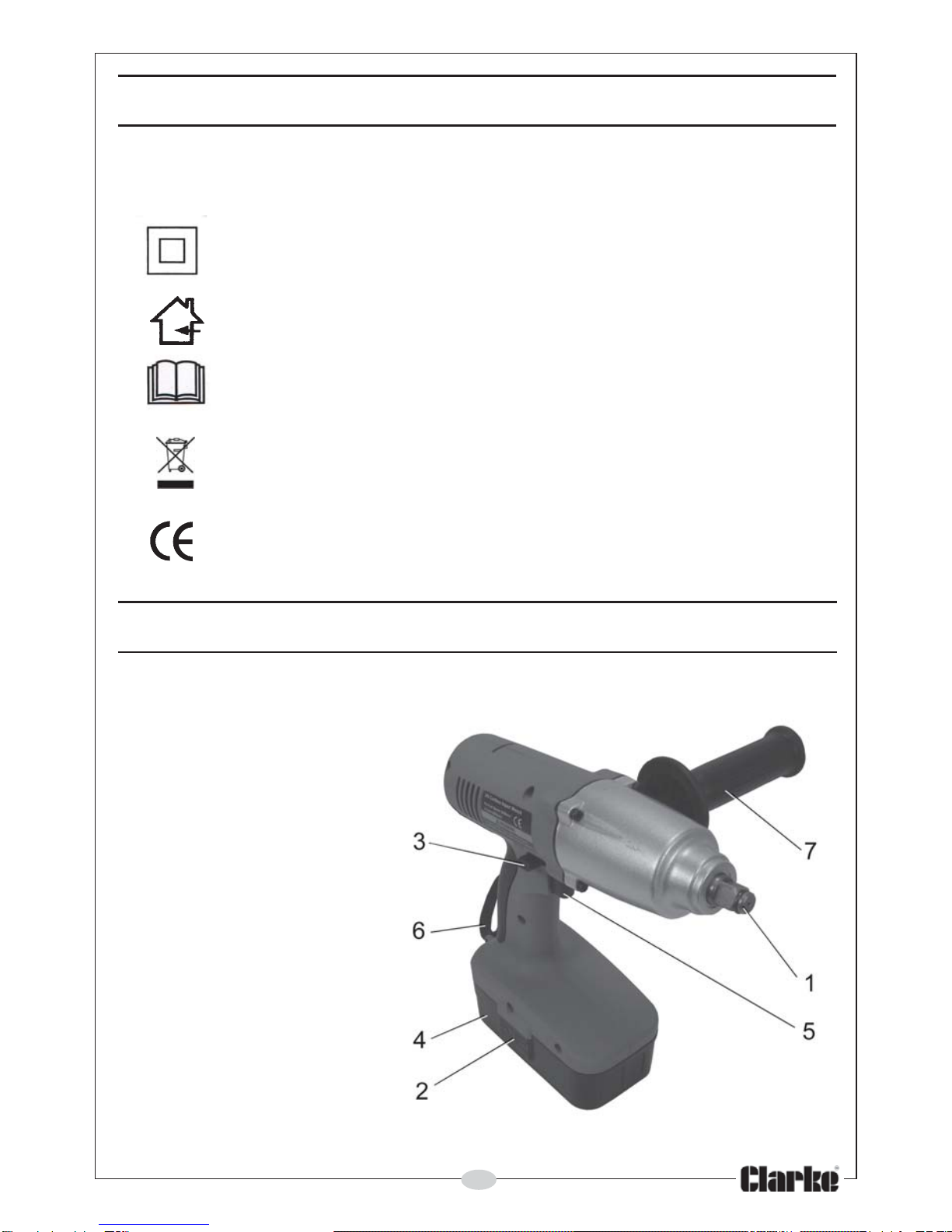

COMPONENT IDENTIFICATION

1. 1/2” Square Socket Drive

2. Battery Release Button

3. Forward/Reverse Switch-bar

4. Battery Pack

5. Trigger

6. Wrist Strap

7. Hand Grip

SAFETY SYMBOLS

The full technical specification of the battery charger is printed on a label on

the charger. The meanings of the markings and symbols are shown below.

Class II appliance which does not need an earth connection

For indoor use only

Read the manual before operating this machine

Falls under the Waste Electrical & Electronic Equipment directive

(WEEE)

European Certificate of Conformity

FIG 1

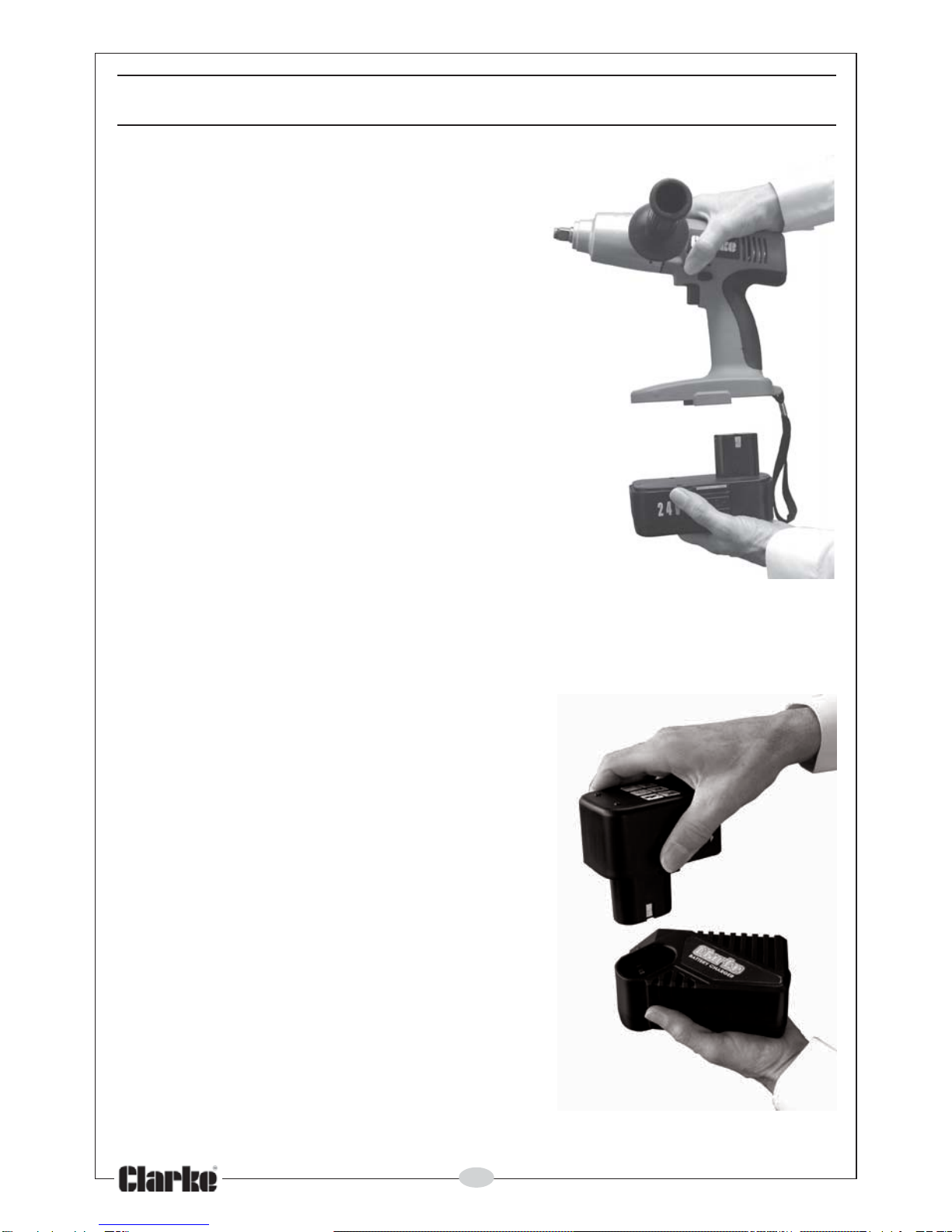

BATTERY CHARGING

1. The new battery pack will require

charging before use.

2. Squeeze the battery release buttons on

either side of the battery pack and pull

gently down to disengage the battery

pack from the machine as in Fig 1.

3. Insert the battery pack into the battery

charger, as shown in Fig 2, noting that it

will only fit one way.

4. Plug the charger into a 230v (mains)

power supply and switch ON.

• The green POWER ON light will

illuminate with the RED charging light

flashing and charging will begin.

• If charging does not take place,

ensure all connections are clean

and free of grease etc.

• If the red charging light will not stay

on for more than a few moments, the battery

pack is likely to be defective and it must be

replaced with a new one.

• When the RED charging light goes out

after about 1/2 hour, and the GREEN

light remains on, the battery pack can

be considered charged and be

removed. The charging time will be

dependant upon the initial state of the

batteries.

• When charging a new battery pack it

may initially not accept full charge. This

is common & does not indicate a fault.

It can be recharged fully after it has

been discharged a couple of times.

5. After charging, switch off and unplug the

charger from the power supply.

6. Remove the battery pack from the

charger and slide it back into the

machine until it clips into place. The

battery pack should slide in easily.

FIG 1

FIG 2

If the battery pack is not to be fitted immediately, ensure that the metal contacts

are protected so as to avoid the possibility of a short circuit which would cause

damage.

Remember to avoid extremes of heat or cold when charging. Avoid temperatures

outside the range of Minimum 4°C /Maximum 50°C. Avoid placing batteries in

direct strong sunlight or other heat source.

NOTE:

Ni-Cad batteries as used in Clarke cordless power tools should be given a

full charge when first supplied new. Maximum battery performance will be

achieved after approximately 5 complete charge/discharge cycles.

The battery should be fully discharged before recharging in order to achieve its

optimum performance.

Constant topping up after only a small amount of charge

has been used will, in effect, reduce its capacity.

Nickel cadmium batteries will slowly lose their power whilst in storage. If they

become fully discharged, no not leave the batteries in this state for any length of

time.

OPERATION

CAUTION: ALWAYS BE SURE THAT THE TOOL IS SWITCHED OFF BEFORE

ATTACHING OR REMOVING A SOCKET. ALWAYS TAKE CARE TO USE THE

CORRECT SIZE SOCKET FOR BOLTS AND NUTS. AN INCORRECT SOCKET

WILL CAUSE DAMAGE TO THE BOLT OR NUT.

1. Align the chosen socket and simply push it onto the anvil. Use only

½”square drive impact sockets as listed on

page 14.

2. Squeeze the trigger to start the machine.

Release the trigger to stop.

3. To run the impact wrench in reverse, push the

switch-bar through the drive unit as shown in Fig

3. The direction of rotation is shown on the end

face of the switch-bar.

• The 3-position switch bar controls forward or

reverse direction of rotation. Select the

appropriate position ONLY when the machine is

STATIONARY. Do not move the switch-bar when

the spindle is moving. When the switch-bar is in

the central position the trigger is locked.

4. Always check the direction of rotation before

operation.

5. Turn off the machine as soon as the impact

sound is heard. FIG 3

Note: As the battery becomes discharged, the power available will drop.

Operating the machine at low speed will cause a reduction in torque.

6. After use, recharge the battery pack as shown on pages 8-9. Avoid

leaving your batteries in a discharged state.

LOOSENING A WHEEL NUT

1. Remove any wheel trim, before selecting the appropriate socket and

placing firmly on the square drive of the wrench.

2. With the FORWARD/NEUTRAL/REVERSE switchbar in the REVERSE running

position, and holding the wrench firmly in BOTH HANDS, pull the trigger. The

nut will be impacted repeatedly until it is loosened. IMPORTANT! Release

the trigger immediately the nut begins to loosen.

3. Jack up the vehicle according to the vehicles handbook so that the

wheel is clear of the ground, then proceed to fully undo the wheel nuts.

ENSURE THAT THE CORRECT SOCKET IS BEING USED FOR THE NUTS ON

YOUR PARTICULAR VEHICLE. AN INCORRECT SOCKET SIZE IS LIKELY TO

DAMAGE THE HEADS OF THE BOLTS/NUTS.

TIGHTENING A NUT

1 Start the nut by hand, ensuring it is not cross threaded, then with the

appropriate socket installed on the wrench, place it on the nut.

2. With the FORWARD/NEUTRAL/REVERSE switch-bar in the clockwise

(FORWARD) running position, and holding the wrench firmly in BOTH

HANDS, pull the trigger.

3. Run each nut up in turn until it is ‘nipped’ up only - do not tighten. When

all nuts are nipped up, tighten progressively by pulling the trigger fully and

allowing the action to operate for 3 to 4 impacts only to prevent

overtightening.

4. ALWAYS finish tightening with a torque wrench. The weight of the vehicle

will need to be placed on the wheel to prevent it from rotating while the

nuts are tightened. Ensure the final torque applied to the nuts meets the

vehicle manufacturer’s recommendations.

Table des matières

Autres manuels Clarke Outils électriques

Clarke

Clarke Strong-arm AHP 16 Mode d’emploi

Clarke

Clarke X-Pro CAT202 Manuel d'installation et d'exploitation

Clarke

Clarke CWS200 Mode d’emploi

Clarke

Clarke METALWORKER CBS20 Manuel utilisateur

Clarke

Clarke RI150LI Mode d’emploi

Clarke

Clarke CAT126 Manuel d'installation et d'exploitation

Clarke

Clarke CTILG 5060287 Instructions d'installation

Clarke

Clarke CAT84 Guide de dépannage

Clarke

Clarke Air CAT120 Manuel d'installation et d'exploitation

Clarke

Clarke CDP10B Mode d’emploi

Clarke

Clarke ZX-R Pro Series Mode d’emploi

Clarke

Clarke DU8 Manuel utilisateur

Clarke

Clarke 6505512 Mode d’emploi

Clarke

Clarke STRONG-ARM CSA12F Mode d’emploi

Clarke

Clarke CAT221B Mode d’emploi

Clarke

Clarke CSA20FBT Mode d’emploi

Clarke

Clarke Strong-Arm CSA20F Mode d’emploi

Clarke

Clarke CCIW160 Manuel d'installation et d'exploitation

Clarke

Clarke Air TPG30PTC Manuel utilisateur

Clarke

Clarke X-Pro CAT205 Manuel d'installation et d'exploitation

Clarke

Clarke Contractor CON15 Manuel d'installation et d'exploitation

Clarke

Clarke CAT210 Manuel d'installation et d'exploitation

Clarke

Clarke Contractor CON750 Mode d’emploi

Clarke

Clarke Strong-Arm AP500B Manuel utilisateur

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
