OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC08/22

DEVIL QUARTZ HALOGEN HEATER

MODEL NO: DEVIL 371SPD

PART NO: 6920261

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Quartz Halogen Infra-red Heater.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

SPECIFICATIONS

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

Model Number Devil 371SPD

Part Number 6920261

Weight 14.1 kg

Dimensions (LxWxH) mm 610 x 630 x 810

Rated Input Wattage 2.8 kW

Rated Input Amperage 21.8 A

Supply Voltage 110 V

Plug Rating 32 A

Insulation Class IP20

Max Heat Output 2.4 kW (2 x 1.2 kW elements)

Duty cycle Continuous

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE FOLLOWING TABLE ADDRESSES THE INFORMATION

REQUIREMENTS OF REG.2015/1188

Item Symbol Value Unit

Heat output

Measured seasonal space heating energy efficiency 35%

Nominal heat output Pnom 2.4 kW

Minimum heat output (indicative) P min 1.2 kW

Maximum continuous heat output P max 2.4 kW

Auxiliary electricity consumption

At nominal heat output elmax n/a kW

At minimum heat output el min n/a kW

In standby mode elSB 0kW

Type of heat input for electric storage local heaters only

Manual heat charge control with integrated thermostat No

Manual heat charge control with room and/or outdoor temperature feedback No

Electronic heat charge control with room and/or outdoor temperature

feedback

Fan assisted output No

Type of heat output/room temperature control (select one)

Single stage heat output, no temperature control No

With mechanical thermostat temp control No

With electronic temperature control Yes

Electronic temperature control with day timer No

Electronic temperature control with week timer No

Other control options (multiple selections possible)

Room temperature control with presence detection No

Room temperature control with open window detection Yes

Room temperature control with distance control option No

Room temperature control with adaptive start control No

Room temperature control with working time limitation Yes

Room temperature control with black bulb sensor Yes

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

1. These heaters are for INDOOR USE ONLY.

2. DO NOT expose the heater or power cable to rain or wet conditions. Any

water entering the heater will increase the risk of electric shock. DO NOT

use this heater in a bathroom, shower room or any other wet environment.

3. NEVER locate the heater near combustible materials such as curtains,

furniture etc. Allow at least 1 metre distance.

4. DO NOT locate the heater close to an adjacent wall or low ceiling. Allow a

distance of at least 1 metre from a wall or ceiling. Avoid placing the heater

directly below power socket outlets.

5. Take care to ensure that the wire guard cannot be covered.

6. DO NOT operate heater in explosive atmospheres such as in the presence

of flammable liquids, gases or dust such as in a paint spray booth or any

explosive environment.

7. NEVER stand the heater on a movable vehicle where it could tip over.

8. DO NOT allow the halogen tubes to become covered with dust which

could become a fire hazard. If used in a dusty workplace the heater should

be cleaned as described under Cleaning and Maintenance.

9. NEVER touch the halogen tubes for at least 15 minutes after switching off.

10. DO NOT leave the heater unattended.

11. If children are present always use with a fireguard.

12. Store the heater out of the reach of children and do not allow persons

unfamiliar with these instructions to operate it.

13. ALWAYS manoeuvre the heater using the handles provided and avoid

trapping the fingers between the handle and the heater body.

14. NEVER LEAVE THE HEATER UNATTENDED WHILE IN USE. TURN OFF AT NIGHT IF

UNATTENDED.

ELECTRICAL SAFETY

1. Electrical appliances must match the power outlet. Never modify the plug

in any way. Do not use adaptor plugs with earthed (grounded) appliances.

Correct plugs and outlets will reduce the risk of electric shock.

2. DO NOT use this product with an extension cable.

3. DO NOT abuse the electrical cable. Never use the cable for pulling or

unplugging the heater. Keep the cable away from sources of heat, oil,

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

sharp edges or moving parts. Damaged or tangled cables increase the risk

of electric shock.

4. Keep the power cable well away from machines and ensure an adequate

electrical supply is close at hand so that the operation is not restricted by

the length of the cable.

5. ALWAYS disconnect from the power supply before moving the heater or

performing any cleaning or maintenance tasks.

6. Inspect the power cable regularly for signs of damage. DO NOT use if it is

damaged, and ALWAYS keep it away from the source of heat.

7. Check the heater for damage before use. DO NOT use if the heater tubes

are damaged or broken. Any damage should be properly repaired or the

part replaced. If in doubt, DO NOT use. Consult your local CLARKE dealer.

SERVICE & REPAIRS

1. If necessary, have your heater repaired by a qualified person using

identical replacement parts. This will ensure that the safety of the product is

maintained.

Please keep these instructions in a safe place for future reference.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

This product contains valuable raw materials. Metal products should be

takento your local civic amenity site for recycling of metal products. Recycle

unwanted materials instead of disposing of them as waste. All unwanted

accessories and packaging should be sorted and taken to a recycling centre

for disposal in a manner which is compatible with the environment.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

DEVIL 371SPD (110V) UNIT

This 110V heater is fitted with a 32 amp, three pin industrial plug to EN 60309

and MUST be connected to a 110 volt, 1 phase 50 Hz supply through a suitably

fused isolator switch. On no account must a 230V, 13 amp (BS1363) plug be

used.

NOTE: If a portable 110V transformer is used, make sure it has a rated

capacity sufficient to take the load of the heater.

If the heater is hard wired into the electrical system all work must be carried

out in accordance with IEE regulations.

If the plug has to be changed due to damage, a replacement should be

fitted, following the wiring instructions shown below. The old plug must be

disposed of as insertion into a 110v socket could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond

with the markings on the terminals of your plug, proceed as follows.

•TheBlue wire must be

connected to the terminal

which is marked Nor

Neutral.

•TheBrown wire must be

connected to the terminal

which is marked Lor Live.

•TheYellow wire must be

connected to the terminal

which is marked Eor Earth.

If in any doubt, consult a

qualified electrician. DO NOT

attempt any repairs yourself.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW = EARTH

Plug must be BS60309 approved.

Neutral

Live

Earth

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

UNPACKING AND ASSEMBLY

UNPACKING

When unpacking, please check contents against the following list and advise

your dealer immediately if any parts are missing.

1 x Heater

1x Lower base frame

2 x Handles

3 x Castors (one with brake)

1 x Fixings pack

1 x Remote control unit

ASSEMBLY

1. Bolt the handles to the lower frame

using the two loose bolts &

locknuts noting the orientation of

the handles.

2. Lay the heater face down and

attach the complete frame to the

heater body using the securing

knobs and the spacers located

either side of the frame tubing.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

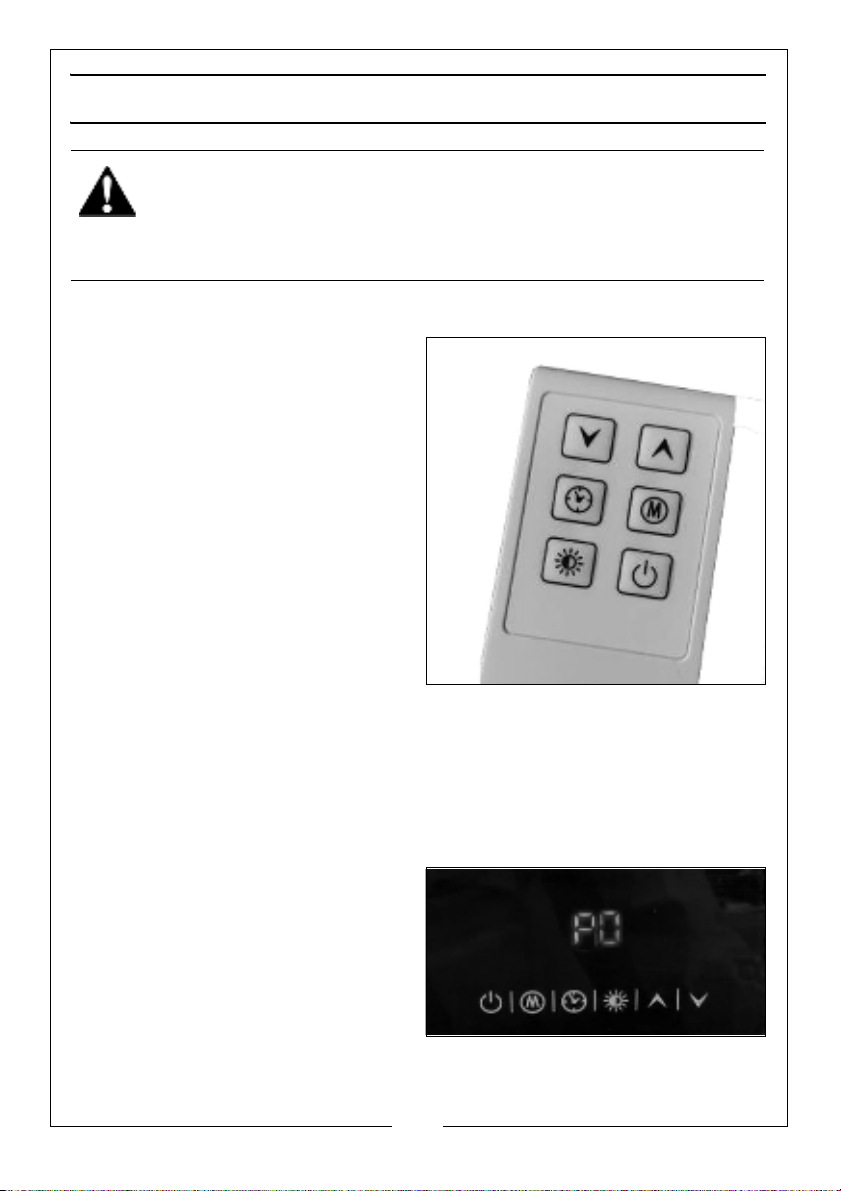

OPERATION

USING THE REMOTE CONTROL

All operations must be done using the

remote control.

• 2 x AAA batteries are required

and are installed as shown by

the diagram found inside the

control unit.

• The remote control must be

directed at the heater display

panel. It has a range of approx

2.5 metres and must be aimed

at the correct angle.

• The function of each button on

remote control is the same as

operation panel.

MANUAL OPERATION

1. Stand the heater on a firm, level surface and following all safety

precautions, connect to a suitable power supply.

• The heater is equipped with an anti-tilt switch that automatically

cuts the power off should the heater tip over. If this happens, stand

the heater upright and it will immediately re-set.

2. Switch on the power at the primary

switch on the side of the heater.

• The heater will be in Standby

with the display showing PO.

WARNING: FOR SAFE OPERATION OF THIS HEATER IT IS ESSENTIAL TO READ

THESE INSTRUCTIONS BEFORE USE.

WARNING: PLEASE NOTE THAT THE HEATING ELEMENTS OF THIS PRODUCT

DO NOT GLOW WHILST IN OPERATION. ANY PICTURES SHOWING THIS IN

ADVERTISING MATERIAL ARE FOR ILLUSTRATION ONLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

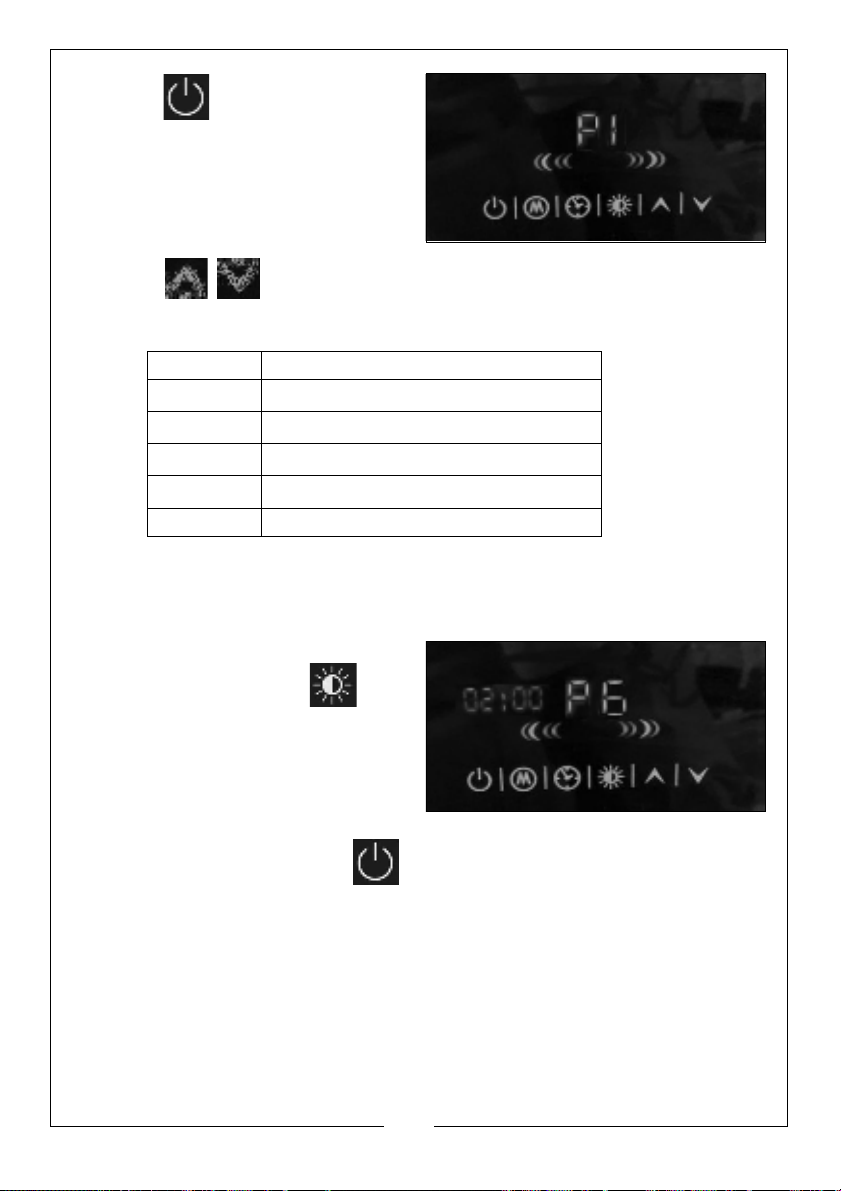

3. Press to turn on the upper

heating lamp and the screen will

show P1.

4. Press to select the mode from P1-P6, referring to the different

temperature settings.

• During mode P2-P5 the upper element is working all the time and the

lower element will be turned off automatically according to the set

temperature.

5. The user can change from mode

P1 and P6 by pressing . The

screen will show a cascade effect

when in mode P6.

6. To power off the unit, press again, the heater stops working, and

returns to standby with the screen showing ‘PO’.

7. Then switch off the main switch and unplug the heater.

P1 Only the upper element is working

P2 24o

P3 26o

P4 28o

P5 30o

P6 Both elements are working

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SETTING THE SHUTDOWN TIMER

1. Press to set the shutdown

timer. The time on the screen

flickers with initial status 00:00.

2. Press and to set the

time to turn the heater off.

• It increases/decreases 1 hour per press.

3. Press when you finish setting

and the heater will be in the

countdown mode.

• It will shut down 2 hours later.

4. When the time is up, the heater

turns off automatically and enters

the standby state P0.

FUNCTION FOR DETECTING OPENING WINDOWS

1. When the ambient temperature drops over 5oC within 10 minutes, the

heater will turns off automatically and enters a standby state with three

alarm beeps.

• Users need to turn on the heater manually by pressing-

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Chauffage

Clarke

Clarke DEVIL 340 Mode d’emploi

Clarke

Clarke DEVIL 4035 Manuel d'installation et d'exploitation

Clarke

Clarke CONTRACTOR GRH30 Mode d’emploi

Clarke

Clarke IRD20 Mode d’emploi

Clarke

Clarke OFR 9 Mode d’emploi

Clarke

Clarke Devil 6003 Mode d’emploi

Clarke

Clarke DEVIL 370PD Manuel d'installation et d'exploitation

Clarke

Clarke OFR 5/50 Mode d’emploi

Clarke

Clarke XR75 Manuel d'installation et d'exploitation

Clarke

Clarke Devil IRD20B Mode d’emploi

Clarke

Clarke DEVIL 7003 Mode d’emploi

Clarke

Clarke DEVIL 4003 Mode d’emploi

Clarke

Clarke DEVIL 350C Manuel d'installation et d'exploitation

Clarke

Clarke DEVIL 350B 230V Manuel d'installation et d'exploitation

Clarke

Clarke IQ2000S Manuel de la liste des pièces

Clarke

Clarke OFR 9/90 Mode d’emploi

Clarke

Clarke Devil 370P Manuel d'installation et d'exploitation

Clarke

Clarke DEVIL 371SPC Manuel d'installation et d'exploitation

Clarke

Clarke IQ2000 Manuel utilisateur

Clarke

Clarke DEVIL 370PC Manuel d'installation et d'exploitation

Clarke

Clarke DEVIL 370SPC Manuel d'installation et d'exploitation

Clarke

Clarke DEVIL 2000PTC-B Mode d’emploi

Clarke

Clarke BR9/200 Mode d’emploi

Clarke

Clarke DEVIL 5000PTC Mode d’emploi

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur

iLO

iLO IHP2424 Manuel d'utilisation
